JMT SPP-SBUS PPM PWM Signal Convertor Adapter Switch 3.3-20V 8CH 4.1g Module Interchang for RC Receiver Racing Drone Multirotor Accessories Item NO.: F44103

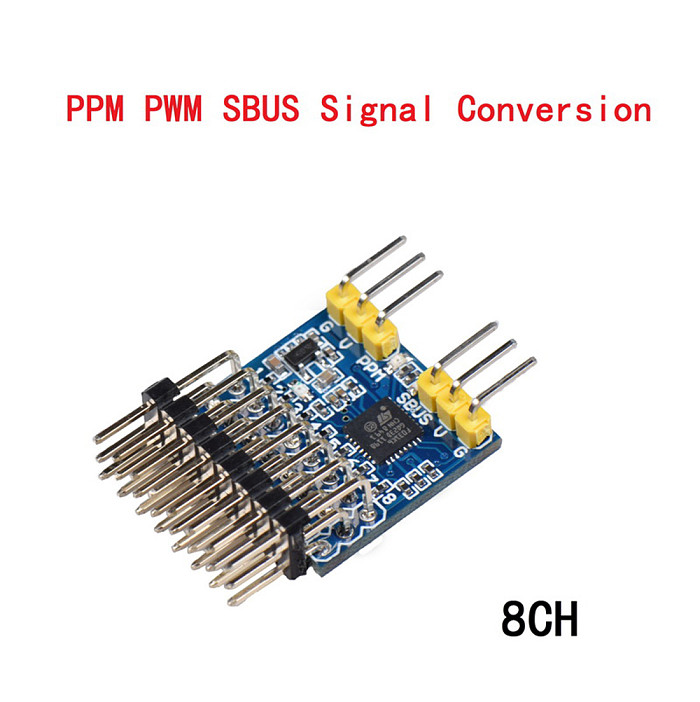

JMT SPP-SBUS PPM PWM Signal Convertor Adapter Switch 3.3-20V 8CH 4.1g Module Interchang for RC Receiver Racing Drone Multirotor Accessories

Description:
performance SPP converter produced by Jinhang Electronics, the module's wide voltage design supports up to 20V input, and adopts 32-bit single-chip microcomputer to complete signal acquisition, processing and conversion. The stability and speed are far superior to ordinary 8-bit single-chip microcomputer, and the input signal is automatically recognized without manual. Switch, plug and play, status indication is simple and clear, support 8 channels of input / output.

Features:
1. Input SBUS signal and output PWM and PPM signals simultaneously.
2. Input PWM signal and simultaneously output PPM and SBUS signals.
3. Input PPM signal and output PWM and SBUS signals simultaneously.

Specification:
Item Name: Convertor Adapter Switch
Input Voltage: 3.3-20V
Current: 15mA
Dimensions: 21*21mm
Weight: 4.1g
Input Signal:
PPM (CPPM)
PWM (Common Receiver Signal)
SBUS (For Futaba-R7008SB Series, FrSky, etc.)

Indicator Light:
1. When there is no signal input, the three indicators are all on (PPM green, SBUS blue, PWM red).
2. The input signal indicator always on and the output signal indicator is flashes.
3. For example, when the PPM signal is input, the PPM corresponding indicatoralways on green, and the PWM red and SBUS blue signal indicators are flashes.

Channel Description:
1. 1-8 channels are PWM signal input or output channels.
2. SBUS channel is the SBUS signal input or output channel.
3. PPM channel is PPM signal input or output channel.

Wiring instructions:
1. When any one or more channels of the 1-8 channel input PWM signals, the corresponding PPM channel outputs the PPM signal, and the SBUS channel outputs the SBUS signal.
2. When the PPM channel inputs the PPM signal, it corresponds to the 1-8 channel output PWM signal, and the SBUS channel outputs the SBUS signal.
3. When the SBUS channel inputs the SBUS signal, it corresponds to the 1-8 channel output PWM signal, and the PPM channel outputs the PPM signal.

Package Included:
1 x SPP Conversion Module
1 x 8P*2.54MM*3 PIN Straight Needle
1 x 8P*2.54MM*3 PIN Needle
1 x 6P*2.54MM PIN Needle
1 x 6P*2.54MM PIN Straight Needle
Note: the pins are self-welding.
