Product Name Flysky FS-IA8X 2.4GHz AFHDS 2A 8CH PPM IBUS Mini Receiver for FS-Nirvana FS-NV14 FS-i6 FS-i6s FS-i6x FS-i8 FS-i10 Transmitter RC Model
Item NO. F43142
Weight 0.025 kg = 0.0551 lb = 0.8818 oz
Category DIY RC Drone Accessories > Receiver
Brand Flysky
Creation Time 2021-03-10

Flysky FS-IA8X 2.4GHz AFHDS 2A 8CH PPM IBUS Mini Receiver for FS-Nirvana FS-NV14 FS-i6 FS-i6s FS-i6x FS-i8 FS-i10 Transmitter RC Model


Specification:
Brand name: Flysky
Item name: IA8X Receiver
Channels: 8
Data Output: PPM/i-Bus
Frequency Range: 2.408-2.475GHz
Brandwidth: 500KHz
Number of Bands: 135
Transmission Power: <20dBm
Receiver Sensitivity: -92dBm
2.4GHz Protocol: AFHDS 2A
Modulation: GFSK
Transmission Method: FHSS
Channel Latency: <15ms
Antenna: Single Antenna
Input Power: 4.0-8.4V
Display: LED Indicator
Online Update: None
Range without interference 1m from the ground: more than 200m
Channel Data: 1500us , Range: 1000~2000us
Dimensions: 15x13x3mm
Weight: <2g
Certification: CE , FCC

Package Included:
1 x Receiver

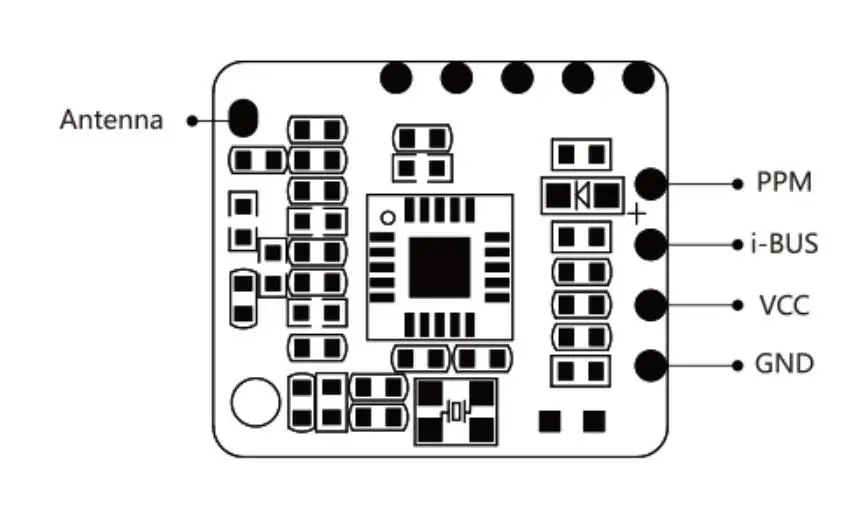

QQ截图20191231152342
Receiver code:
1. Put the transmitter into the code-matching state; (The way the transmitter enters the code-matching state may be different, please root
(According to the instruction manual of the transmitter)
2. The receiver enters the code pairing state when the power is turned on; the receiver turns on the code and waits for 15 to enter the code pairing state.
Status; receiver indicator flashes quickly
3. When the indicator light of the receiver turns on, it means that the code is successfully connected, and the receiver can communicate with the receiver normally.
4. Check whether the transmitter, receiver, and model are working properly. If you need to re-match, please repeat
Re-match the code in the previous step.


Compatible with these models:


QQ截图20191231152417
