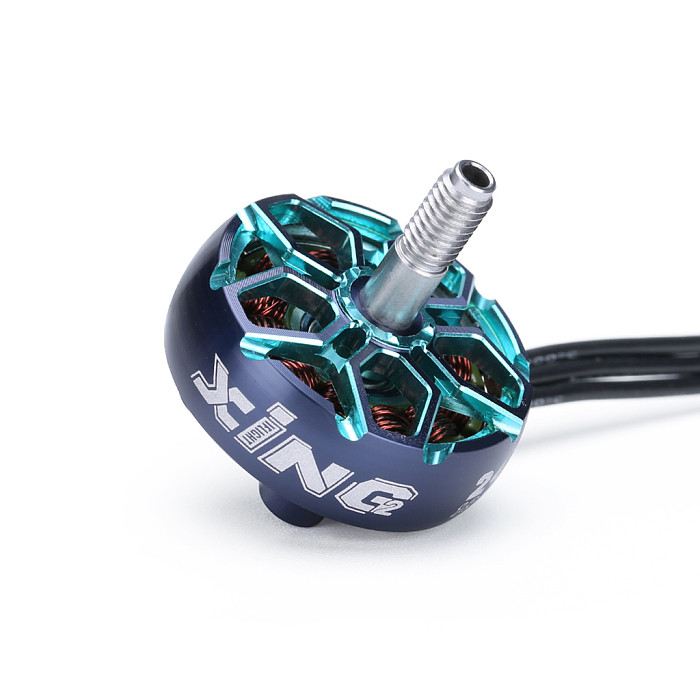

(iFlight)  XING2 2405 4S 6S 1800KV / 1950KV Motor  For FPV Crossing Machine

(iFlight) XING2 2405 4S 6S 1800KV / 1950KV Motor For FPV Crossing Machine Item NO.: F47581-D1 F47581-D2

Write a Review
US$ 21.15
US$ 22.99 Save US$ 1.84 (8% Off)
1800KV 1950KV

Copy and share this link on social network or send it to your friends

  • (iFlight) XING2 2405 4S 6S 1800KV / 1950KV Motor For FPV Crossing Machine
Product Name (iFlight) XING2 2405 4S 6S 1800KV / 1950KV Motor For FPV Crossing Machine
Item NO. F47581-D1 F47581-D2
Weight 0.052 kg = 0.1146 lb = 1.8342 oz
Category DIY RC Drone Accessories > Motor
Brand iFlight
Creation Time 2022-06-22

(iFlight)  XING2 2405 4S 6S 1800KV / 1950KV Motor  For FPV Crossing Machine

Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on
the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher
quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these
years, but now it's time to set a new standard again! We're finally ready to announce our predecessor the XING2!

The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our
manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were
introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight
controller is the motor due to it's translation delay of it braking and accelerating. XING2 motors offer faster
response to translate your PID loop quicker and get that locked-in feeling you were always looking for!

Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet
air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the
magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!

Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an
absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those
vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth
and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features
you've just seen on your original XING series are still inbuilt in a new shape and design!

- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced

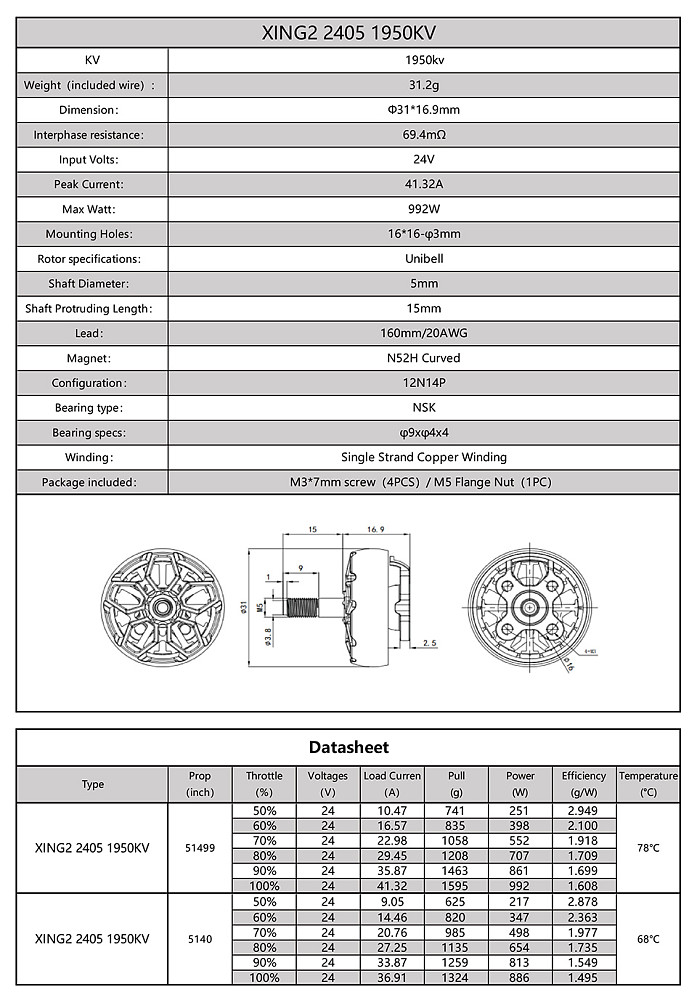

- Model: XING2 2405
- KV: 1800KV / 1950KV (optional)
- Common setup: 1800KV/1950KV, 6S battery, 5inch propeller
- Prop shaft: CW thread
- Recommended input voltage Voltage: 4S-6S (16V-26V)
- Configuration: 12N14P
- Stator Diameter: 24mm
- Stator Height: 5mm
- Weight: 30.7g with short wires
- Wire length: 20AWG 160mm
- Mounting pattern: 16*16mm

Package includes:

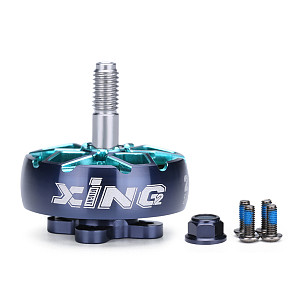

1x XING2 2405 Brushless Motor
4x M3x6 screws
1x Prop nut

NOTE: Propellers not included!
