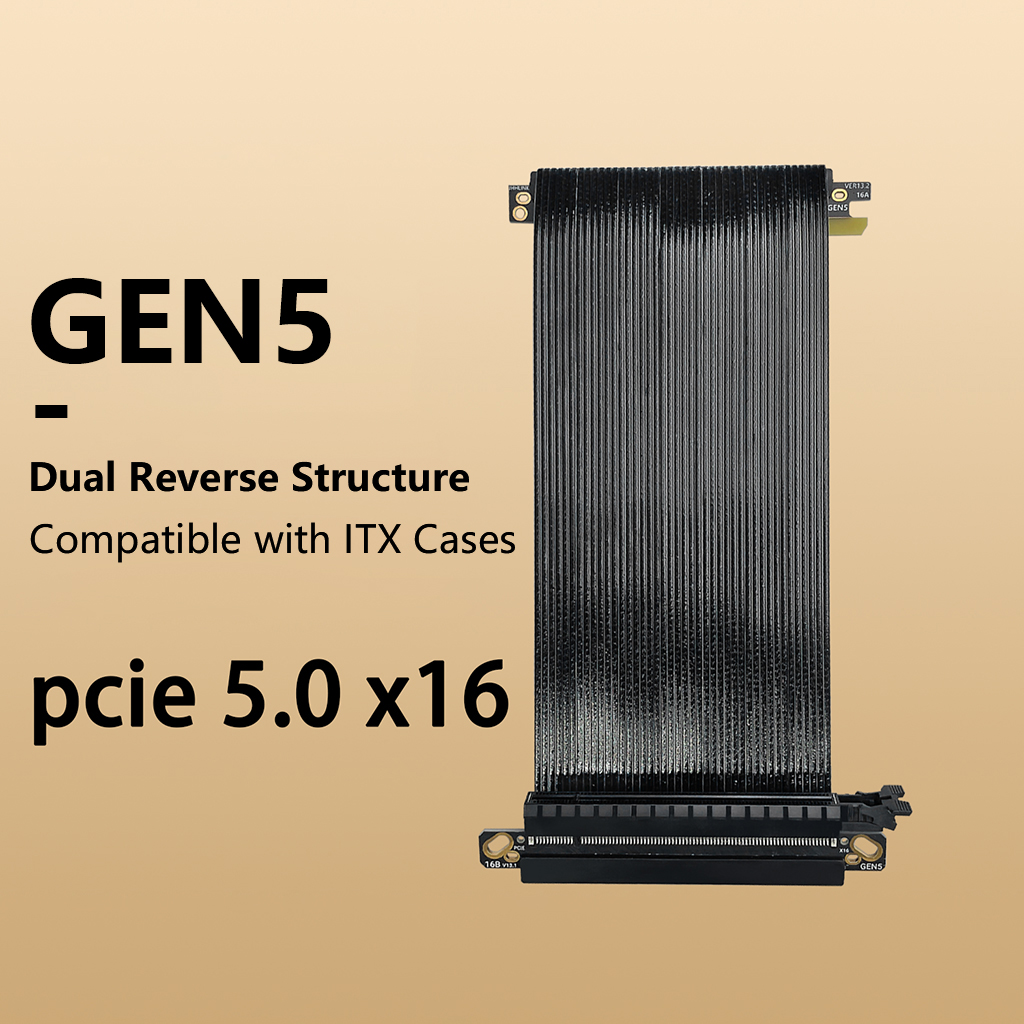

PCI E PCIe 5.0 X16 Riser Cable 25cm Silver-Plated Shielded Double Reverse PCI Express Gen5 for ITX Server Item NO.: F54136-B3

US$ 52.51

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

PCI E PCIe 5.0 X16 Riser Cable 25cm Silver-Plated Shielded Double Reverse PCI Express Gen5 for ITX Server

Product Name	PCI E PCIe 5.0 X16 Riser Cable 25cm Silver-Plated Shielded Double Reverse PCI Express Gen5 for ITX Server
Item NO.	F54136-B3
Weight	0.15 kg = 0.3307 lb = 5.2911 oz
Category	Computer Accessories
Brand	XT-XINTE
Creation Time	2025-05-15

PCI E PCIe 5.0 X16 Riser Cable Silver-Plated Shielded Double Reverse PCI Express Gen5 for ITX Server

Product Description:

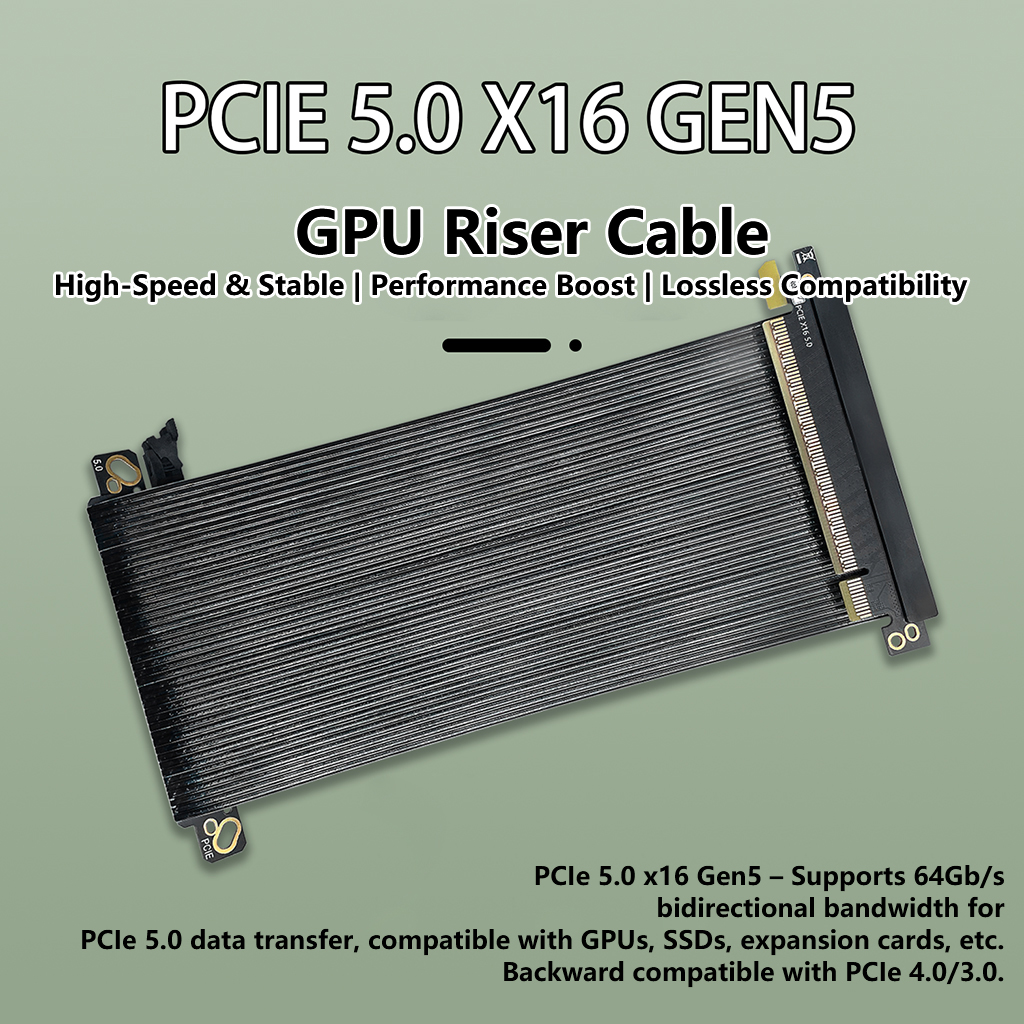

• PCIE 5.0 X16 GEN5 64GB/s bidirectional bandwidth.Ultra-thin dual-sided ribbon cable.

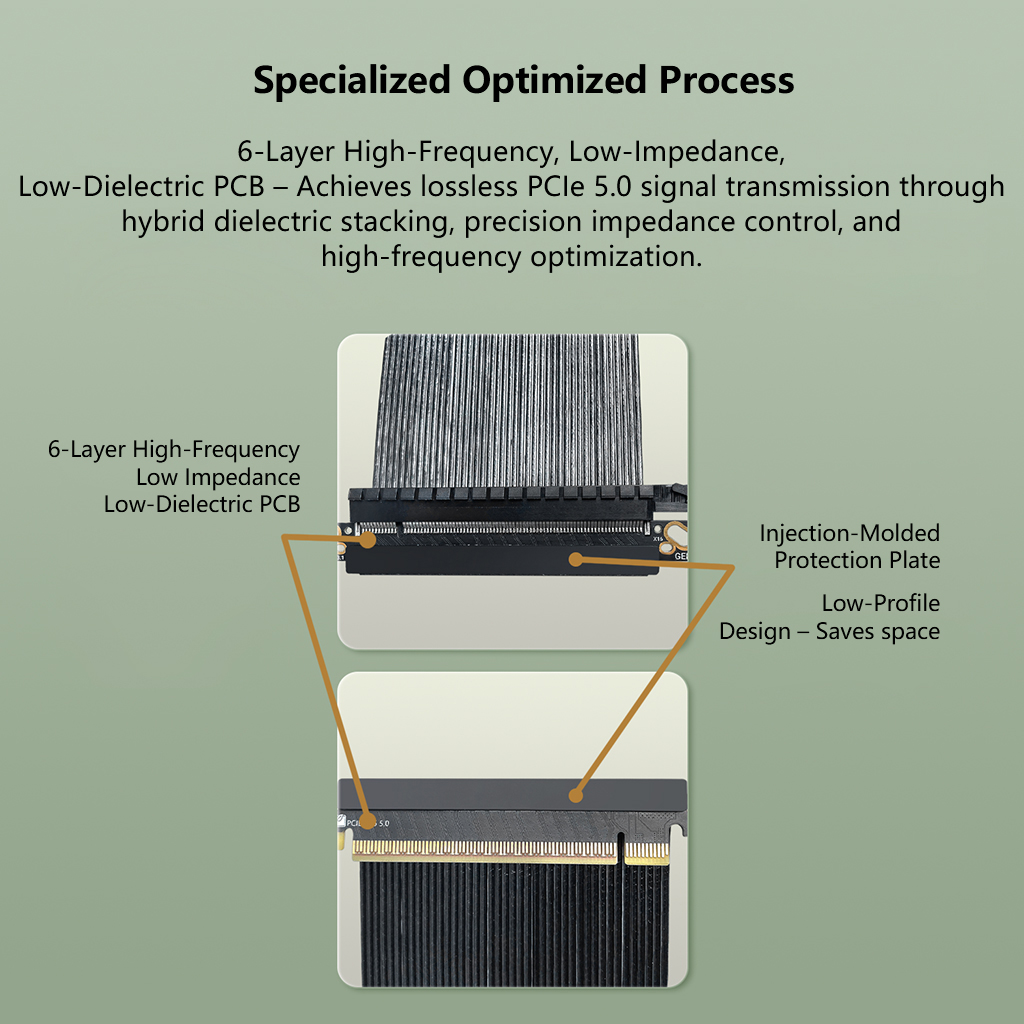

• 6-layer high-frequency,low-impedance,low-dielectric PCB with specially optimized processes.

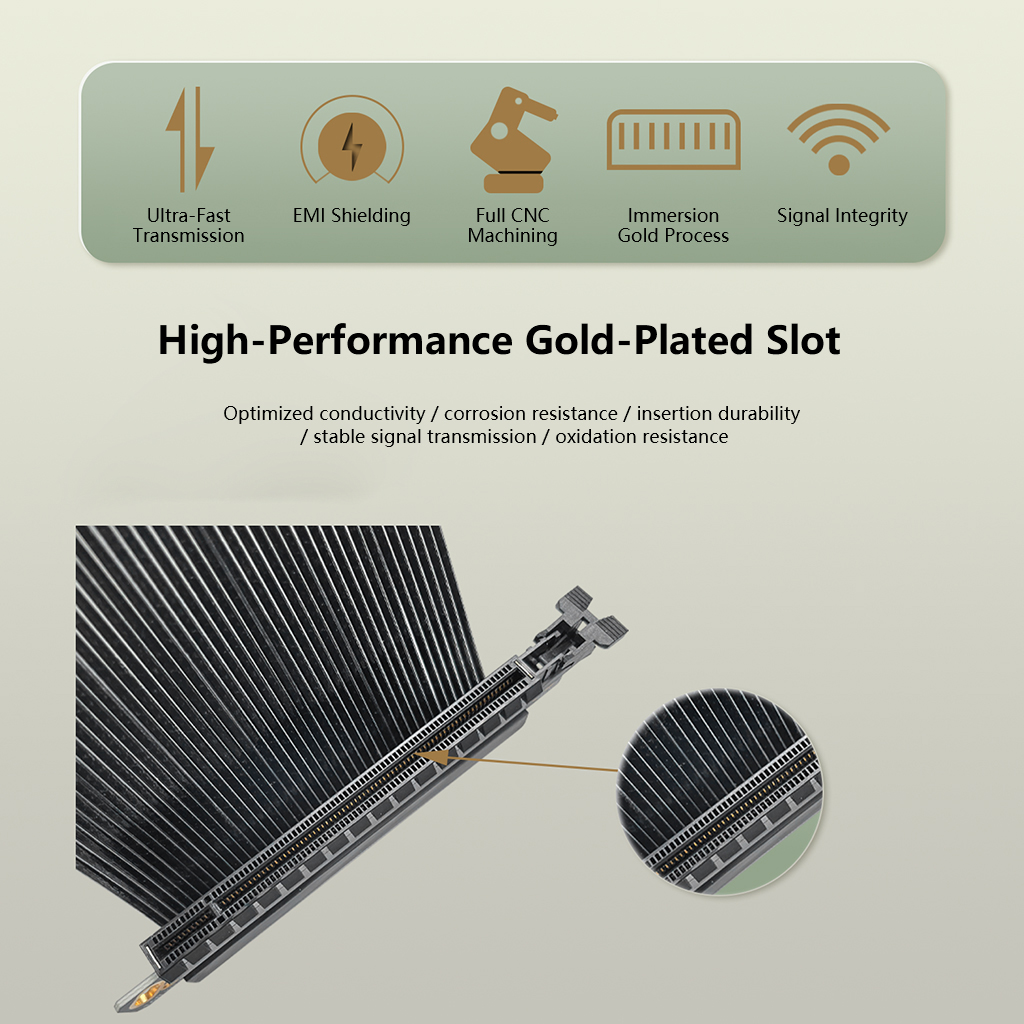

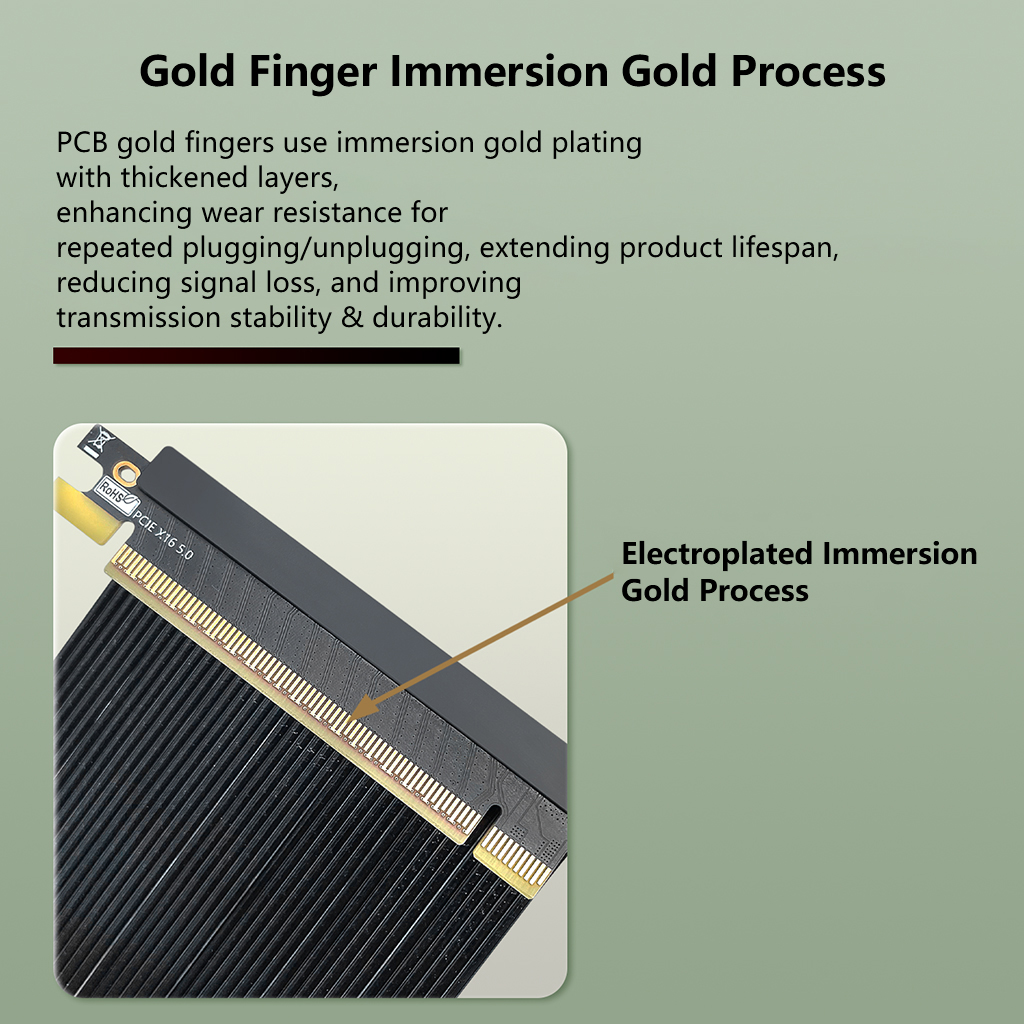

• PCIE 5.0 gold-plated connector with a tail clip.

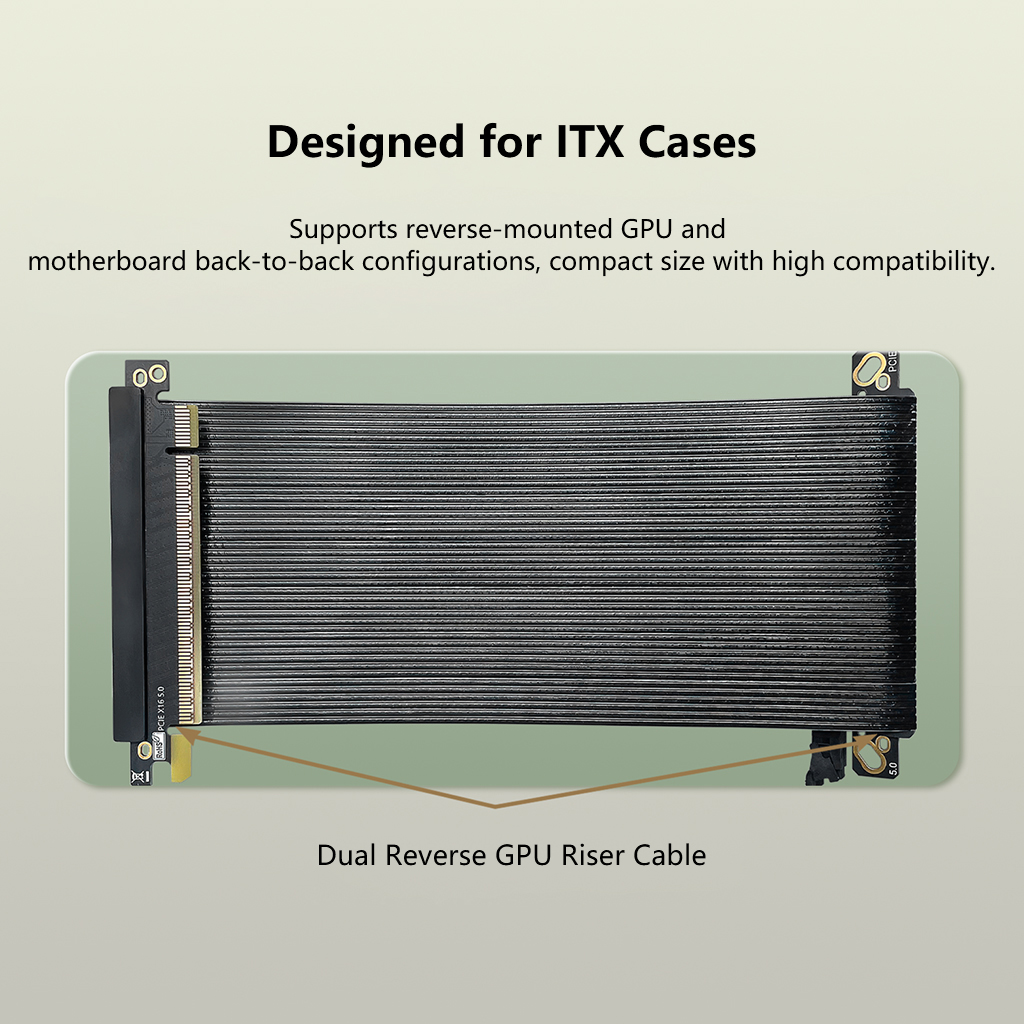

• Dual-sided graphics card extension cable,suitable for back-to-back installation of GPUs in ITX small cases,etc.

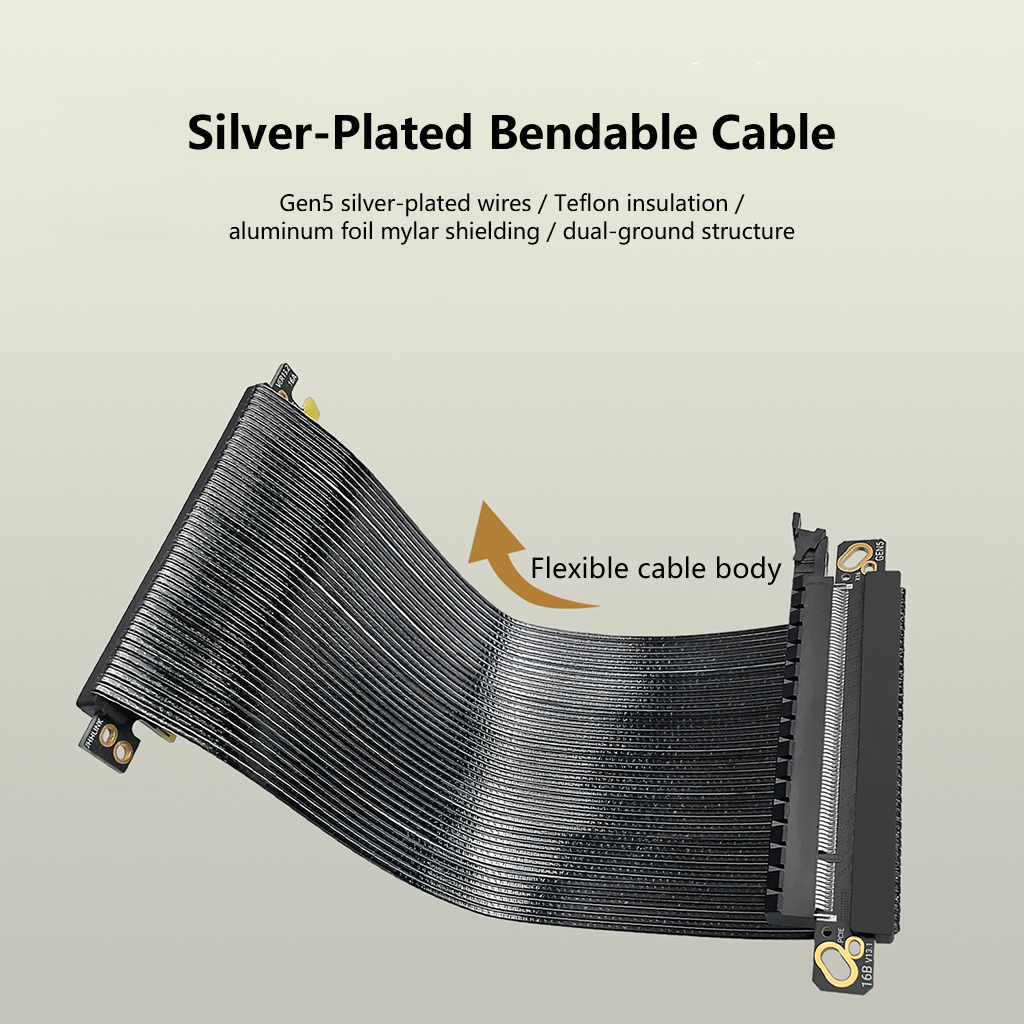

• Utilizes GEN5 silver-plated cables with Teflon insulation,aluminum foil Mylar shielding,and dual-ground structure.The ribbon cable thickness is only 0.9mm.

• Supports PCIE 5.0 data transfer,compatible with GPU graphics cards,solid-state drives,expansion cards,etc.,and is backward compatible with PCIE 4.0 and PCIE 3.0.

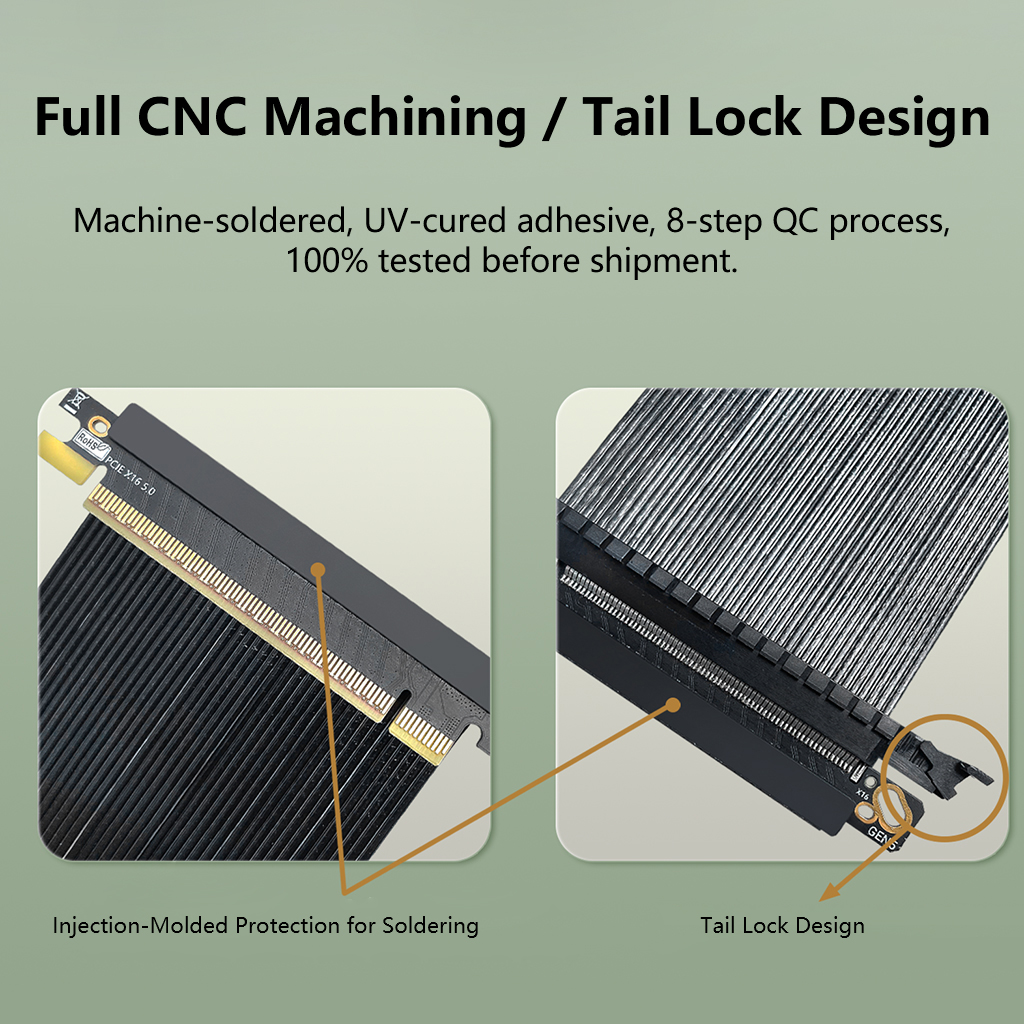

• Fully machine-welded,UV-cured adhesive,injection-molded integrated protection,8-step inspection process,and 100%tested before shipping.

PCIe Version Release Year Transfer Rate Throughput/Channel Throughput for x16

1.0 2003 2.5GT/S 250MB/S 4.0GB/S

2.0 2007 5.0GT/S 500MB/S 8.0GB/S

3.0 2010 8.0GT/S 1.0GB/S 16.0GB/S

4.0 2017 16.0GT/S 2.0GB/S 32.0GB/S

5.0 2019 32.0GT/S 4.0GB/S 64.0GB/S
