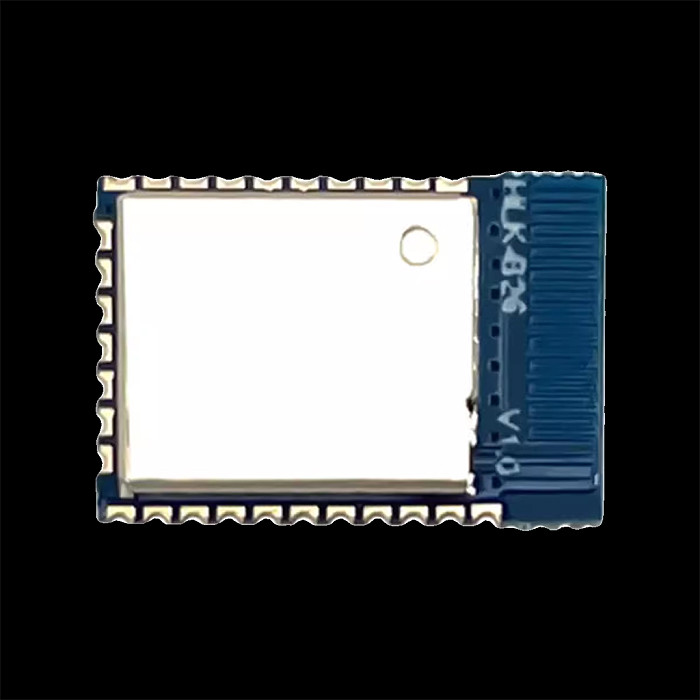

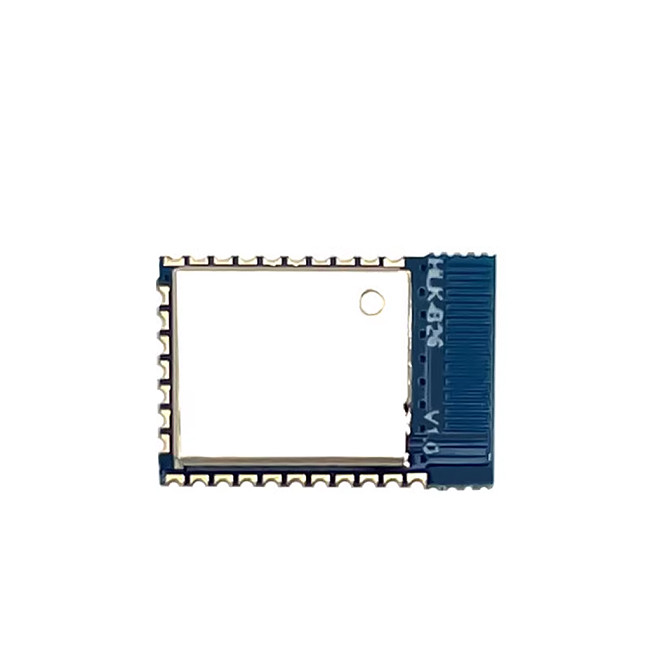

B26 Low Power BLE5.0 Wireless Bluetooth-Compatible Module Serial Transmission Module 96MHz with UART/PWM/GPIO/I2C/SPI/ADC Port
-
Detail
- Product Name: B26 Low Power BLE5.0 Wireless Bluetooth-Compatible Module Serial Transmission Module 96MHz with UART/PWM/GPIO/I2C/SPI/ADC Port
- Item NO.: F51147
- Weight: 2023 kg = 4459.9516 lb = 71359.2250 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Creation Time: 2023-11-09
B26 Low Power BLE5.0 Wireless Bluetooth-Compatible Module Serial Transmission Module 96MHz with UART/PWM/GPIO/I2C/SPI/ADC Port
Low-power Bluetooth-compatible Serial Transmission Module Master-Slave All-in-One/Bluetooth-compatible Serial Transmission
Adopts low-power Bluetooth-compatible chip, 96MHz, RISC 32-bit CPU.
Comply with BLE 5.0 protocol, support low-power mode, up to microampere power consumption.
Transmission distance up to 40~60 metres, size only 14*9.5mm.
Support Bluetooth-compatible with BLE 5.0 protocol, faster transmission speed & longer distance.
Bluetooth-compatible parameters:
Bluetooth-compatible specification: BLE 5.0
Frequency range: 2.402-2.480GHz
Transmit power: -20dBm~+8dBm adjustable
Receiving sensitivity: -92dbm
Interface Type: UART/PWM/GPIO/I2C/SPI/ADC
Reference distance: 40~60m
Hardware parameters:
Serial parameters: 9600~921600/Data bit 8/Stop bit 1
Power supply input: DC1.8-3.4V/typical 3.0V
Sleep current: ~102.3uA
Operating current: ~4mA (configurable parameter tuning)
Package size: 14×9.5×2mm
Antenna type: on-board antenna
Operating temperature -40°C~+85°C
