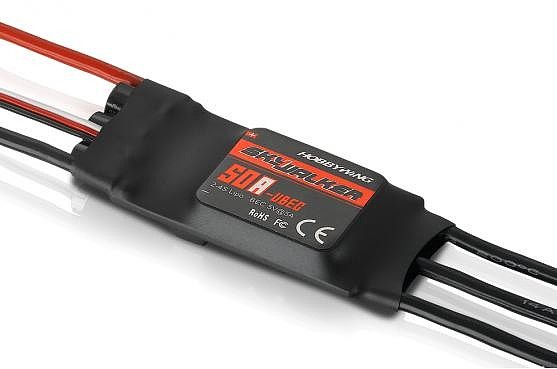

Hobbywing SkyWalker UBEC 50A 2-4S Lipo Switch Mode 5V/ 5A Speed controller Brushless ESC for RC Drone Helicopter Aircraf

Hobbywing SkyWalker UBEC 50A 2-4S Lipo Switch Mode 5V/ 5A Speed controller Brushless ESC for RC Drone Helicopter Aircraf

US$ 14.66
Customized Requirements
Add to Cart
Estimate Shipping Cost
  • Detail
    • Product Name: Hobbywing SkyWalker UBEC 50A 2-4S Lipo Switch Mode 5V/ 5A Speed controller Brushless ESC for RC Drone Helicopter Aircraf
    • Item NO.: F17835
    • Weight: 0.065 kg = 0.1433 lb = 2.2928 oz
    • Category: DIY RC Drone Accessories > ESC
    • Brand: Hobbywing
    • Creation Time: 2017-07-25

    Hobbywing SkyWalker UBEC 50A Switch Mode 5V / 5A Empty Mold Brushless ESC for RC Drone Helicopter Aircraft F17835



    Specifications:


    1.1 Output capability: Continuous current 50A, short-time current 65A (less than 10 seconds)

    1.2 Power input: 2-4S Lipo pack or 5-12 NiMH / NiCd battery pack

    1.3BEC Output: 5V @ 5A (built-in switch mode regulator BEC)

    1.4 Maximum speed: 210000 2-pole motor rev / min, 6 pole motors 70,000 rev / min, 12 pole motors 35000 rev / min

    1.5 Size: 68mm (length) x  25mm (width) x  12mm (height)

    1.6 Weight: 43g (including fins)


    Features

    2.1 Security power function: When the power is turned on, regardless of the throttle stick at any position will not start the motor immediately to prevent personal injury

    2.2 Throttle range calibrated function: to adapt the throttle differences between different stroke, improve the linearity of throttle response

    2.3 programmed project (available throttle stick or card LED parameter settings):
          (1) Brake setting: No brake / with brake
          (2)Battery type: Lithium battery / NiMH
          (3)Low Voltage Protection Mode: Soft Shutdown / hard off
          (4) Low Voltage Protection Threshold: low / medium / high
          (5) start mode: Normal / Soft / Super-soft and start
          (6)Timing: low / medium / high
          (7)Restore factory defaults

    2.4 Comprehensive protection features

          (8)undervoltage protection: the program set by the user when the battery voltage is below the protection threshold, ESC automatically reduces the output power;
          (9)Overvoltage Protection: input voltage exceeds the input range are not allowed to start, automatic protection, also issued a hasty "beep" warning tone;
          (10)Overheat protection: built-in temperature detection circuit, when the MOS power transfer pipe temperature too high Automatic shutdown;
          (11)remote signal loss protection: remote control signal is lost for 1 second to reduce the power, and then have two seconds to turn off without the remote control signal output;
