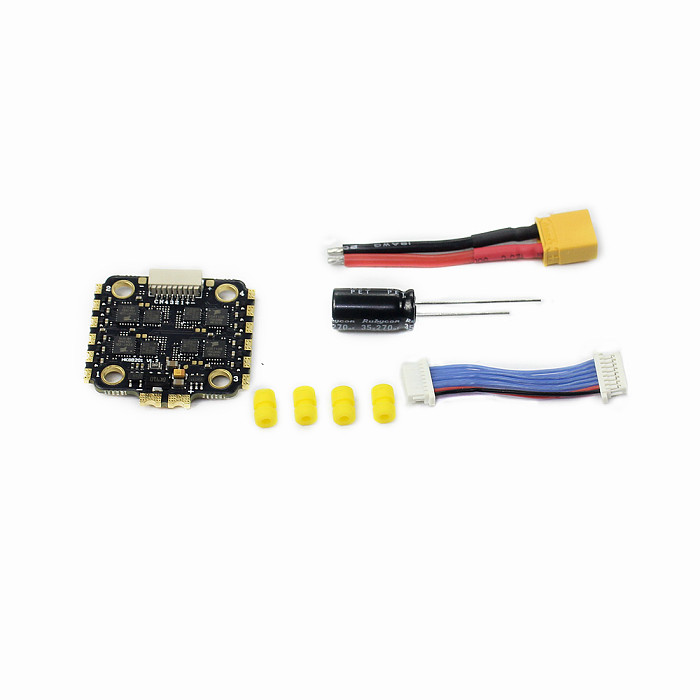

HAKRC 35A 4in1 ESC 2-6S BLHeli-S DSHOT600 Ready 8 Bit Brushless Electronic Speed Controller 2020mm for DIY Quadcopter FPV Racing Drone

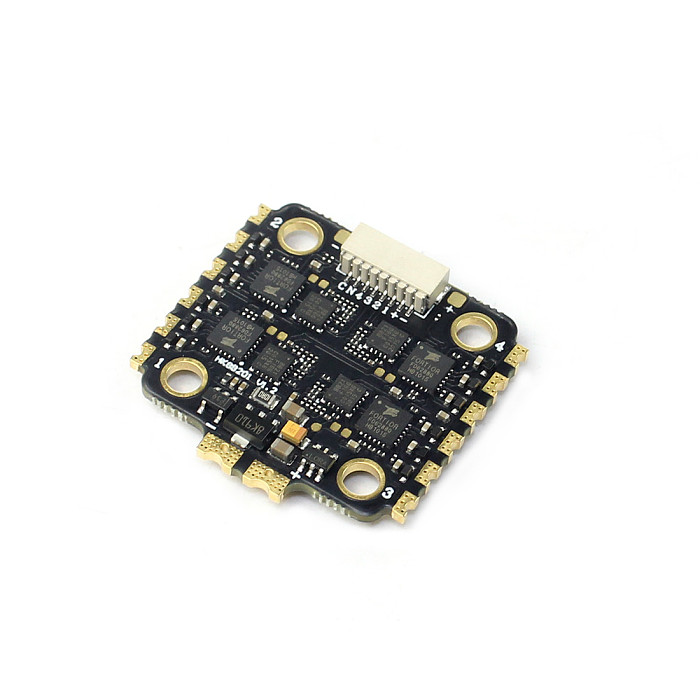

HAKRC HK35A 4 in 1 ESC
Working voltage: 2-6S
Maximum continuous working current: 35A
Maximum instantaneous working current: 40A
Support communication mode: DShot150/300/600 PWM
Oneshot125, Oneshot42 and Multshot
Assistant Software: BLHeliSuite
Firmware version: BL16.7
Installation hole distance: 20*20mm
Product size: 31*30*6mm
Packing size: 42*39*19mm
Product net weight: 6.1g
Package weight: 12.6g
High-quality hardware
EMF8BB21F16G main control chip, operating frequency up to 48MHz. Imported mosfet, three-in-one IC driver, imported high-quality high-frequency ceramic capacitors. In the high-end PCB production process, the pads are all metalized edging, so that you can avoid the pads from falling off during use; 3 ounces of copper thickness, 6-layer board, greatly reducing heat generation and higher efficiency.
Highly integrated, compact
It integrates 4 high-performance 35A ESCs, built-in galvanometers, and purchases new advanced SMT. After such a high level of integration, the volume is only the same size as the flight control of the rider, and the installation and wiring will become very simple. Such an incredible size and volume are tailor-made for competition-level crossovers.
Hardware PWM, Damped Light
The hardware PWM drives the motor with low noise and smoother throttle response. Damped Light technology, regenerative braking function, make the motor deceleration more sensitive and effective, and more precise control; active freewheeling technology, allow the battery to recover power and extend the battery life;
