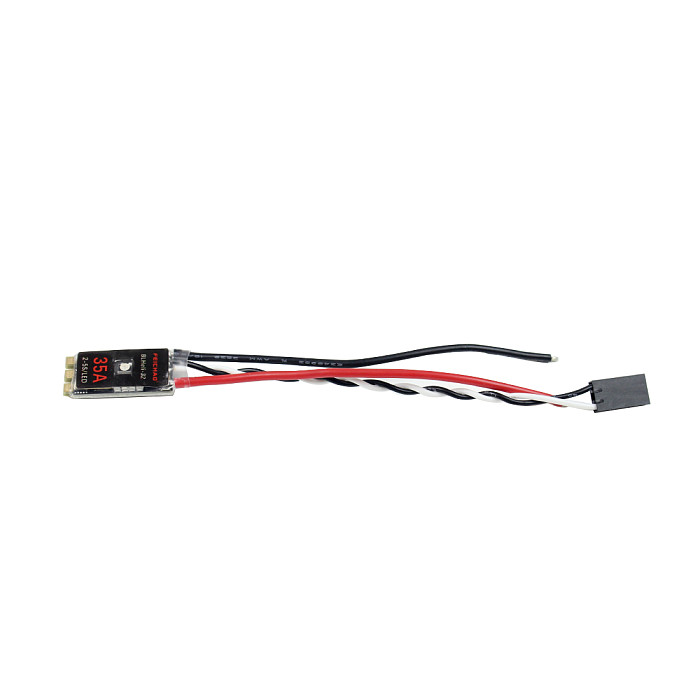

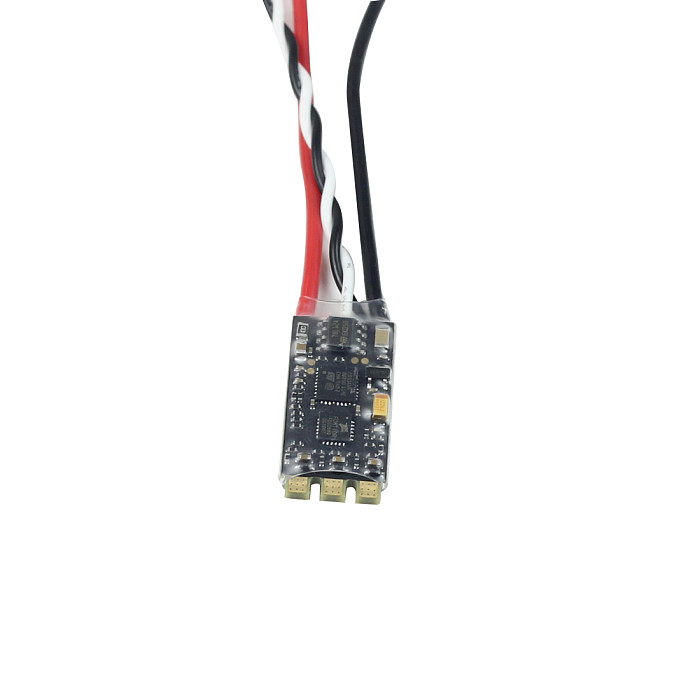

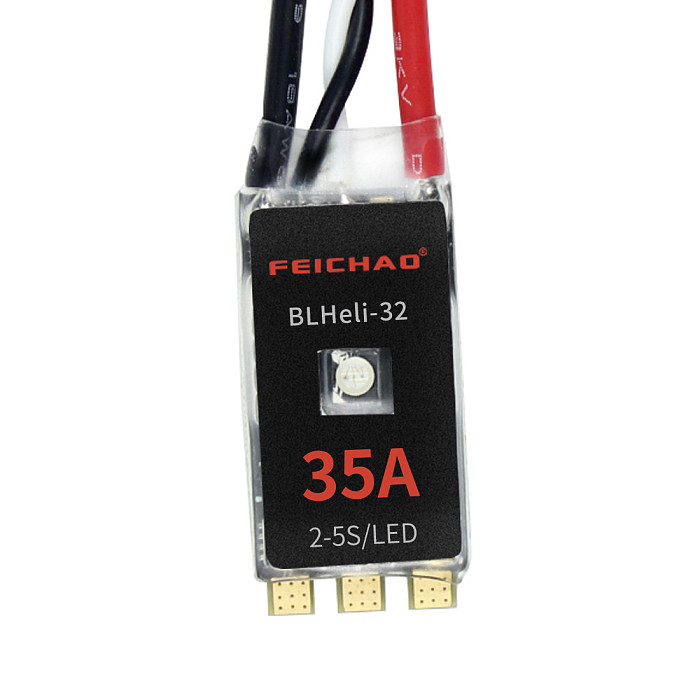

FEICHAO 1/4Pcs BLHeli_32 bit 35A ESC 2-5S 3D Mode Support for DIY Dshot150/300/600/1200 Multishot FPV Drone

US$ 19.82

Quantity

Estimate Shipping Cost

Detail
- Product Name: FEICHAO 1/4Pcs BLHeli_32 bit 35A ESC 2-5S 3D Mode Support for DIY Dshot150/300/600/1200 Multishot FPV Drone
- Item NO.: F40069 F40069-4
- Weight: 0.02 kg = 0.0441 lb = 0.7055 oz
- Category: DIY RC Drone Accessories > ESC
- Brand: FEICHAO
- Creation Time: 2020-09-25
FEICHAO 4Pcs BLHeli_32 bit 35A ESC 3D Mode 2-5S Support for Dshot150/300/600/1200 Multishot 2-5S FPV Drone

Feature:
1. Support 500HZ PWM, Oneshot125, Oneshot42, Multishot, Dshot150/300/600/1200.
2. With a prompt tone, the position of the drone can be determined through the ESC prompt tone.
3. Players can also choose their favorite background music as the power startup sound.
4. Support 3D mode and automatic motor timing.
5. More function settings, support CleanFlight, BetaFlight settings.

Description:
1. This is BLHeli_32 Bit 35A 2-5S ESC for FPV RC drone with built-in LED supporting Dshot1200 Multishot.
2. Selected copper heat sink, the heat dissipation effect is 1.5 times that of ordinary aluminum.

specification:
Project name: 35A ESC
Built-in LED
MCU: STM32F051
Firmware: BLHeli_32 bit
Current: 35A
Heat sink: copper
Size: 26x13x5mm / 1.01x0.51x0.20in
Weight: 7g / 0.25oz
Input voltage: 2-5s lithium battery
PCB: 3OZ copper, gold plated

Built-in LED, color switchable (red, green, blue, yellow, white, magenta, cyan)
