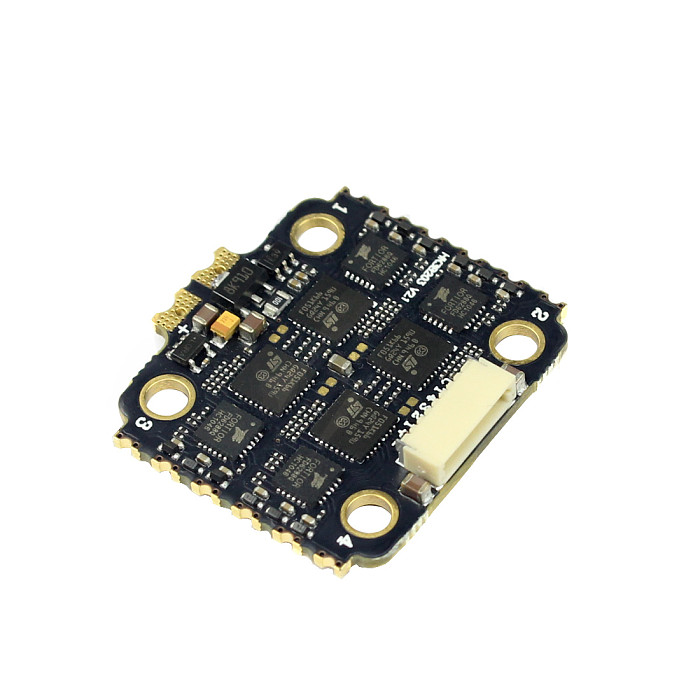

HAKRC 40A 4in1 ESC 2-6S BLHeli-32 DSHOT1200 Ready Brushless Electronic Speed Controller 2020mm forFPV Racing Drone
Product description
HAKRC HK32 BIT 60A 4 in 1 ESC
Working voltage: 2-6S
Maximum continuous working current: 40A
Maximum instantaneous working current: 45A
Support communication mode: DShot150/300/600/1200 PWM?Oneshot125, Oneshot42 and Multshot
Assistant Software: BLHeli 32
Firmware version: BL32.7
Installation hole distance: 20*20mm
Product size: 31*30*6mm
Packing size: 42*39*19mm
Product net weight: 6g
Package weight: 15g
High-quality hardware
STM32F051 main control chip, operating frequency up to 48MHz. Imported mosfet, three-in-one IC driver, imported high-quality high-frequency ceramic capacitors. In the high-end PCB production process, the pads are all metalized edging, so that you can avoid the pads from falling off during use; 3 ounces of copper thickness, 6-layer board, greatly reducing heat generation and higher efficiency.
Highly integrated, compact
It integrates 4 high-performance 40A ESCs, built-in galvanometers, and purchases a new advanced SMT. After such a high degree of integration, the volume is only the same size as the flight control of the rider, and the installation and wiring will become very simple. Such an incredible size and volume are tailor-made for competition-level crossovers.
Hardware PWM, Damped Light
The hardware PWM drives the motor with low noise and smoother throttle response. Damped Light technology, regenerative braking function, make the motor deceleration more sensitive and effective, and more precise control; active freewheeling technology, allow the battery to recover power and extend the battery life;
