ADT-Link USB3.1 GEN2 Type-E to Type-E Extension Cable Internal USB 3.1 E Type Male to Female Cable w Screw Holes for Motherboard

product description:

Brand: ADT-Link

Quantity:1pc

Product name: USB3.0 USB-E to built-in 19/20P extension cable

Wire length: 5-100cm (If you need other lengths, please contact us to change the price, thank you!)

Adaptation range: USB3.1 built-in 20P type-E to type-E extension

Speed bandwidth: USB3.1 standard (10G/bps is supported within 30cm, 10G/bps is not supported after the USB cable is connected in series)

Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)

Product application: Built-in USB3.1 20-pin typ-e interface extension cable on the motherboard.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support return or exchange. Please consider carefully before placing an order.

Restrictions on use: Two or more USB cables are connected in series with signal attenuation, so it can only reach 5G gen1, but cannot reach 10G gen2

Procurement Tips: Be sure to buy 1~2 samples first, and then purchase in bulk after testing and verification.

Description of wire length:

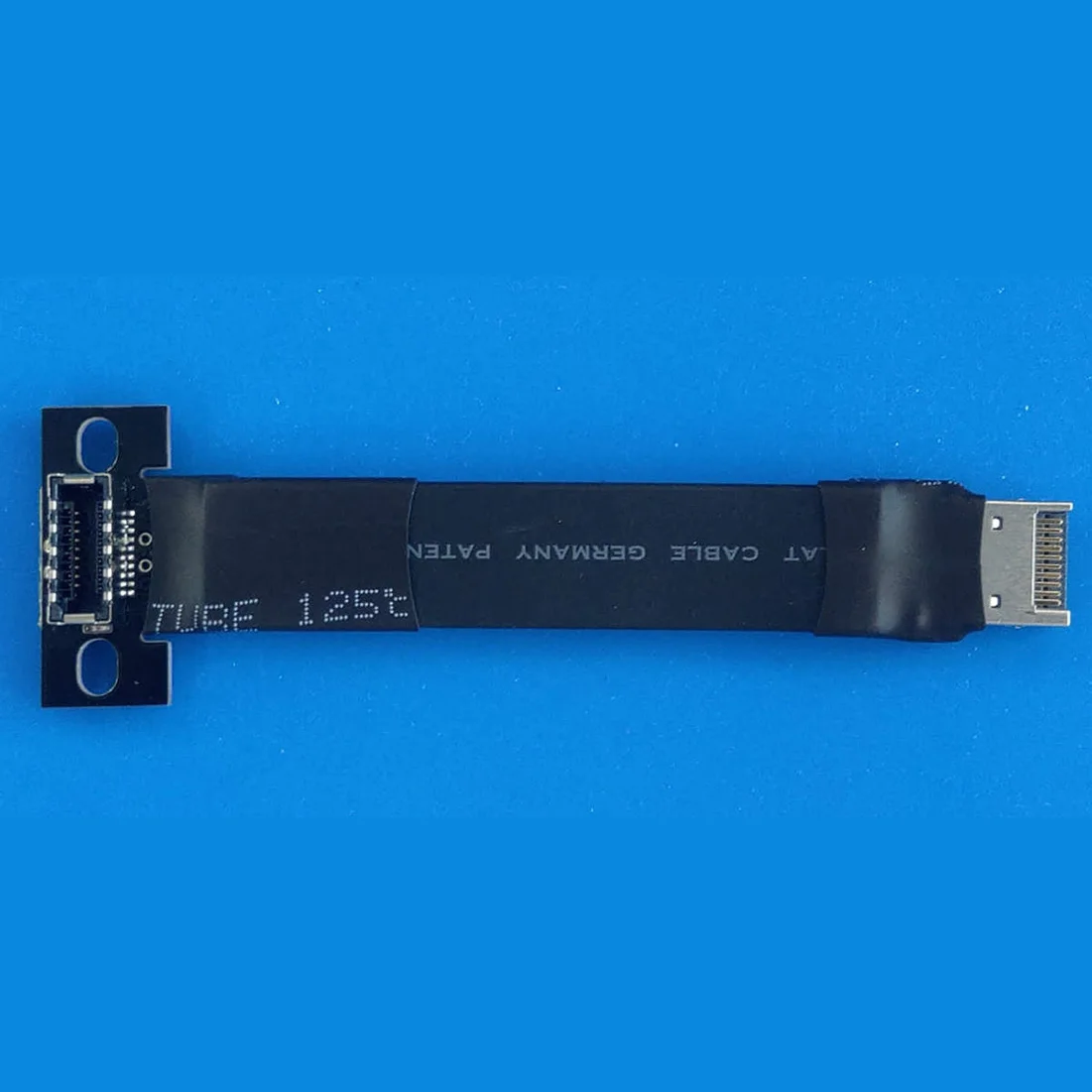

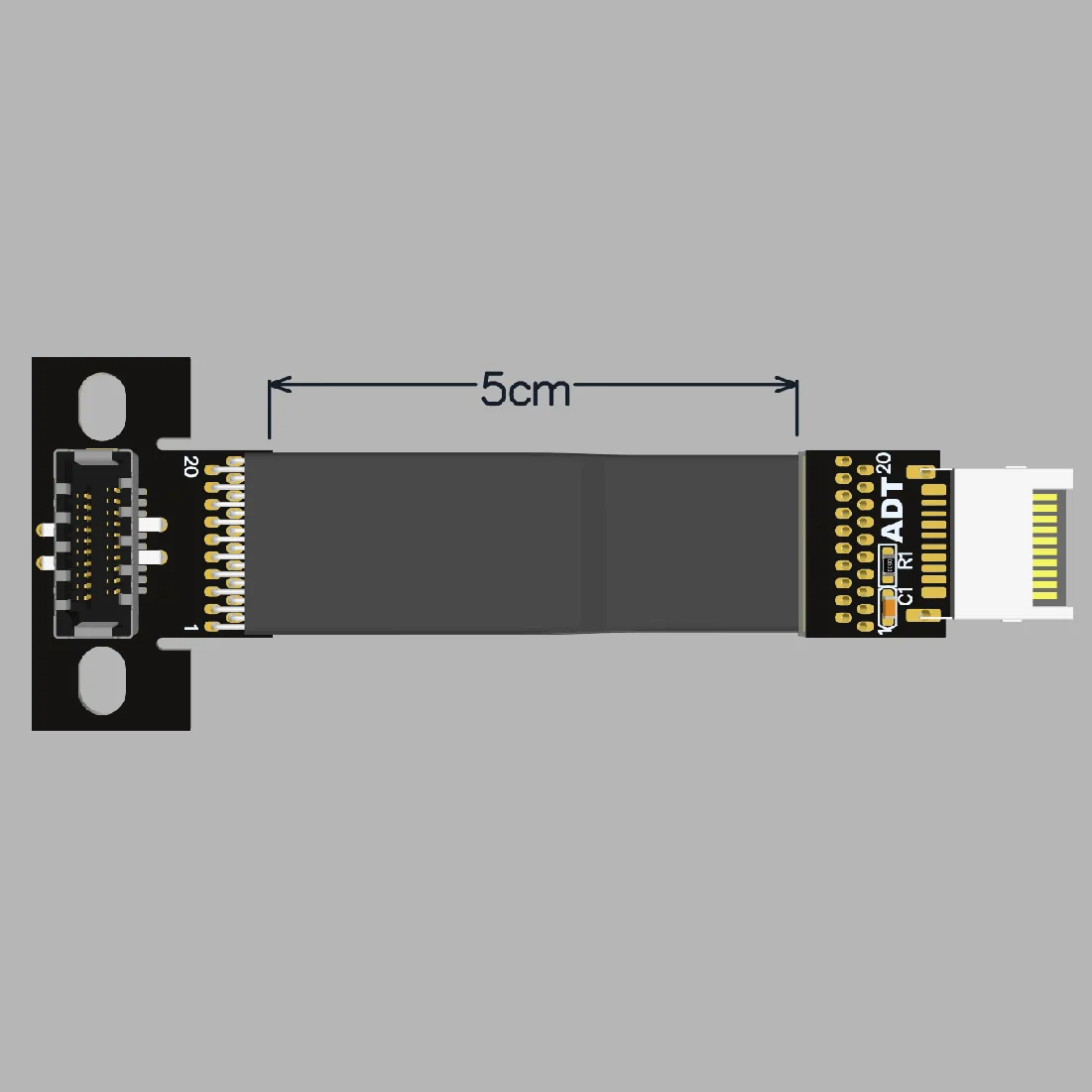

The length of the wire in our shop refers to the part of the visible wire, excluding the PCB and the connector, if it contains the PCB and the connector, add about 4cm. So the total length is about 9cm, please refer to the dimension of 5cm in the figure below.

Product advantages:

1. Use German patent imported wire, support USB3.1 10G/bps speed within 30cm

2. Cable length advantage, from 3 cm to 3 meters can be customized

3. The differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable

4. The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of precision. The PCB uses high TG plates. The thickness of the copper material is thickened to 1oz. The PCB power circuit is strengthened and the use of 2 5V power core wires is strengthened to transmit current up to 3A.
