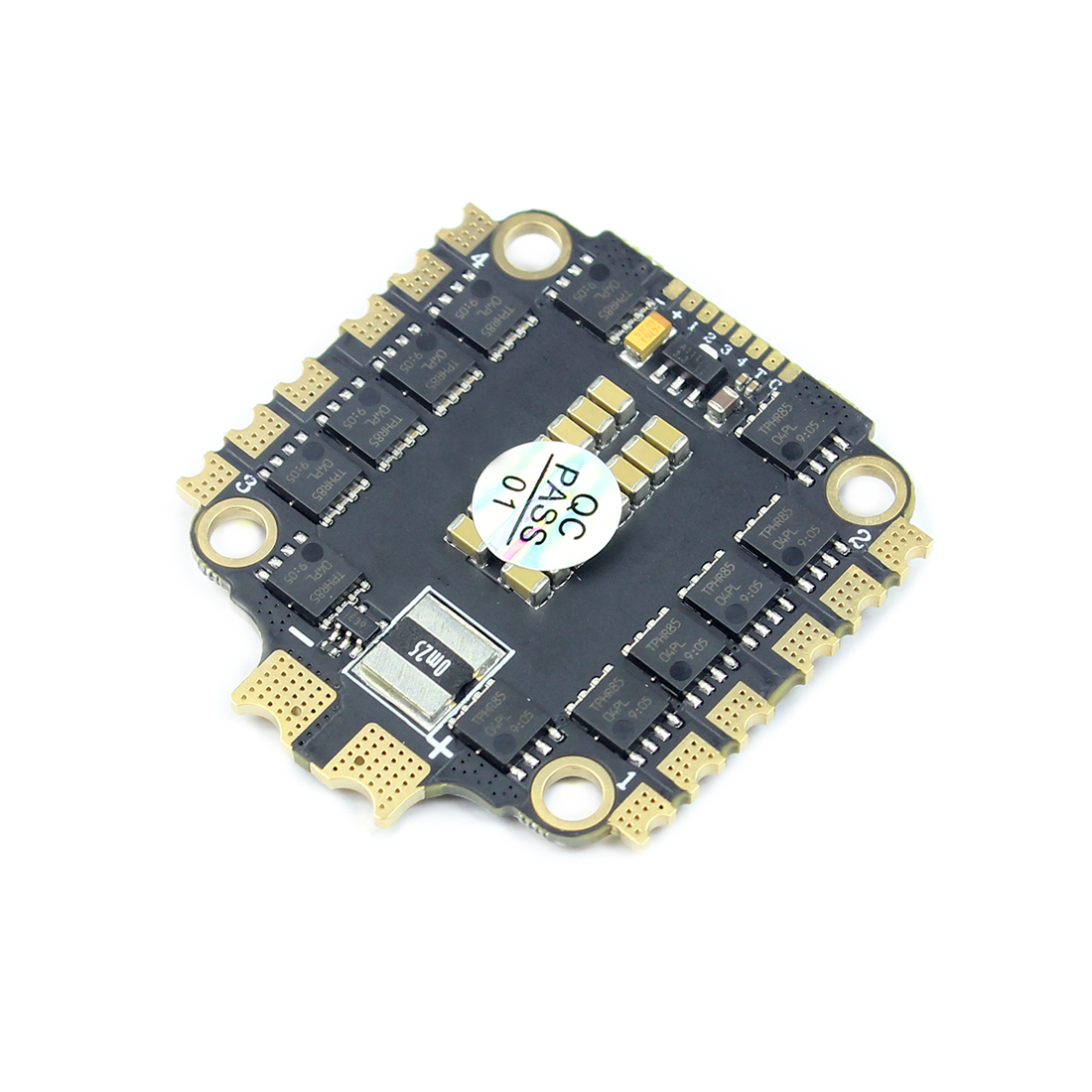

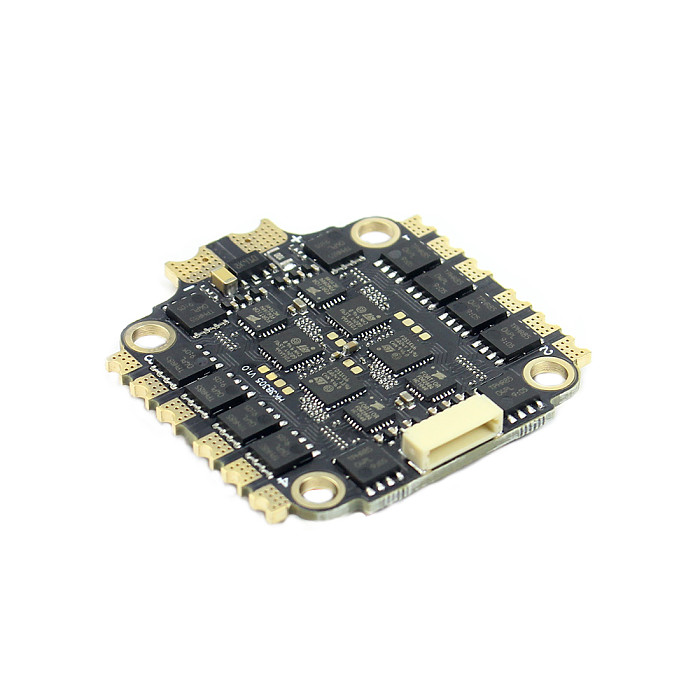

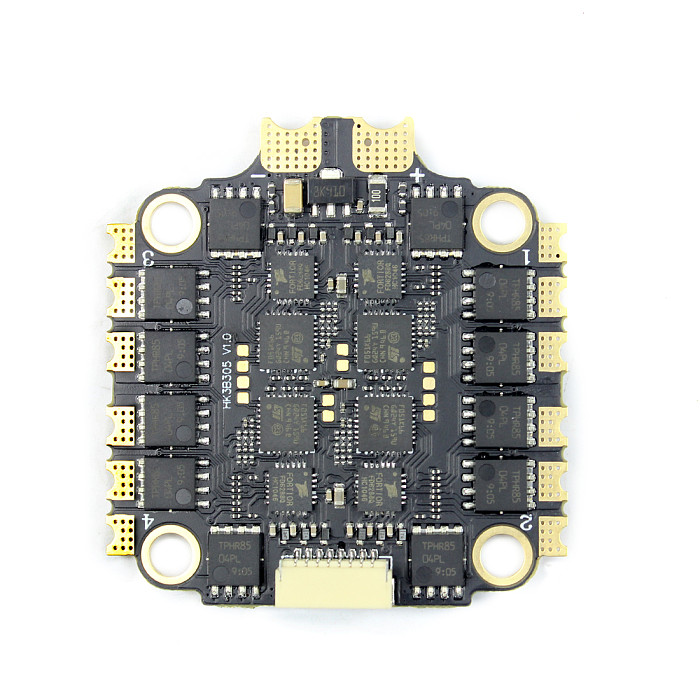

HAKRC HK3260 60A 4In1 ESC Electronic Speed Controller BLHeli-32 DShot1200 for 2-6S FPV Racing Drone
HK32 BIT 60A 4-in-1 ESC parameter
Working voltage: 2-6S
Maximum continuous working current: 60A
Maximum instantaneous working current: 70A
Support communication mode: DShot150/300/600/1200 PWM?Oneshot125, Oneshot42 and Multshot
Assistant Software: BLHeli 32
Firmware version: BL32.7
Installation hole distance: 30.5*30.5mm
Product size: 45*42.5*6mm
Packing size: ?62*33mm
Product net weight: 14.5g
Package weight: 40g
High-quality hardware
STM32F051 main control chip, operating frequency up to 48MHz. Imported mosfet, three-in-one IC driver, imported high-quality high-frequency ceramic capacitors. In the high-end PCB production process, the pads are all covered with metallization, so that you can avoid the pads from falling off during use; 3 ounces of copper thickness, 6-layer board, greatly reducing heat generation and higher efficiency.
Highly integrated, compact
It integrates 4 high-performance 60A ESCs, built-in galvanometer, and purchases new advanced SMT. After such a high degree of integration, the volume is only the same size as the flight control of the rider, and the installation and wiring will become very simple.
Hardware PWM, Damped Light
The hardware PWM drives the motor with low noise and smoother throttle response. Damped Light technology, regenerative braking function, make the motor deceleration more sensitive and effective, and control more precise; Active freewheeling technology allows the battery to recover power and extend the battery life;
