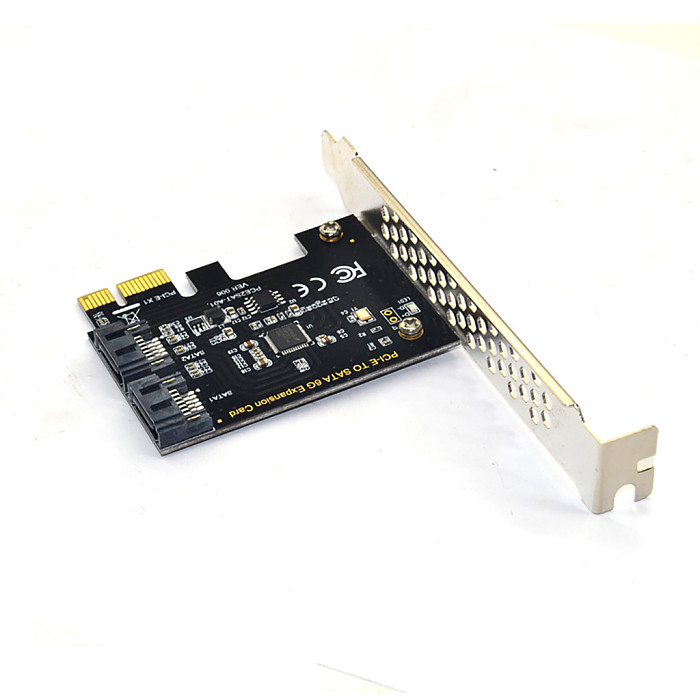

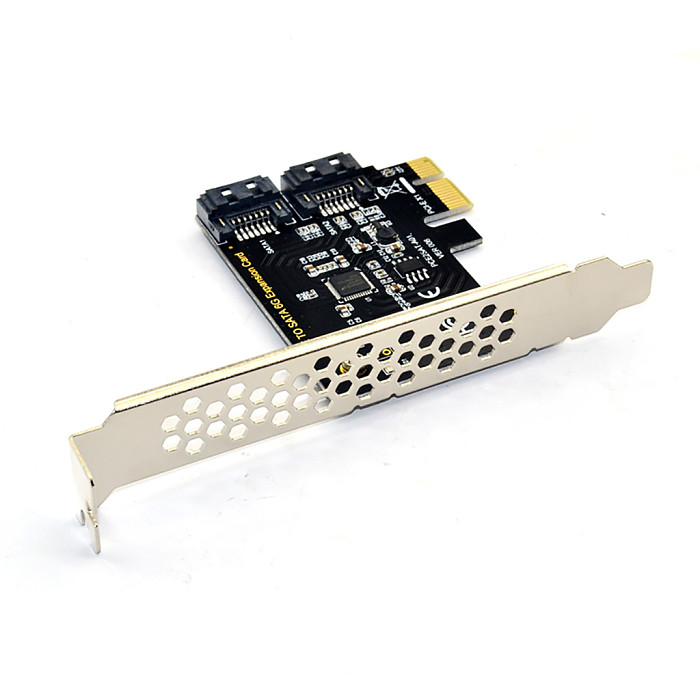

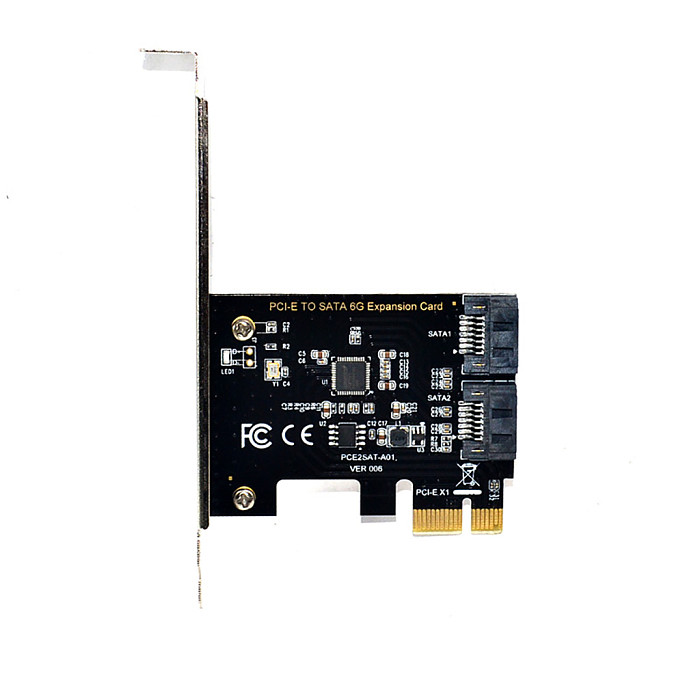

Desktop pci-e to sata3.0 Expansion Card 6G Adapter Card Hard Disk Expansion IPFS Hard Disk
Weight: 75g
Product name: SATA3.0 PCI-E expansion card
Product Model: PCE2SAT-A01
Adopt master: ASMedia ASM1061
Support interface: USB3.0 TO SATA 22PIN
Support system: WinXP/Vista/7/8/10/11/32bit/64bit
The maximum speed is 120- 200M/S under PCI-E 1.0
PCI-E 2.0 and above can reach 380-400M/S
For friends with high speed requirements, please choose a 4X SATA card
Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0
Compliant with PCI-Express v2.0 specification, backward compatible with PCI-Express v1.0.
Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Supports two SATA
Support AHCI1.0 mode and IDE mode
Support for Native Command Queuing (NCQ)
Supports FIS based port multiplier switch or command switch.
Hot-plug and hot-plug are supported.
Compatible with SATA6G, 3G and 1.5G hard drives
bus interface
PCI-Express x1 slot
Extension ports
2 SATA3.0 ports
System Requirements
There is an available PCI Express X1 slot and supports both PCI-E X2 X4 X8 X16
OS: Windows10/8/7 (32/64bit)/Vista (32/64bit)/XP/2003/2008/linux
