Dual USB-A 3.0 Female Socket to Type-E Key-B Internal 20P Male Adapter Cable Type-c Front Panel Key-B Extension Cable 5G/bps

Quantity:1pc

Product Model：USF30-MF-24P series products
Product Name:Dual USB-A 3.0 female chassis to Type-E key-B built-in 20P (type-c front panel key-B) extension cable
Cable length: 15cm,25cm,30cm (support length customization, if you need other length, please contact us to change the price!)
Speed bandwidth: USB3.0 standard (5G/bps within 1m)
Current capacity: 5V/1.5A (Support 1.5A within 50cm, 0.9A within 1m)
Product Application: USB type-A female socket to motherboard internal Type-E key-B male adapter cable.
Purchase restrictions: This product is designed for USB built-in type key-B motherboard connection use, ordinary external use is not suitable, the product engineer specified to buy, individual buyers please do not place orders. This product structure is fragile and easy to break, not suitable for civilian use.

Purchase tip: Be sure to buy 1 to 2 samples first to test and verify the error-free before bulk purchase.
Wire length description:
The length of the wire refers to the visible part of the wire, not including the PCB and connectors.

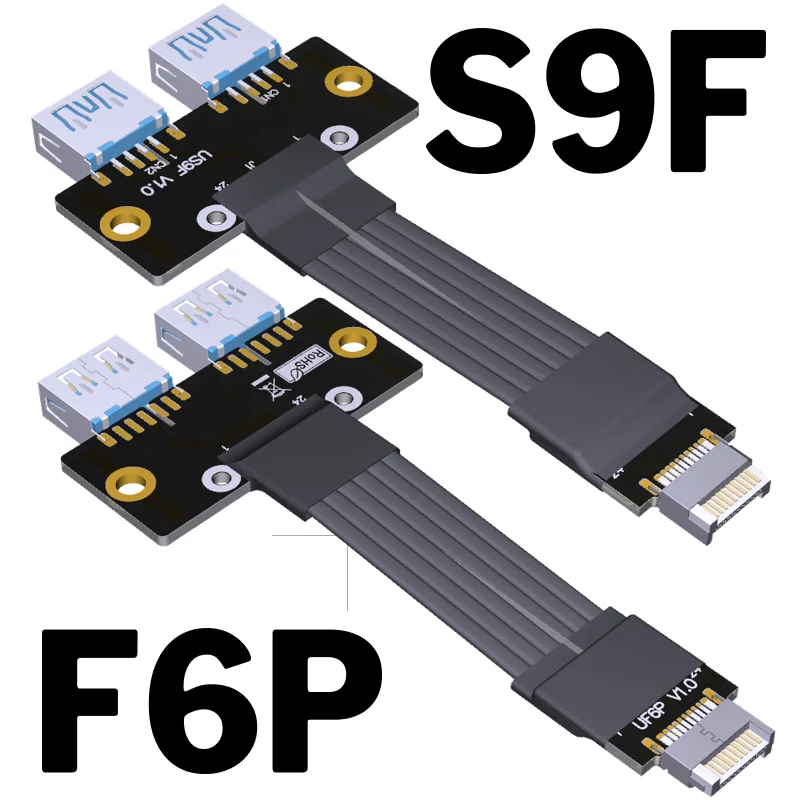

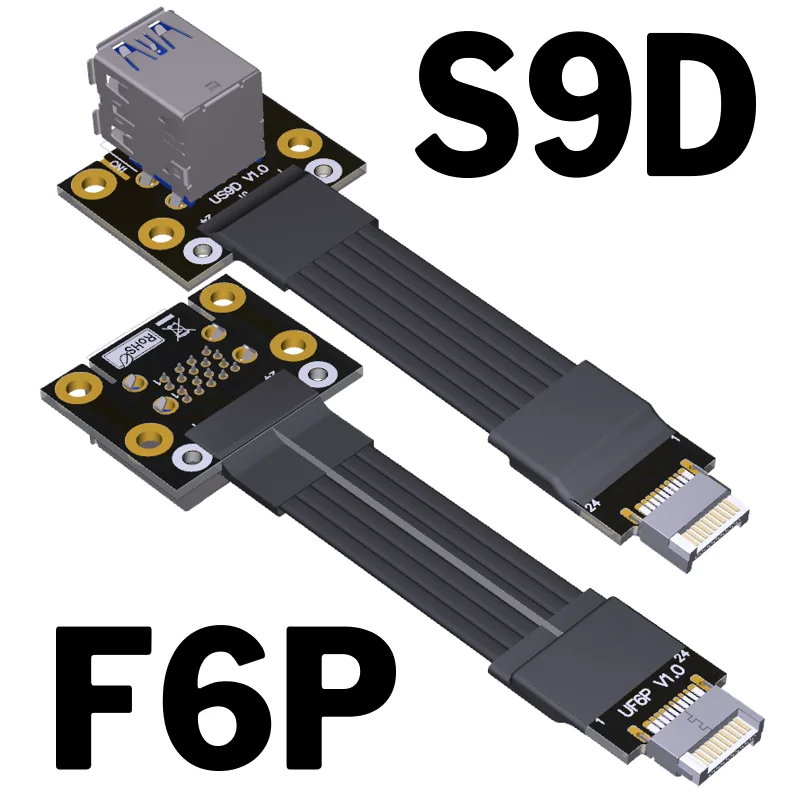

Product Images:

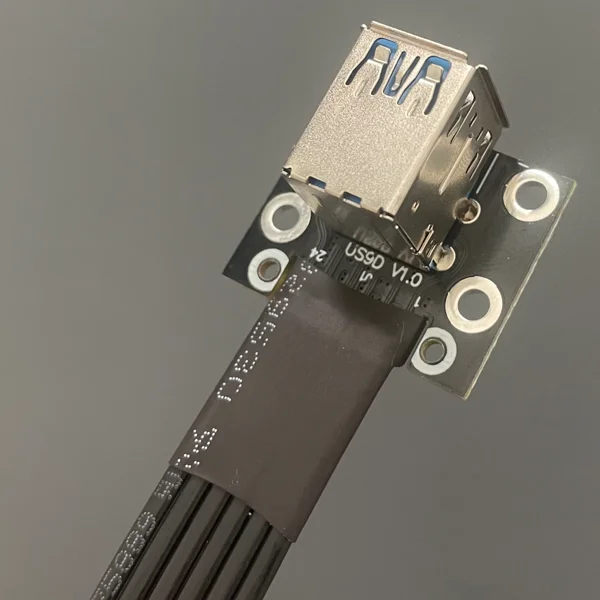

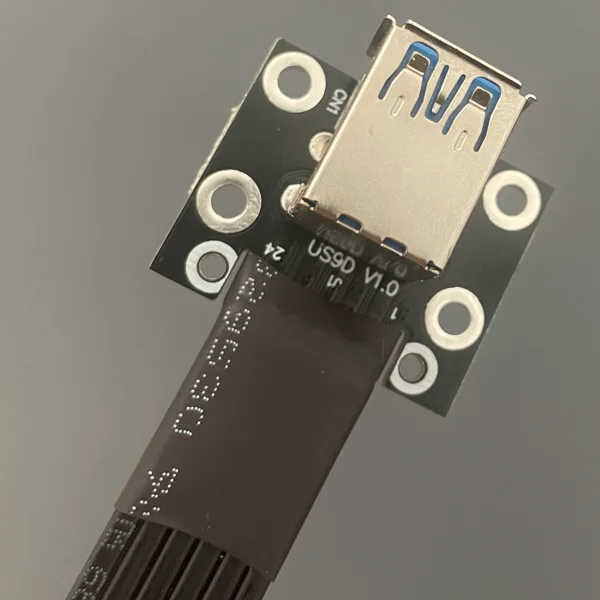

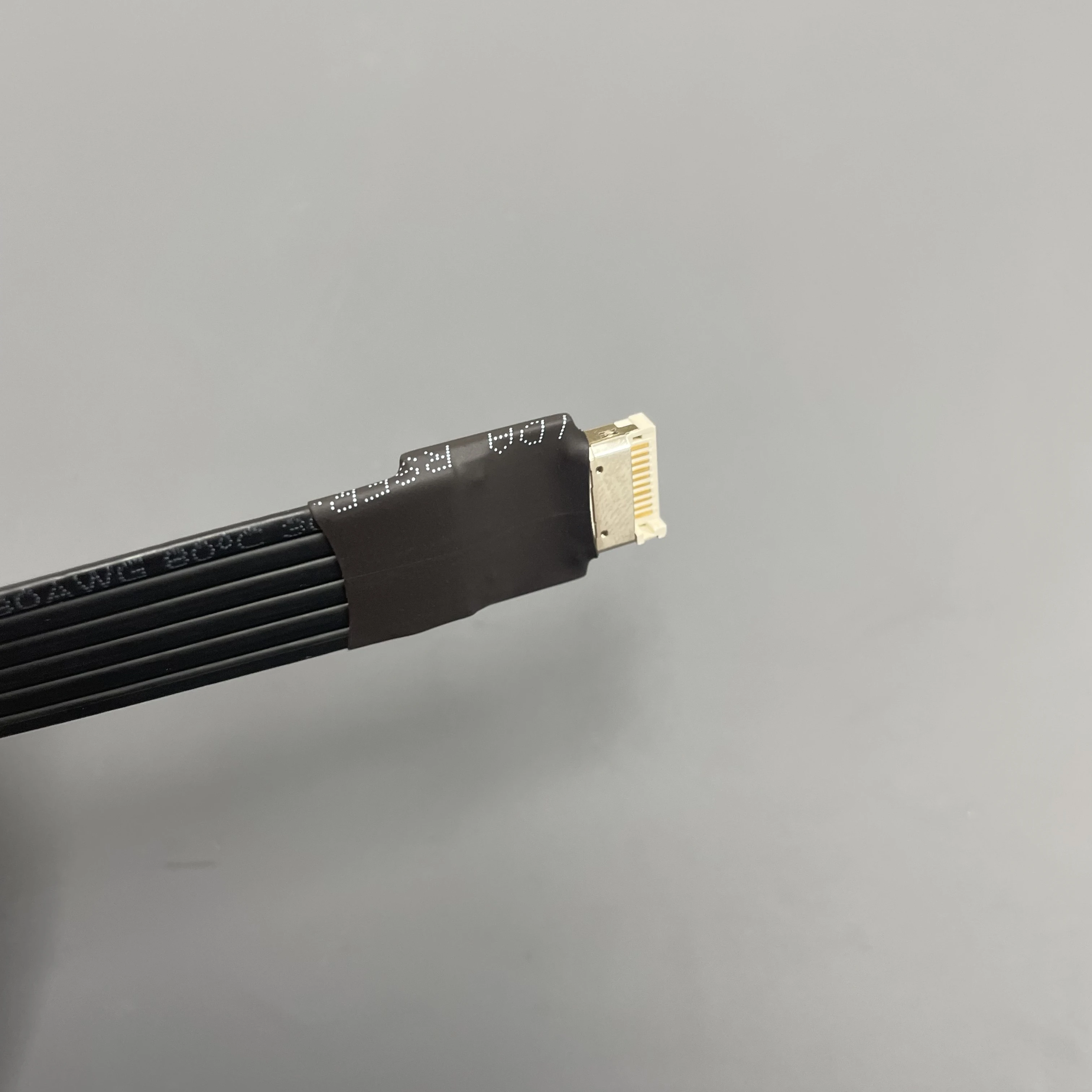

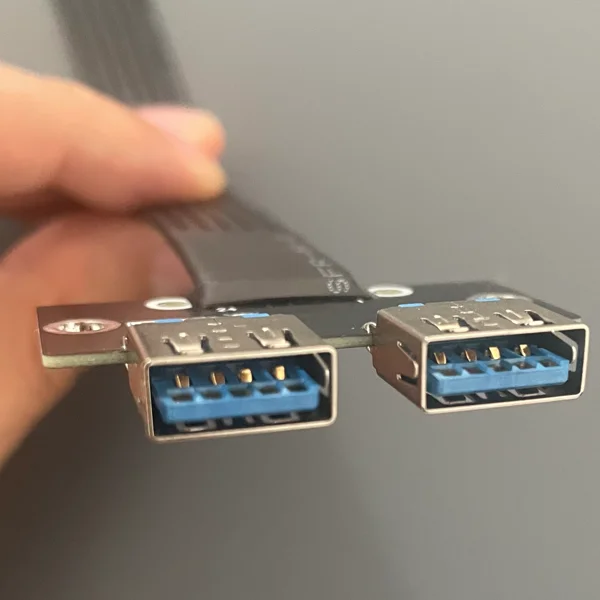

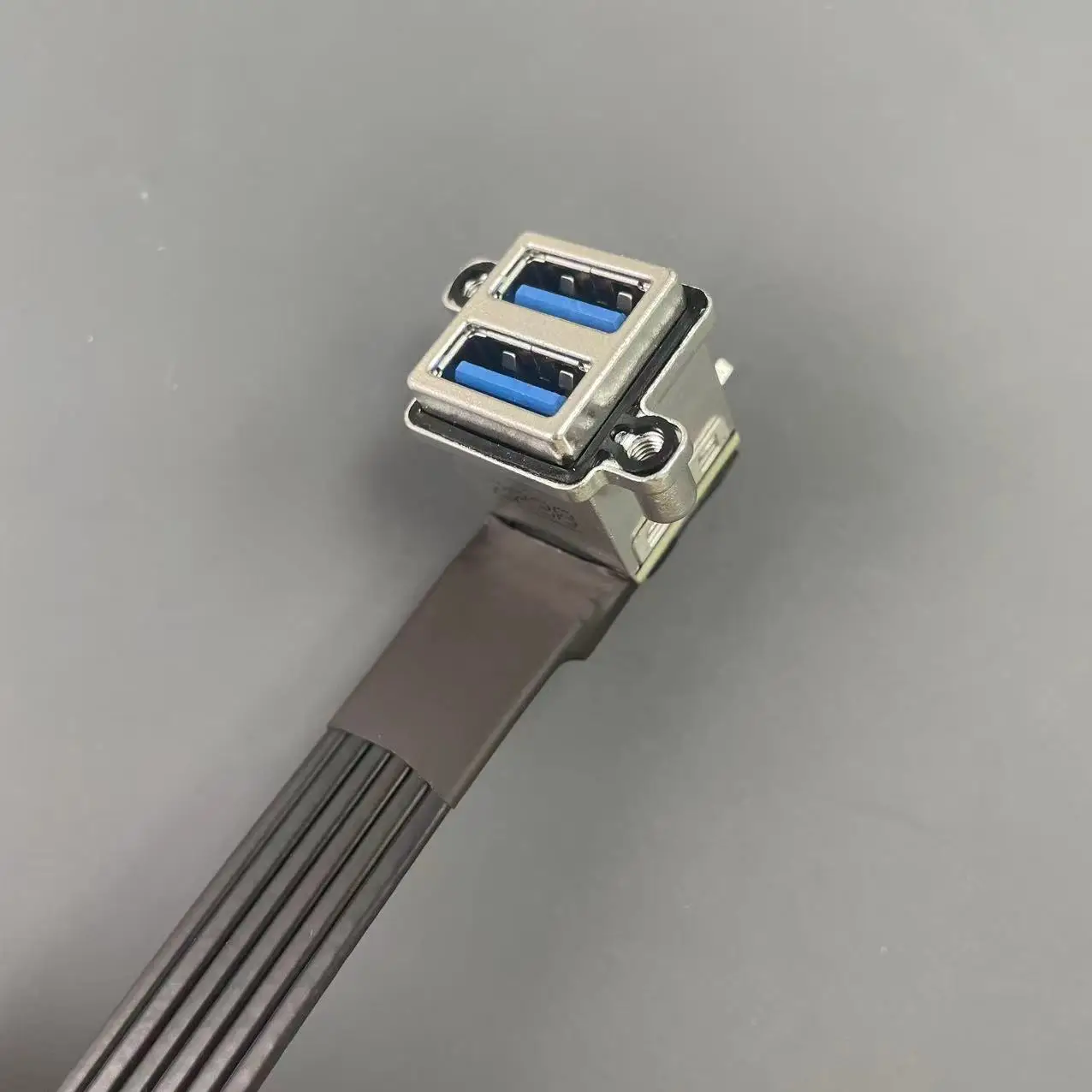

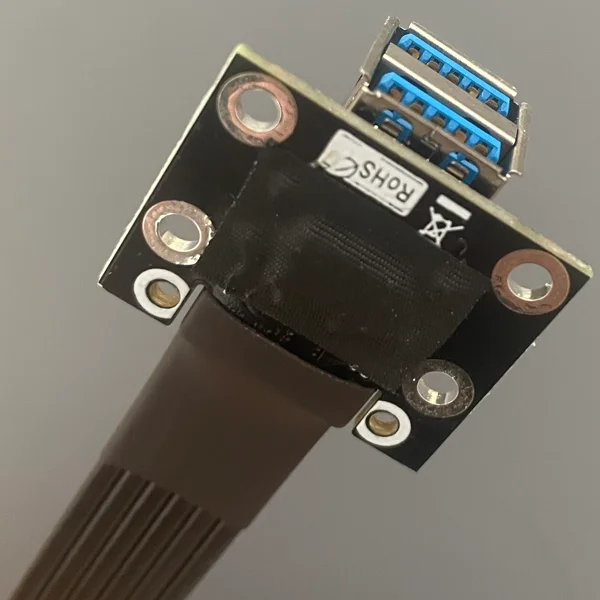

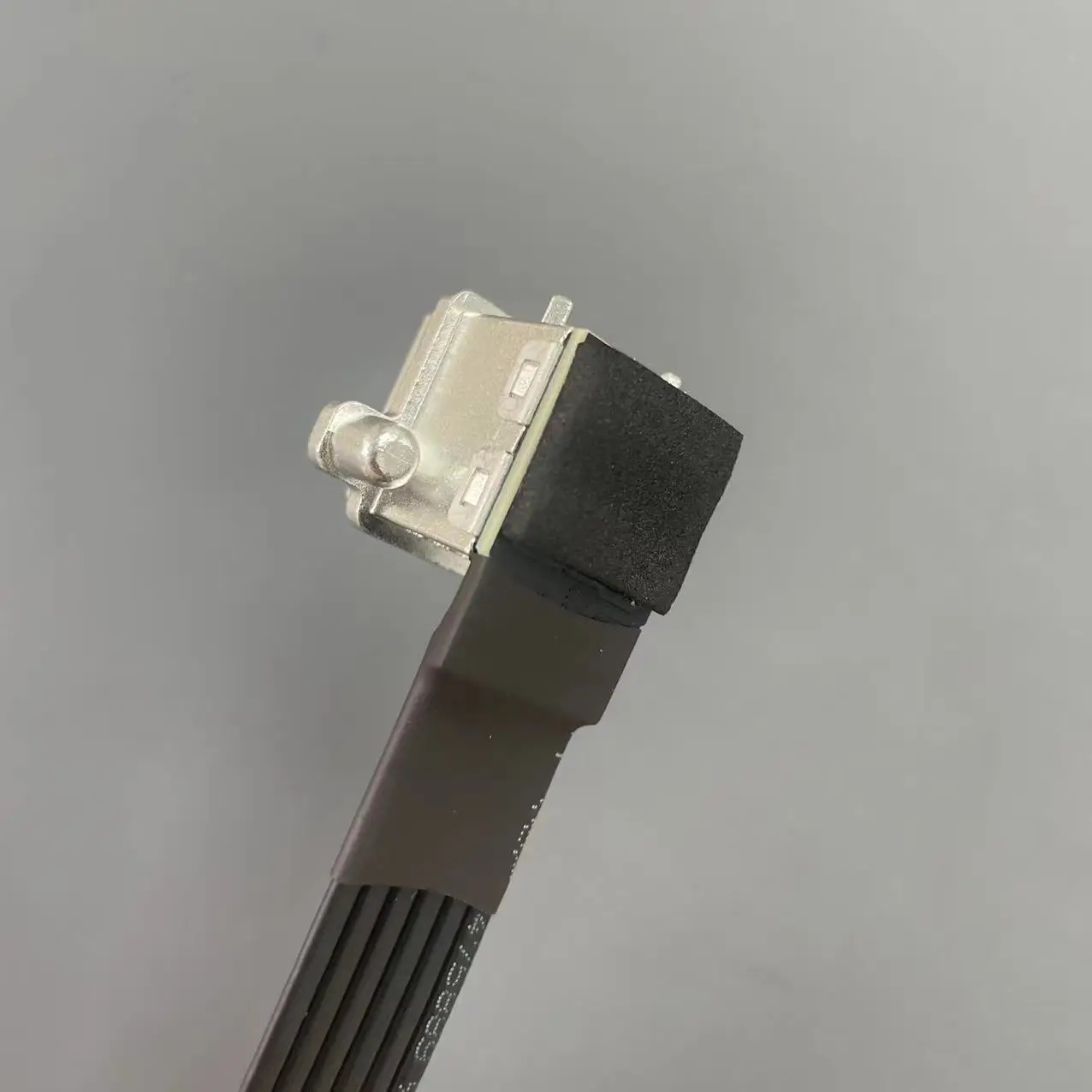

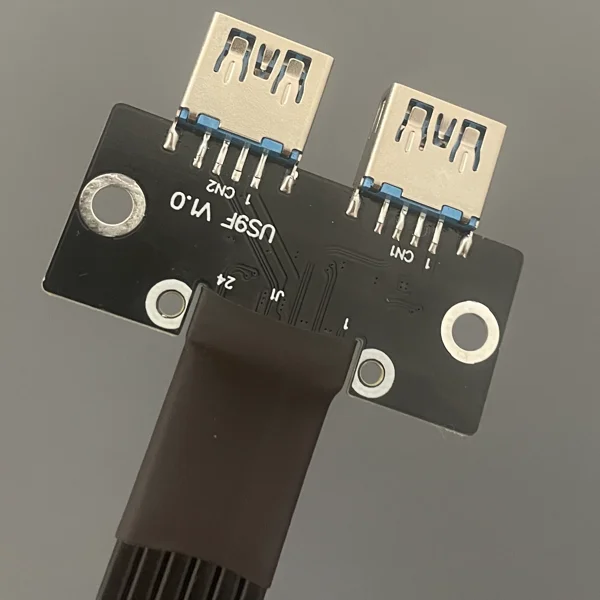

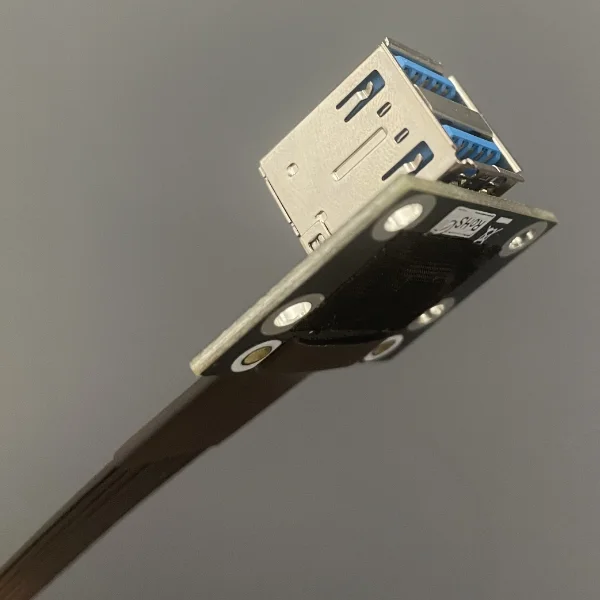

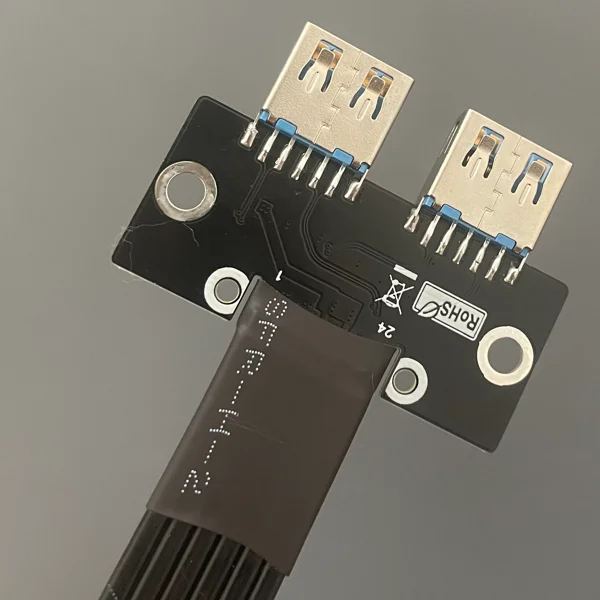

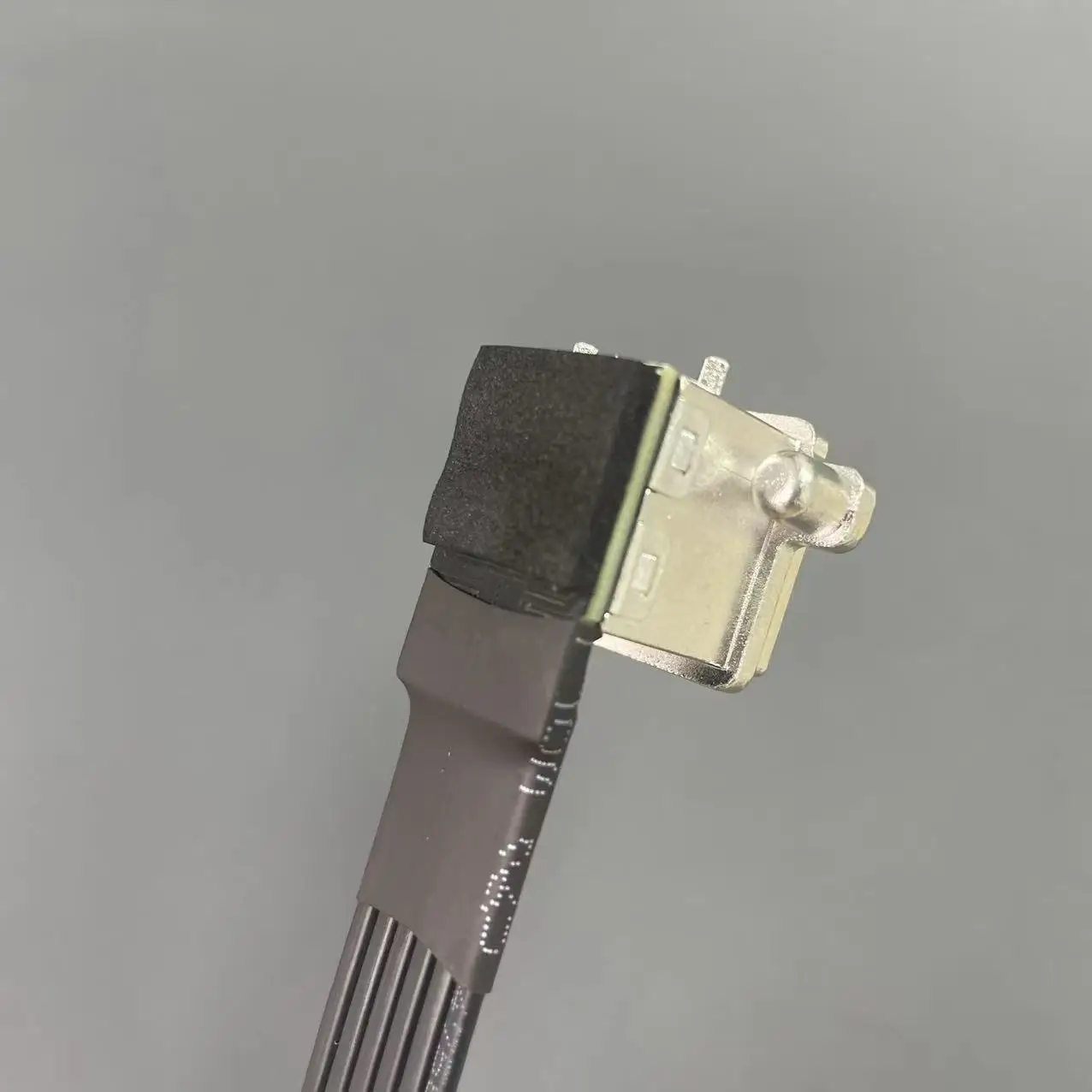

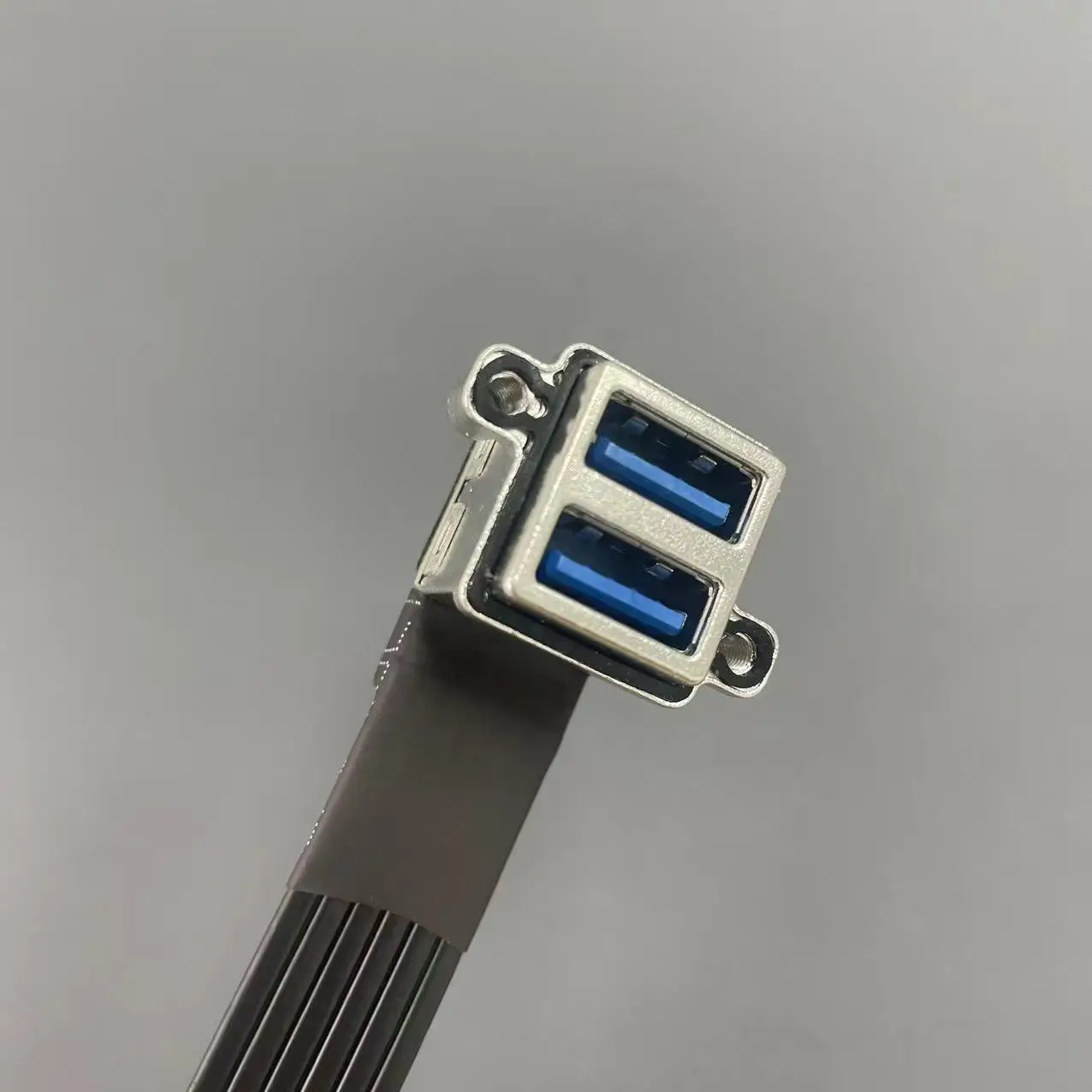

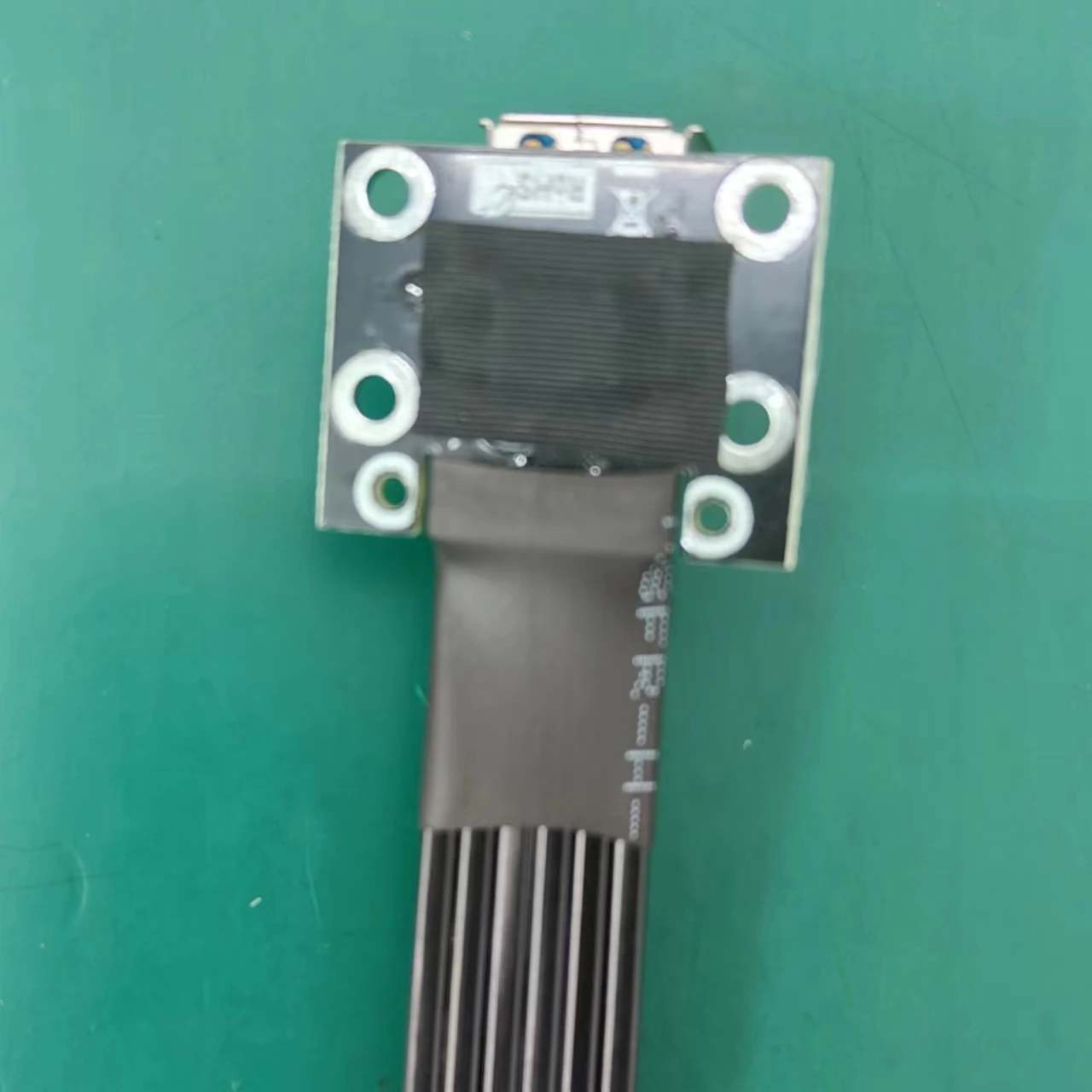

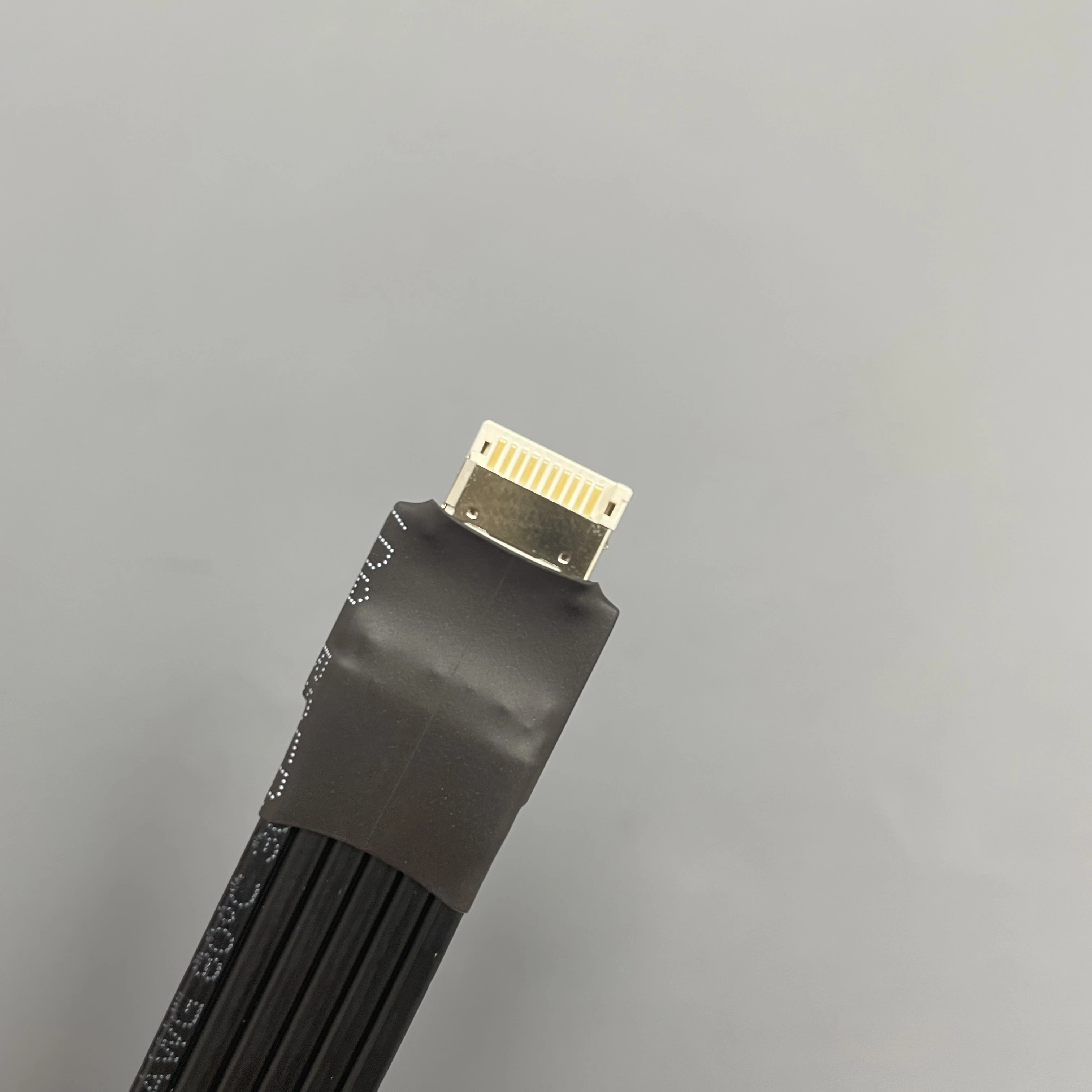

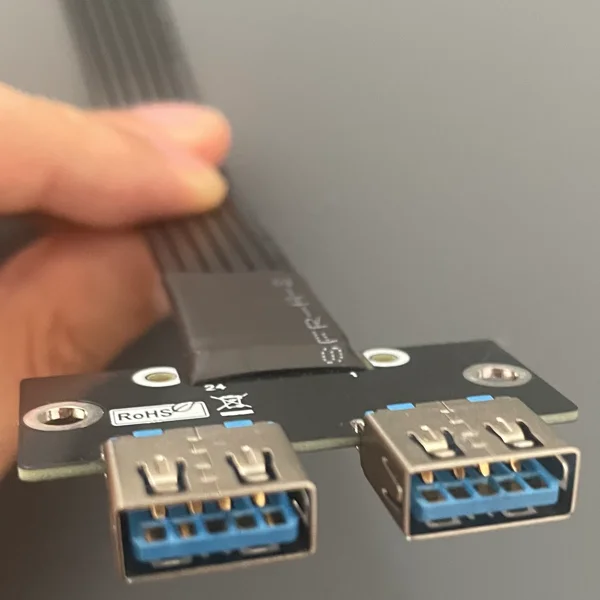

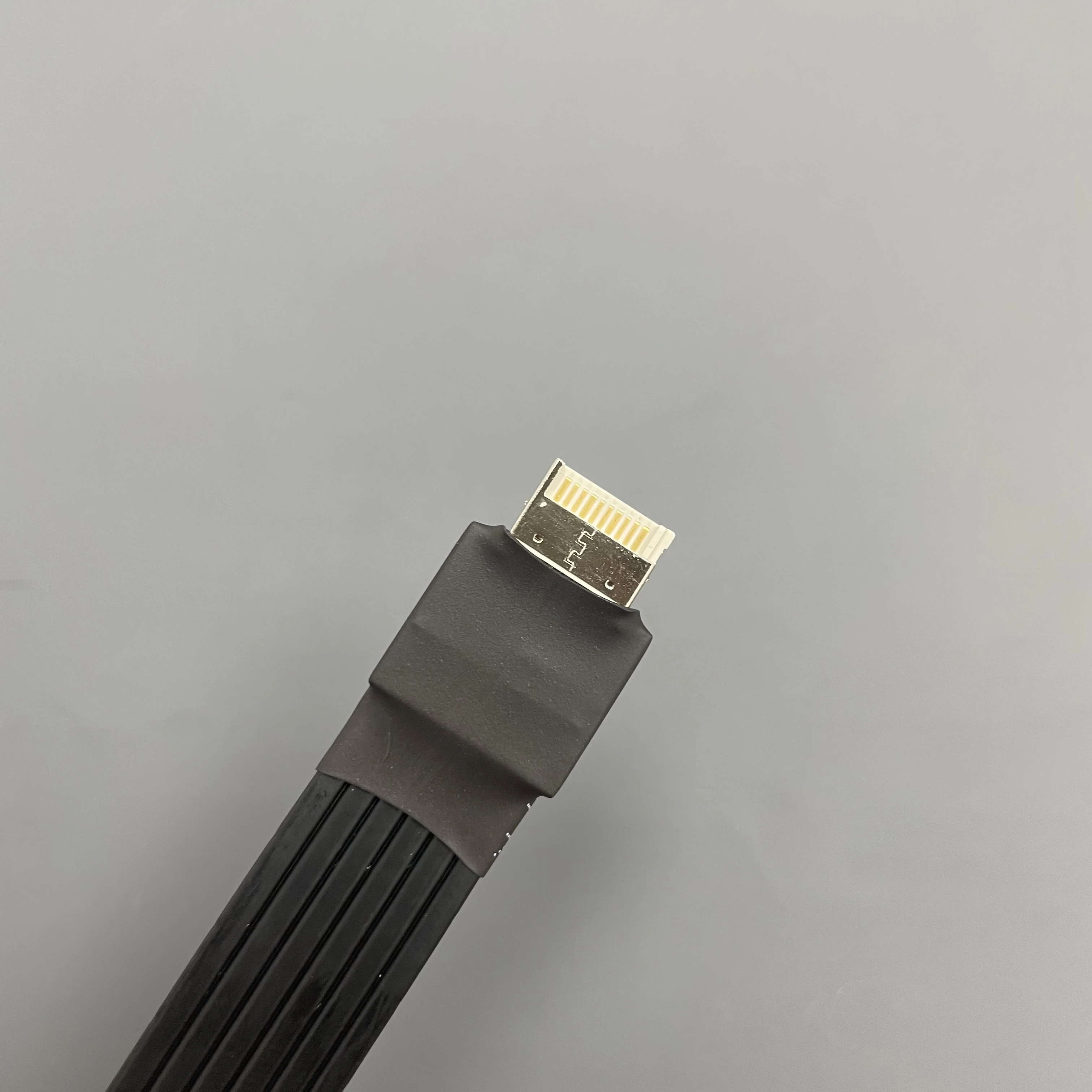

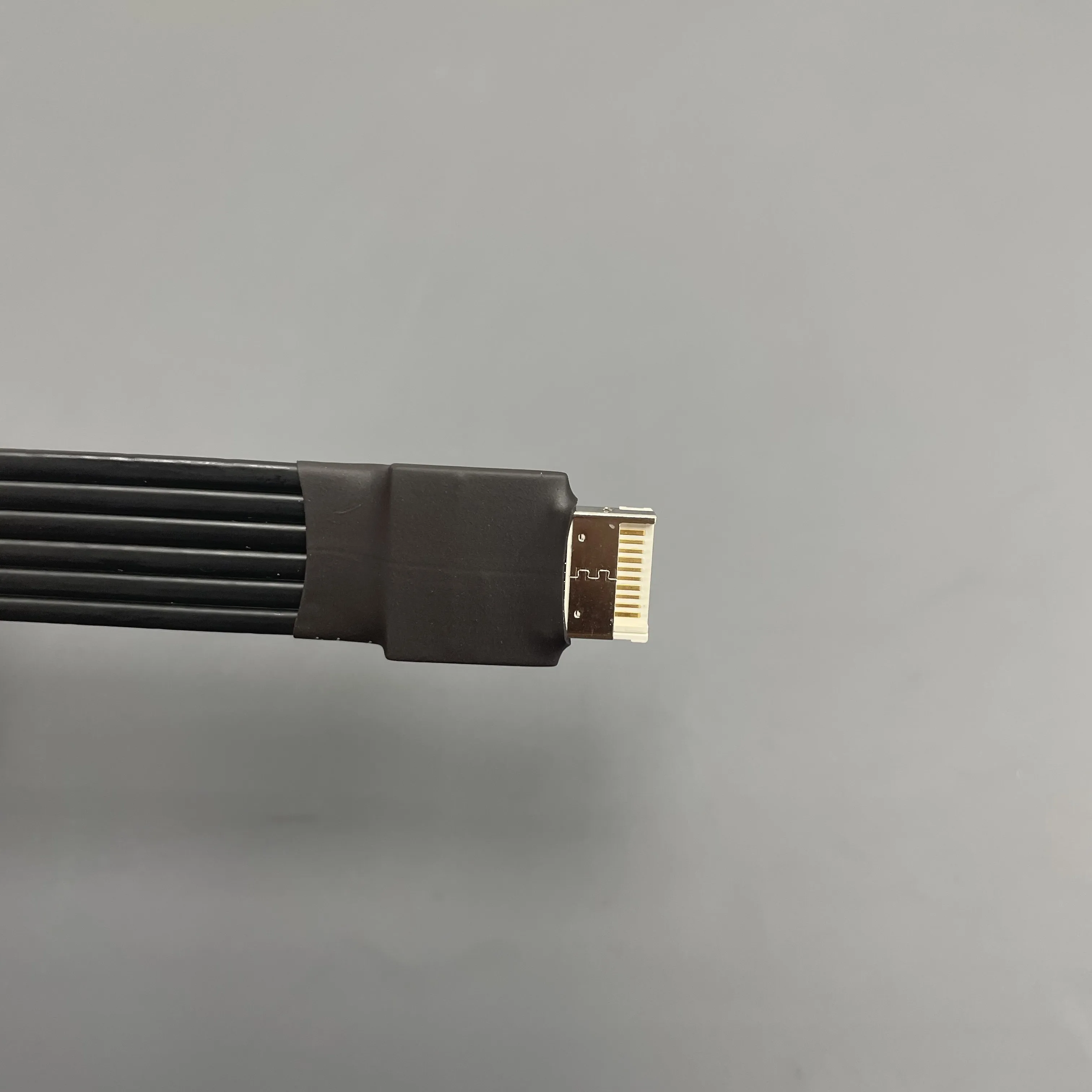

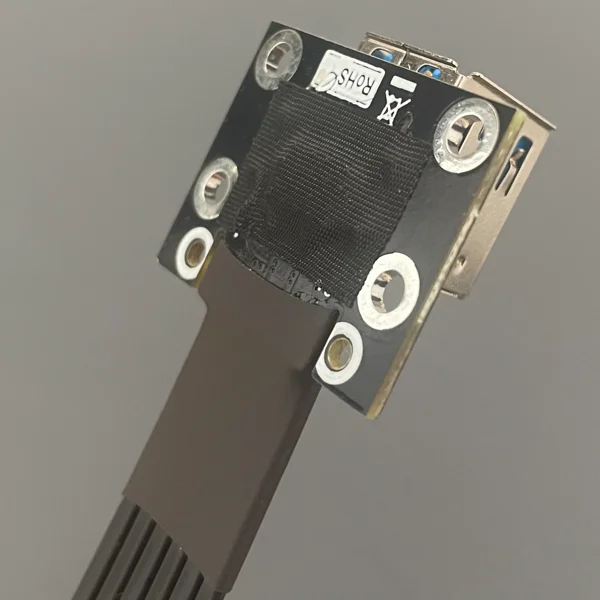

Product photos:

Summary of technical questions

Is the wire soft? Can be bent and folded?

The cable is ADT fourth generation differential signal special cable, black model cable thickness is 1.3mm, silver model cable thickness is 1.4mm, the cable can be bent or folded, does not affect the use.

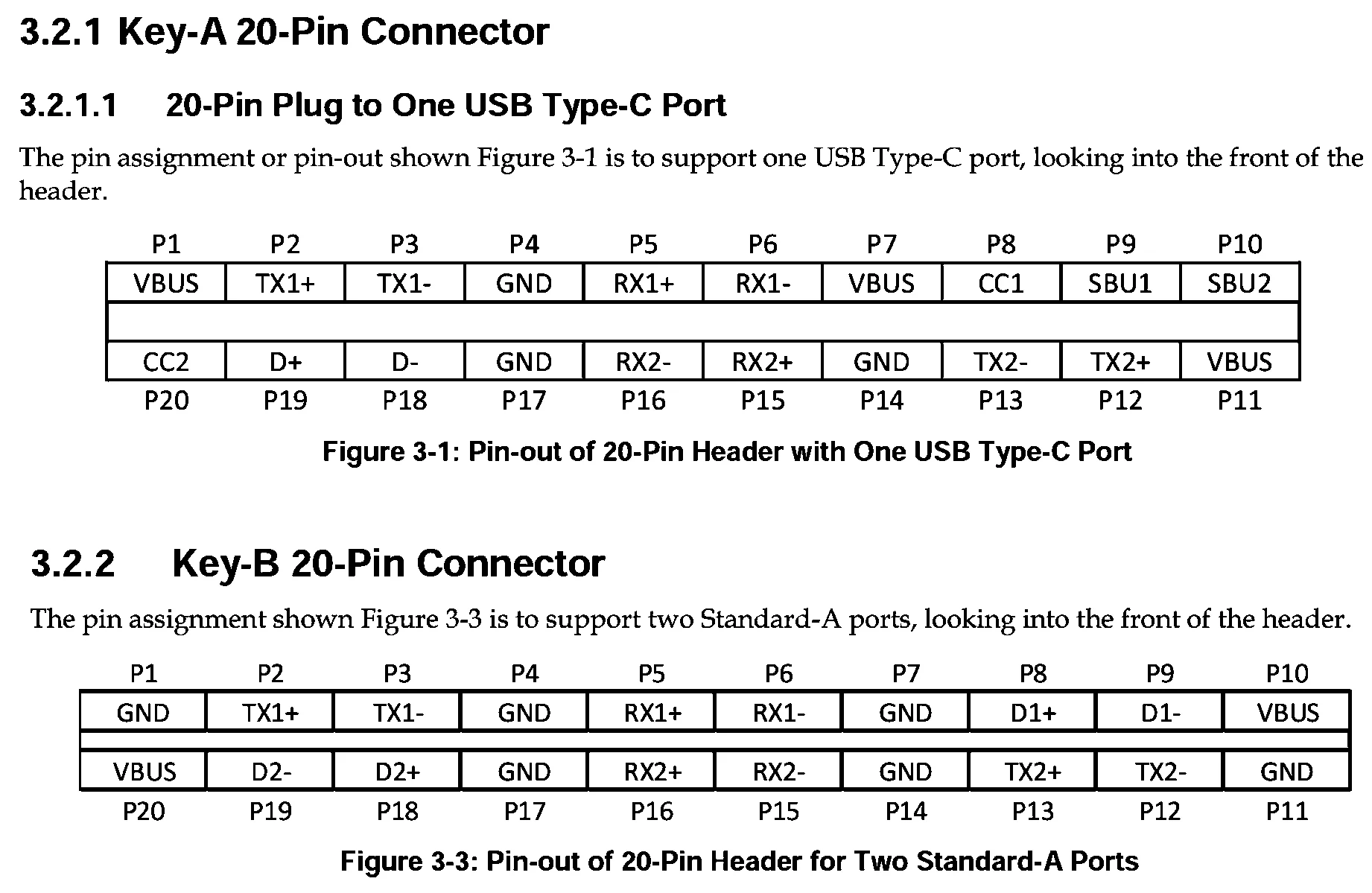

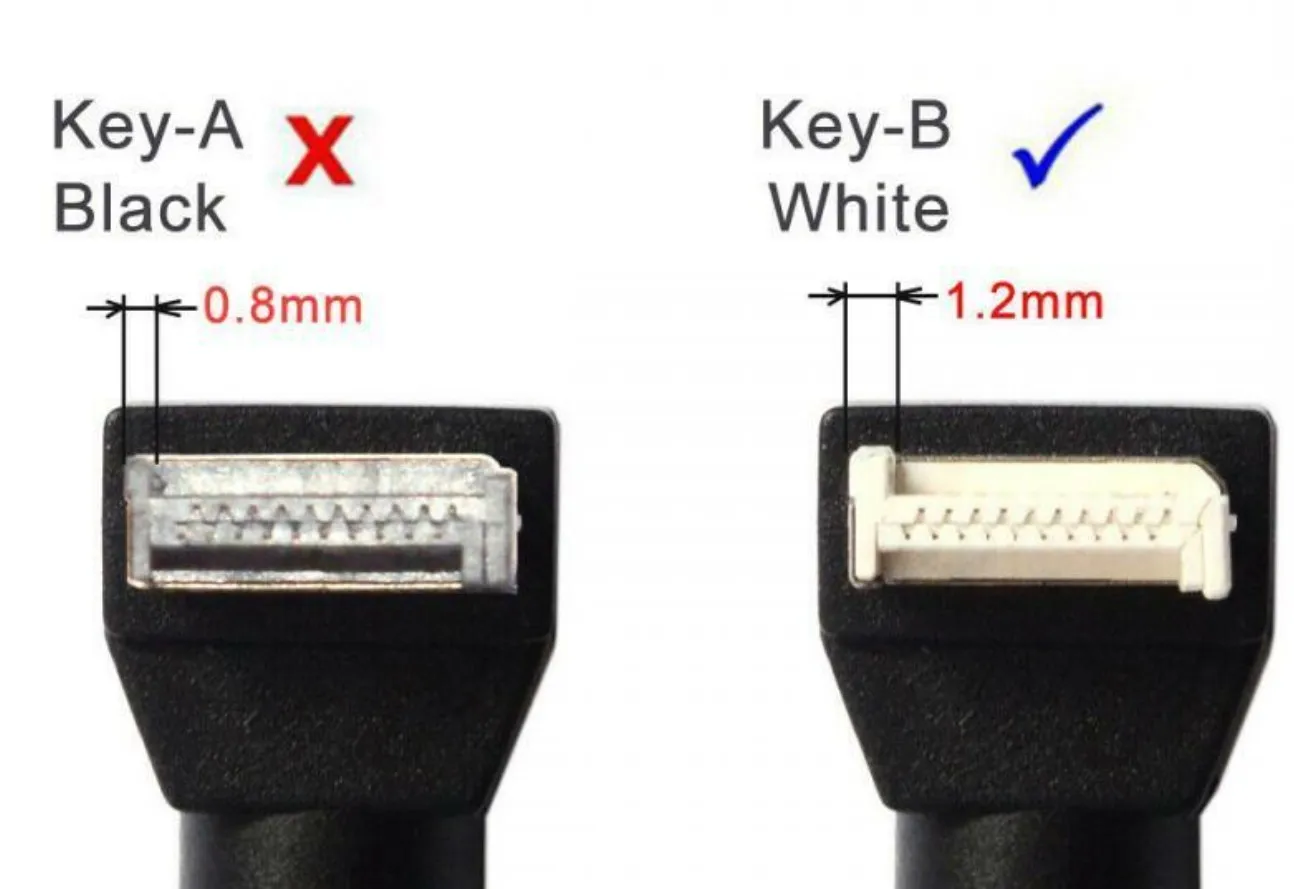

What is the difference between Key-A and Key-B of USB type-C Front Panel (also known as Type-E interface)?

The difference between Key-A and Key-B of USB 3.1 Type-C front panel is that Key-A supports 1 USB Type-C port, while Key-B supports 2 standard A ports.

The USB Type-C Front Panel Key-A and Key-B have different pin arrangements. These two pin arrangements are designed to prevent incorrect insertion, so they have different connector profiles.

Black Key-A is for conversion to 1x type-C female connector

White Key-B for conversion to 2x type-A female connector

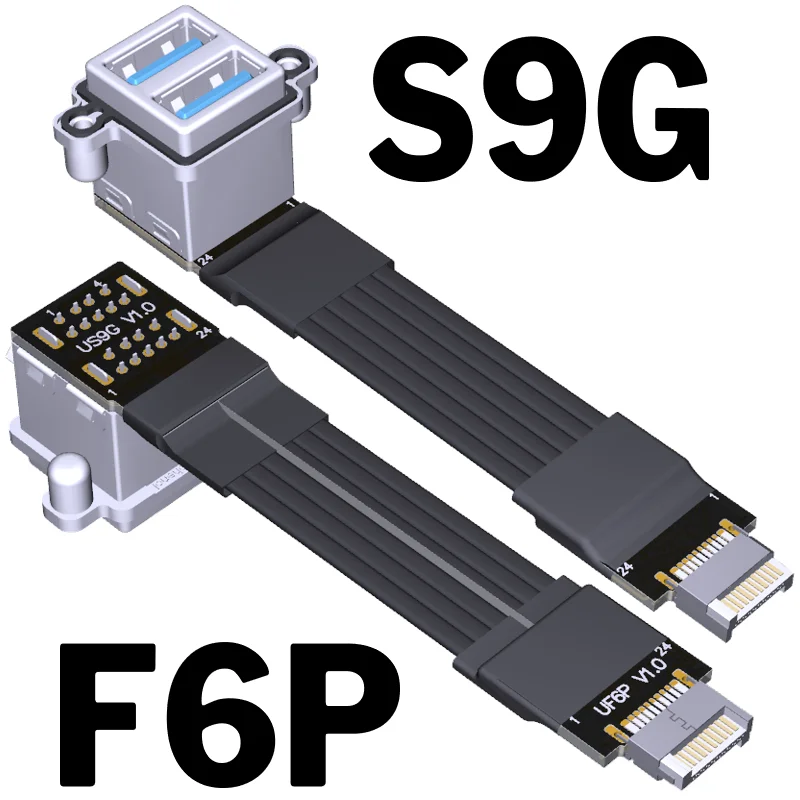

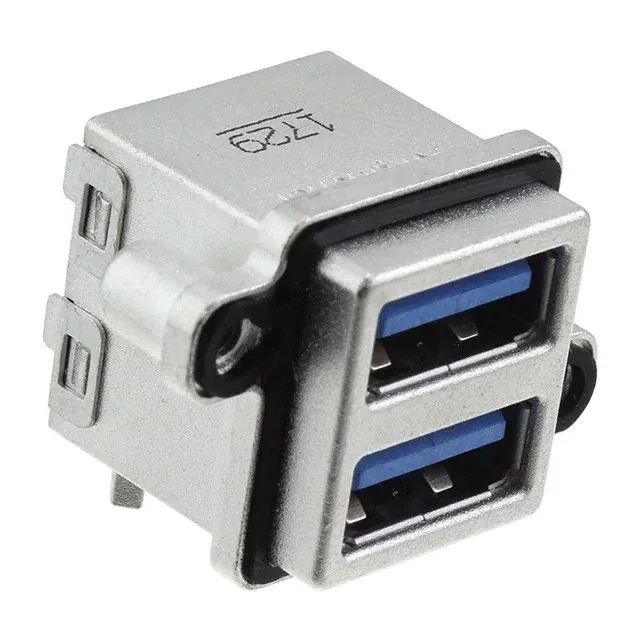

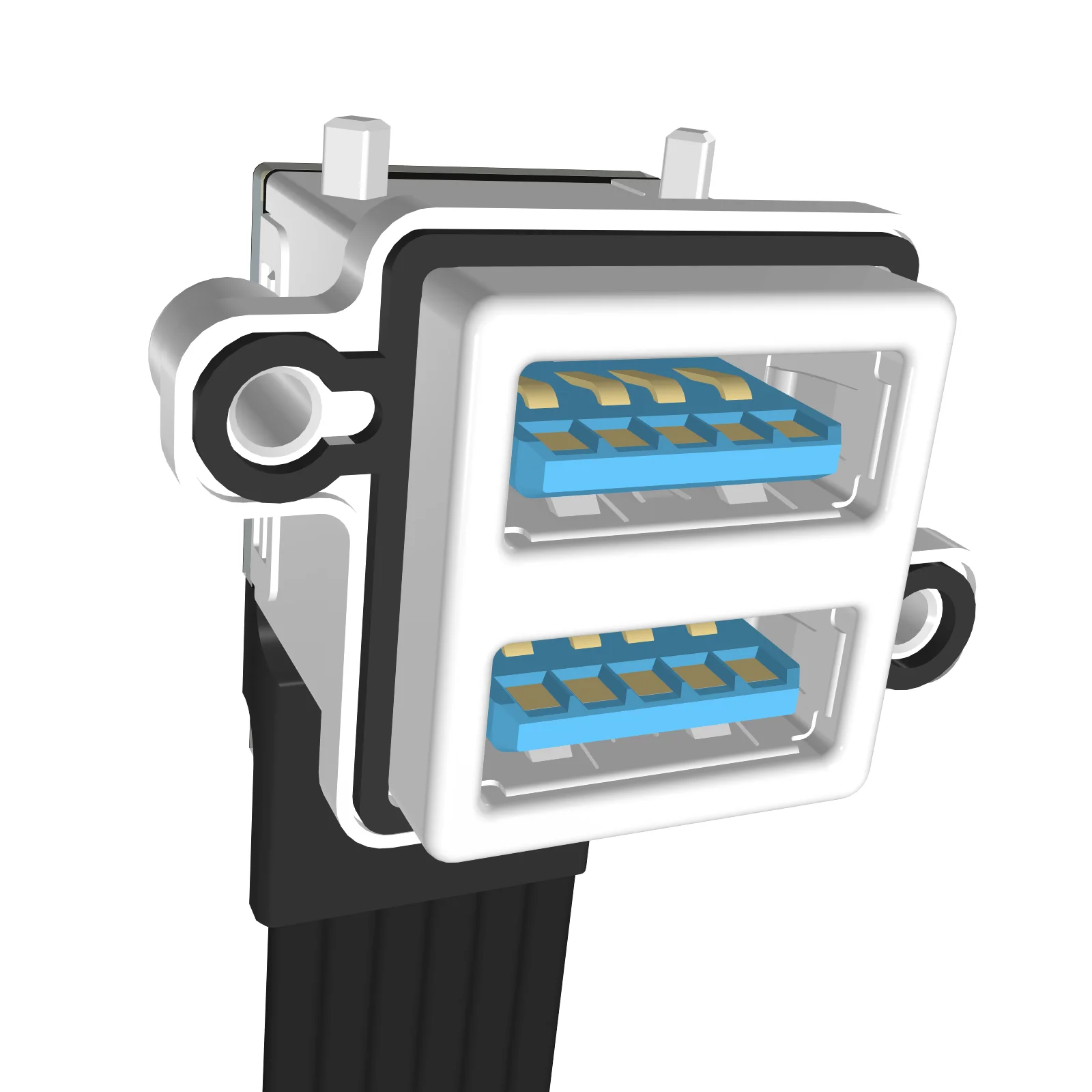

What is the type of waterproof female socket used in US9G?

Amphenol-compatible MUSR-4593-M0

The difference between Key-A and Key-B on the USB 3.1 Type-C front panel is that Key-A supports 1x USB Type-C port.

Note for purchase.
1. When plugging in the line must be clear about the direction, do not insert the reverse or insert the offset position, to prevent burning equipment, plug the line first hold the device socket and then plug the line, to avoid excessive force will be socket pins broken. The second end of the wire and the board welding within 2cm of the bend is prohibited to prohibit pulling.
2. various motherboards and equipment signal driving ability and other conditions are different, the results of our test does not guarantee and your test results are consistent, as long as the extension cord is connected, the signal will have loss, there will be compatibility problems.
3. graphics card or motherboard is an electronic device will increase with time and aging oxidation, and then connected to the extension cord will only be more unstable. Do not support old equipment. If your device is more than three years old is not supported.
4. limited to product engineers designated to buy, only for product testing, other uses, please do not buy.
