Home>Computer Accessories>USR-SDR050-L 5-LAN Ports 10/100Mbps Rate Industrial Ethernet Switches DC9-36V Support Natural Heat Dissipation DIN-Rail Mounting

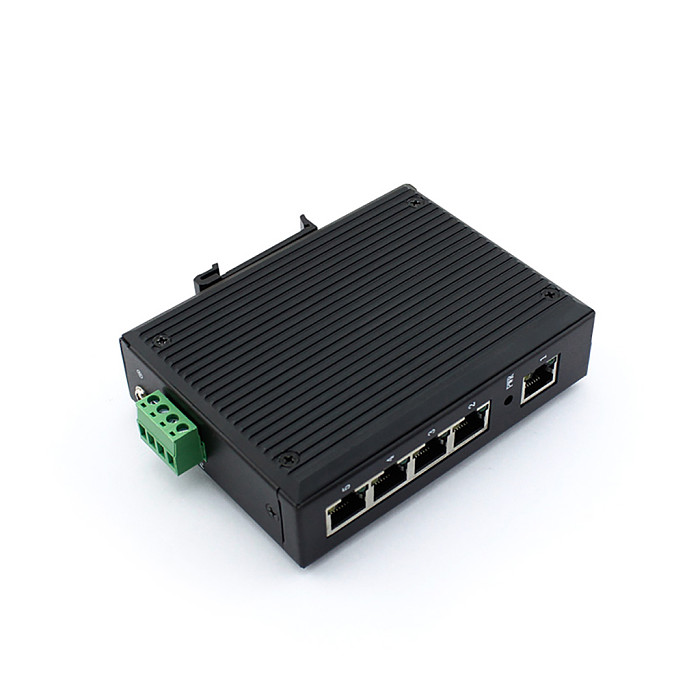

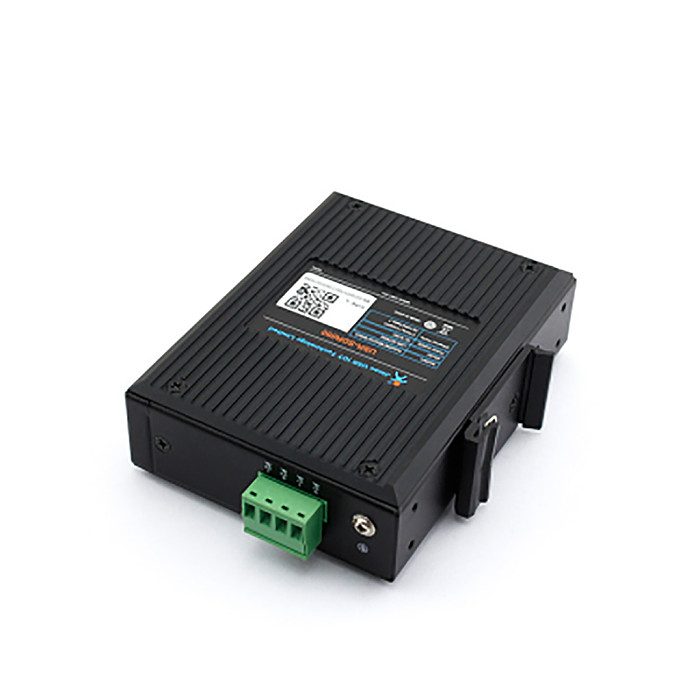

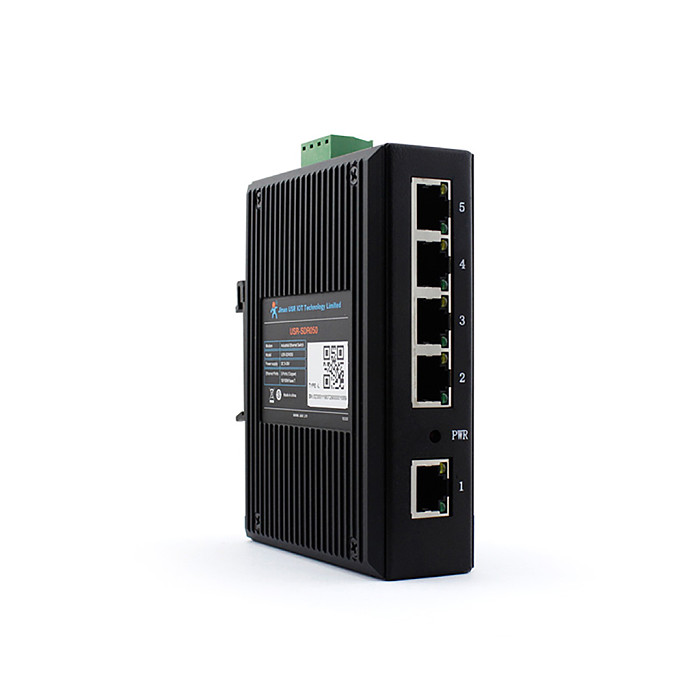

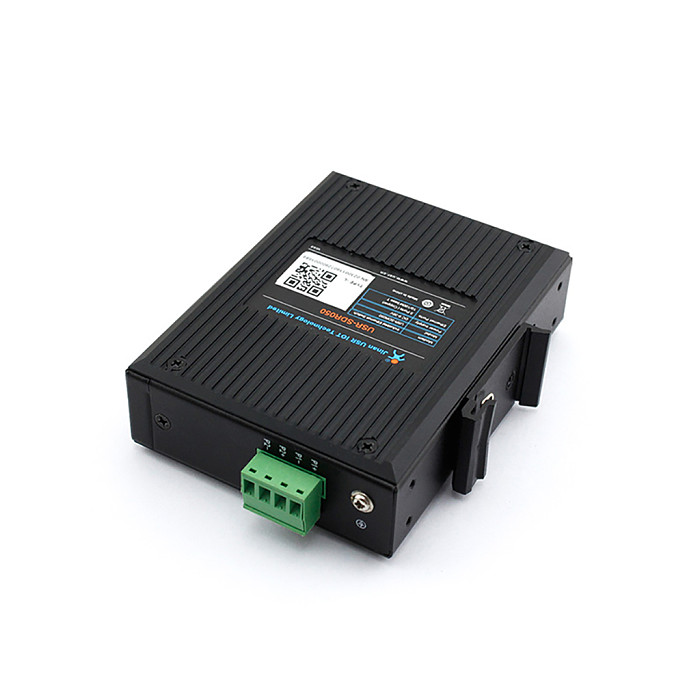

USR-SDR050-L 5-LAN Ports 10/100Mbps Rate Industrial Ethernet Switches DC9-36V Support Natural Heat Dissipation DIN-Rail Mounting

USR-SDR050-L 5-LAN Ports 10/100Mbps Rate Industrial Ethernet Switches DC9-36V Support Natural Heat Dissipation DIN-Rail Mounting Item NO.: F48176

Write a Review
US$ 36.79
US$ 39.99 Save US$ 3.20 (8% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name USR-SDR050-L 5-LAN Ports 10/100Mbps Rate Industrial Ethernet Switches DC9-36V Support Natural Heat Dissipation DIN-Rail Mounting
Item NO. F48176
Weight 1.2 kg = 2.6455 lb = 42.3288 oz
Category Computer Accessories
Creation Time 2022-08-11

USR-SDR050-L 5-LAN Ports 10/100Mbps Rate Industrial Ethernet Switches DC9-36V Support Natural Heat Dissipation DIN-Rail Mounting


5 Port Industrial Ethernet switches. Small-for-size, Plug and play, simple and reliable, quickly realize the expansion function of the network port, and enhance the reliability and security of the industrial network.

● Support 5 Ethernet ports (electrical ports), 10/100Mbps rate adaptation
● Support level 4 electrostatic protection, level 4 power surge protection, level 3 network port surge protection, IP40 and other advanced protection
● Phoenix terminal power interface
● Support 9-36V wide voltage, natural heat dissipation, DIN-Rail mounting



industrial Ethernet Switch USR-SDR050-L
Function contrast diagram
Function contrast diagram
industrial design of ethernet switch USR-SDR050-L

10/100M Industrial Ethernet Switches USR-SDR050-L

Wide running temp:-40-85℃,industrial lighting protection, anti-electrostatic,
Meet the requirement of different application scenes and make sure the stable and high speed.

Protection Class of ethernet switch USR-SDR050-L

Protection Class

Power IEC(level 4)
ESD (level 4)
Shell IP 40 to provide the invasion of solid objects
and make the product work normally.

More Functions of Industrial Ethernet Switches USR-SDR050-L

Support Wide Voltage

Supports DC9-36V, provide more selection for
user. The power interface is terminal format,
double power redundancy

Natural heat dissipation

Adopt fanless nature heat dissipation,
do not need any other extra device
cooling auxiliary which made it
adopted to more environment.

industrial swith SDR-050-L supports DIN-Rail Mounting

DIN-Rail Mounting

DIN-Rail Mountain, can be install and used
under the wall hanging scene.

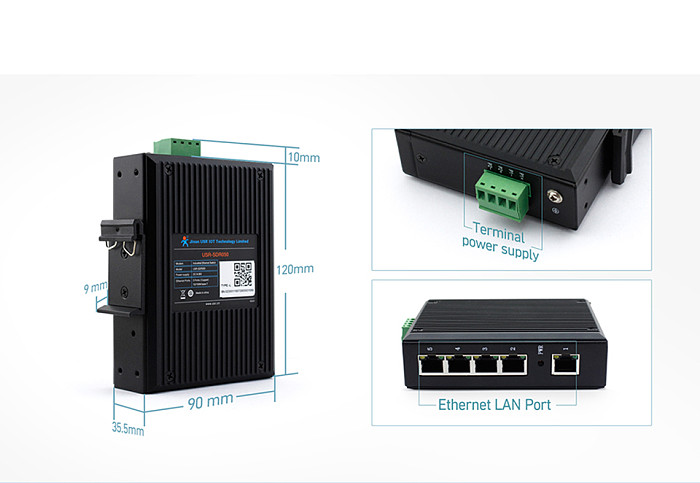

Product detail of industrial swith SDR-050-L

Product Details of Industrial Ethernet Switches USR-SDR050-L

application of industrial swith SDR-050-L: Intelligent transportation network transmission

Application

Intelligent transportation network transmission

Under the scene of the coal mine gas monitoring, the workers compose a while networking
monitoring solution by” switcher+serial server+terminal server” and maximize the cascade of
multiple sensors to protect the safety of underground workers.

application of industrial swith SDR-050-L: Networking transmission in security field
