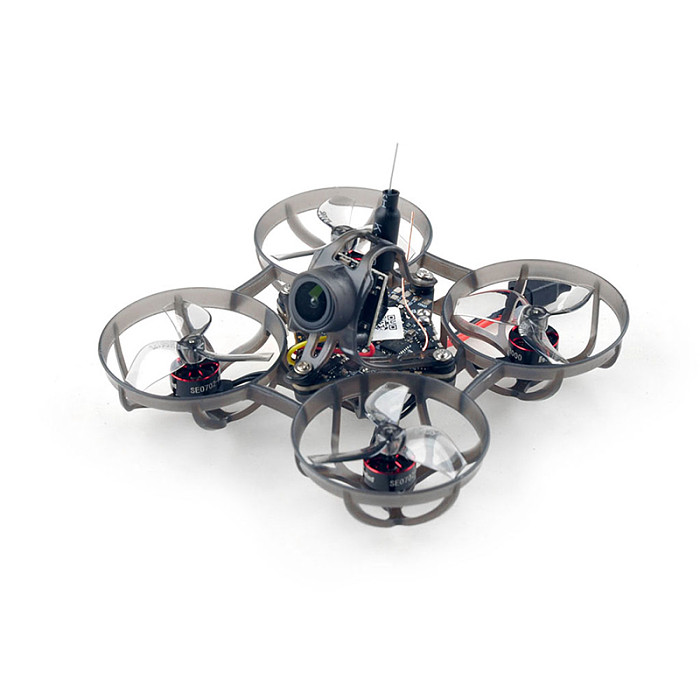

New HappyModel Mobula6 2024 V3 1S 65mm Ultra light micro FPV BWhoop For SE0702 KV28000 Motor 1200TVL Nano5 camera Quadcopter

US$ 131.55

Add to Cart

Estimate Shipping Cost

Detail

Product Name: New HappyModel Mobula6 2024 V3 1S 65mm Ultra light micro FPV BWhoop For SE0702 KV28000 Motor 1200TVL Nano5 camera Quadcopter
Item NO.: F54957
Weight: 0.012 kg = 0.0265 lb = 0.4233 oz
Category: DIY RC Drone Accessories
Creation Time: 2025-12-19

HappyModel Mobula6 2024 V3 1S 65mm ultra light micro FPV Whoop For SE0702 KV28000 brushless motor FPV Tinywhoop Drone

Mobula6 2024 V3 1S 65mm ultra light micro FPV Whoop

Features:

Come with New CrazyG473 AIO flight controller

Happymodel New 1200TVL Nano5 camera

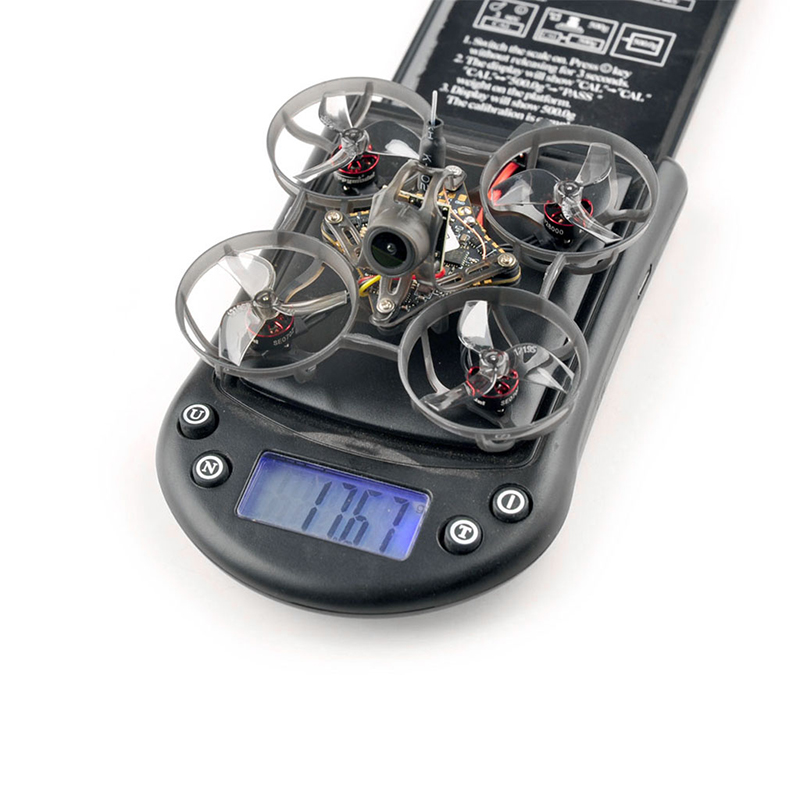

Super light 1S 65mm Brushless whoop only 17.6g

Equipment with the lightest brushless motors-SE0702 only 1.46gram

Smooth and powerful

Built-in Serial ELRS receiver

Built-in Power max to 400mw openVTX

Specifications:

Brand Name: Happymodel

Item Name: Mobula6 2024 V3 1S 65mm ultra light micro FPV Whoop
Wheelbase: 65mm
Size: 81mm*81mm*37mm

Weight: 17.6g

Receiver option:

2.4GHz ExpressLRS Serial receiver

	Mobula6 2024 V3	Mobula6 2024 V2
Flight controller	CrazybeeG473	SuperX ELRS V2.0
Firmware target	Betaflight 4.6 CrazybeeG473	Customized STM32F411
Built-in ExpressLRS receiver	Serial ELRS 2.4GHz	Serial ELRS 2.4GHz
Built-in Dshot ESC	5A	5A
Receiver antenna plug	Enameled Copper wire	Enameled Copper wire
Onboard VTX power	25mw~400mw	25mw~400mw
Brushless Motor	0702 KV28000 no plug	0702 KV28000 with plug
Propeller	Gemfan 1208-3 tri-blade	Gemfan 1208-3 tri-blade
Battery plug	A30(compatible with BT2.0)	A30(compatible with BT2.0)
Frame	Mobula6 2024 frame 2.76gram	Mobula6 2024 frame 2.76gram

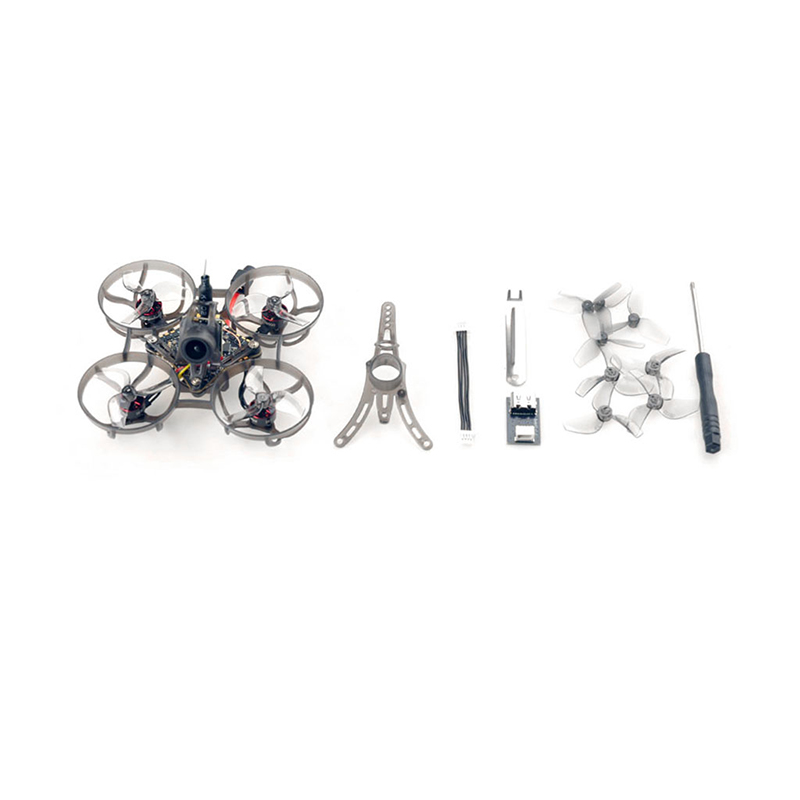

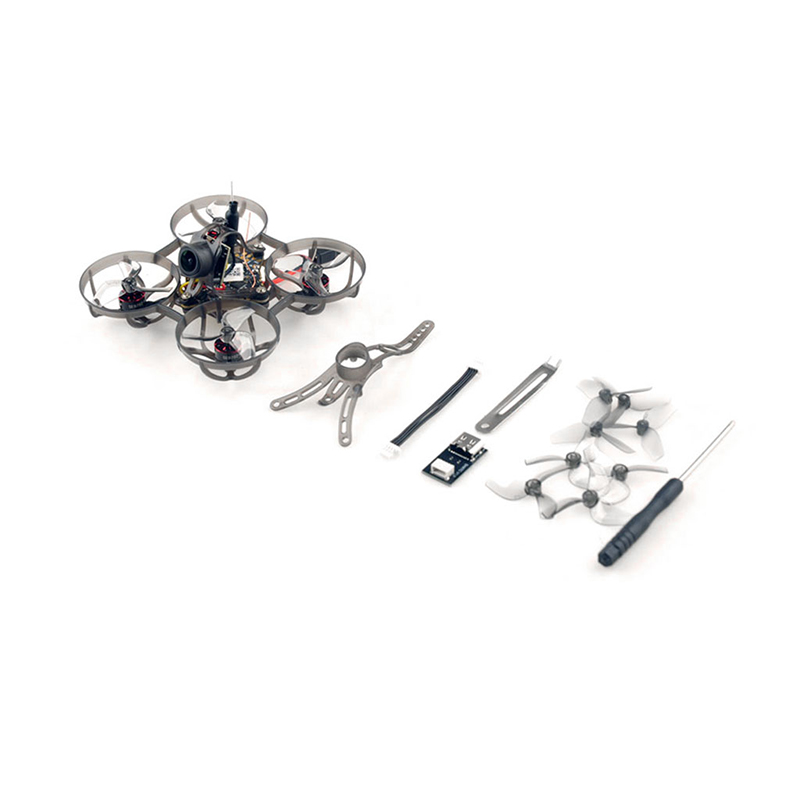

Package includes:

Item Name	Qty
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy	1
CrazybeeG473 AIO 5-IN-1 Flight controller	1
SE0702 KV28000 brushless motor	4
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)	1
HQPROP ultralight whoop prop 1.2x1.1x3(2cw+2ccw)	1
Nano5 1200TVL camera NTSC 4:3	1
Onboard 5.8G 25mw~400mw VTX	1
Spare canopy	1
Propeller disassemble tool	1
Screw driver	1

Spare parts specifications:

Motor	Mode: SE0702 KV28000 no plug version Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.Len):Φ9.5mm14mm Weight(g):1.46g No.of Cells(Lipo):1S only
Propellers	Materials: PC Inch: 31mm Pitch: 0.8 in Weight: 0.21g Mount hole diameter: 1mm
Flight controller	MCU: STM32G473CEU6 Gyro: ICM42688P Sensor: Voltage & Current BEC: 5V, Max. 2A UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX) BetaFlight OSD: AT7456E ESC: 5A continuous RX: Serial ELRS 2.4GHz RX antenna: Enameled copper wire 31mm length Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX OPENVTX: 5.8GHz 48 channels, Max. 400mW FC firmware target: CRAZYBEEG473 USB port: SH1.0-4Pin Battery connector: A30 Mounting hole size: 25.5mm x 25.5mm Weight: 3.83g without pigtail and vtx antenna
Onboard 4in1 ESC	Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay v0.21 Firmware target: A_X_5_96KHz Default protocol: DSHOT300 DSHOT600 Recommend ESC Startup power value to min1100/max1200
Onboard Serial ExpressLRS receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna : Enameled copper wire antenna Telemetry output Power: <12dBm Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx
Onboard 5.8g VTX	OPENVTX Firmware Support firmware upgrade by openvtx configurator Output power: PIT/10/25/100/400 Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2.1 Modulation type: FM Operating temperature: -10℃~+80℃ Antenna port: IPEX1/U.FL
Nano5 Camera	Image Sensor: 1/3" CMOS Horizontal Resolution: 1200 TVL Lens: 2.1mm (M10) 155° FOV TV System: NTSC Signal-to-Noise Ratio: >52dB Electronic Shutter: Auto Automatic Gain Control (AGC): Auto Minimum Illumination: 0.001Lux@1.2F Digital Wide Dynamic Range: Auto Power Supply: DC 3-5.5V Current: 110mA@5V 120mA@3.3V House Material: ABS Net Weight: 1.57g (1.0mm plug version)
