Walksnail HD Nano Camera / VTX Kit Comparable with Fatshark Dominator Digital HD 1080P OLED FPV Goggles HDO3 incl Antenna

Walksnail HD Nano Camera / VTX Kit Comparable with Fatshark Dominator Digital HD 1080P OLED FPV Goggles HDO3 incl Antenna Item NO.: F48159---F48163

US$ 59.23
Color
HD Kit HD Nano Kit HD Camera Nano HD Camera Only VTX
Quantity
Estimate Shipping Cost
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Product Name Walksnail HD Nano Camera / VTX Kit Comparable with Fatshark Dominator Digital HD 1080P OLED FPV Goggles HDO3 incl Antenna
Item NO. F48159---F48163
Weight 0.1 kg = 0.2205 lb = 3.5274 oz
Category DIY RC Drone Accessories
Creation Time 2022-08-12

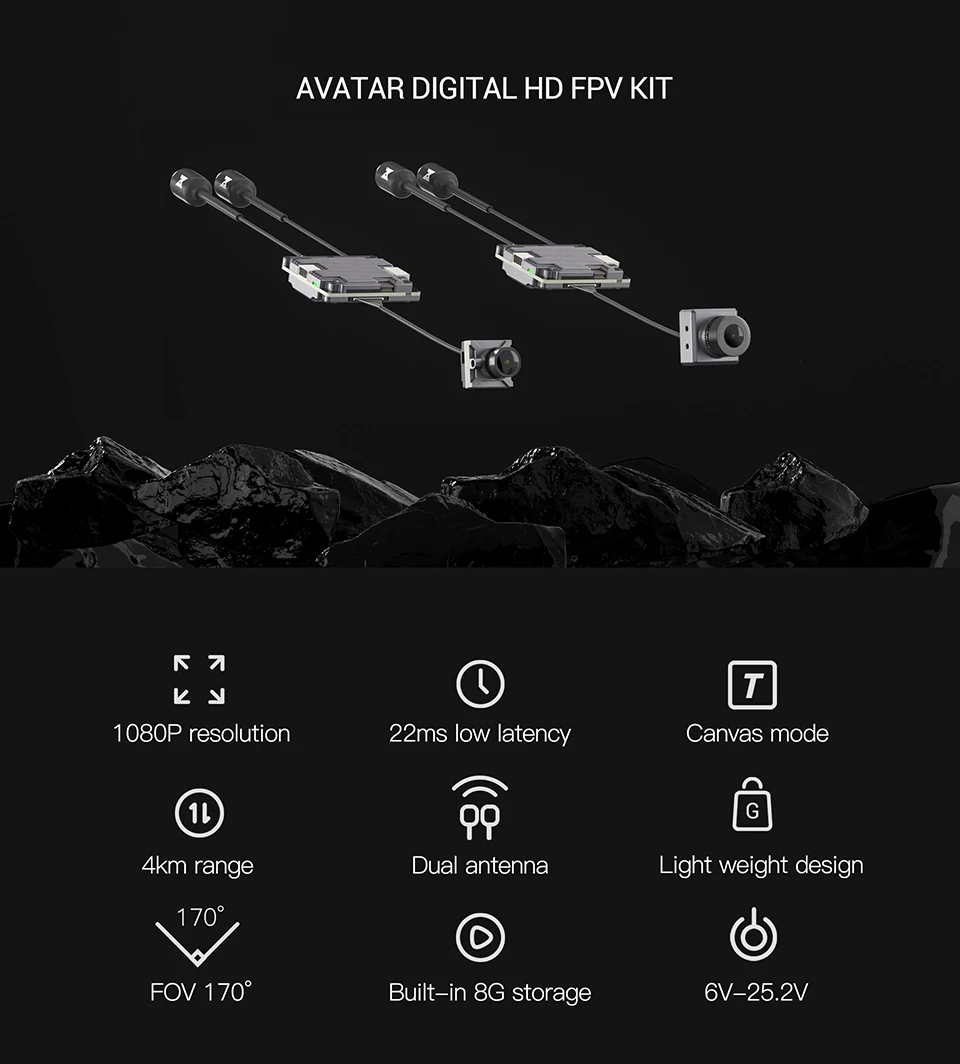

Features
Lower latency than the competitor at an average of 22ms
Built-in 8Gb Internal Storage
1080p Screen Resolution
Switchable Aspect Ratio

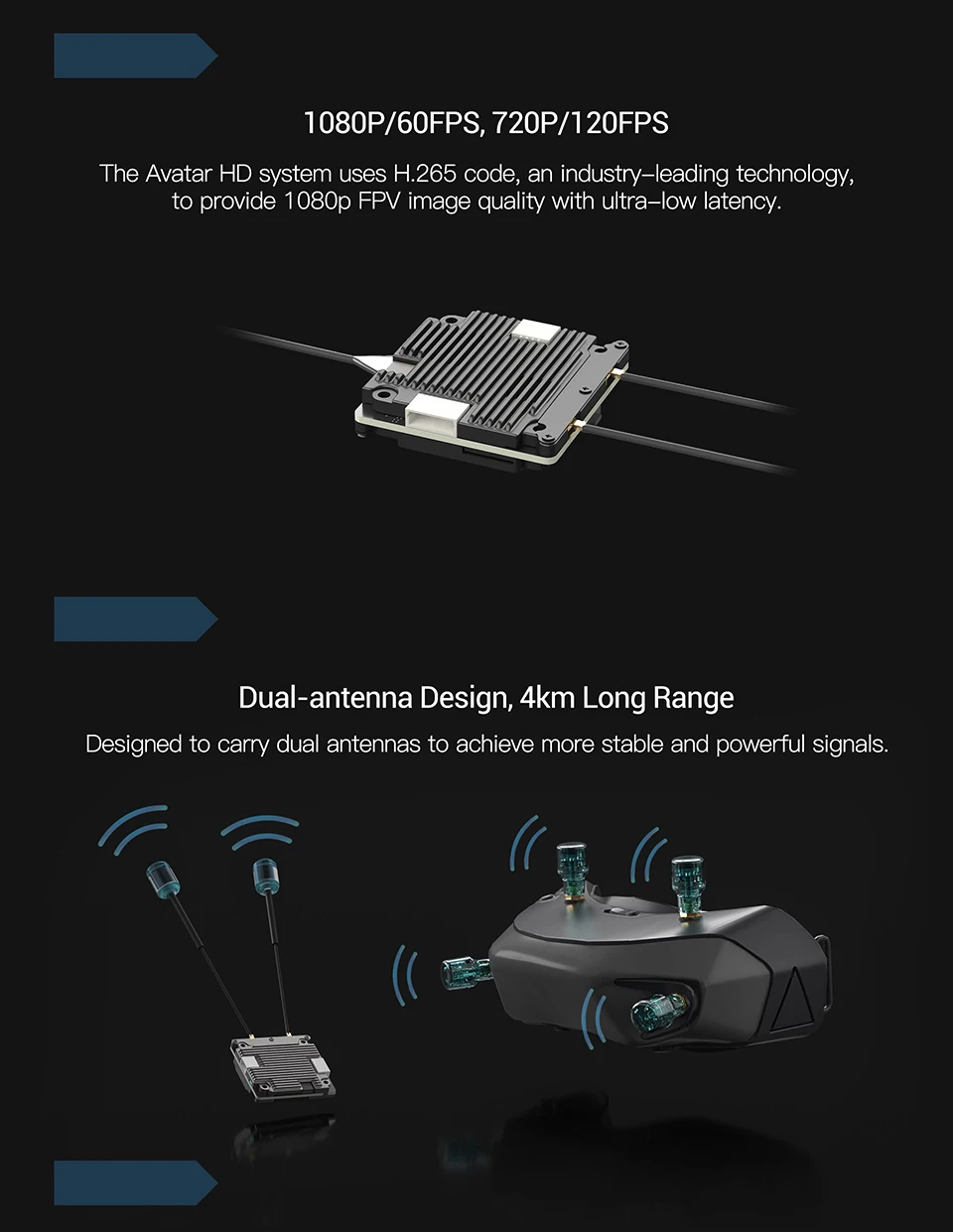

Dual Antenna Design
5.8GHz Frequency
Onboard DVR
Canvas Mode
4km Range
170° FOV
6V-25.2V

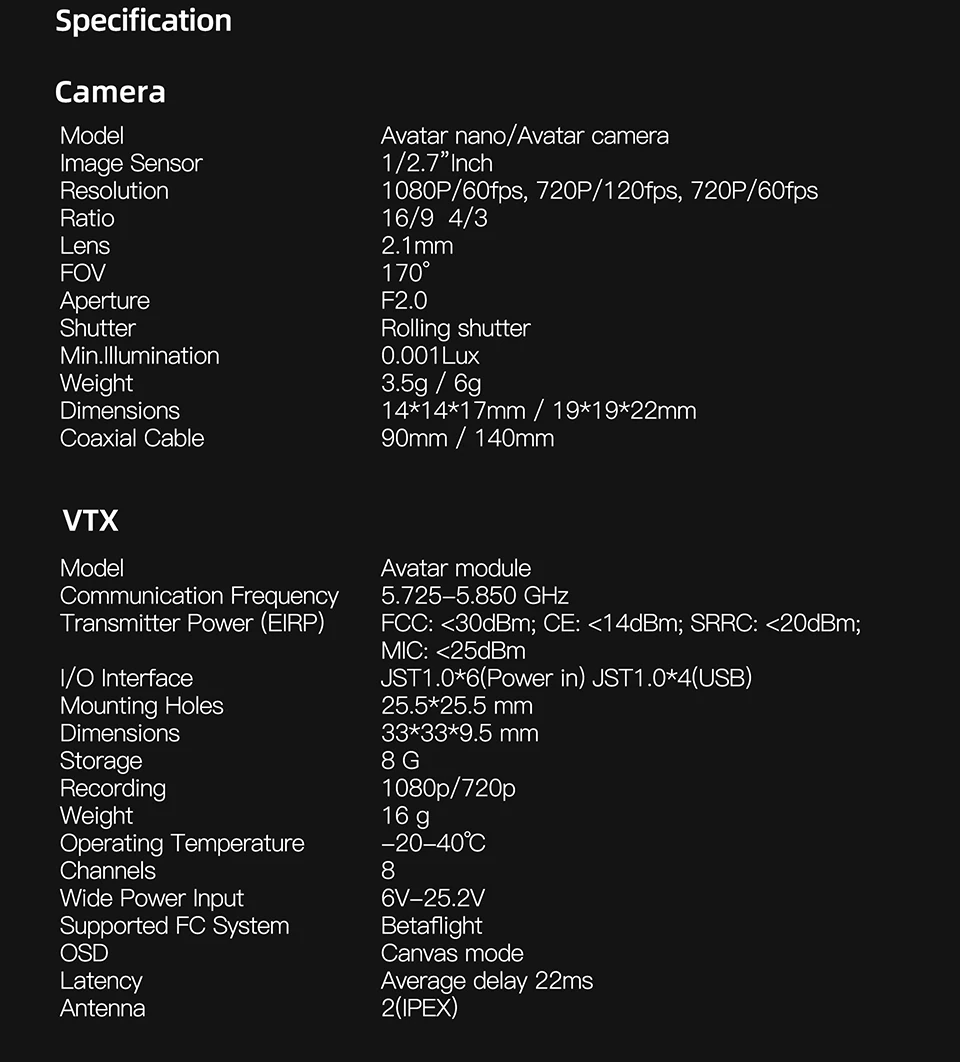

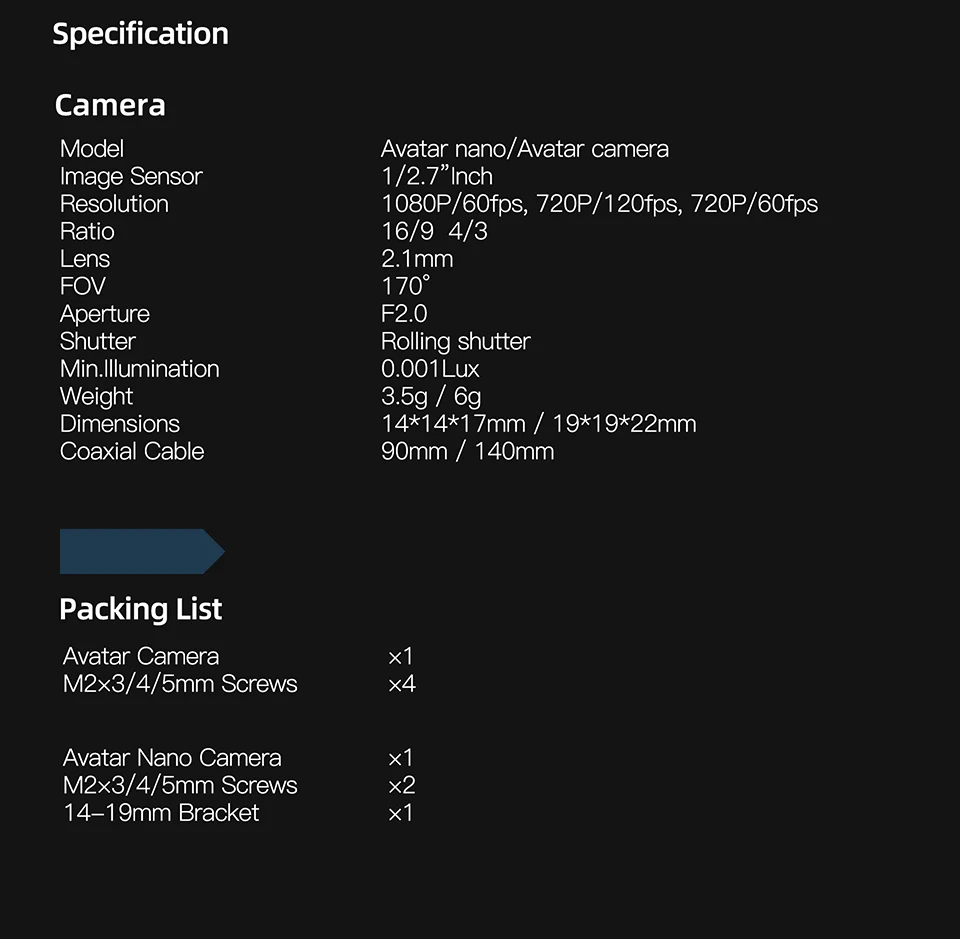

Specifications:

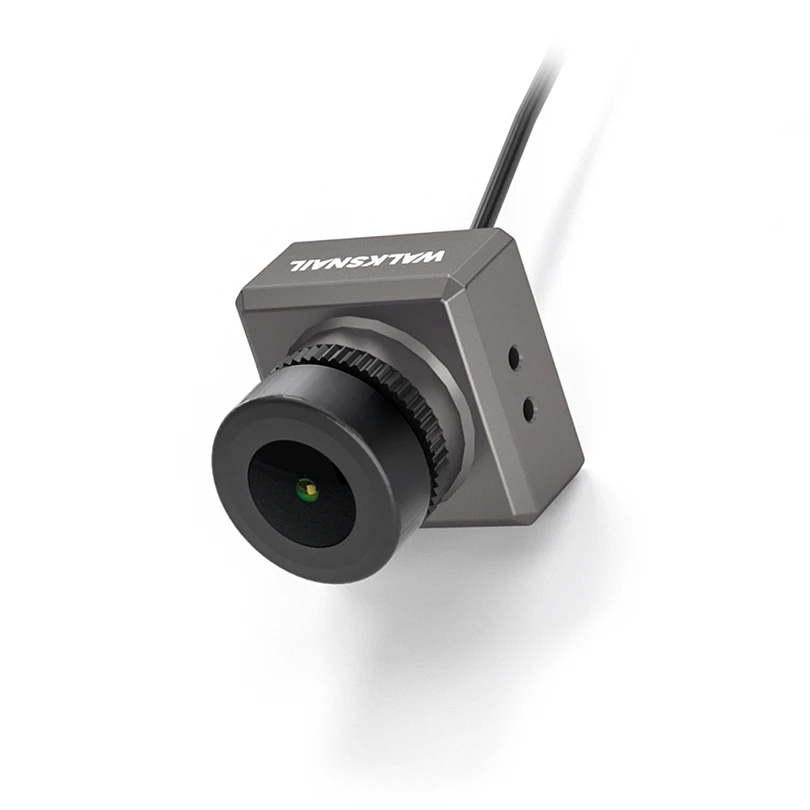

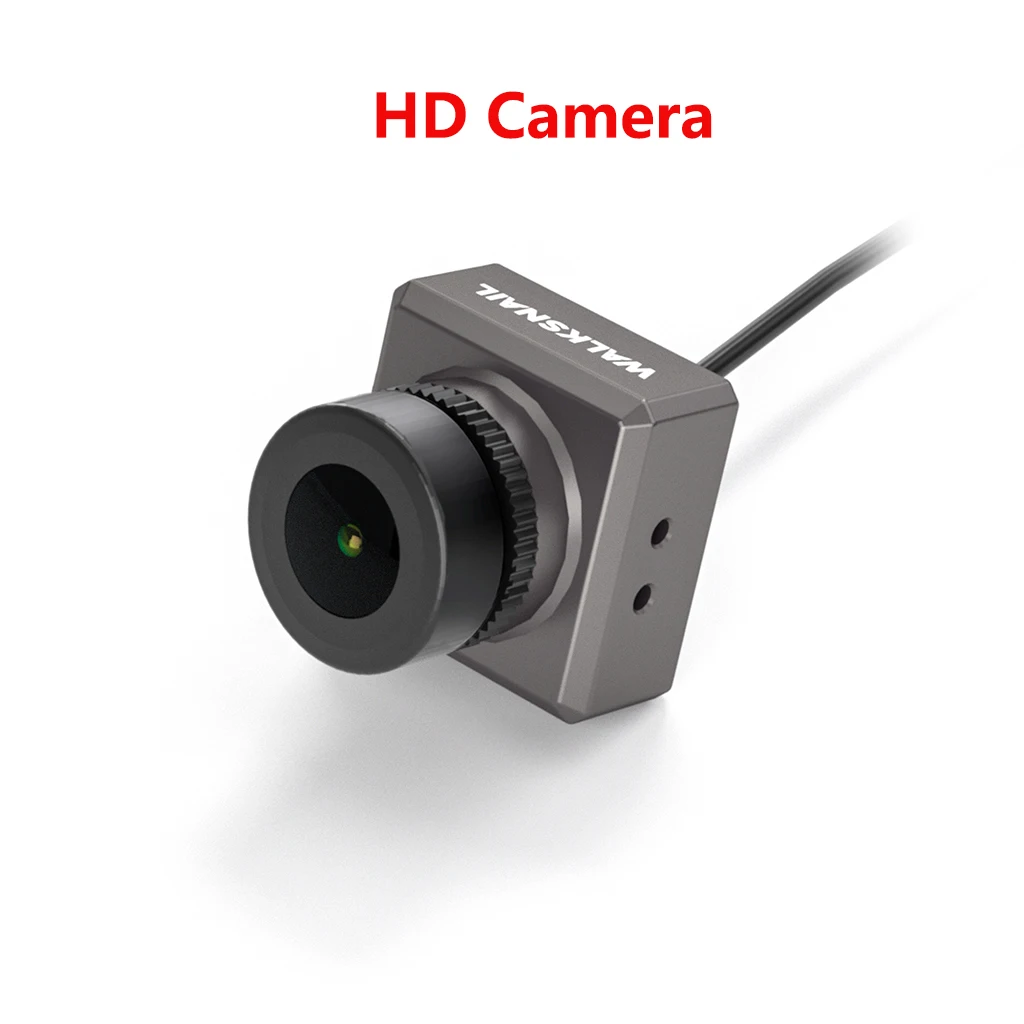

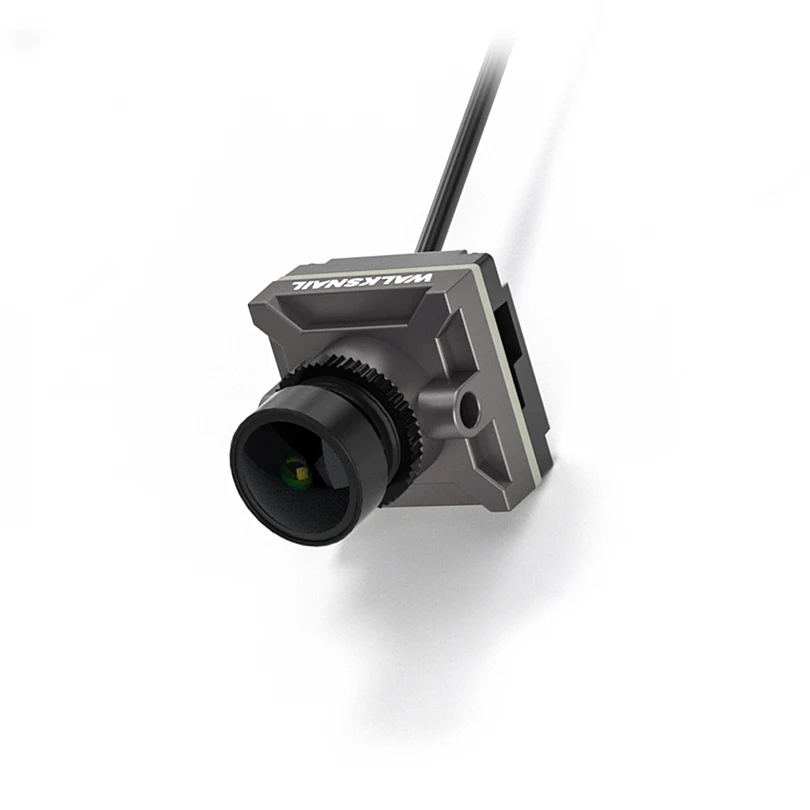

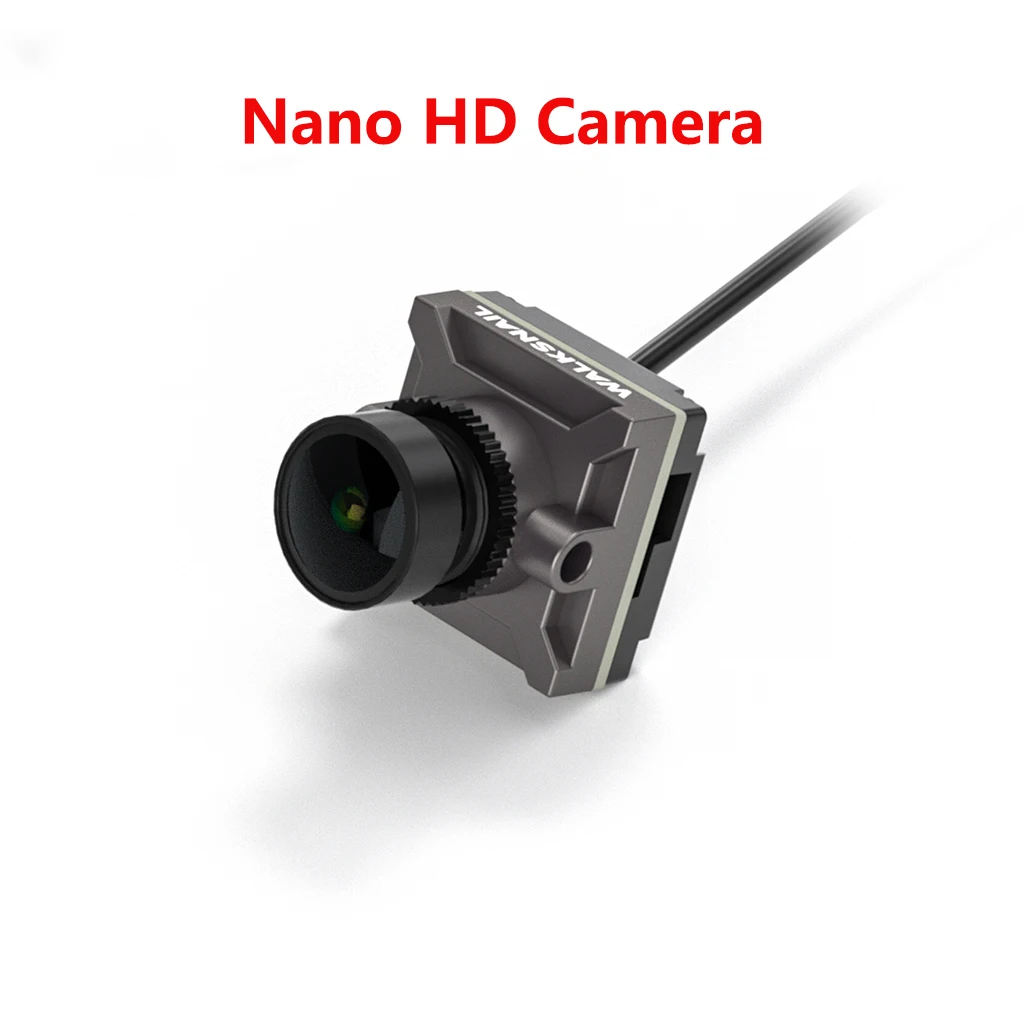

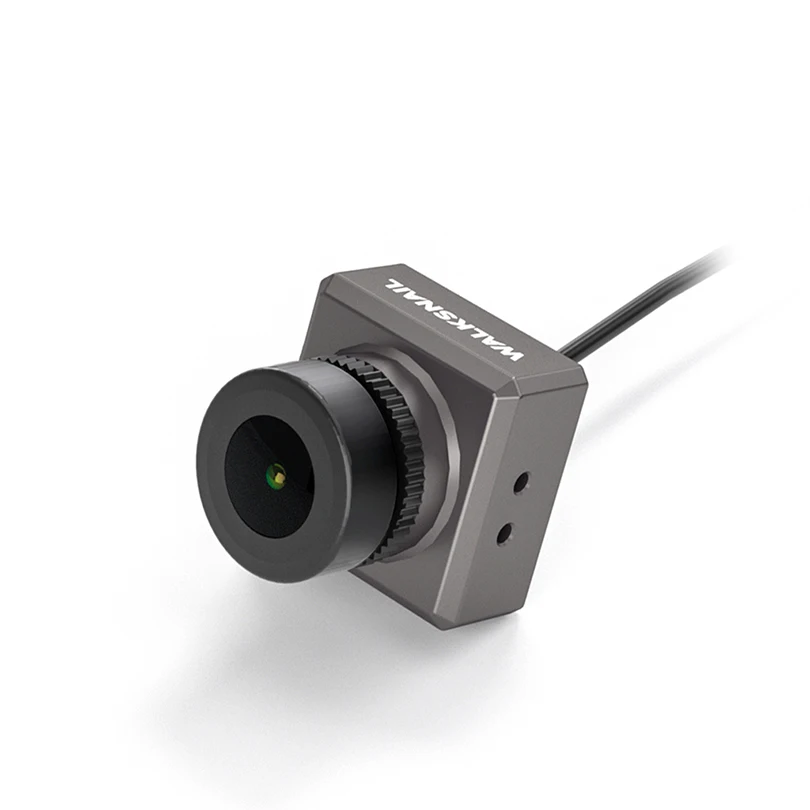

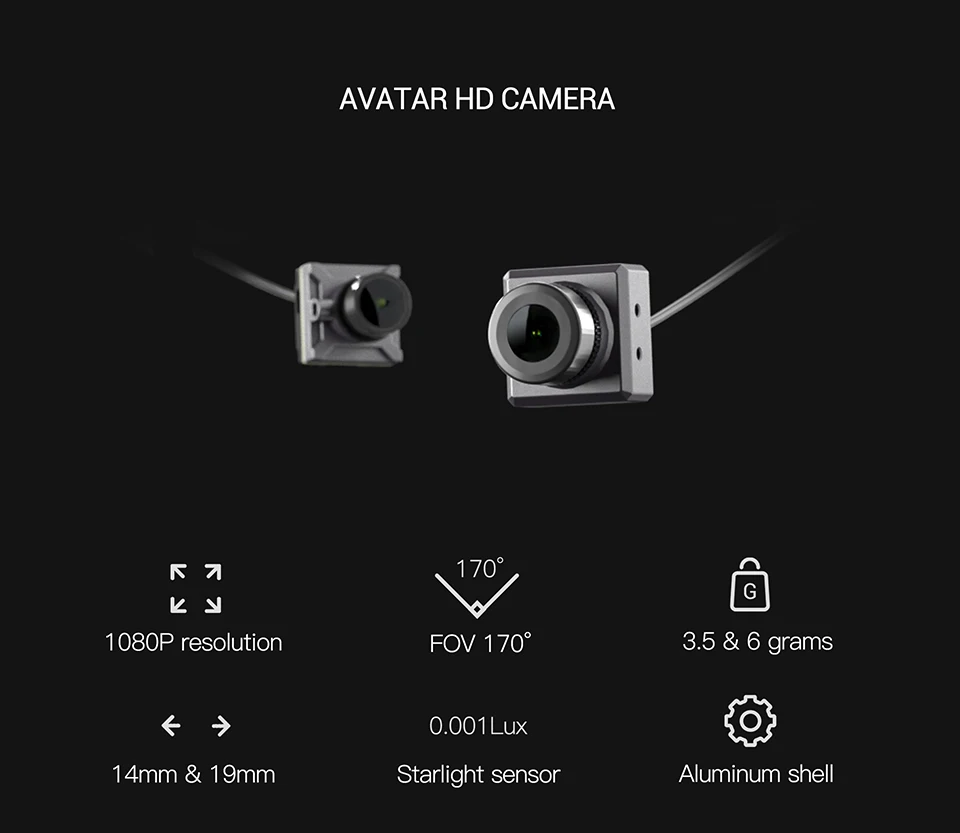

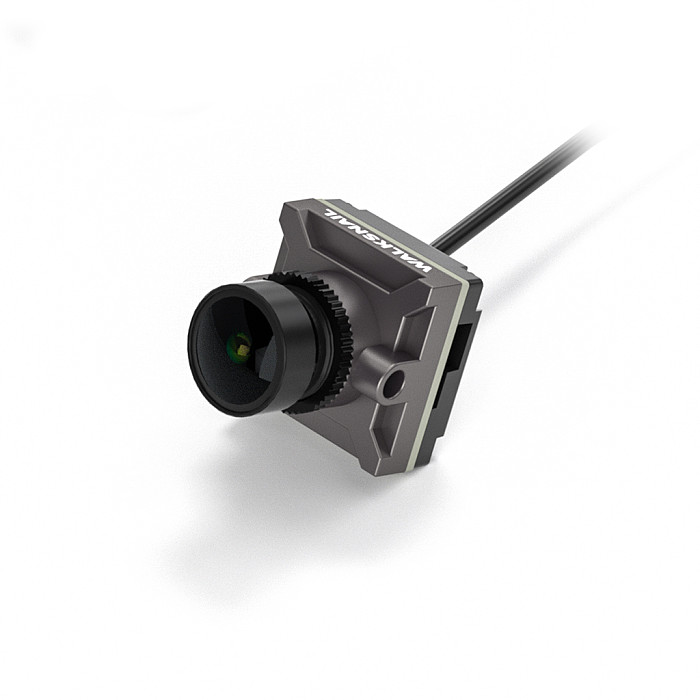

HD CAMERA
Resolution: 1080p 60FPS / 720P 120FPS / 720P 60FPS
Aspect Ration: 16/9 and 4/3 Switchable
Minimum Illumination: 0.001Lux
Shutter Style: Rolling Shutter
Dimensions: 19x19x22mm
Cable Length:  140mm
Image Sensor: 1/27"
Field Of View: 170°
Aperture: F 2.0
Lens: 2.1mm
Weight: 6g
VTX
Transition Power: FCC<30dBm / CE <14dBm / SRRC <20dBm / MIC <25dB
Operational Frequency: 5.725-5.850GHz
Operating Temperature: -20° to 40°
Supported FC Firmware: Betaflight

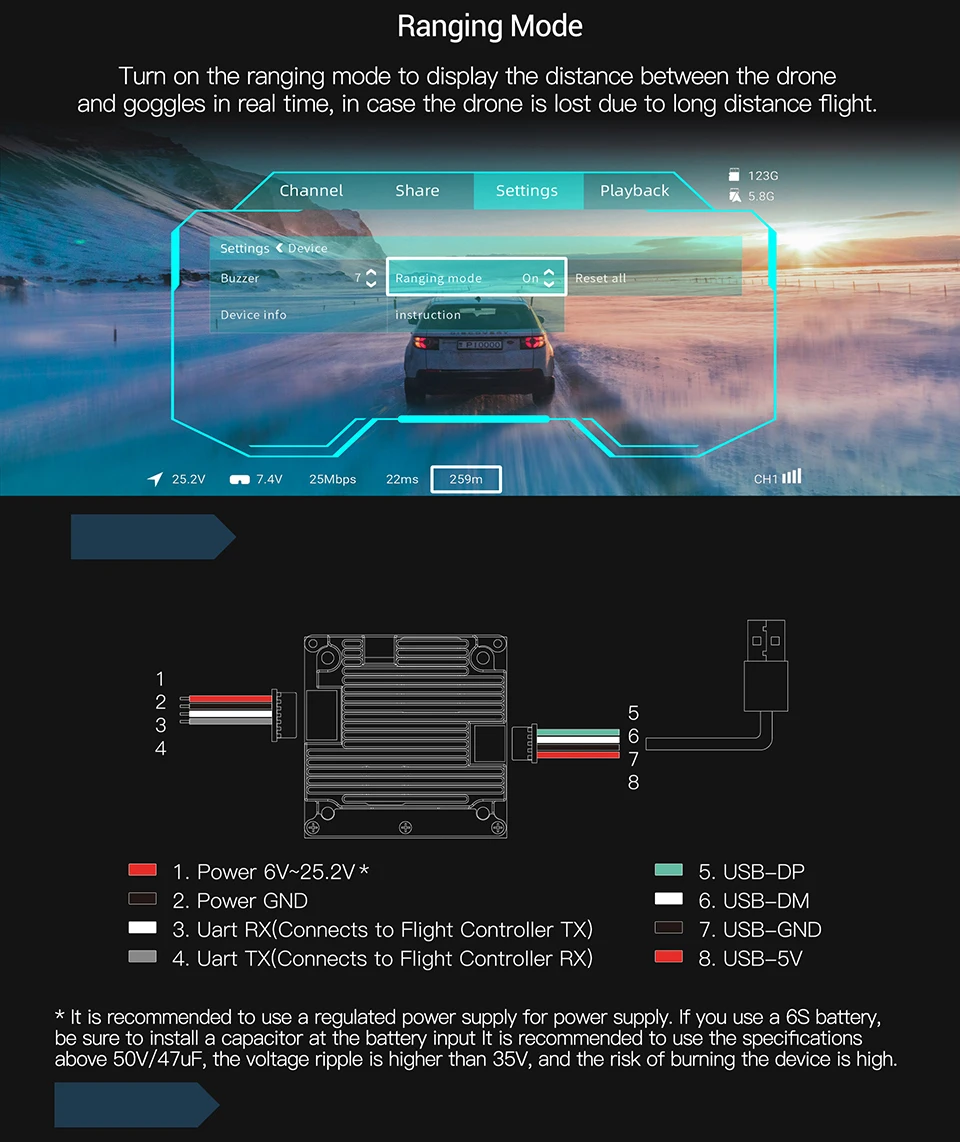

USB Connection: JST x 4 to USB-A
Video Resolution: 1080p / 720p
FC Connection Port: JST1.0 x 6
Dimensions: 33x33x9.5mm
Antenna Connector: U.fl
Latency: 22ms Average
Input Voltage: 6-25.2V
Internal Storage: 8GB
Mounting: 25x25mm
Weight: 16g
Channels: 8

 ANTENNAS
Radiation Efficiency: >= 98%
Bandwidth: 5.6-5.9GHz
Gain: 2dBi Average
Polarization: LHCP
Connector: U.fl
Length: 90mm
VSWR: <=1.4
Weight: 1.5g

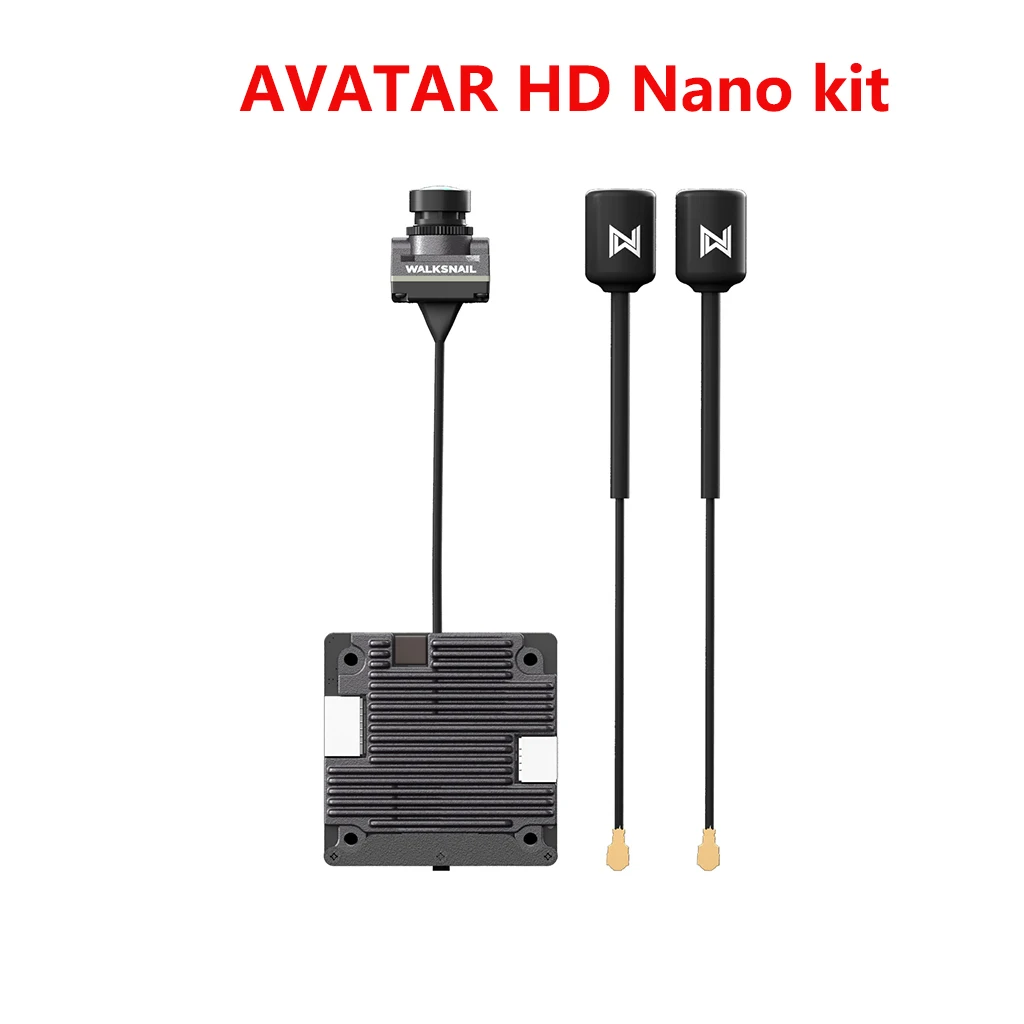

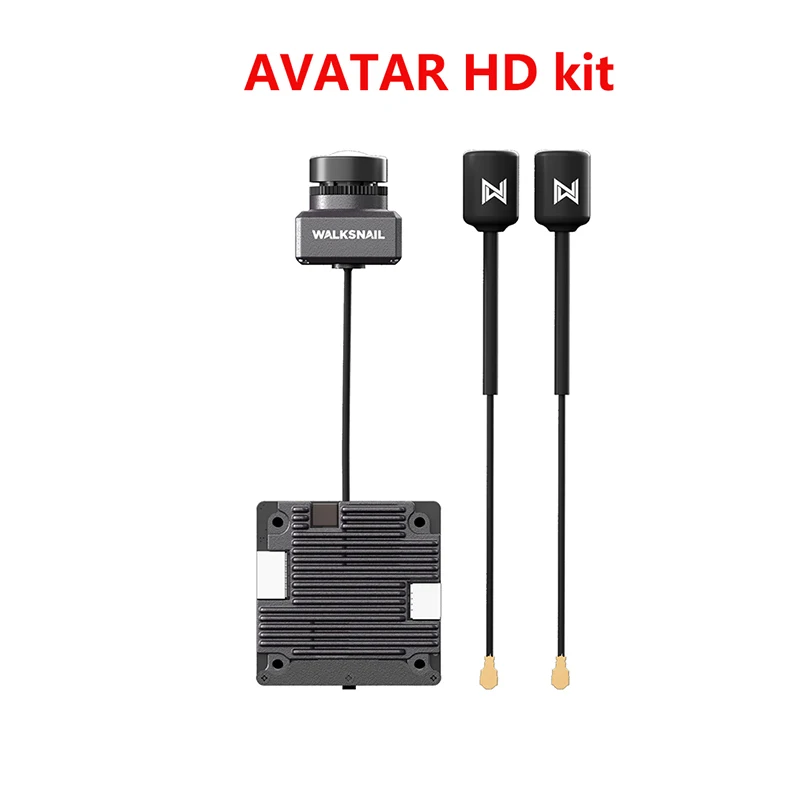

Includes

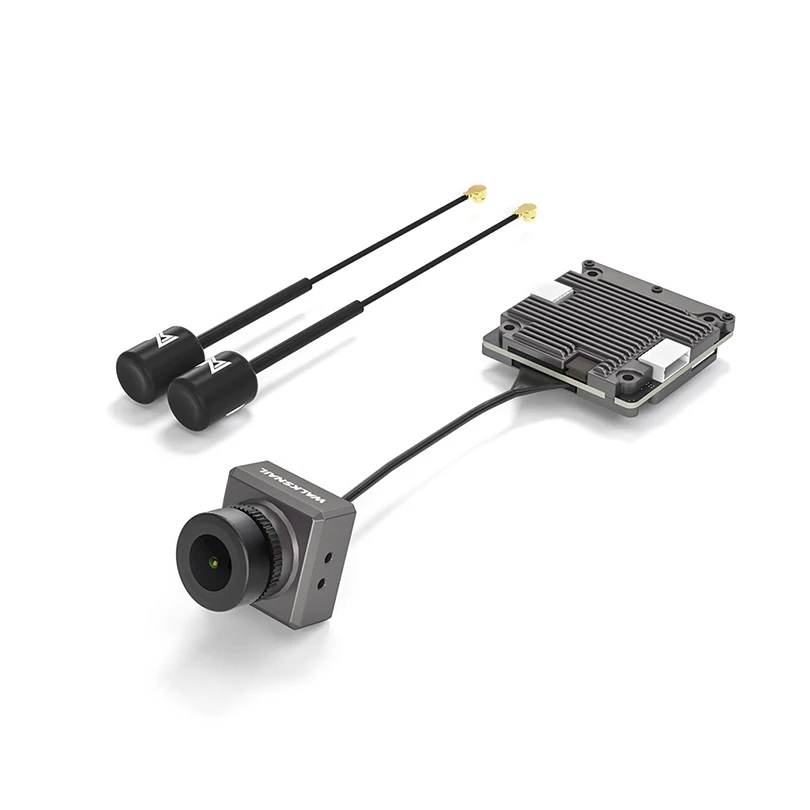

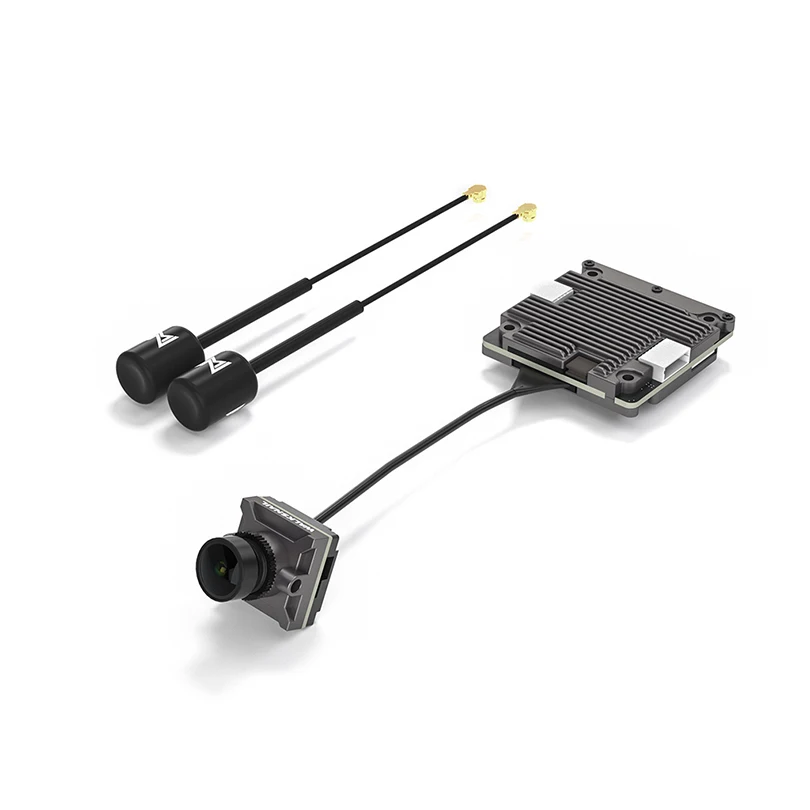

1x Walksnail HD Camera w/ VTX(for HD Kit Version)
2x LHCP 5.8GHz Antennas(for HD Kit Version)
2x M1.2 1.5mm Screws
1x FC Connection Cable(for HD Kit Version)
4x M2 3mm Screws
4x M2 4mm Screws
4x M2 5mm Screws
1x USB Adapter(for HD Kit Version)
