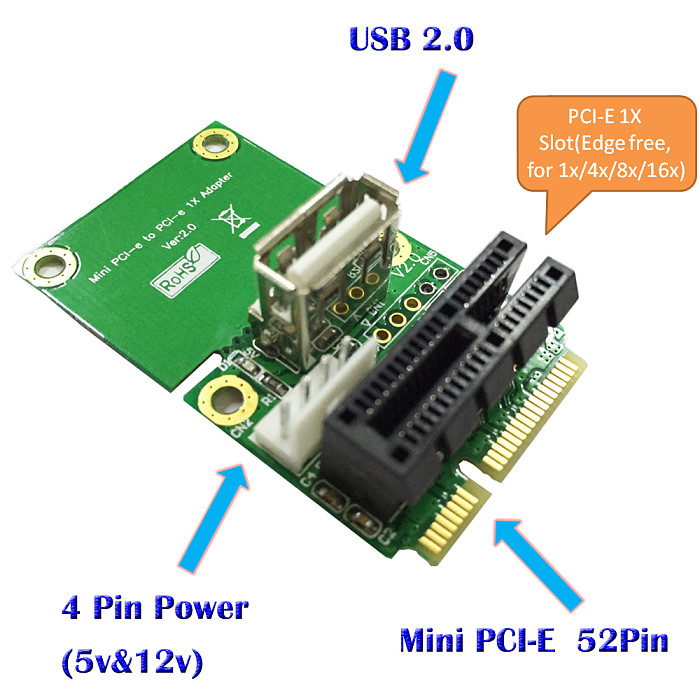

XT-XINTE PCI-E 1X to Half/Full Mini PCI-E Adapter Converter mini PCIe Adapter with 4Pin to SATA Power Cable for WindowsXP/7/8/10 Item NO.: F26712

XT-XINTE PCI-E 1X to Half/Full Mini PCI-E Adapter Converter mini PCIe Adapter with 4Pin to SATA Power Cable for WindowsXP/7/8/10

Description :

1.The PCI-E 1x to half Mini PCI-E Card is a adapter l for PCI-E interface card.
2.This adapter allows you to use your existing PCI-Express Add-in-Card in both half and full size Mini PCI-E slot.
3.It's especially designed to save valuable labor and time in the production environment.
4.As a powerful tool for engineers, the PCI-E 1x to half / full Mini PCI-E Card is constructed of high quality components for years of trouble free service.

Features and Specification:

 1. Dimesion:  50x30mm(LxW)

 2. Supports both Full-size(30*50mm) and half-size(30*26.8mm) Mini PCI-E slot.

 3. As PCI Express x1 connector design is edge-free,  So supports PCI-Express 1x,    x4, x8 and x16 PCIe Card

 4.Designed to meet PCI Express™ Mini Card Electromechanical  Specification Revision 1.0 and PCI Express™ base specification vision 1.1

 5.Compliant with multi-system of PC, Supports any OS, like WindowsXP/7/8/10, WinCE & Linux etc

 6.High quality connectors for long service life and reliability

 7.Use external 5V/12V power supply for USB and PCIe device

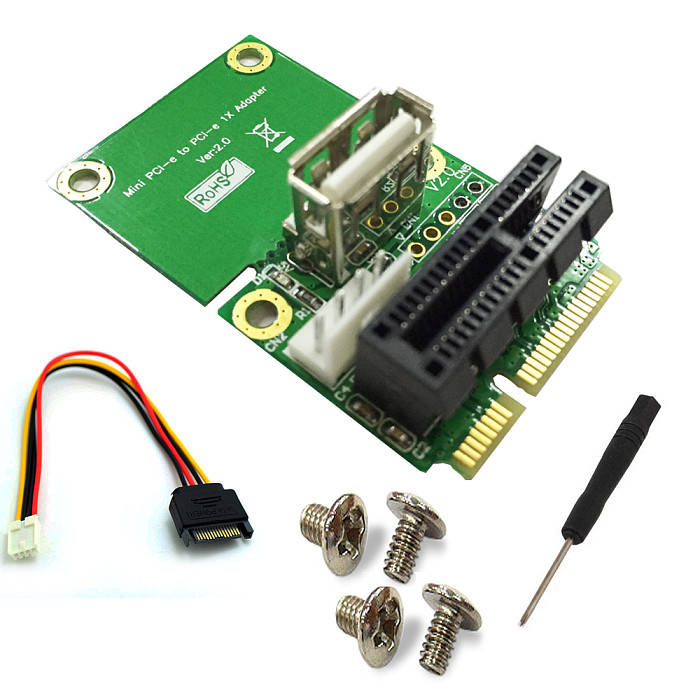

 Package Include:

1x PCI-E 1X to Half/Full Mini PCI-E Adapter

1x 4 Pin to SATA Power Cable

1x Screw Driver

4x M2 Screw
