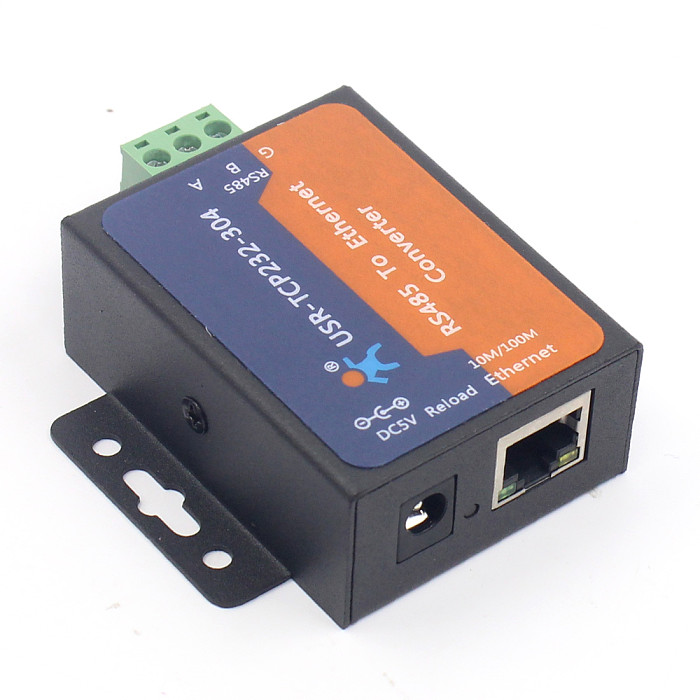

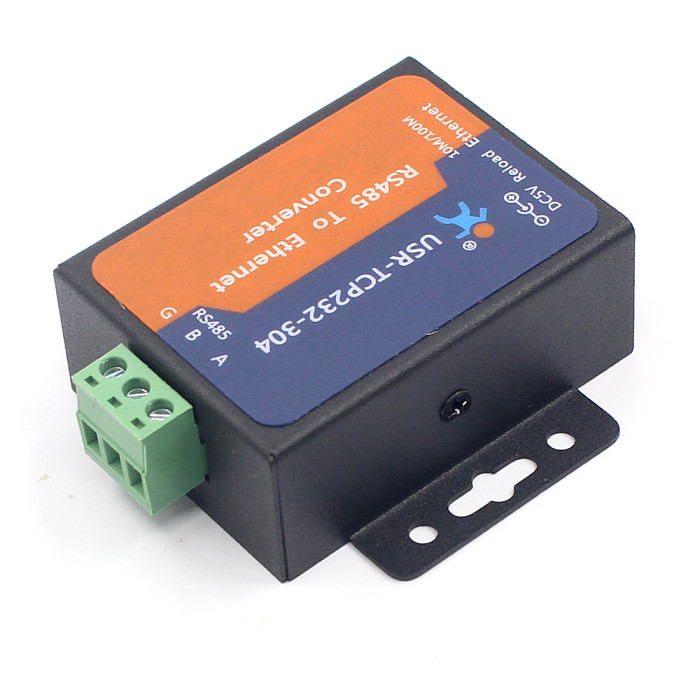

5PcS USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported Item NO.: Q14870-5

Sold (26)

US$ 76.14

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	5PcS USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported
Item NO.	Q14870-5
Weight	1.562 kg = 3.4436 lb = 55.0979 oz
Category	Consumer Electronics > Industrial Module
Brand	USRIOT
Creation Time	2017-08-16

Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
Support DNS function
Set parameters through webpage
Upgrade firmware via network
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Support virtual serial port and provide corresponding software USR-VCOM
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
The global unique MAC address bought from IEEE, user can define MAC address
Restore factory default
Across the switches, routers
Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
Support customization

Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

System Information
Processor	ARM
Ethernet
Port Number	1
Interface Standard	RJ45
Rate	10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection	2KV electromagnetism isolation, shell insulation blocking
Network Protocol	IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
Buffer	Send: 6K bytes, receive: 4K bytes
Serial
Port Number	1
Interface Standard	RS-485: 2 wire (A+, B-)
Data Bits	5, 6, 7, 8
Stop Bit
