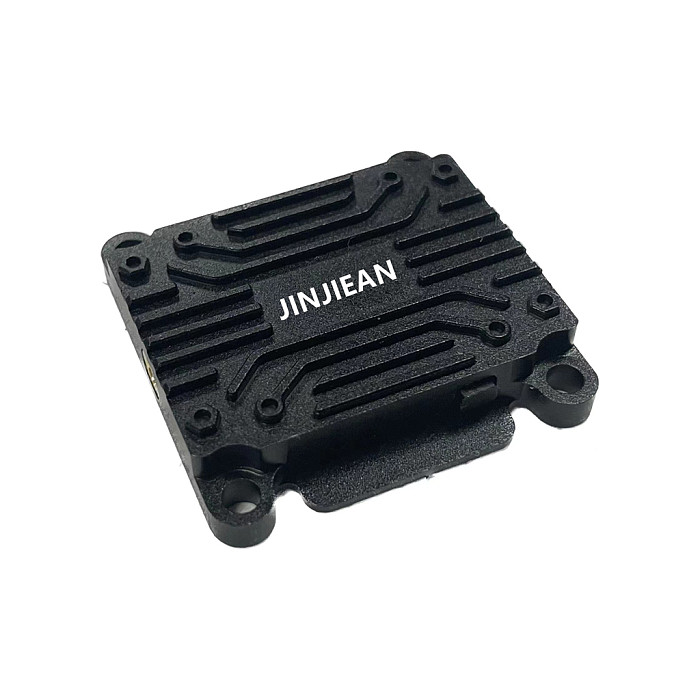

JINJIEAN 2.5W Module 5.8G Wireless Transmitter 72CH VTX FPV Traversal Aircraft For Long-distance Navigation Item NO.: F52010

JINJIEAN 2.5W Module 5.8G Wireless Transmitter 72CH VTX FPV Traversal Aircraft For Long-distance Navigation

specification
Working voltage：7-36v
Working current：≤ 450mA@12V 800mW
                           ≤ 850mA@12V 2500mW
Operating Environment：-10~60 ℃
Weight：14.5g

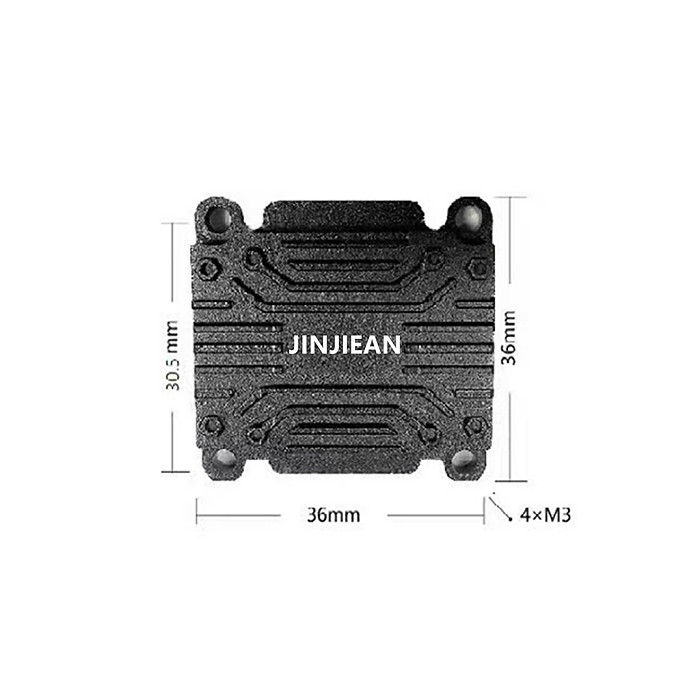

Size：36mmx36mmx6.5mm
Installation hole：spacing 30.5x30.5/M3
Antenna connector：MMCX
Video format：NTSC/PAL
Output power：PIT/25mW/400mW/800mW
                        1500mW/2500mW
Image transmission protocol：IRC

Feature

High output power, stable output power, and long transmission distance

Transmission power 6-gear switching: PIT/25mW/400mW/800mW/

                                                      1500mW/2500mW

Fast frequency locking, does not interfere with companions when turned on;

Equipped with self checking function for output power;

Full format video format: IISC/PAL;

All metal CNC shell, dust-proof and explosion-proof, good heat dissipation, and stable power.
