CopyProduct Name | BETAFPV ELRS Nano Receiver ExpressLRS 2.4G 915MHz / 868MHz Nano RX Long Range Receiver 12mm*19mm for RC Airplane FPV Long Range |
Item NO. | F44460 F44461 F44462 |
Weight | 0.02 kg = 0.0441 lb = 0.7055 oz |
Category | DIY RC Drone Accessories > VTX |
Brand | BETAFPV |
Creation Time | 2021-07-26 |

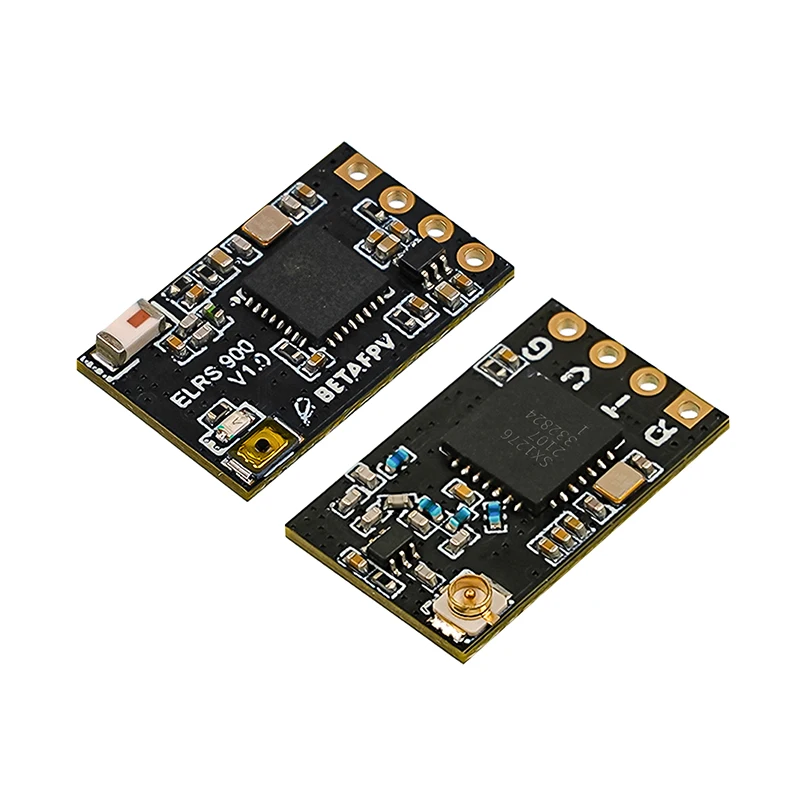

BETAFPV Nano receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

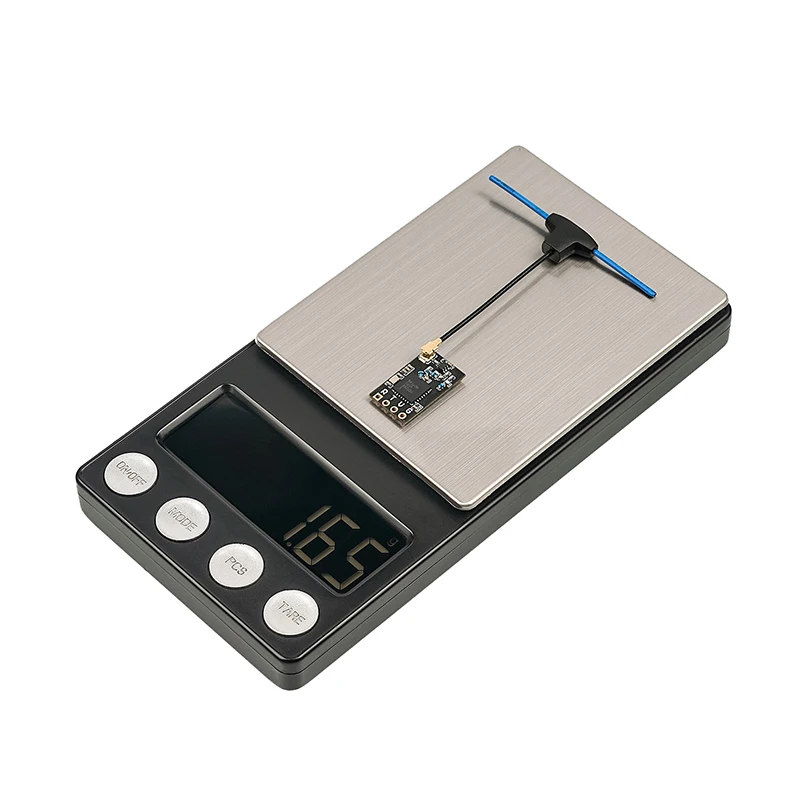

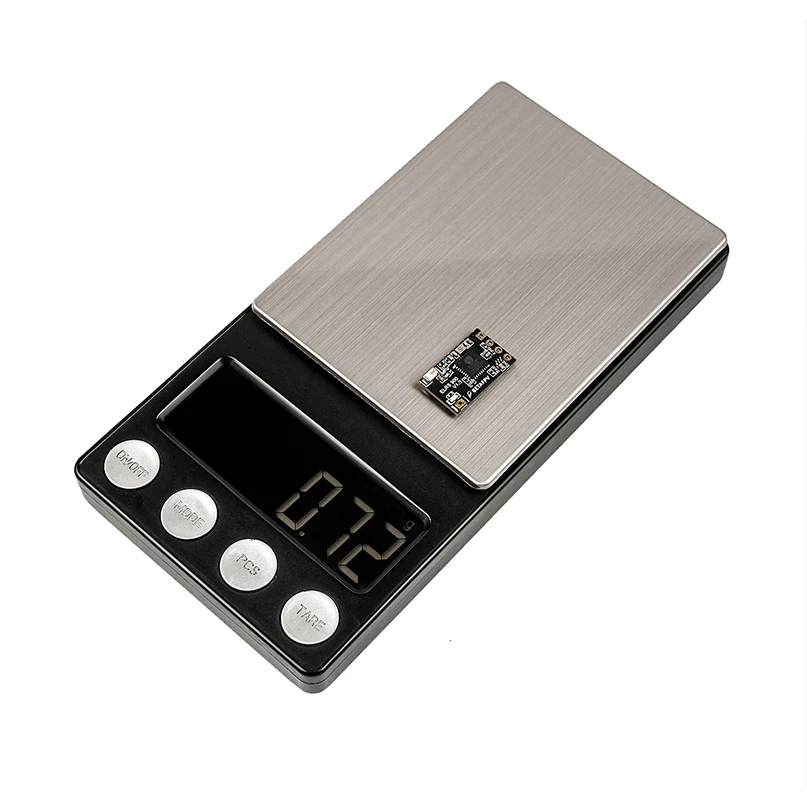

Weight: 0.7g (receiver only)

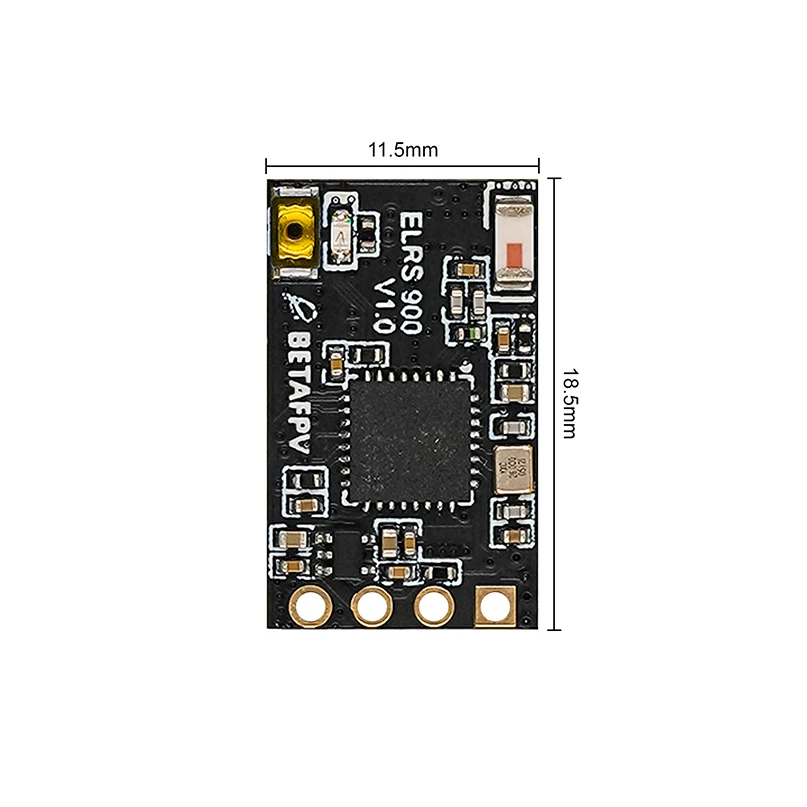

Size: 12mm*19mm
Telemetry power: 20dbm
Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
Frequency bands (Nano receiver 915MHz/868MHz version): 915MHz FCC/868MHz EU
Input voltage: 5V
Antenna connector: IPEX MHF

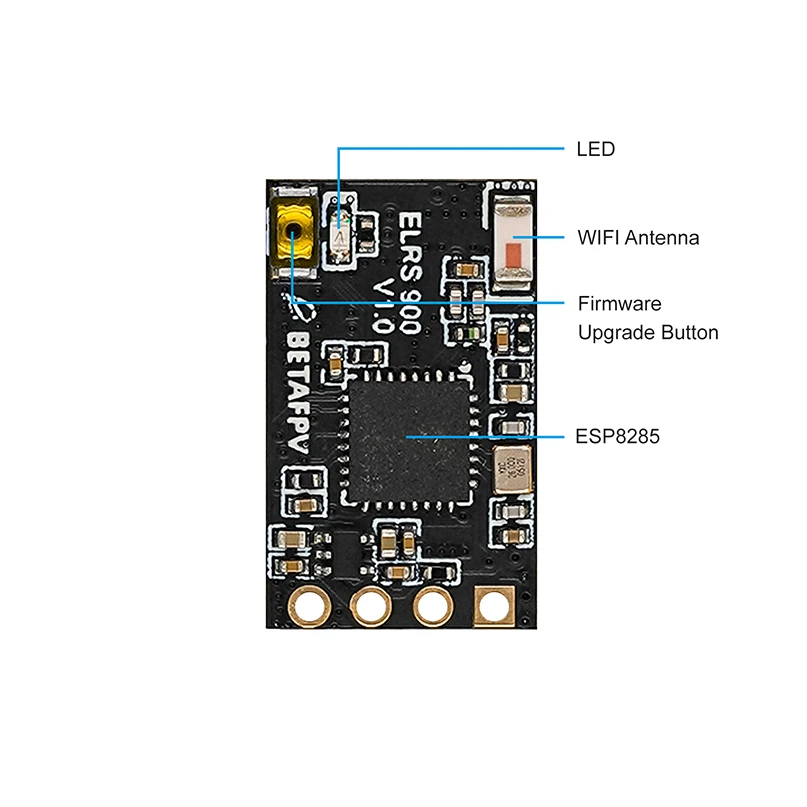

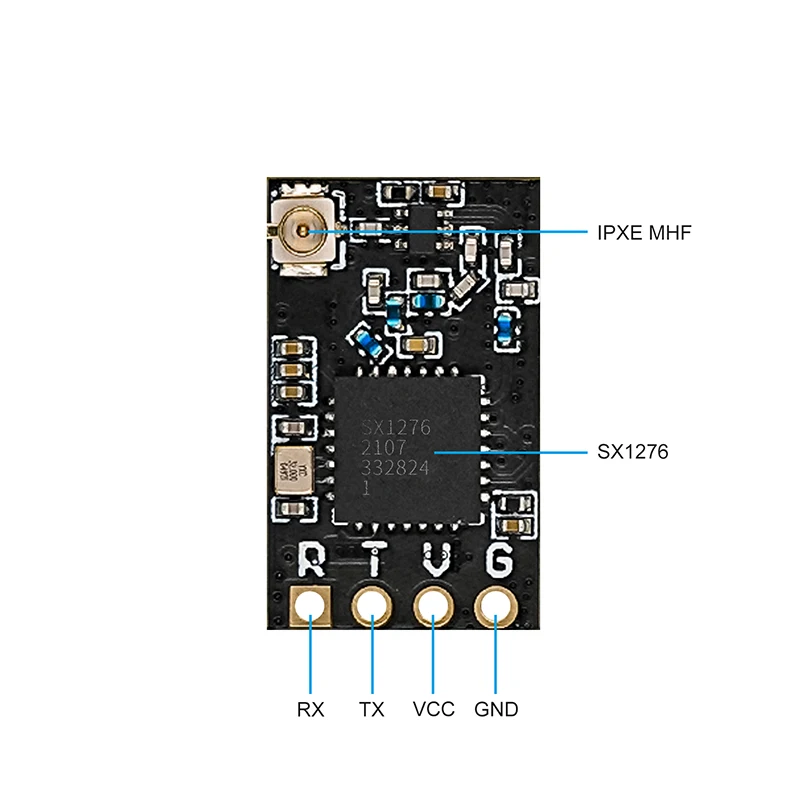

Nano receiver 2.4G version diagram as shown below.
Know more about the PA+LNA. todo

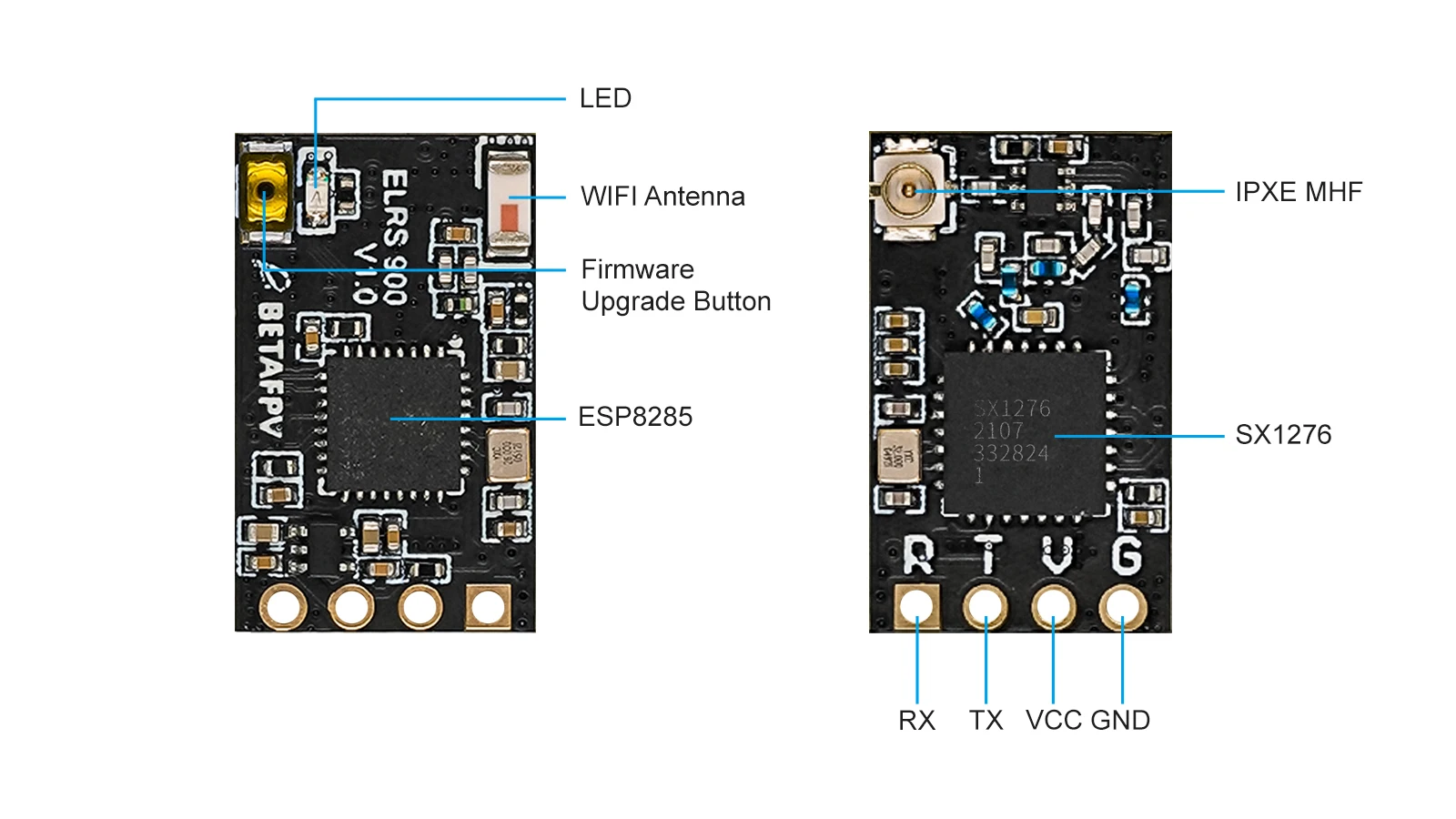

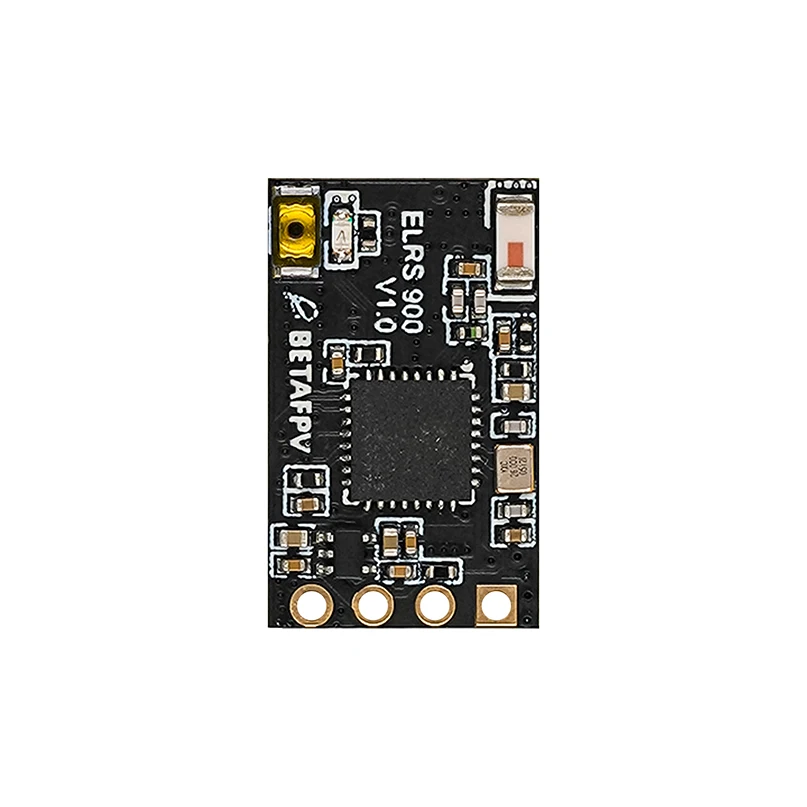

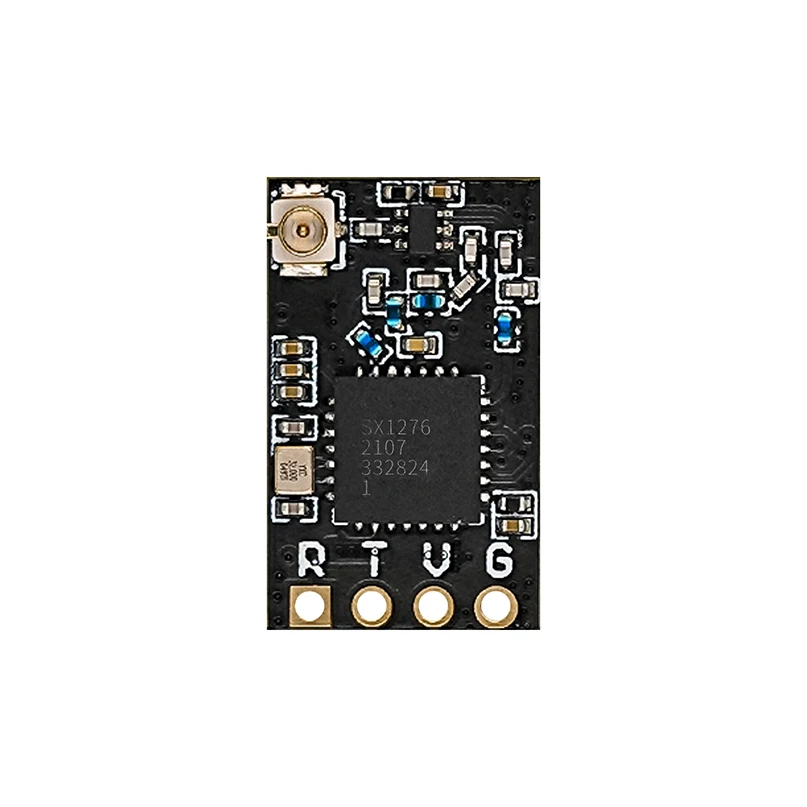

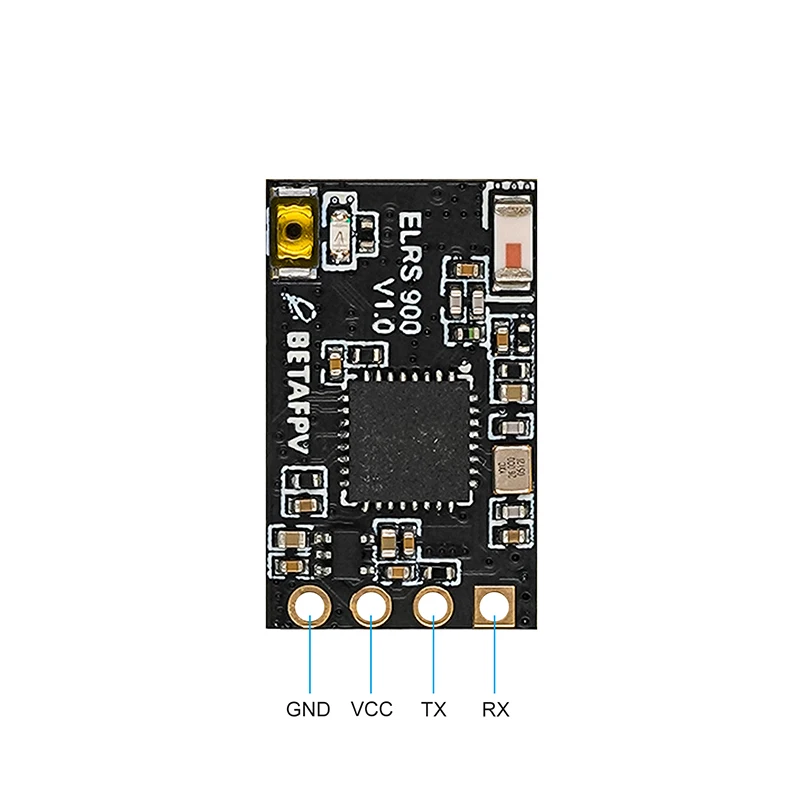

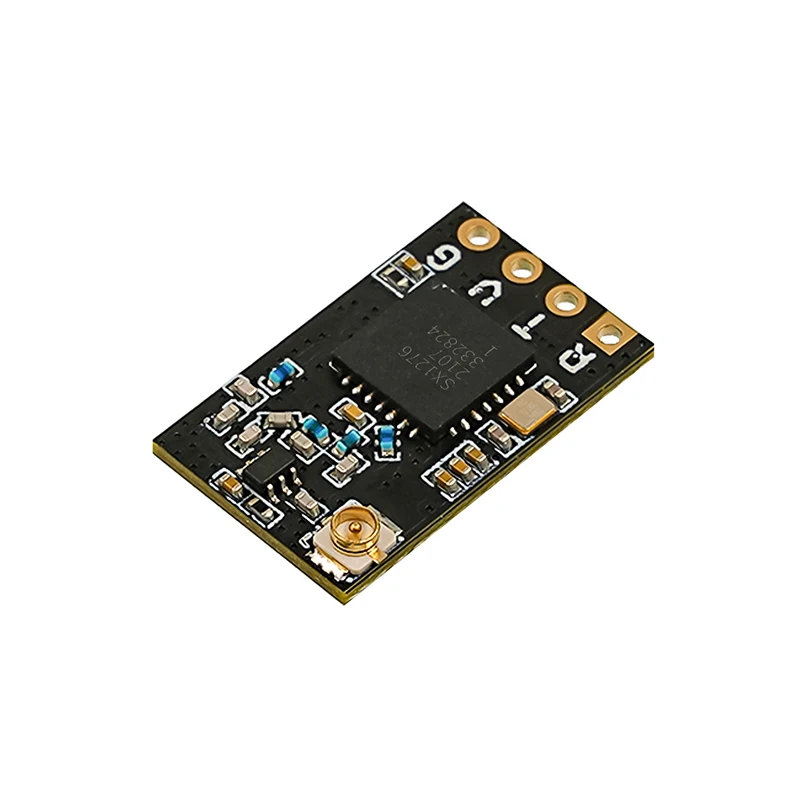

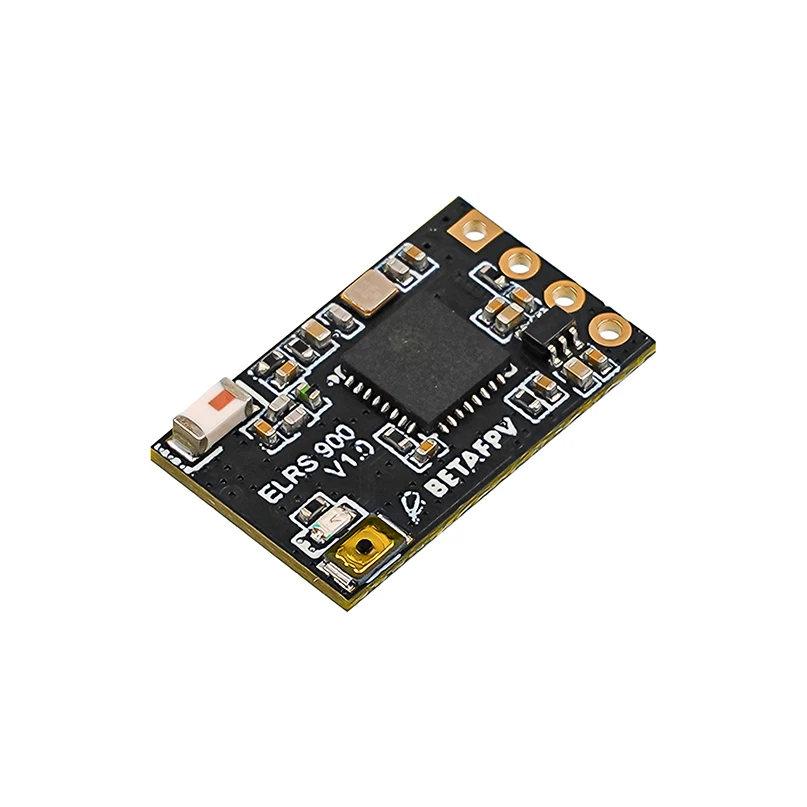

Nano receiver 868MHz/915MHz version diagram as shown below.
Note: Binding once and the receiver will store the binding information. Re-power and the connect successfully auto.
Plugin and unplug nano receiver three times;
Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode;
Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse;
If the receiver has a solid light, it's bound.
Nano receiver could enter binding status by power on/off three times.
On the "Configuration" tab, select "Serial-based receiver" on the "Receiver" panel, and select "CRSF" as the protocol. Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.
Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator "Ports" tab.
ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board. So make sure your flight controller board supports the CRSF serial protocol. Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.
The connection between the ELRS Nano receiver and the FC board is shown below.
Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator "Ports" tab.
On the "Configuration" tab, select "Serial-based receiver" on the "Receiver" panel, and select "CRSF" as the protocol. Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.
Nano receiver could enter binding status by power on/off three times.
Plugin and unplug nano receiver three times;
Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode;
Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse;
If the receiver has a solid light, it's bound.
Note: Binding once and the receiver will store the binding information. Re-power and the connect successfully auto.
BETAFPV ELRS Nano receiver user manual download.

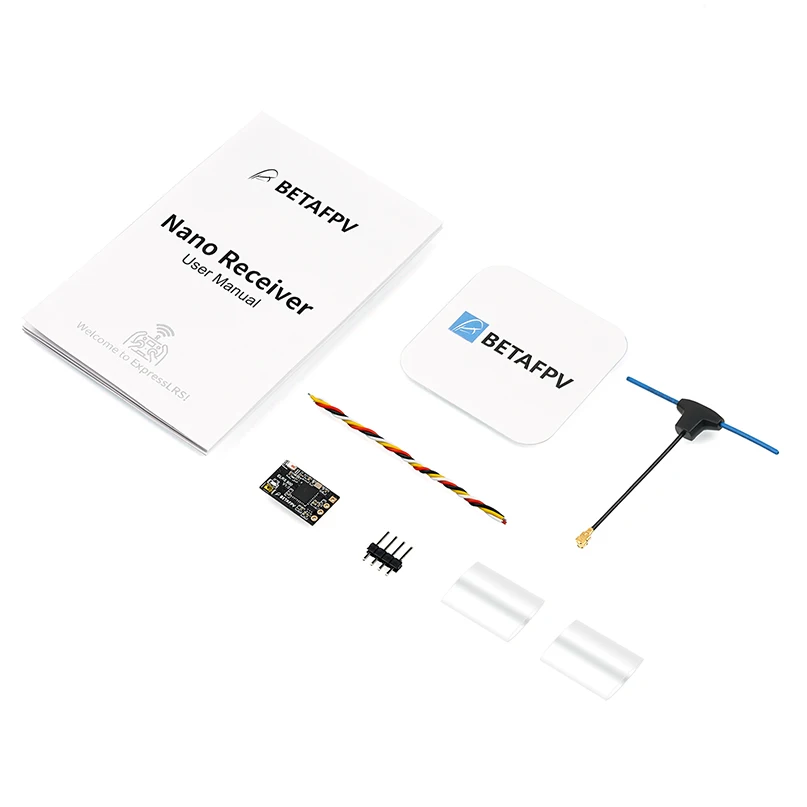

1 * BETAFPV ELRS Nano receiver
1 * BETAFPV T antenna
2 * Spare shrink tube
4 * 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
1 * pin header 1x4
1 * Nano receiver user manual
