Happymodel OVX300 OVX303 5.8G 40ch 300mw VTX OpenVTX Long Range Receiver for DIY RC Racing Drone Accessories Item NO.: F44546-E1 F44546-E2

Name: Happymodel OVX300 OVX303 5.8G 40ch 300mw VTX OpenVTX Long Range Receiver for DIY RC Racing Drone Accessories
Brand: Happymodel
SKU: F44546-E1 F44546-E2
Price: 13.78 USD
Availability: OutOfStock

Write a Review Sold (67)

US$ 13.78

US$ 16.21 Save US$ 2.43 (15% Off)

Color

Quantity: Stock ( 0 )

Estimate Shipping Cost

Out Of Stock

Product Name	Happymodel OVX300 OVX303 5.8G 40ch 300mw VTX OpenVTX Long Range Receiver for DIY RC Racing Drone Accessories
Item NO.	F44546-E1 F44546-E2
Weight	0.002 kg = 0.0044 lb = 0.0705 oz
Category	DIY RC Drone Accessories > VTX
Brand	Happymodel
Creation Time	2021-07-26

Happymodel OVX300 OVX303 5.8G 40ch 300mw VTX OpenVTX
Happymodel OVX300 and OVX303 VTX are based on the Open source project OpenVTX powered by JyeSmith (EpxressLRS team)
OpenVTx aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol can be used on the flight controller and on VTx power up the protocol used is automatically detected by OpenVTx.
Currently SA is fully implemented and test against Rev. 09. To date IMRC has not released a protocol standard and implementation is based on information found within Betaflight.
https://www.youtube.com/watch?v=id4HVnnpyUc
More info and community
https://github.com/OpenVTx/OpenVTx
https://discord.gg/uGUKaD2u8Z

Main Features
OpenVTX firmware preload
Smartaudio ready
Nano size and stable power output

OVX300 Specifications

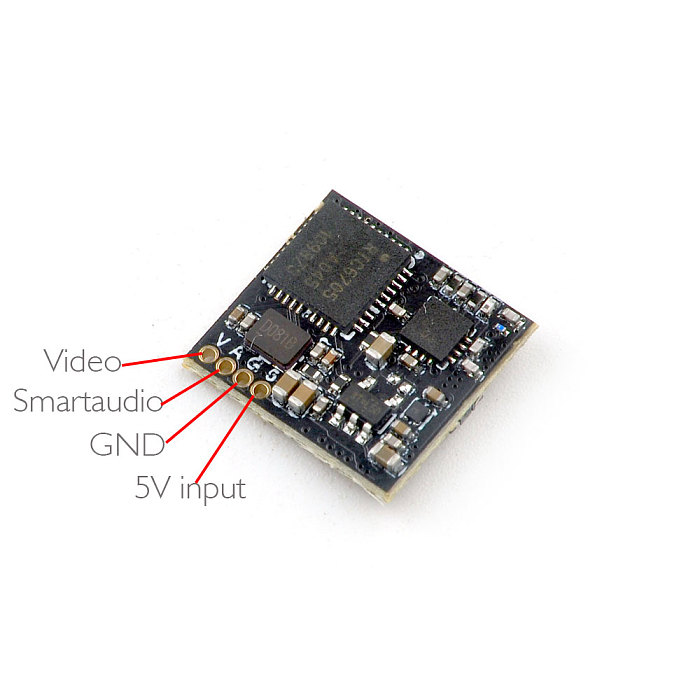

Model: OVX300
Frequency: 5.8G 40CH
Transmitting Power: 0/RCE/25mw/100mw/300mw
Power supply: DC 5V
Current (5v): <650ma (300mw)

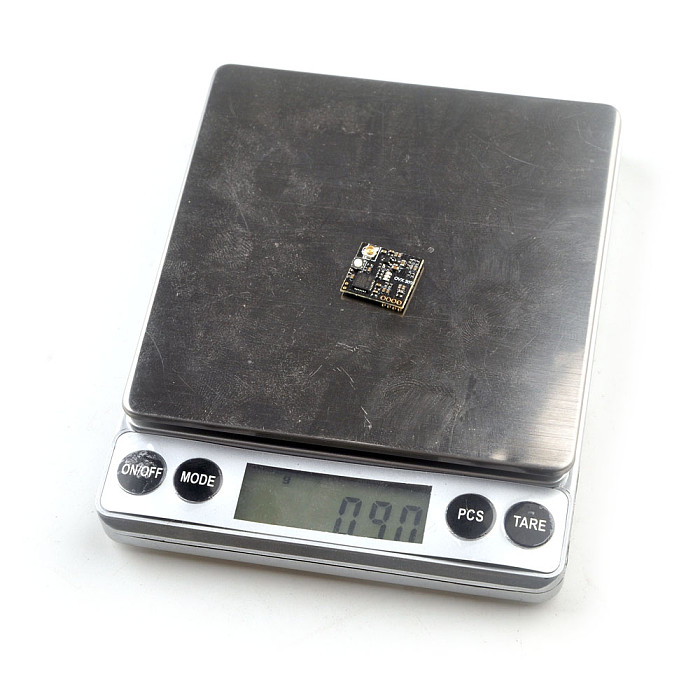

Weight: 0.9gram without antenna
Standard size: 14*15*3mm
OVX303 Specifications

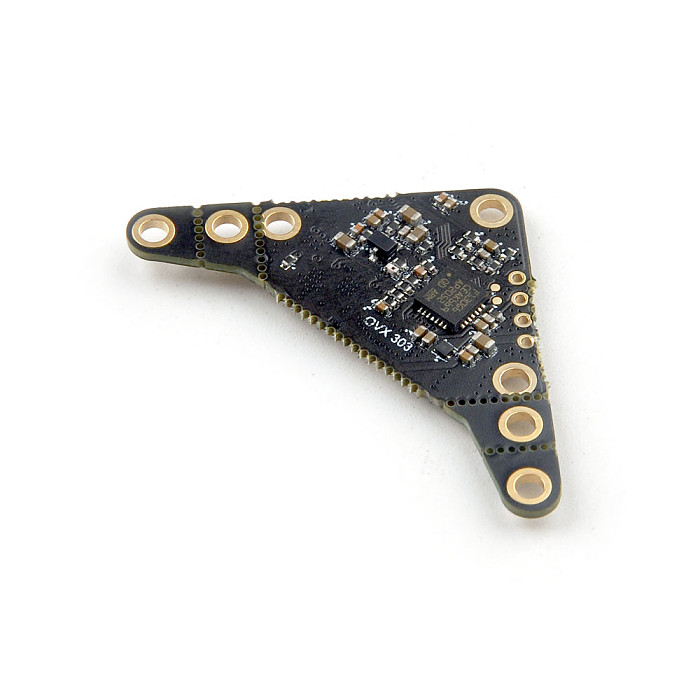

Model: OVX303
Frequency: 5.8G 40CH
Transmitting Power: 0/RCE/25mw/100mw/300mw
Power supply: DC 5V
Current (5v): <650ma (300mw)
Weight: 1.5gram without antenna

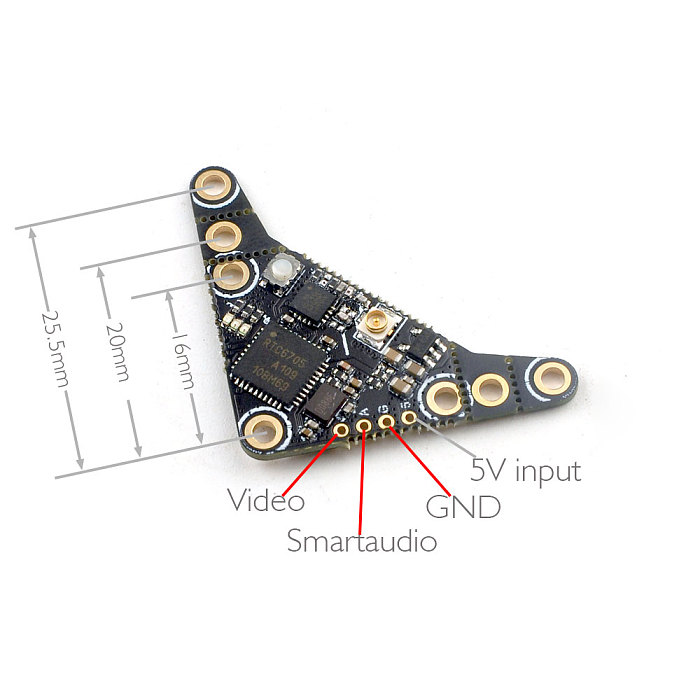

Center distance of mounting holes:
16mmx16mm
20mmx20mm
25.5mmx25.5mm
