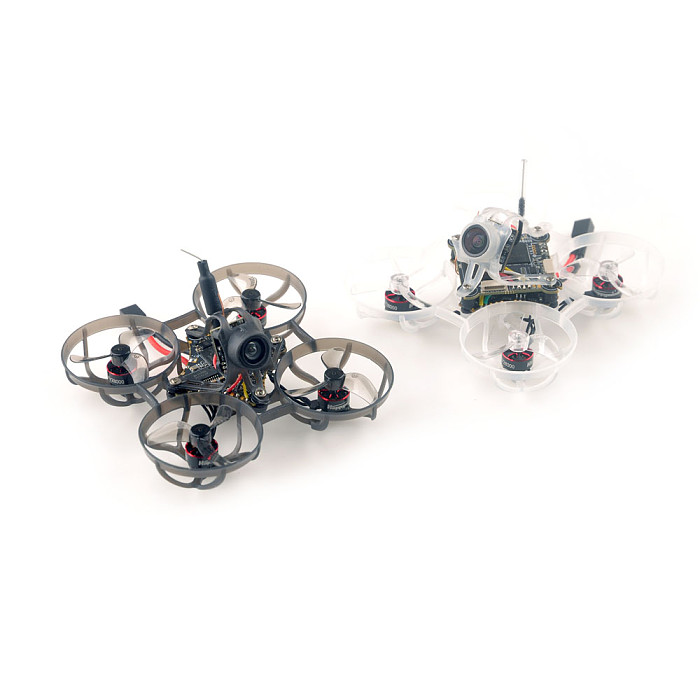

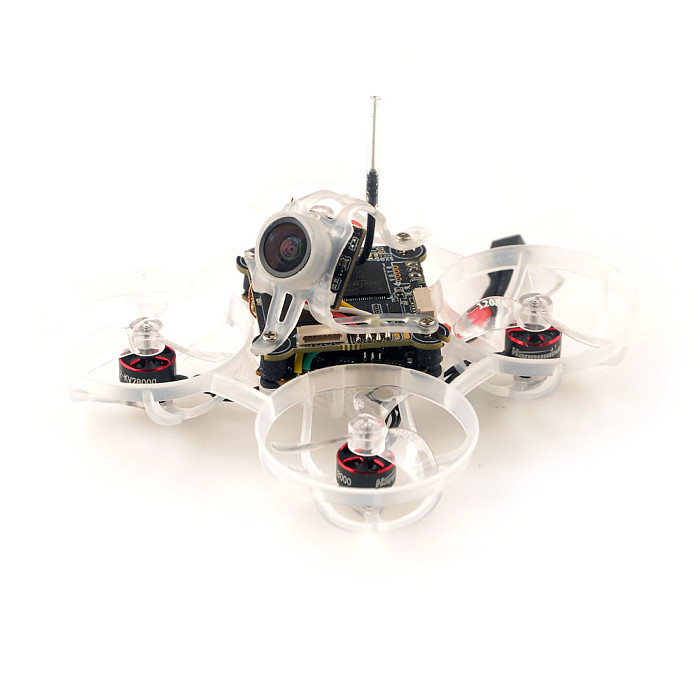

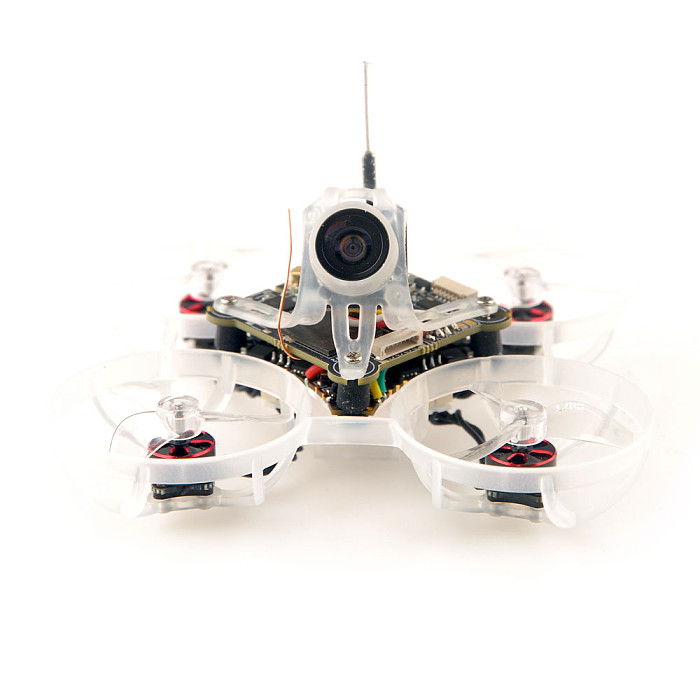

(In Stock)Happymodel Mobula6 ECO 2024 1S 65mm ultra light micro HD FPV Whoop Drone

(In Stock)Happymodel Mobula6 ECO 2024 1S 65mm ultra light micro HD FPV Whoop Drone Item NO.: F52013

Write a Review
US$ 159.02
US$ 187.08 Save US$ 28.06 (15% Off)

Copy and share this link on social network or send it to your friends

Product Name (In Stock)Happymodel Mobula6 ECO 2024 1S 65mm ultra light micro HD FPV Whoop Drone
Item NO. F52013
Weight 1.25 kg = 2.7558 lb = 44.0925 oz
Category RC Toy Drone
Brand Happymodel
Creation Time 2024-03-12

(In Stock)Happymodel Mobula6 ECO 2024 1S 65mm ultra light micro HD FPV Whoop Drone

AIO Flight controller with Serial ELRS Receiver
Compatible with HDZERO system
Equipment with the lightest brushless motors-SE0702 only 1.49gram
HDZERO NEW ECO VTX and Camera ready
Smooth and powerful
Compatible for 1S Lipo/LIHV
Onboard blackbox read

Model: Mobula6 ECO 2024
Frame wheelbase: 65mm
Weight: 23.16 gram without battery
Size: 81mm*81mm*45mm
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30

Package includes:

Item Name Qty
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy 1
SuperX HD ELRS AIO flight controller 1
SE0702 KV28000 brushless motor 4
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw) 1
HDZero ECO Camera 1
Spare Canopy 1
Propeller disassemble tool 1
Screw driver 1


Motor Mode: SE0702 KV28000
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
No.of Cells(Lipo):1S only
Propellers Materials: PC
Inch: 31mm
Pitch: 0.8 in
Weight: 0.21g
Mount hole diameter:  1mm
Flight controller


Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip
Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300
Onboard Serial ExpressLRS 2.4GHz Receiver RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
HDZERO ECO VTX Composite HD Video interface
1S-3S Input
25mW/200mW RF output
25.5×25.2 M2 soft mounting
Antenna Retention
32.4×32.5mm (29x29mm inner)
4.5grames/4mm Thickness (w/o shielding)
HDZERO ECO Camera Image Sensor  1/3”
Resolution:      720@60fps   4:3
LENS:      FOV D:150° H:120° V:98°
Shutter:    Rolling Shutter
Net Weight:      1.6g (With Cable)
Dimensions:    L14mm*W14mm*H13mm
