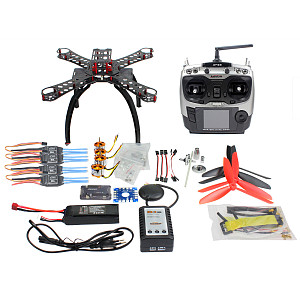

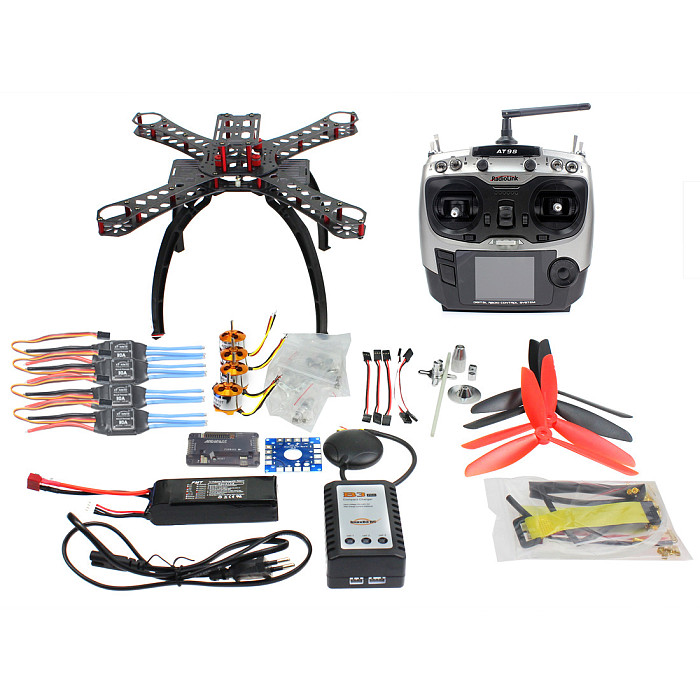

RC Fiberglass Frame Multicopter Full Kit DIY GPS Drone FPV Radiolink AT9 Transmitter APM2.8 1400KV Motor 30A ESC

RC Fiberglass Frame Multicopter Full Kit DIY GPS Drone FPV Radiolink AT9 Transmitter APM2.8 1400KV Motor 30A ESC Item NO.: F14891-C

Write a Review
US$ 149.60
US$ 176.00 Save US$ 26.40 (15% Off)
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name RC Fiberglass Frame Multicopter Full Kit DIY GPS Drone FPV Radiolink AT9 Transmitter APM2.8 1400KV Motor 30A ESC
Item NO. F14891-C
Weight 2.4761 kg = 5.4589 lb = 87.3419 oz
Category DIY RC Drone Accessories > DIY RC Drone Kit
Tag
Brand RadioLink
Creation Time 2017-07-25

RC Fiberglass Frame Multicopter Full Kit DIY GPS Drone FPV  Radiolink AT9 Transmitter APM2.8 1400KV Motor 30A ESC



Specifications:

 frame in light weight, the conventional FPV configuration as a whole take-off weight can be controlled at about 500 grams
general configuration 5"-10" propeller (Not inclued)
Personality Across Design
,Material:Carbon Fiber Frame kit

Frame reference:

Motor: MT2204 or MT2206 (Not included)

Propellers: (Not included)
2204 motor use FC 5"-6" blade
2206 motor use FC 5" 6" 8" blade
ESC: 15A-20A (Not included)
Voltage: 11.V-11.8V (Not included)
Weight about: 200g

Motor:
KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g

ESC:
1  Specification

1.1 Output:  Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC:  3A
1.4 Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.                                (BLM: BrushLess Motor)
1.5 Size:  45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.

2  Features

2.1 Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:        Brake Setting: brake enabled / brake disabled.        Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).        Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.        Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.        Start Mode: normal / soft / very soft.        Timing: low / medium / high.        Reset:  reset  all  the programmable items to their default settings.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

3   Advantages
3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.
3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability.
3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

Radiolink AT9 Transmitter Features

FULL TYPES AND FUNCTIONS
Suit for all airplanes including helicopter 8 swash plate models, fixed wing 2 airfoils 3 rears,
gliders 4 airfoils 2 rears and aircraft.
FAST RESPONSE
It takes 3ms only for 9 channels to response parallel, which is less than the average time 20ms.
SUPER STABLE AND LONG DISTANCE OPERATING
DSSS spread spectrum mode supplies better performance in anti-interference .
QPSK modulation mode.
Actual measurement: 900 meters ground and 1.5kms air.
