Product Name: USR-N510 H7-4 Version 1 Port RS485 Serial Device Server RS485 to Ethernet Converter Modbus RTU to Modbus TCP Support Virtual COM
Item NO.: F46024
Weight: 0.545 kg = 1.2015 lb = 19.2243 oz
Category: Consumer Electronics > Computer Accessories
Brand: USR
Creation Time: 2022-01-20

USR-N510 H7-4 Version 1 Port RS485 Serial Device Server RS485 to Ethernet Converter Modbus RTU to Modbus TCP Support Virtual COM

1 port RS485 Ethernet device servers USR-N510-H7-4 can realize bi-directional transparent transmission between RS485 and network.

● 1-port 485 Ethernet device servers
● Power supply accepts wide voltage input range DC 5-36V
● Modbus Gateway: Modbus RTU to Modbus TCP, Modbus Polling
● Support flow control XON/XOFF
● Configuration via Web Server page, AT commands, and Windows Utility
● MQTT/SSL/Modbus RTU to JSON/SNMP/Telnet/Edge Computing(Special firmware, contact sales)

System Information
Processor	ST Cortex-M7
Basic Frequency	400MHz
Flash	128K+4M byte
Ethernet
Port Number	1
Interface Standard	8 pin RJ45
Rate	10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection	2KV electromagnetism isolation, shell insulation blocking
Network Protocol	IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client
Receive Buffer	Max 16k bytes buffer
Serial
Port Number	1
Interface Standard	RS-485: 2 wire (A+,B-) Half-Duplex
Data Bits	7,8
Stop Bit	1,2
Check Bit	Even,Odd
Baud Rate	600bps ~ 921600Mbps
Flow Control	XON/XOFF
Buffer	Send and receive 4k bytes respectively
Protection	RS-485: anti-static 2KV,lightning protection
RS-485 Pull-up and Pull-Down Resistor	2.2 KΩ
Software

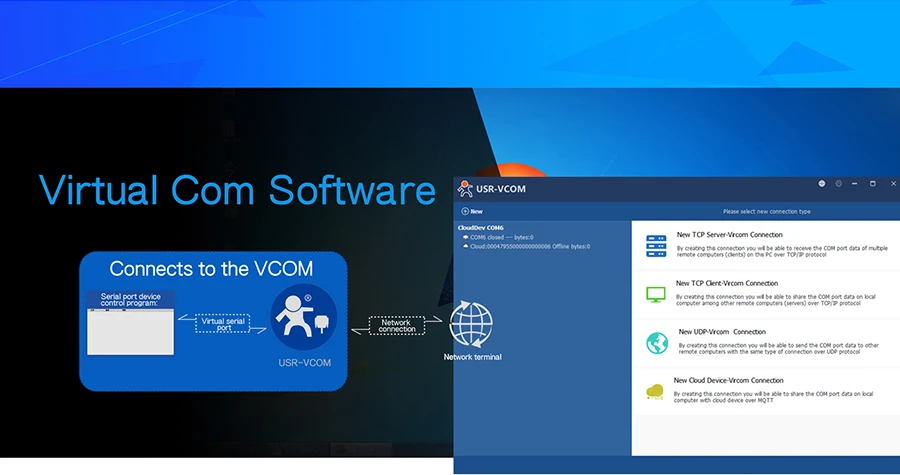

Virtual Serial（USR-VCOM）	Windows 2000 or higher(32 bit/64 bit)
Configuration	Built-in webpage, computer set-up software, serial command
Basic Parameter
Size	88 x 81 x 24 mm
Operating Temp.	-40 ~ 85°C (industry)
Storage Temp.	-40 ~ 85°C, 5 ~ 95% RH (no condensation)
Input Voltage	DC 5 ~ 36V
Working Current	53mA @ 12V
Power	<1W

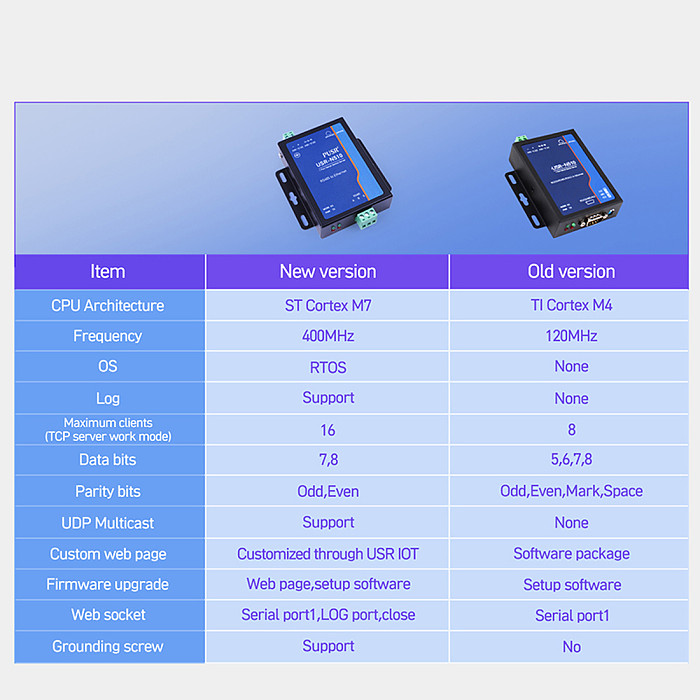

Comparision of new and old schemes

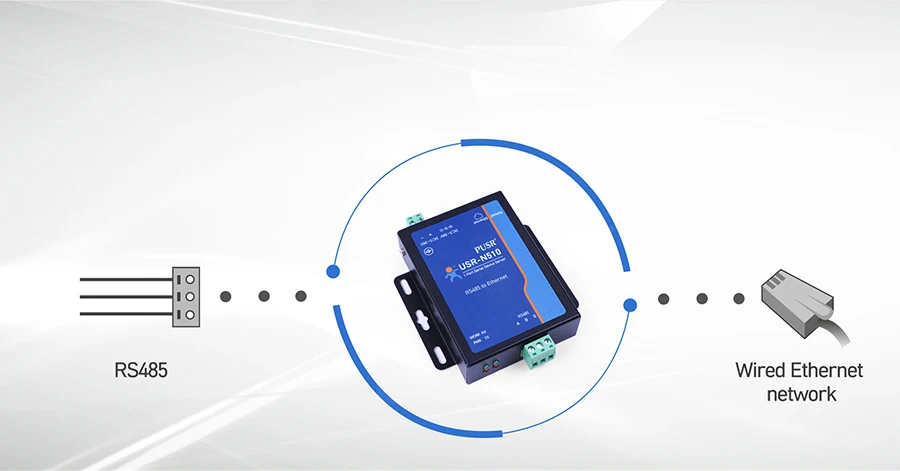

Basic Function-transmission

Scheme upgrade to provide better experience

Master chip adopts ST crotex-M7 core, the main frequency
is up to 400Mhz, fast processing speed,
high stable and reliable performance

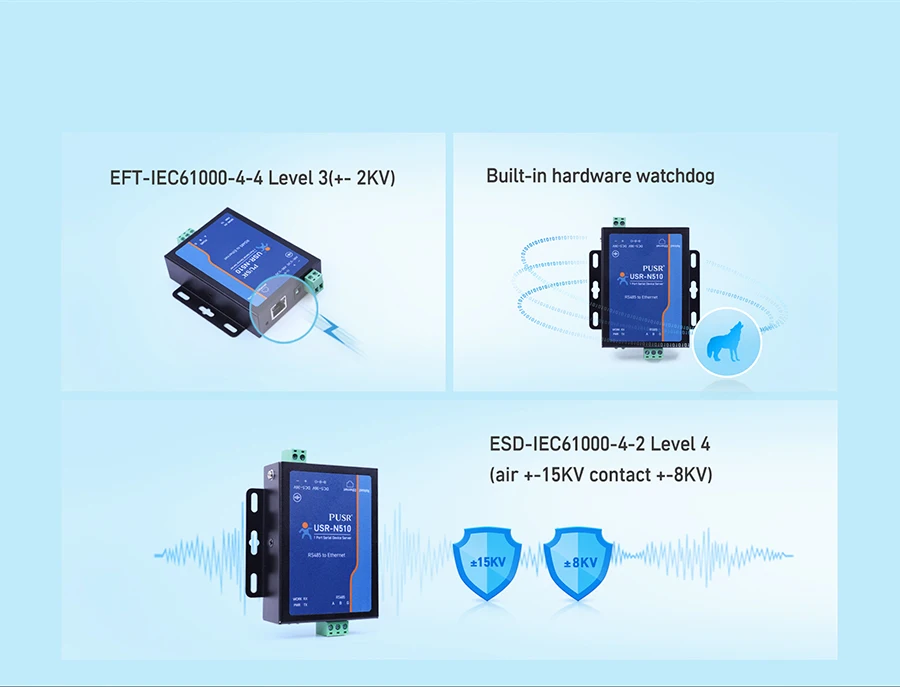

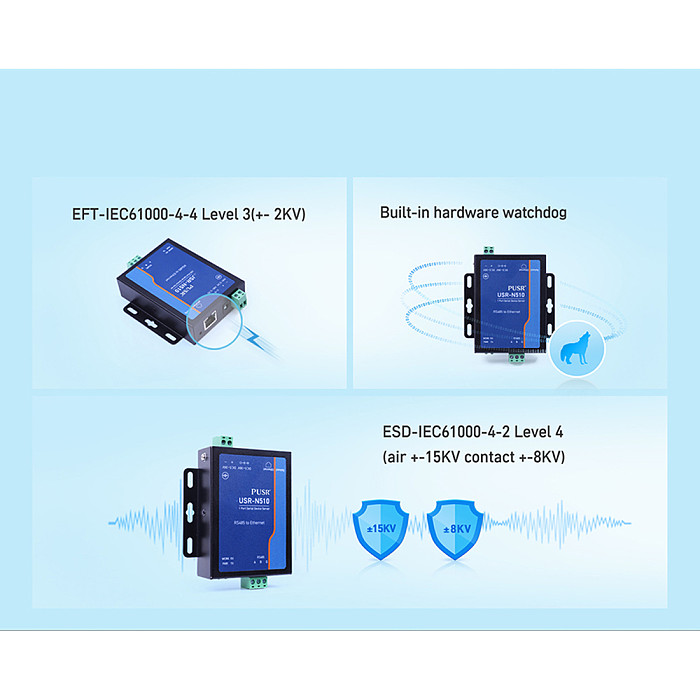

Multiple hardware protection

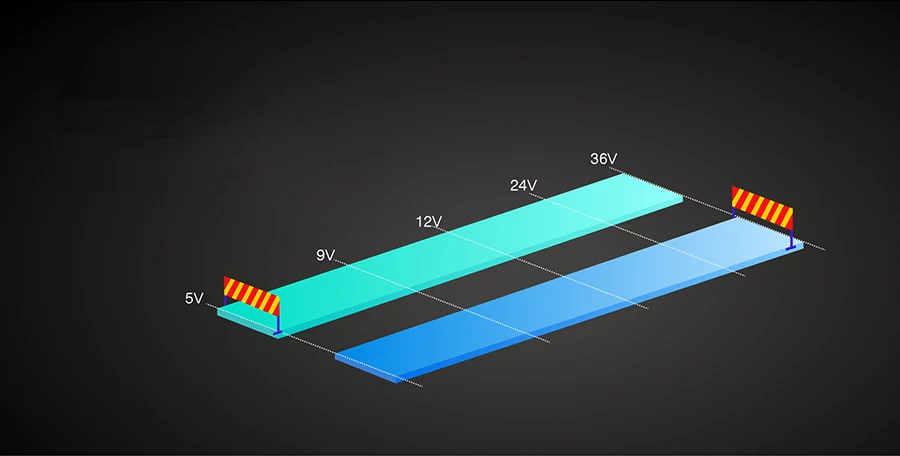

Redundant Power Supply

Wide input voltage DC 5-36V,
with reverse polarity protection

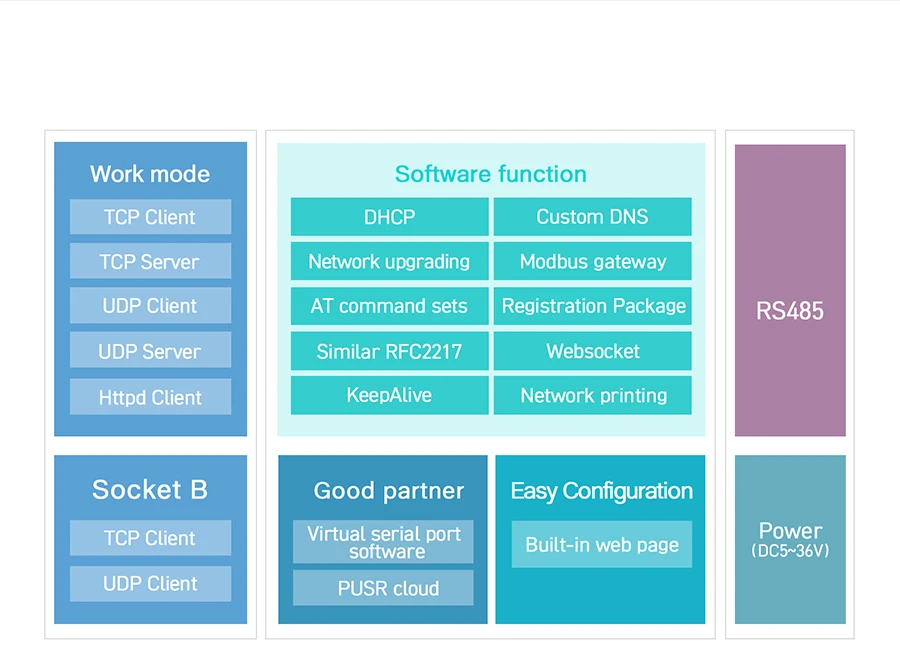

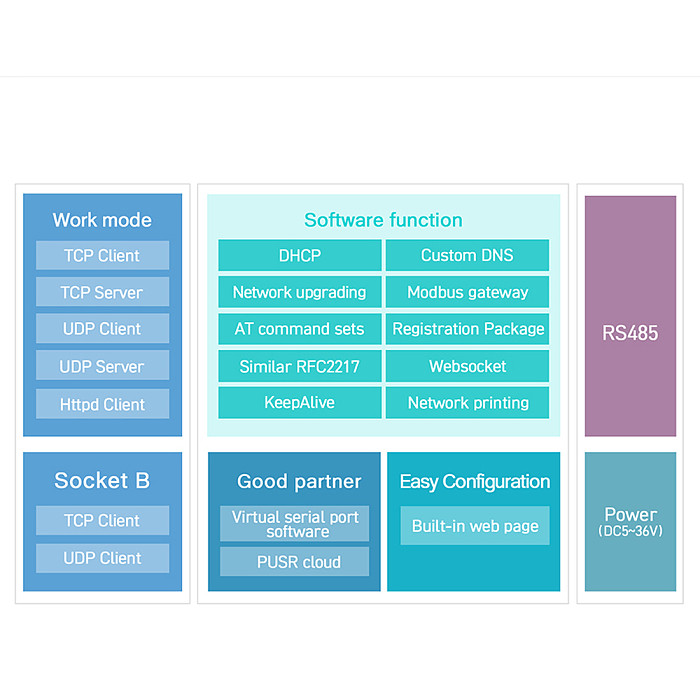

Block Diagram

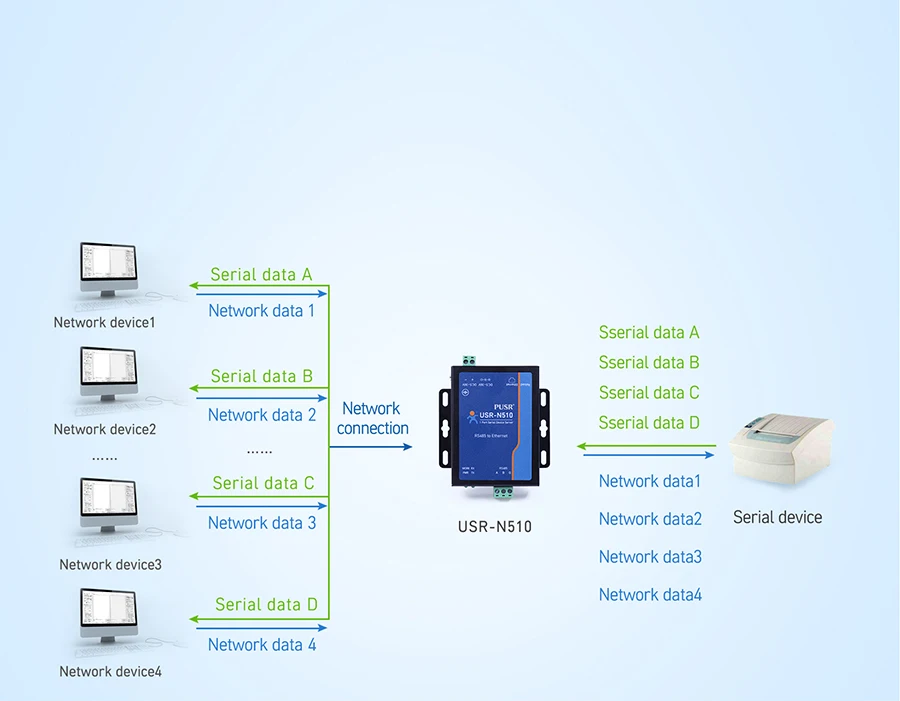

Modbus gateway

Support modbus RTU and modbus TCP protocol conversion
Support modbus multi-host polling

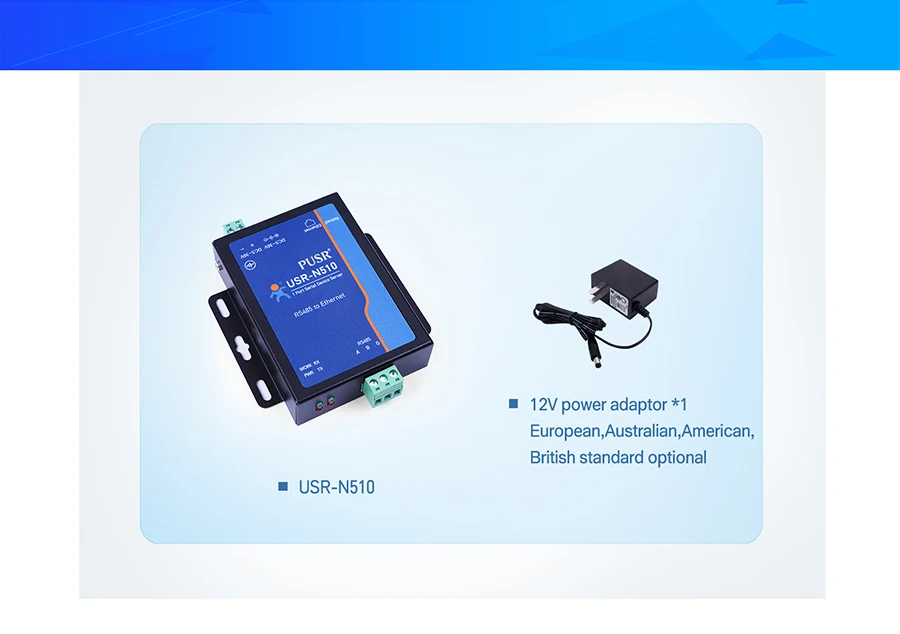

Packaging list

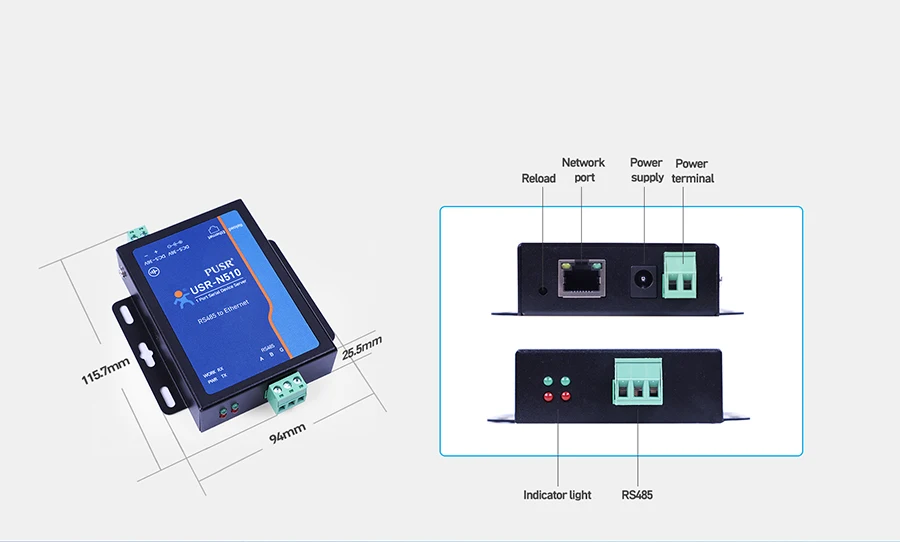

Product details

Work mode

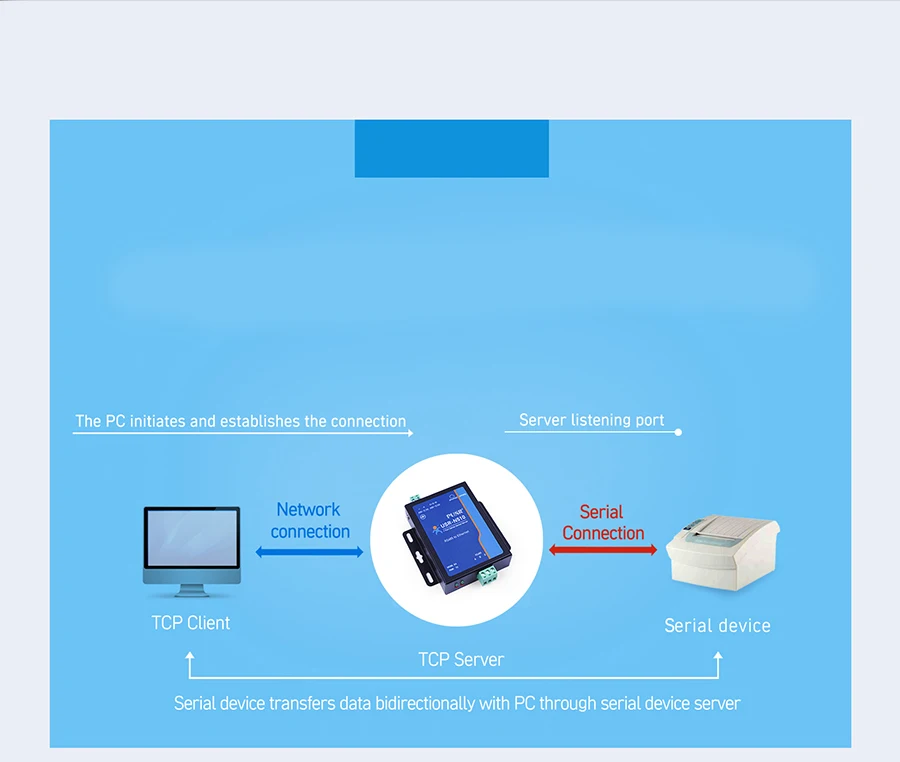

TCP Server

The server listens to the specified port and waits for the TCP client to connect,
The data sent by the serial device will be
transparently transmitted to all successfully
connected clients through the serial device server.

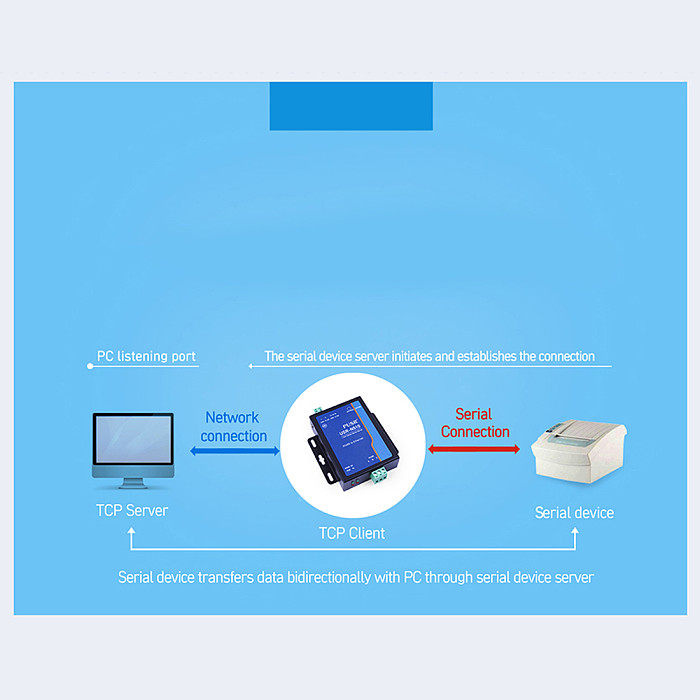

TCP Client

The serial device server initiates a TCP connection to the specified IP address.
If the connection fails, the serial server will continue to try to reconnect until it succeeds.
If the connection is successful, the server can transparently transmit
data with the serial device in two-way.

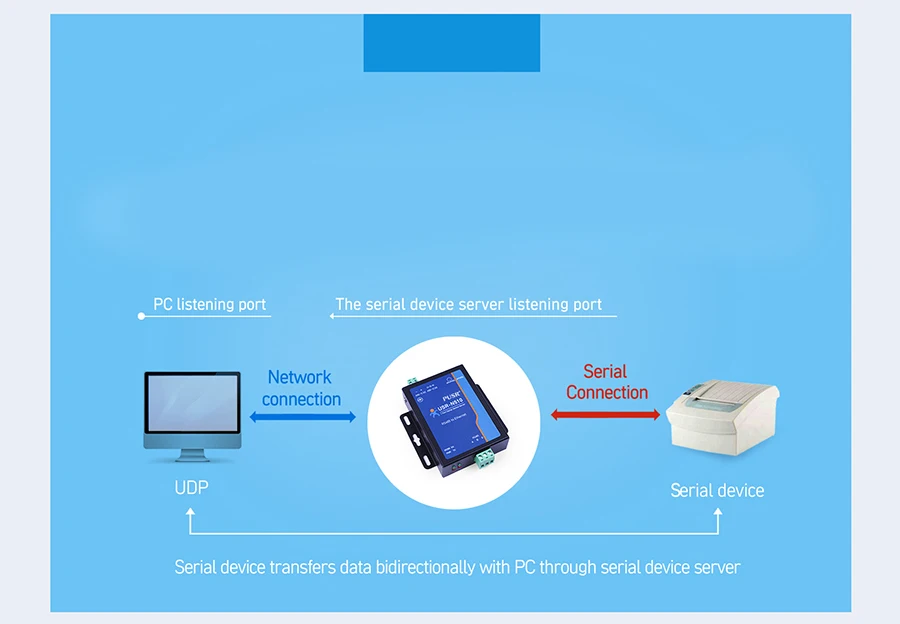

UDP mode

The serial device server sends the data of the
serial device to the designated IP network device.
The serial device server monitors the port meanwhile and
forwards all received data to the serial device.

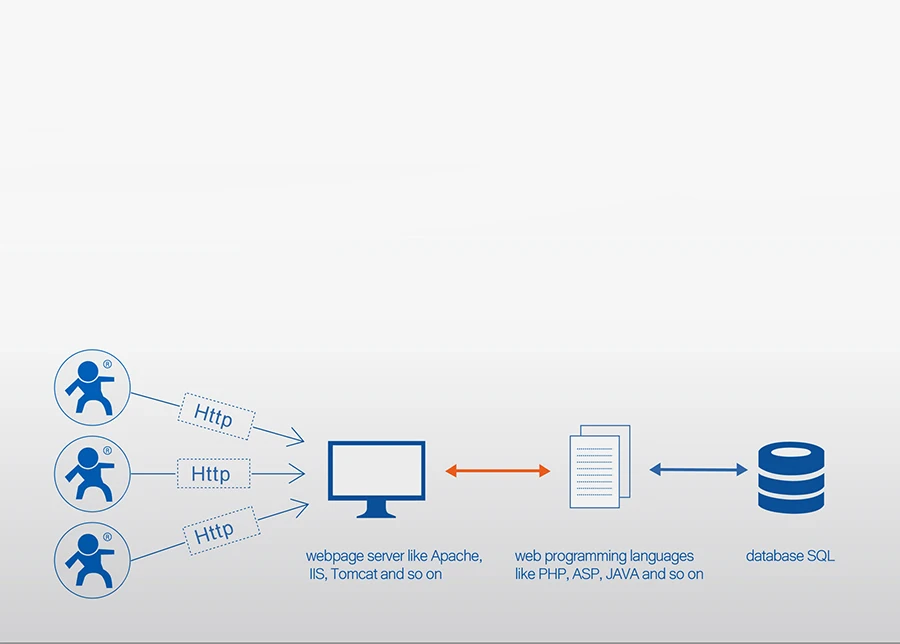

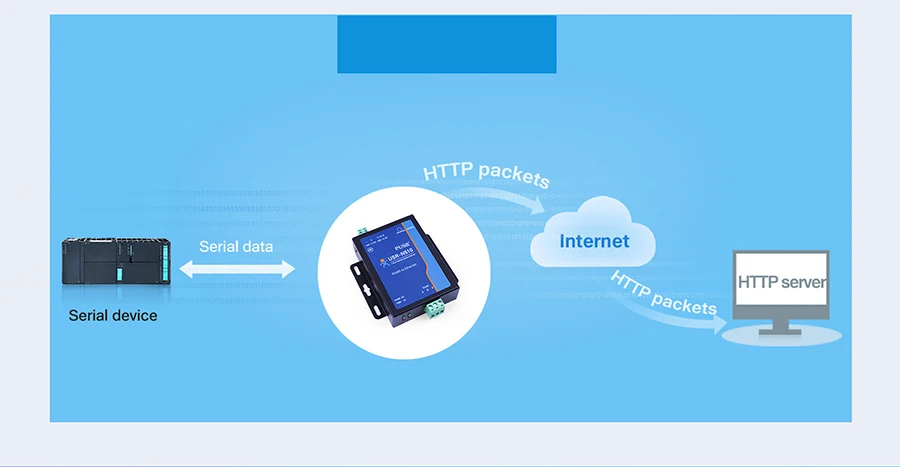

HTTPD Client

Serial port data can be submitted to a specified server by GET or POST method

More Features

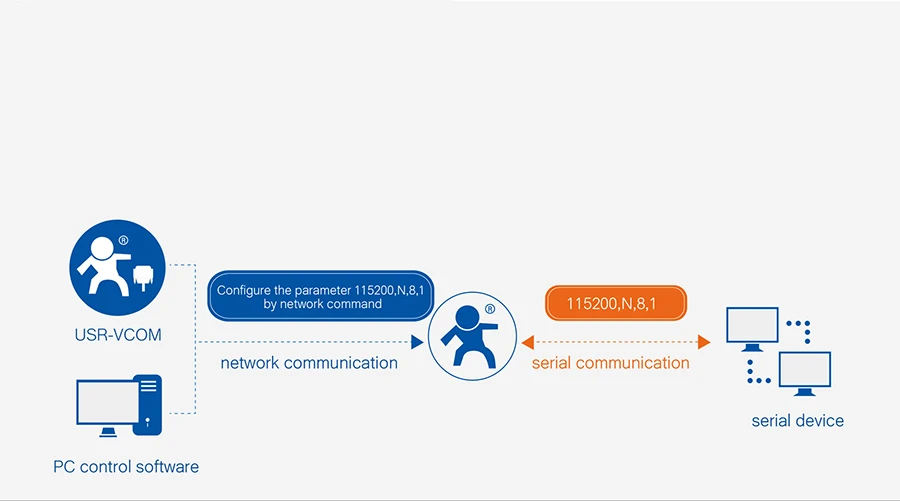

Synchronized baud rate

Change the baud rate, data bit, check bit and stop bit dynamically via network protocol

Registration package mechanism

When N510 is used as a TCP Client, it will automatically send a predetermined registration
package for identification after the link is established.The registration package data
can be IMEI code, ICCID code and custom registration data.

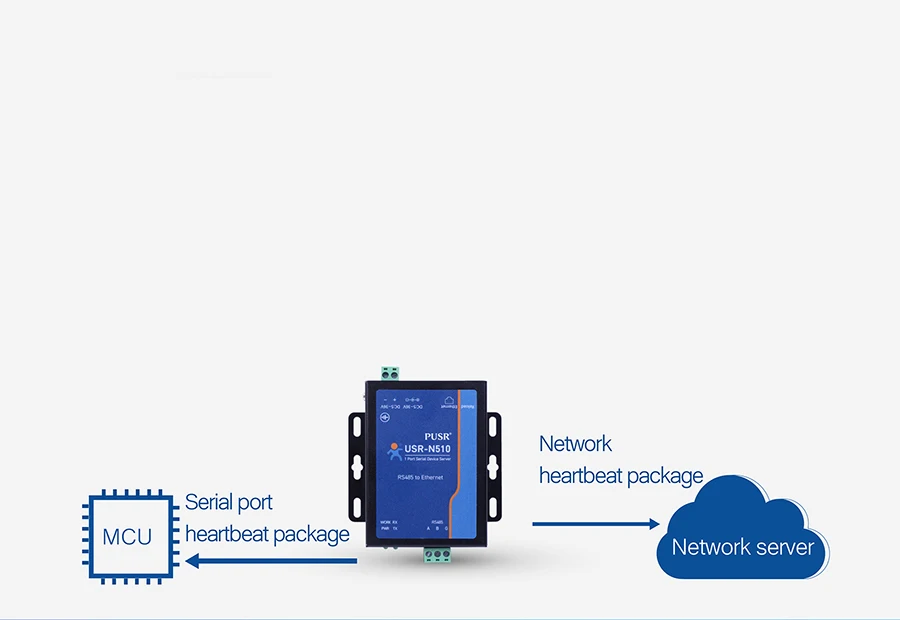

Serial / Network heartbeat packet

Network heartbeat packet: The serial device server sends a heartbeat packet regularly to notify
the server that it is active and maintains a normal network connection with the server.
Serial heartbeat packet: The serial device server notifies the serial device
it is active via packet, and this packet can also be used to actively capture sensor data.

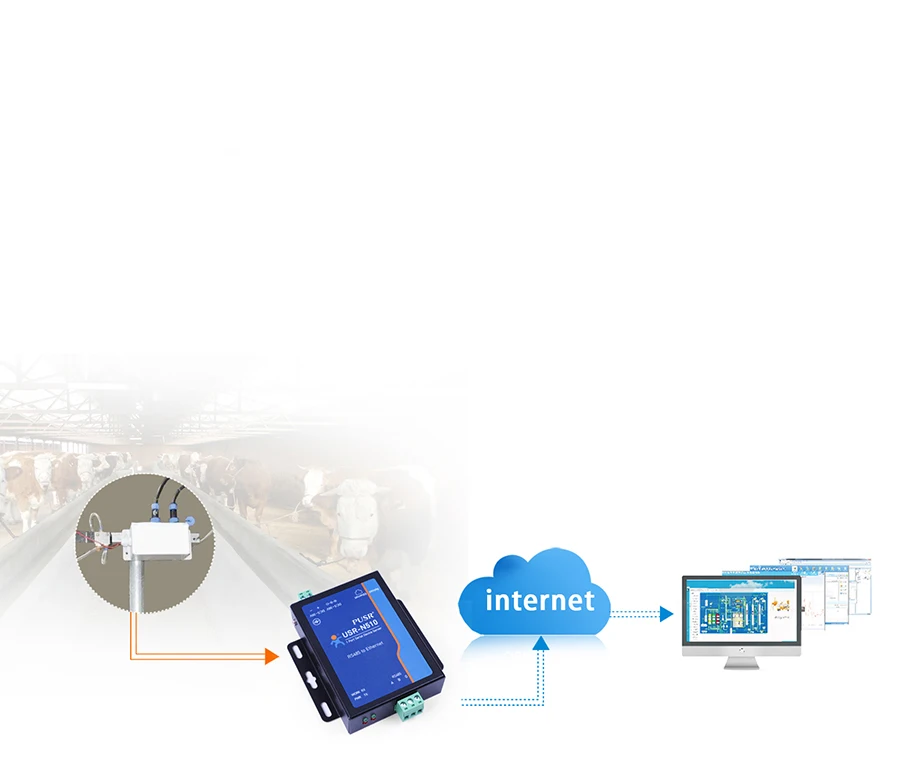

Application Cases

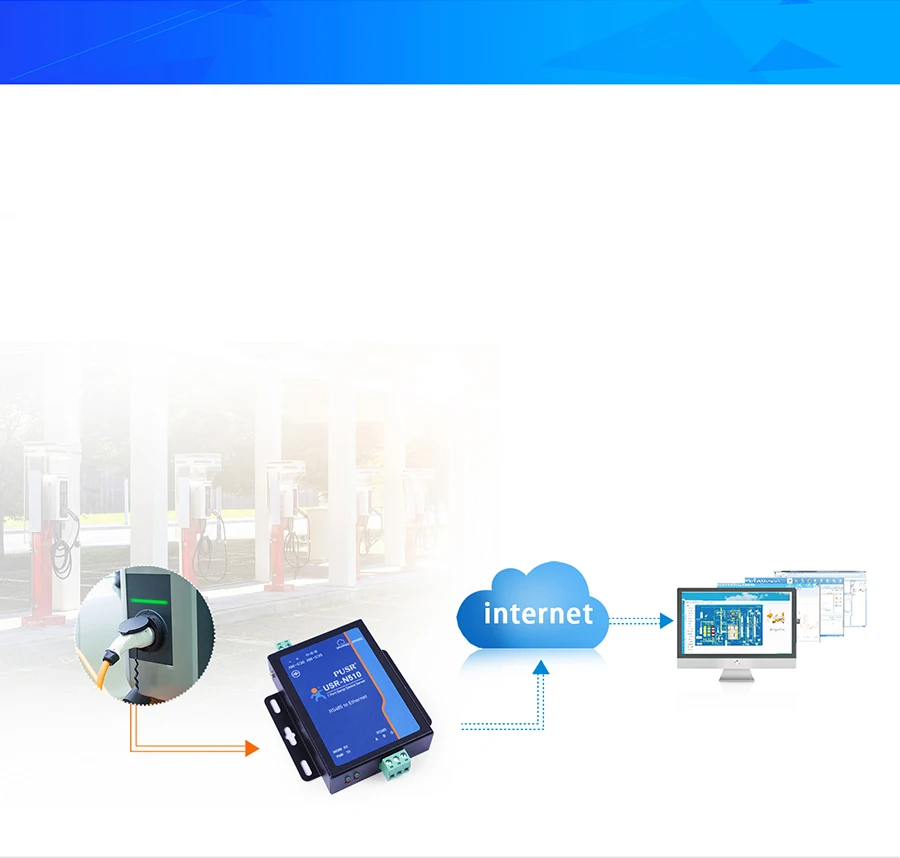

Charging pile application case

N540 can connect the charging pile to the charging intelligent
service platform to realize two-way data transmission between
the charging device and the platform.The billing information
and power usage can be viewed remotely through the platform
to facilitate operation and maintenance.

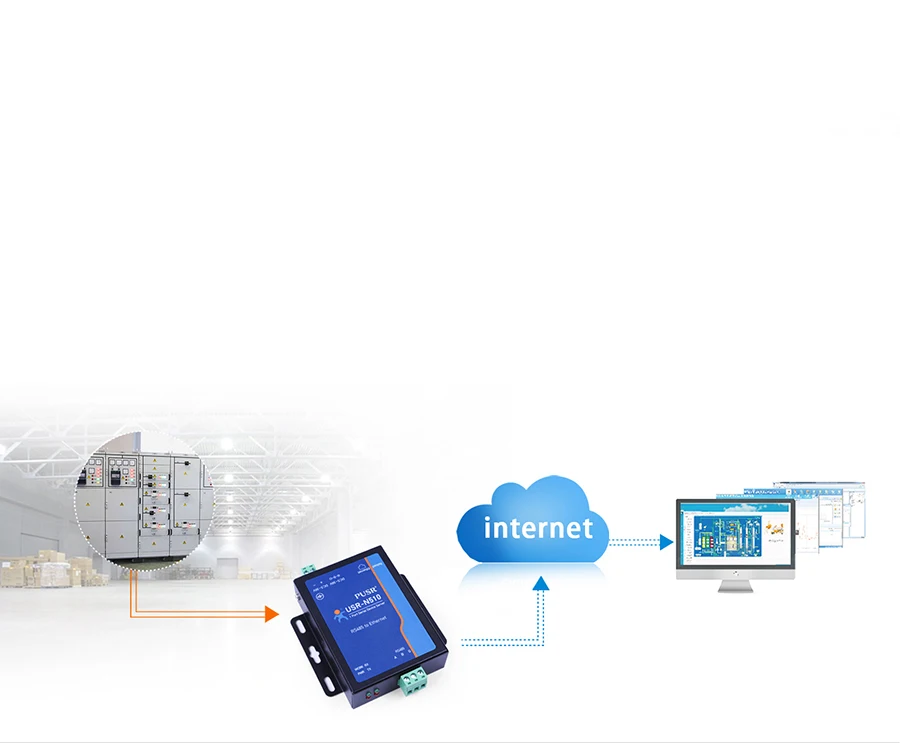

Industrial automation application case

he application of N540 in traditional industrial scenarios can
effectively solve the problem that workers need to monitor
equipment on-site, save labor costs, and increase production
efficiency and safety factors. Data management makes the
production process control more refined.
