Wireless 3G / 4G LTE Router with Sim Card VPN APN External Antenna Item NO.: Q21226-Q21227-Q21228

Wireless 3G / 4G LTE Router with Sim Card VPN APN  External Antenna

Introduction

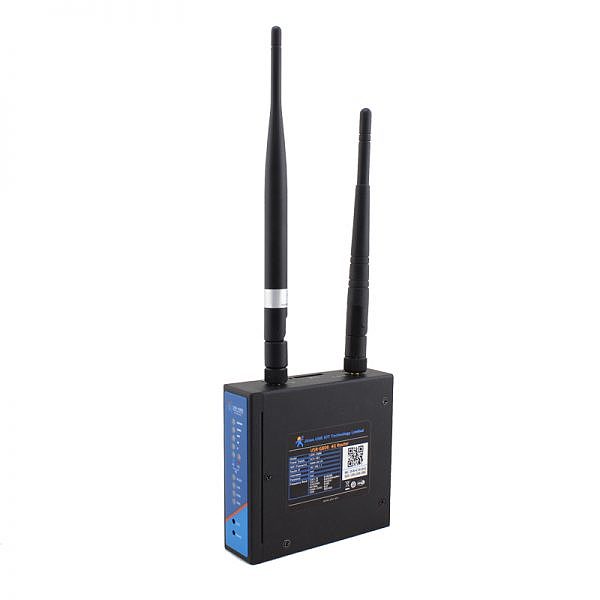

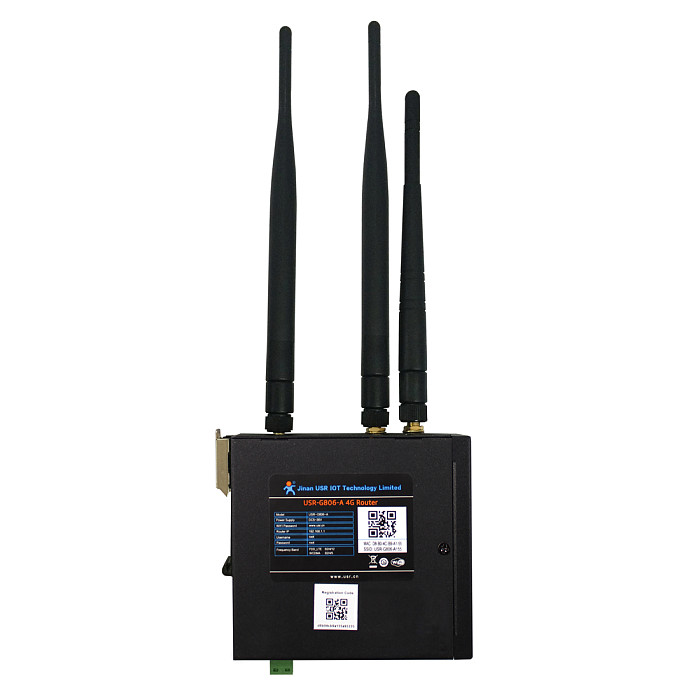

G806 is Industrial Wireless 4G Router which supports FDD-LTE /TDD-LTE /WCDMA /HSPA/GPRS/GSM Network. It has one Sim card slot and one WAN, LAN and USB interface. It is widely used in public bus and Vending machine for data transmission at high speed.

Function
WIFI 802.11b/g/n protocol, the max wireless transmission distance is 180m
Built- in webpage parameter configuration
Support APN and VPN (support PPTP, L2TP)
Port mapping/ forwarding
Restore factory setting and reload button
Reverse connection projection, ESD anti-surge, anti-static, Surge protection
software and hard ware watchdog
QOS flow control management
Static Router configuration and firewall
Traffic service can limit the speed depends on interface, limit IP and MAC speed
Version:Europe & Asia,USA,Australia
Network Type G806 (Asia ) G806-E (Europe ) G806-AU ( Australia ) G806-A ( USA ) G806-V (USA)
4G FDD-LTE 1/3 1/3/5/7/8/20 1/2/3/4/5/6/7/8/28 2/4/12 4/13
TDD-LTE 38/39/40/41 38/39/40/41 40
3G WCDMA/HSPA/UMTS 1/8 1/8 1/2/5/8 2/4/5
2G GPRS/GSM/EDGE 3/8 3/8 2/3/5/8
Note: G808-A Support AT&T SIM Card; G808-V Support Verizon SIM Card
List of LTE networks: https://en.wikipedia.org/wiki/List_of_LTE_networks
List of network operators: https://en.wikipedia.org/wiki/Mobile_country_code

Note: G808-A Support AT&T SIM Card; G808-V Support Verizon SIM Card

Application
• Self service terminal equipment (Vending machine, Advertising machine, Lottery machine, Intelligent Express, ATM remote control)
• City public transportation and Industrial automation
