Radiolink AT9S with Portable Case Handbag Rocker Mount 2.4G 10CH Radio System DSSS FHSS Transmitter 9CH R9DS Receiver Controller S-BUS for RC Drone Quadcopter Item NO.: F33160-B

Radiolink AT9S with Portable Case Handbag Rocker Mount 2.4G 10CH Radio System DSSS FHSS Transmitter 9CH R9DS Receiver Controller S-BUS for RC Drone Quadcopter

Default left-hand throttle mode 2,if you need Mode1,please inform us in advance,thanks


Package Including

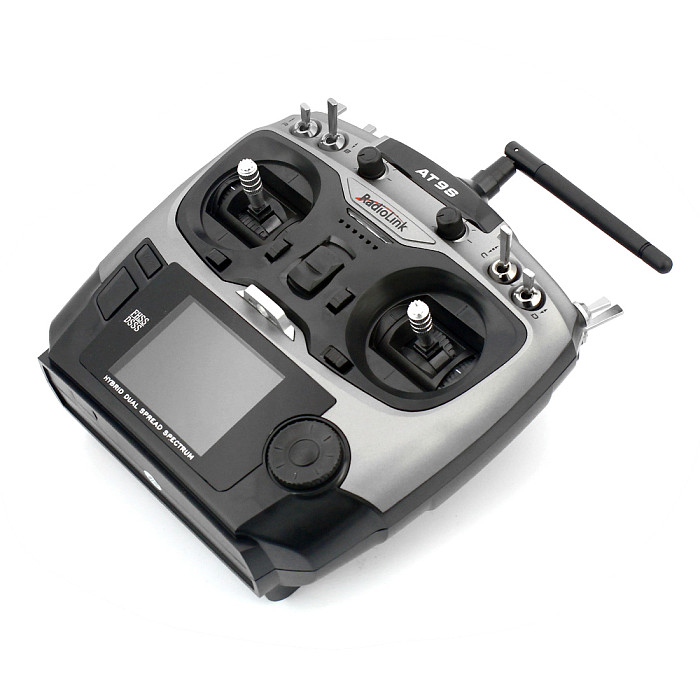

1 * Radiolink AT9S Transmitter

1 * R9DS Receiver
1 * QwinOut Portable Case Handbag

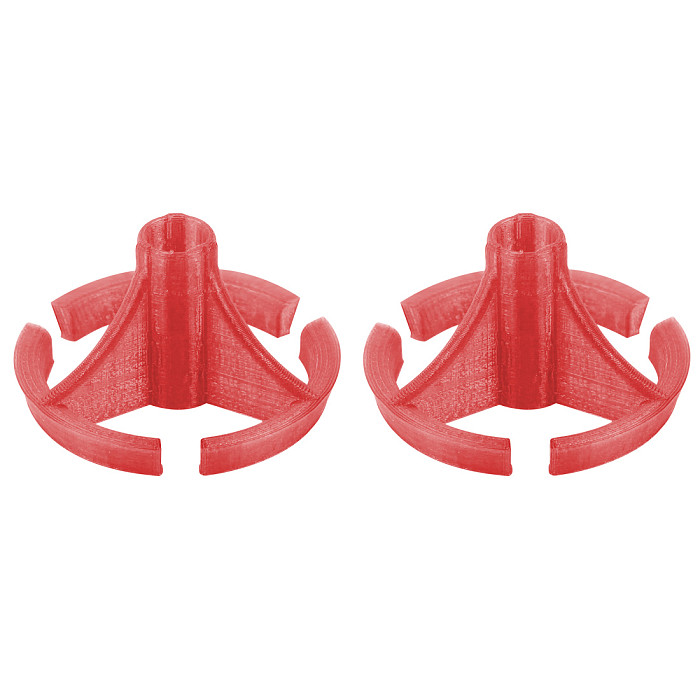

1 * Rocker Mount (1 Pair)

AT9S Specification
1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm
2. Weight: 0.88kg
3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
4. Modulation mode: QPSK
5. Channel bandwidth: 5.0 MHz & 250Kbps
6. Spread spectrum: DSSS ;FHSS
7. Adjacent channel rejection: >38dbm
8. Transmitter power: <100mW (20dbm )
9. Operating current: <90mA 12V
10. Operating voltage: 7.4 ~ 18.0V
11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
12. Channel: 10 channels, 5-10 channels are customized
13. Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
14. Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode
15. Screen: 2.8 inches 16 colorful screen, 240*320 pixels
16. Support receivers: sells with R9DS (SBUS;PWM) ;Also support R10DS(SBUS PWM) and R6DS(SBUS;PPM;PWM)

R9DS 2.4G 9CH DSSS Receiver
Feature:
DSSS technique, super anti-interference.
 RX voltage and signal strength telemetry, extensional sensor for EP, Temperature, RPM, GPS etc.
S.BUS. CH9 is set for S.BUS.
 All 9channel needs 3ms to response parallel.
Section precision 4096, stable the servo, rudder shaking free.
 HV input up to 10V.
 MINI design for convenient assembling and operating.
Specifications:
Channel: 9channel, CH9 is for S.BUS
Max input voltage: 10V
Current: 38-45 mA(Voltage input: 5V)
Size: L*W*H=43*24*15mm
Section precision 4096

Portable Case Handbag
Brand: QwinOut
Suitable for：Universal Remote Controller like Futaba/Frsky/Flysky/JR/Jumper/Walkera /Wfly/Radiolink /Microzone Radio Controller
Color:Black
Material:EVA + nylon
Weight: 466g
Size: 26 * 26 * 11.5cm
