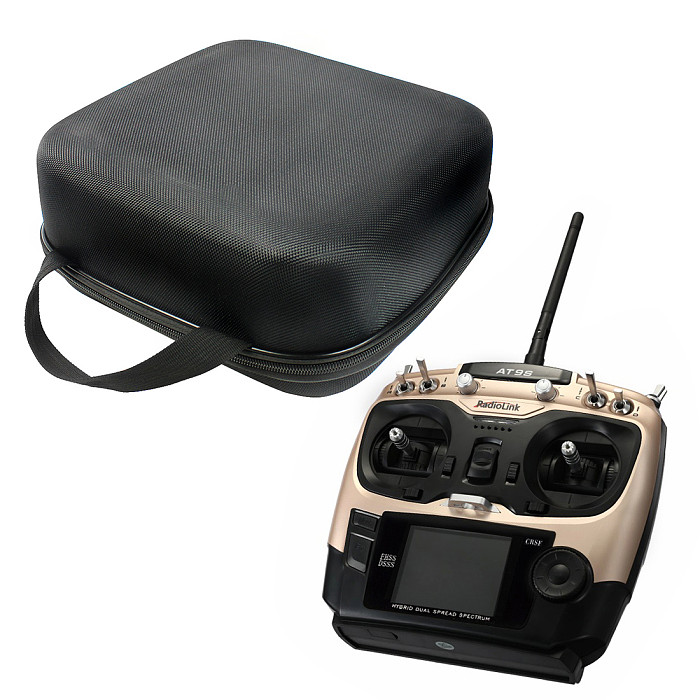

Radiolink AT9S PRO with Portable Case Handbag Rocker Mount 2.4G 12CH Remote Control RC Transmitter with R9DS Receiver For FPV DIY RC Drone Quadcopter Airplane Item NO.: F33160-C D E F G H I J

Radiolink AT9S PRO with Portable Case Handbag Rocker Mount 2.4G 12 CH Remote control RC Transmitter with R9DS Receiver For FPV DIY RC Drone Quadcopter Airplane

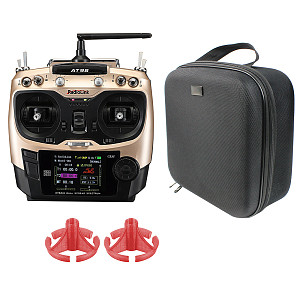

Package Including
1 * Radiolink AT9S PRO Transmitter

1 * R9DS Receiver
1 * QwinOut Portable Case Handbag
1 * Rocker Mount (1 Pair)  (Optional)

Specification:
Item Name: AT9S Pro Transmitter and R9DS Receiver
Operating Voltage:7.4~18.0V;
Transmission Power:DSSS FHSS<100mW (20dbm)CRSF 10mW/25mW/100mW/500mW/1W/2W (Optional)
Package Weight: 880g
Signal Output:PWM/SBUS/PPM/CRSF
Control Distance: 3400m on air
Channel: 12CH
Frequencies Band:2.4Ghz ISM band (2400MHz-2483.5MHz);
Brand Name: Radiolink;
Spread Spectrum Mode: DSSS FHSS/CRSF;
Bandwidth:5.0MHz
Working Current: 40-180mA (input voltage
Compatible Receivers: 12ch-r12dsm, r12ds ;10ch-r9ds (STD), r6ds, r6dsm .
Channel Qty:12 (CH5 can be programmed)
Operating Current: DSSS FHSS<90mA@12V CRSF  Depends on the transmission power selected
Signal: SBUS/PPM
Control range:DSSS FHSS-4KM in the air (Maximum range is tested in an unobstructed area free of interference) CRSF-Depends on the RX and TX from BLACKSHEEP
Mode: Mode1/Mode2
Adaptable Models:Rotary Wing, Fixed wing, Multicopter, Car, Boat, Robot
Receiver:R9DS
Display:2.8-inch 16-bit true color screen, resolution 240 * 320 pixels
ACPR:>38dbm
Color: Gold, Silver
The product weight:880g
Simulator Mode:Can set this mode,the transmitters RF circuit turns off to save battery power
Modulation Mode:QPSK
AT9S Pro Size: 183*100*193mm
