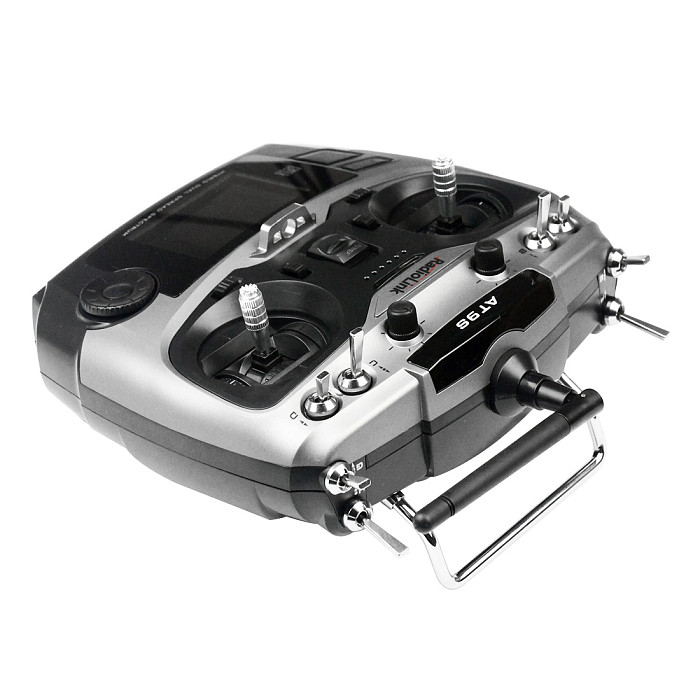

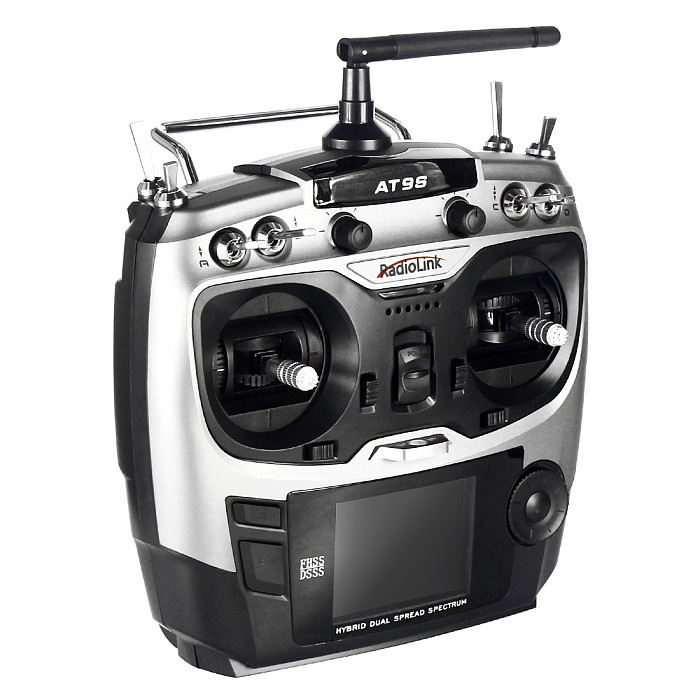

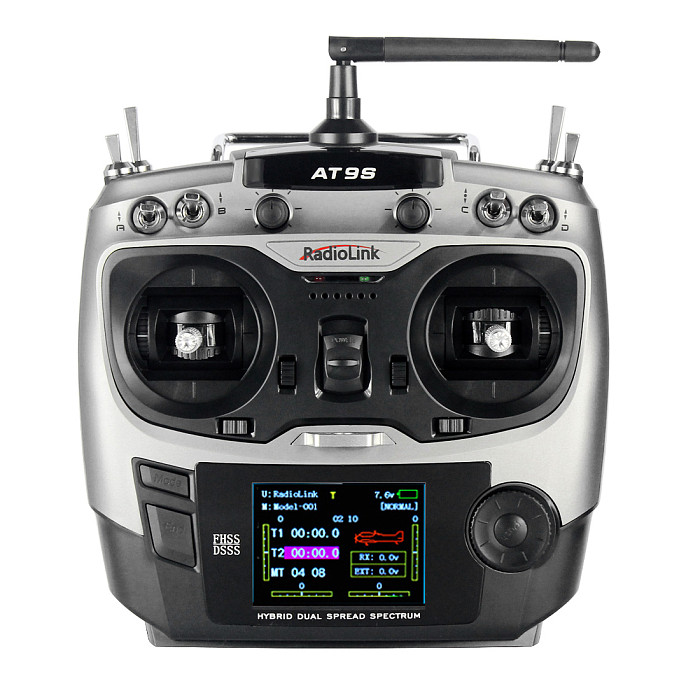

Radiolink 2PCS AT9S 2.4G 9CH System Transmitter with R9DS Receiver AT9 Remote Control update version for quadcopter Helicopter
-
Detail
- Product Name: Radiolink 2PCS AT9S 2.4G 9CH System Transmitter with R9DS Receiver AT9 Remote Control update version for quadcopter Helicopter
- Item NO.: F22475-2
- Weight: 1.59 kg = 3.5053 lb = 56.0856 oz
- Category: DIY RC Drone Accessories > Remote Control
- Brand: RadioLink
- Creation Time: 2019-12-16
Radiolink 2PCS AT9S 2.4G 9CH System Transmitter with R9DS Receiver AT9 Remote Control update version for quadcopter Helicopter
Description:
1. AT9S Size: 183 * 100 * 193mm; R9DS Size: 41 * 23 * 14mm
2. Weight: 0.88kg
3. Transmission frequency: 2.4GHz ISM band (2400MHz ~ 2483.5MHz)
4. modulation modes: QPSK
5. Channel bandwidth: 5.0MHz
6. spread spectrum: DSSS & FHSS
7. adjacent channel rejection ratio:> 38dbm
8. transmit power: <100mW (20dbm)
9. Working current: <90mA
10. Working voltage: 7.4 ~ 18.0V
11. Remote distance: 900 m ground, air 1.5 km (actual distance and flight control environment)
12. Number of channels: Channel 10, Channel 5 above can be customized
13. Support Model: includes all 120 degrees, 90 degrees swashplate helicopter, all fixed-wing, rotary-wing gliders
14. simulator mode: you can set the simulator mode, in this mode the RF transmitter shutdown, enter a power saving mode
15. Display: 2.8-inch 16-bit true color screen with a resolution of 240 × 320 pixels
16. Support the type of receiver: R9DS (standard), R10DS,R6DS
