Happymodel ExpressLRS FPV ELRS ES900TX ES900RX 915MHz Long Range Module for Radiomaster TX16S Micro Mini Long Range Drones

Happymodel ExpressLRS FPV ELRS ES900TX ES900RX 915MHz Long Range Module for Radiomaster TX16S Micro Mini Long Range Drones Item NO.: F45140-D1F45140-D2F45140-D3F45140-D4F45140-D5F45140-D6

Write a Review
US$ 35.02
US$ 38.06 Save US$ 3.04 (8% Off)
Type
ES900 TX 868 ES900 RX 868 ES900 TX RX 915 ES900 TX 915 ES900 RX 915 ES900 TX RX 868
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Happymodel ExpressLRS FPV ELRS ES900TX ES900RX 915MHz Long Range Module for Radiomaster TX16S Micro Mini Long Range Drones
Item NO. F45140-D1F45140-D2F45140-D3F45140-D4F45140-D5F45140-D6
Weight 0.05 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Accessories > Remote Control
Brand Happymodel
Creation Time 2021-11-23

Item:  ExpressLRS ES900TX ES900RX 915MHz Long Range Module
Parameters:

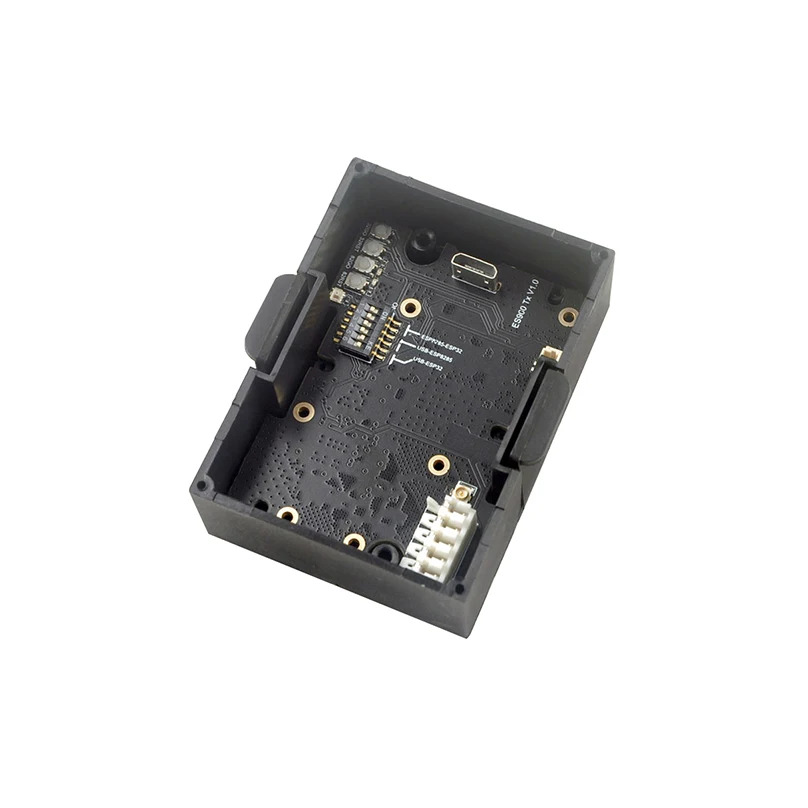

ES900TX:
MCU:ESP32+ESP8285
Dimension: 55mm*39mm*11mm
Weight: 9.2gram (only the TX module)
Antenna connector: SMA
VCC input: 5~13v, Recommend 5v~9v
RF Frequency optional: 915mhz or 868mhz(EU)
Maximum Output Power: <33dBm(For >27dBm operation, we recommend add a fan for force cooling)
Wifi update firmware function for ES900TX would be available in a short time.

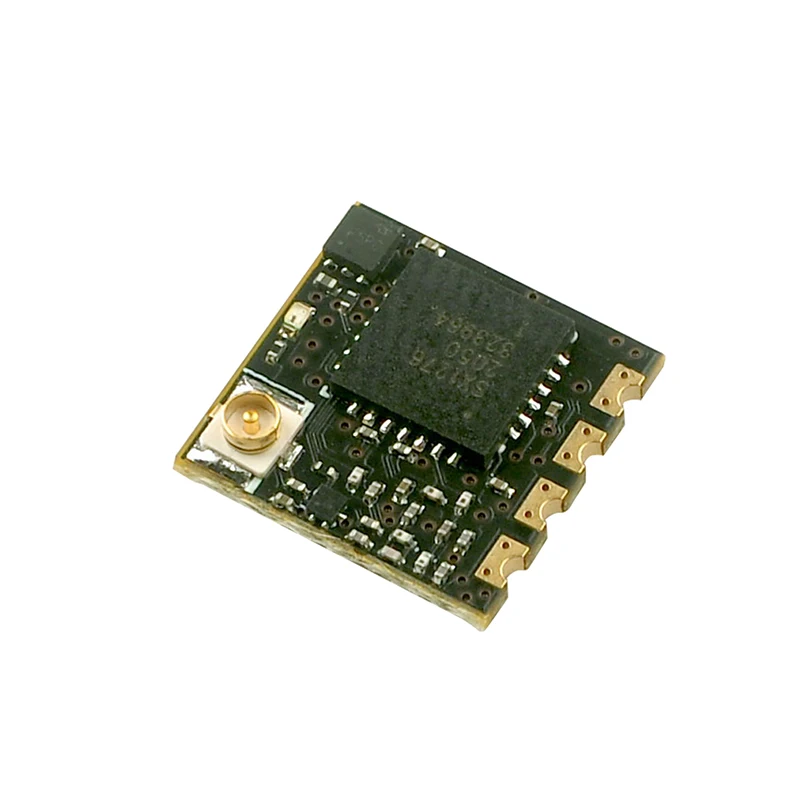

ES900RX:
MCU:ESP8285
VCC input: 5v
Operation current: ~100Ma
Rx To FC protocol: CRSF
RF Frequency optional: 915mhz or 868mhz(EU)
Dimension: 12mm*12mm*3mm

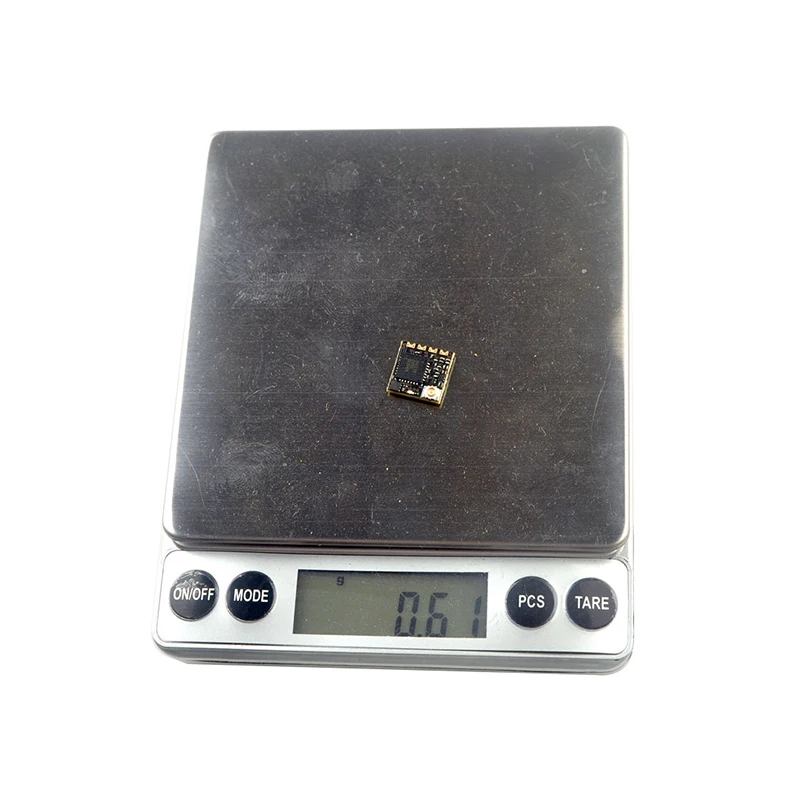

Weight: 0.60 gram (exclude antenna)
Antenna connector:  IPEX1
Telemetry output Power: <17dBm
RC7 Firmware for ES900RX download:
ExpressLRS RC7 firmware for ES900 RX 915MHz and 868MHz [update by wifi]
Features:

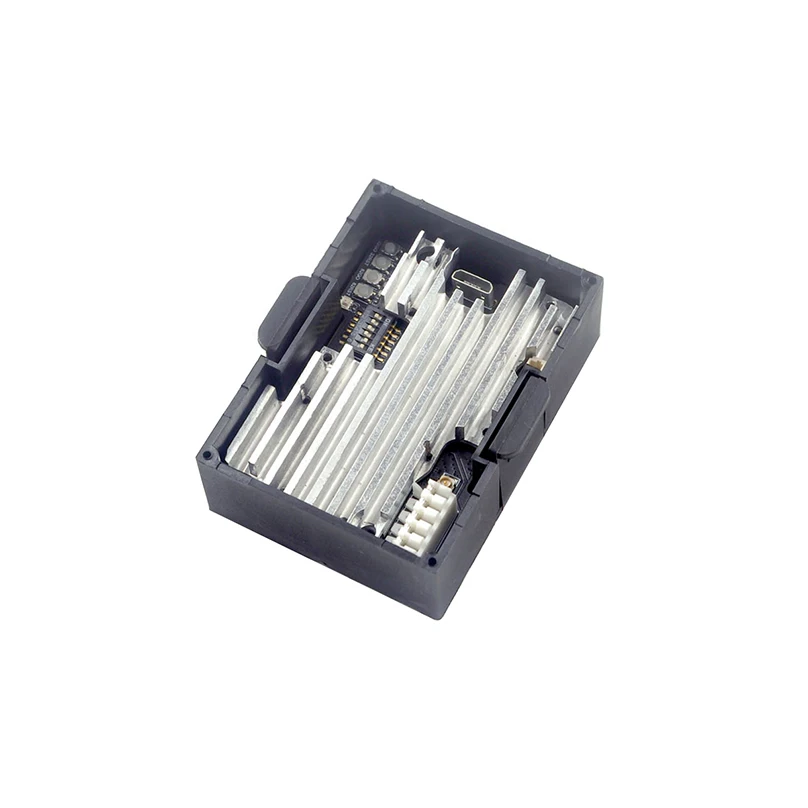

ES900TX and ES900RX modules are a set of Long Range 915MHz/868MHz(optional) wireless transmission equipment developed and designed based on the open source software ExpressLRS. This set of modules is characterized by ultra-long range, stable operation and low latency. The module is compatible with most Opentx remote controllers, especially suitable for Radiomaster TX16S and Jumper T12 T16 T18 series remote controllers, basically plug and play. We have specially customized the heat sink for the transmitter module, and also reserve the installation position of the 2006 fan which can help the transmitter module to operate stably under high power conditions.
New ES900TX module coming with a 2006 Fan, it would working automatically when the TX power is 250mw.
Source on GitHub: https://github.com/ExpressLRS/ExpressLRS
ExpressLRS community:ExpressLRS – High Performance Radio Control Link
As ExpressLRS firmware is constantly being improved and updated, we strongly recommend that you use the ExpressLRS configurator update firmware to get the best experience
Configurator https://github.com/ExpressLRS/ExpressLRS-Configurator/releases
Firmware https://github.com/ExpressLRS/ExpressLRS/releases

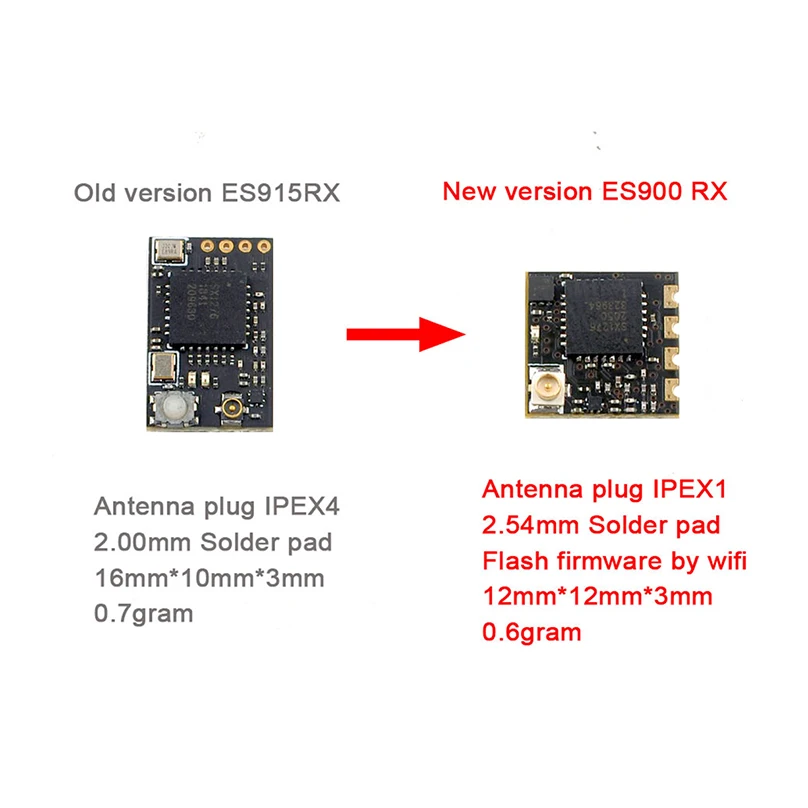

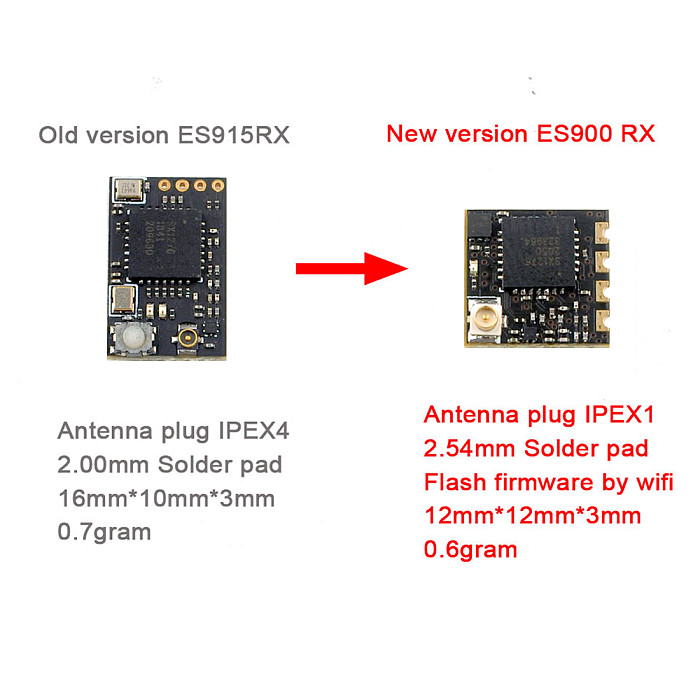

Notice: The New version ExpressLRS hardware 868MHz/900MHz TX and RX module-ES900TX and ES900RX coming out which is instead ES915TX and ES915RX due to shortage of SMT32 chips. ExpressLRS development will release the new target for ES900TX and ES900RX soon.
Bind procedure:
Supply power to the ES900RX, wait until the red LED on the ES900RX are off, immediately turn off the power, and then repeat again the above steps. When the ES900RX is powered on for the third time, the red LED light will start to double flash quickly, which means that the ES900RX enters the binding mode
Insert the ES900TX or ES915TX module to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems, Enter into ELRS and press [Bind], the Red LED on the ES900RX module will turning off then start blinking slowly and finally getting to be solid , this means bind successfully.
ES900RX firmware update by wifi procedure:
Make the ES900RX enter into Bind mode and then wait around 1 minute and don't bind with it , then the ES900RX would get into Wifi mode automatically, you could connected the wifi hot pot "ExpressLRS RX" by enter the password "expresslrs"
Visit the firmware update website by enter "10.0.0.1" , and choose the correct firmware then click "update" , wait for around 1~2 minutes, the update progress would finished and you can find "firmware update successful and reboot" , that means update is finished.

  • Package Included:

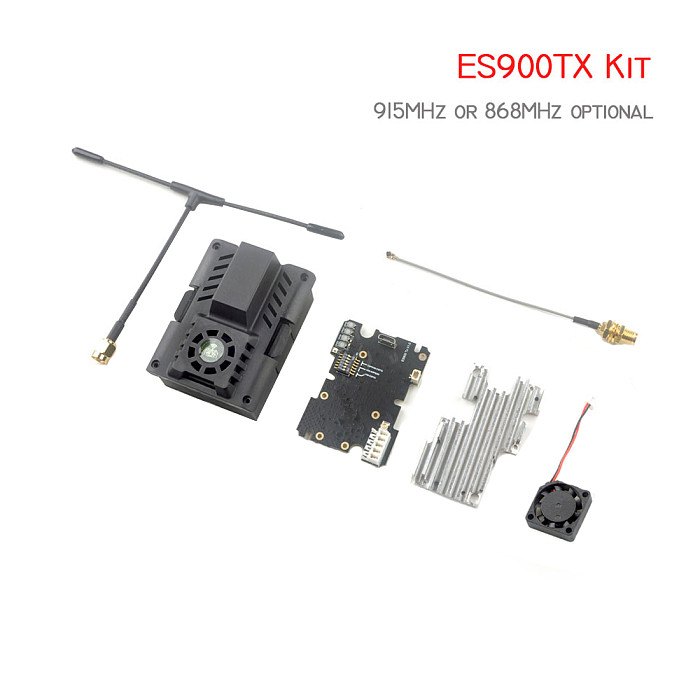

  • ES900TX and ES900RX kit:
    ES900 TX module x1(868MHz or 915MHz optional)
    ES900 RX module x1(868MHz or 915MHz optional)
    TX antenna x1(868MHz or 915MHz optional)
    RX antenna x2(868MHz or 915MHz optional)
    Molding JR Bay mounted case for TX module x1
    Heat sink x1
    Adapter wire x1
    2006 Fan x1

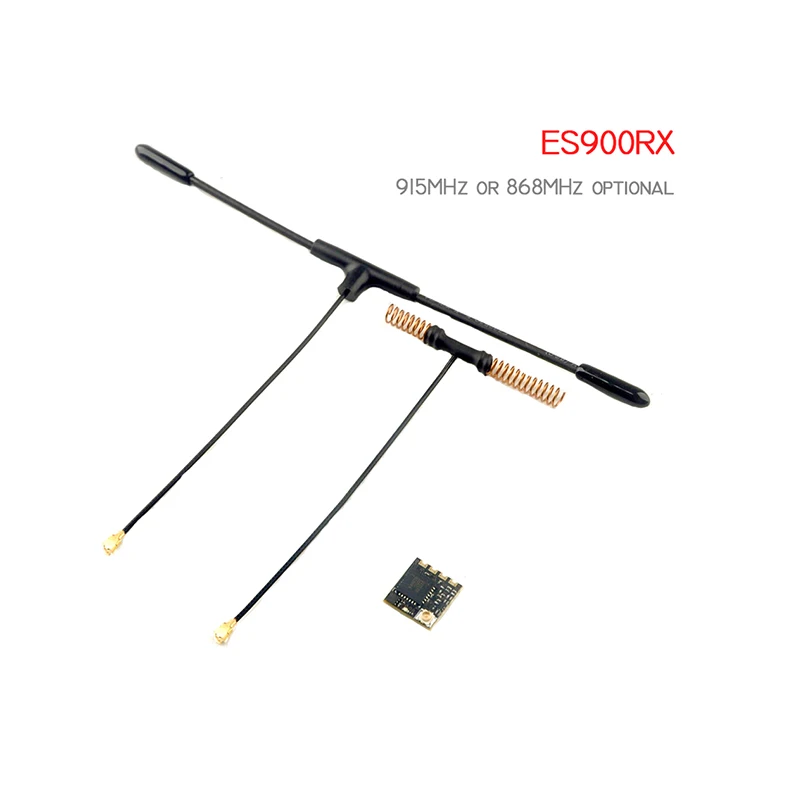

    ES900RX :
    ES900 RX module x1(868MHz or 915MHz optional)
    RX antenna x2(868MHz or 915MHz optional)
