FlySky FTr4 Receiver 2.4 GHz 4CH AFHDS 3 for NB4 PL18 RC Fixed Drone Wings Gliders RC Support Parts PWM / PPM / I. bus / S. Exit bus
-
Detail
- Product Name: FlySky FTr4 Receiver 2.4 GHz 4CH AFHDS 3 for NB4 PL18 RC Fixed Drone Wings Gliders RC Support Parts PWM / PPM / I. bus / S. Exit bus
- Item NO.: F36042
- Weight: 0.016 kg = 0.0353 lb = 0.5644 oz
- Category: DIY RC Drone Accessories > Receiver
- Brand: Frysky
- Creation Time: 2020-03-09
FlySky FTr4 Receiver 2.4 GHz 4CH AFHDS 3 for NB4 PL18 RC Fixed Drone Wings Gliders RC Support Parts PWM / PPM / I. bus / S. Exit bus
OVERVIEW:
FTr4 adopts AFHDS 3, Flysky s third generation automatic frequency hopping digital system. It uses a unique two-way antenna transmission system and is uniquely designed to save space and output standards for PWM, PPM, BUS and S. bus signals.
Description:
Brand: FlySky
Item name: FTr4 Receiver
PWM Channels: 4
RF.2. 4 GHZ
2. 4G Protocol: AFHDS 3
Distance:> 500 m (Interference-free range 1 m from the ground)
Antenna: Single Antenna
Put Power: 3.5-8.4V
RSSI: Yes
Output data: PWM / PPM / i BUS / S BUS
Temperature range: 15 ° C- + 60 ° C
Limit humidity: 20% -95%
Online Update: Yes
Dimensions: 33.7 * 20 * 107mm
Weight: 4.9g
Certification: CE, FCC ID N4ZFGR4P00
Binding:
1. Insert the cable into the bind bind receivers port
2. plug the power cord into any other port, and the LED receivers will start to flash quickly indicating that it has entered bind mode
3. Put the transmitter in bind mode; (See the instruction manual transmitters for more information)
4. Binding happened when the LED receivers stop flashing
Remove the power and tie cables from the receiver.
5. Reconnect the power cord for the receiver
6. Check to make sure the transmitter and receiver are working as expected, if there are any problems or unexpected operation follow the above steps to tie up again.
Note:

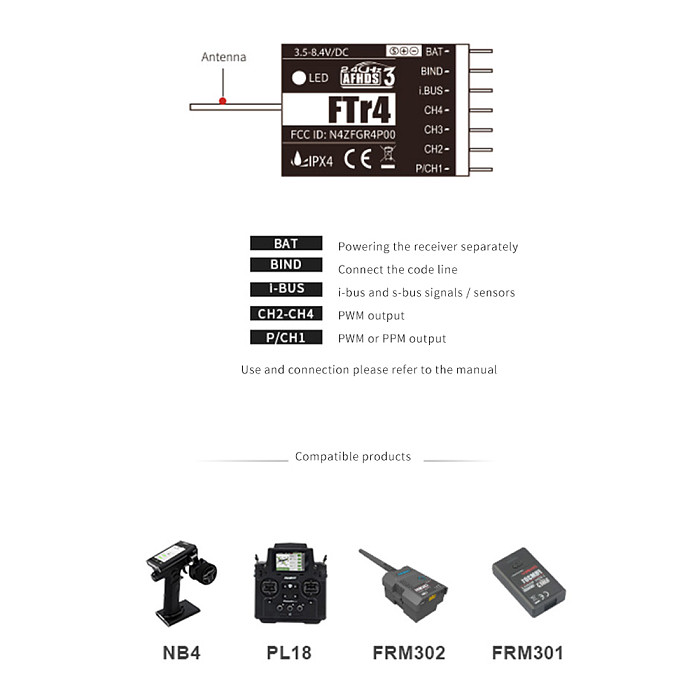

Ports used to connect the receiver to various components
BAT: Separate power supply interface for the receiver
BIND: For cable binding
I BUS: Connects to the bus module for the expansion channel
CH 4 1-CH: It connects the servos, power supply or other components
Note: Refer to the transmitter or sensor manual
For more information on how to connect and set up sensors
If after an update the transmitter is unable to connect or bind to the receiver, you must put the receiver in forced update mode
1. nsert the cable binding and CH4 as shown shortly on the pins and enter forced update mode
2. Then go to the RX Configuration menu and select RX update as normal
3. Update happened when the status indicator receiver flashes slowly
This feature protects the user by preventing the model from unexpectedly behaving if the signal is lost.
Be sure to install the failsafe function on the transmitter. For more
Information on how to set the fail-safe referral for user transmitters
Manual
-When a receiver has been bouncing for the fail-safe transmitter reset function to its default settings
Caution:
Make sure the product is properly installed and calibrated, otherwise serious injury may result.
Make sure the receiver battery is disconnected before turning off the transmitter, otherwise it may lead to accidental operation or loss of control.
Make sure the receiver is mounted away from motors, speed controllers or any electronic device that emits excessive electrical noise.
Keep the antenna receiver at least 1 cm away from conductive materials such as carbon or metal.
Do not turn on the receiver during the installation process to prevent loss of control.
Package Included:
1 x FTr4 Receiver
