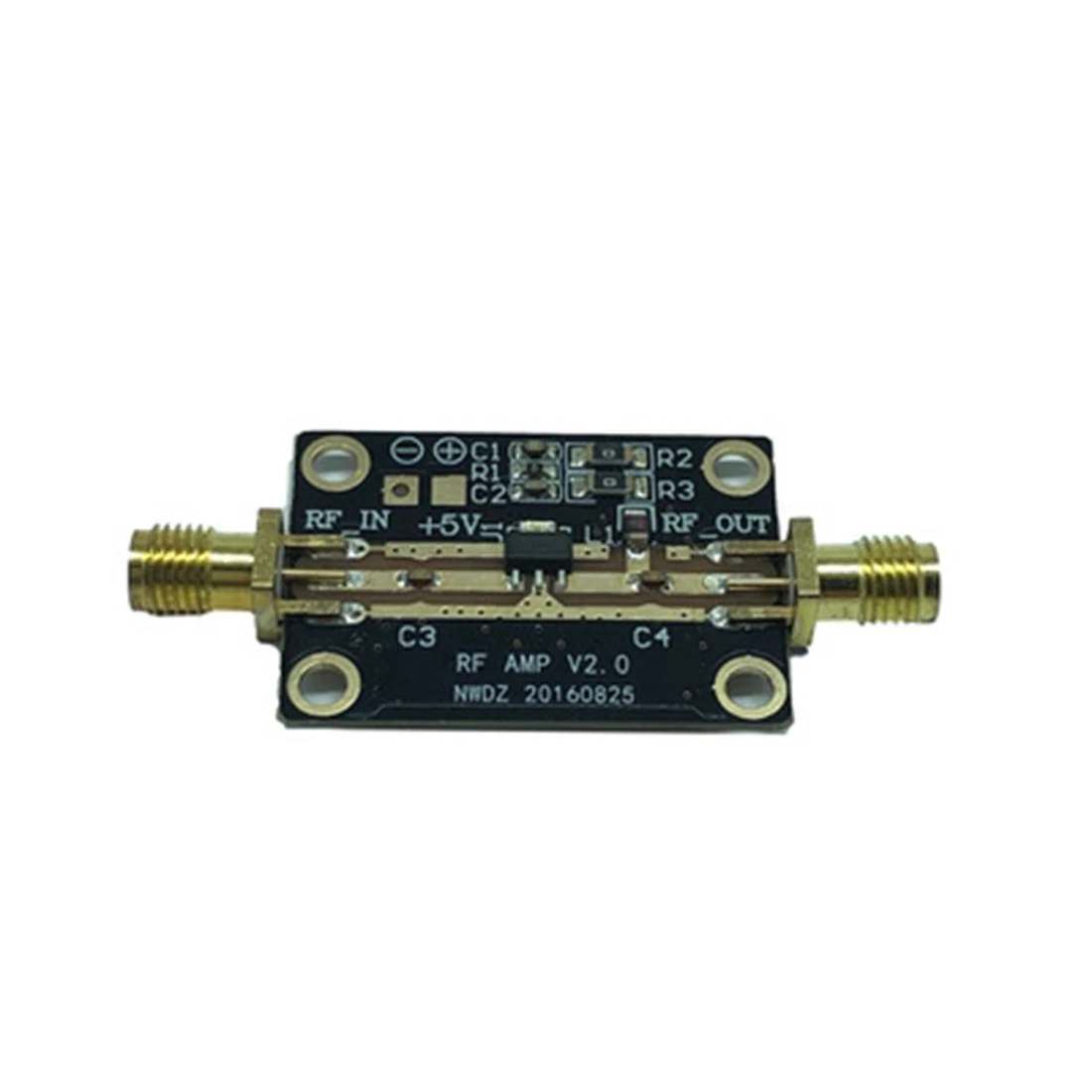

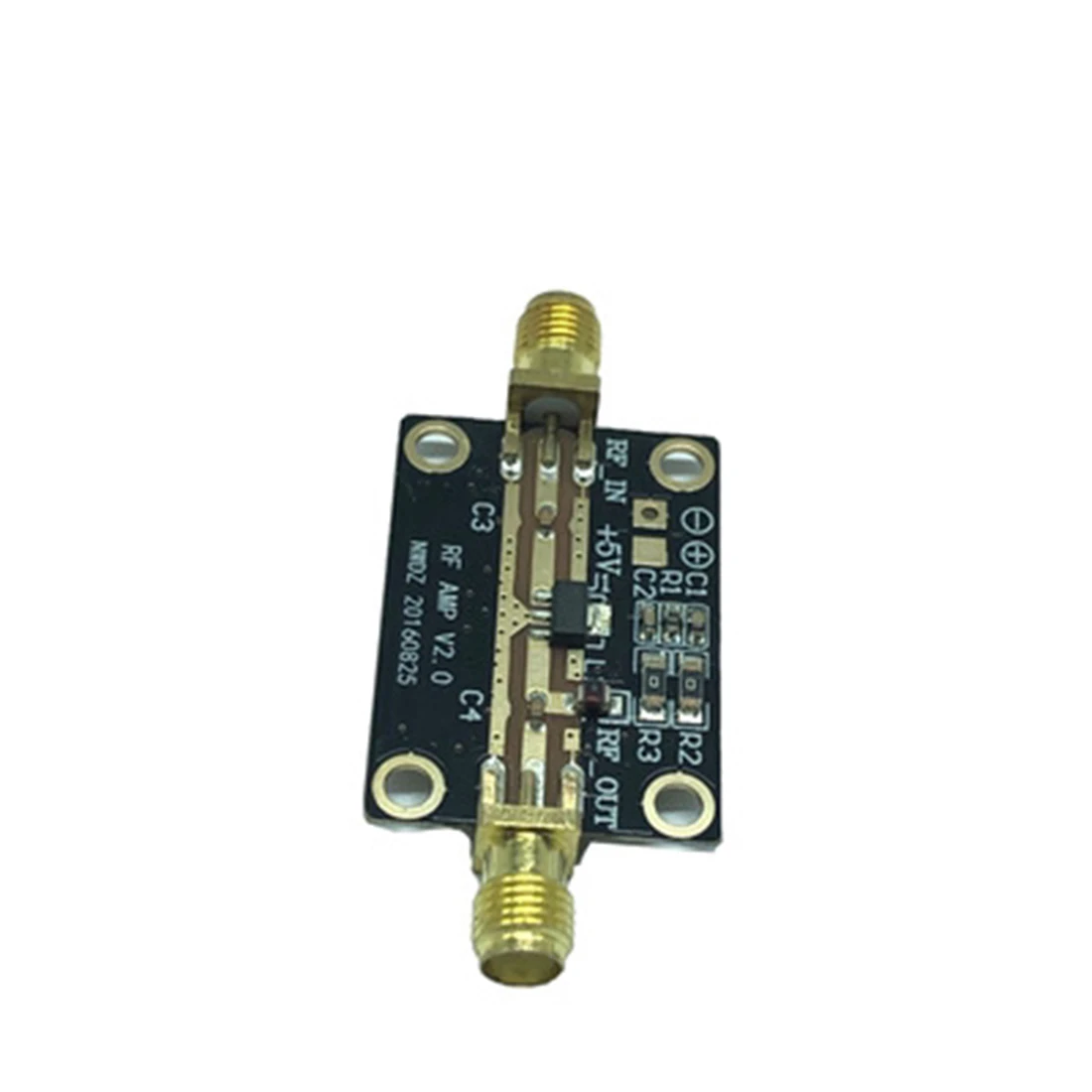

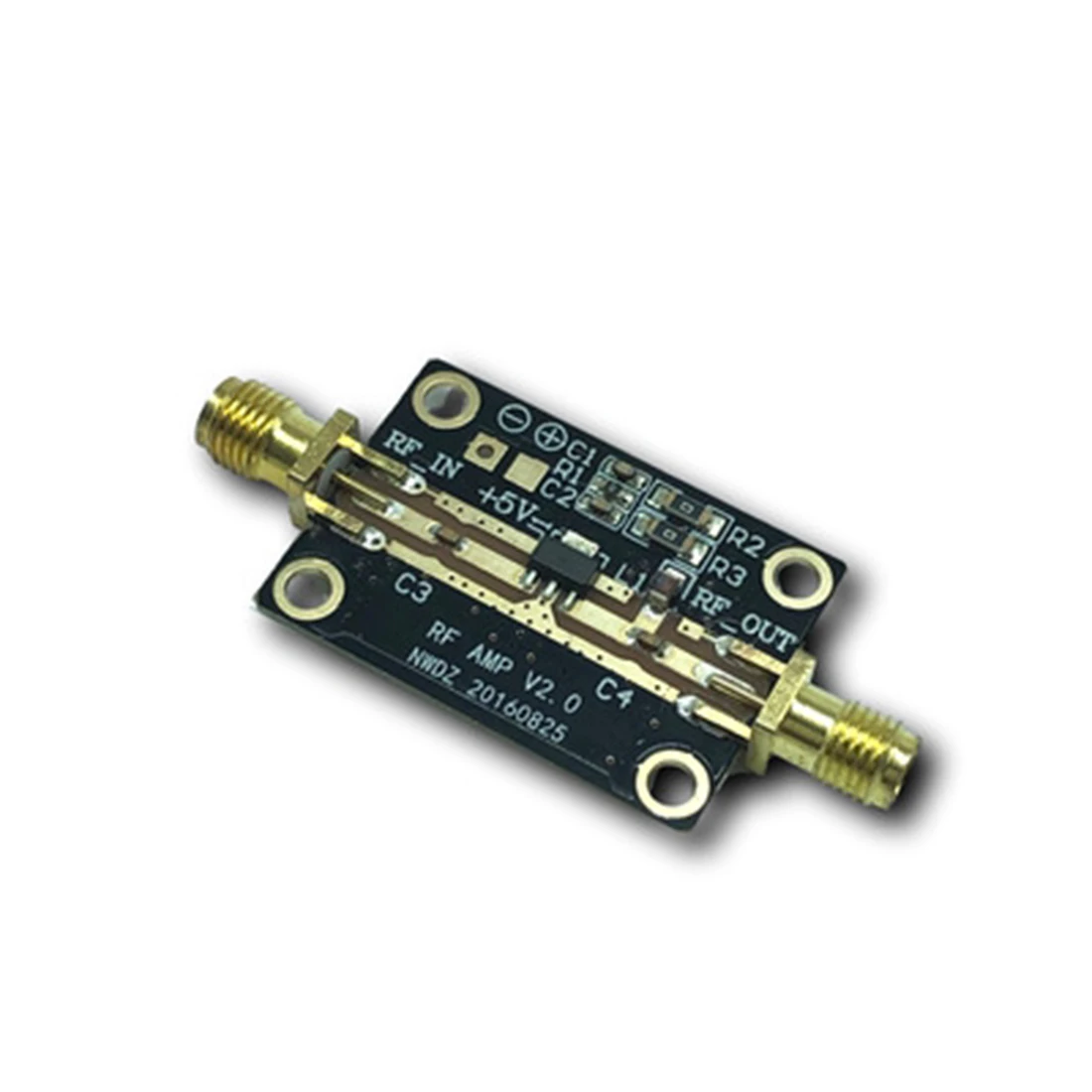

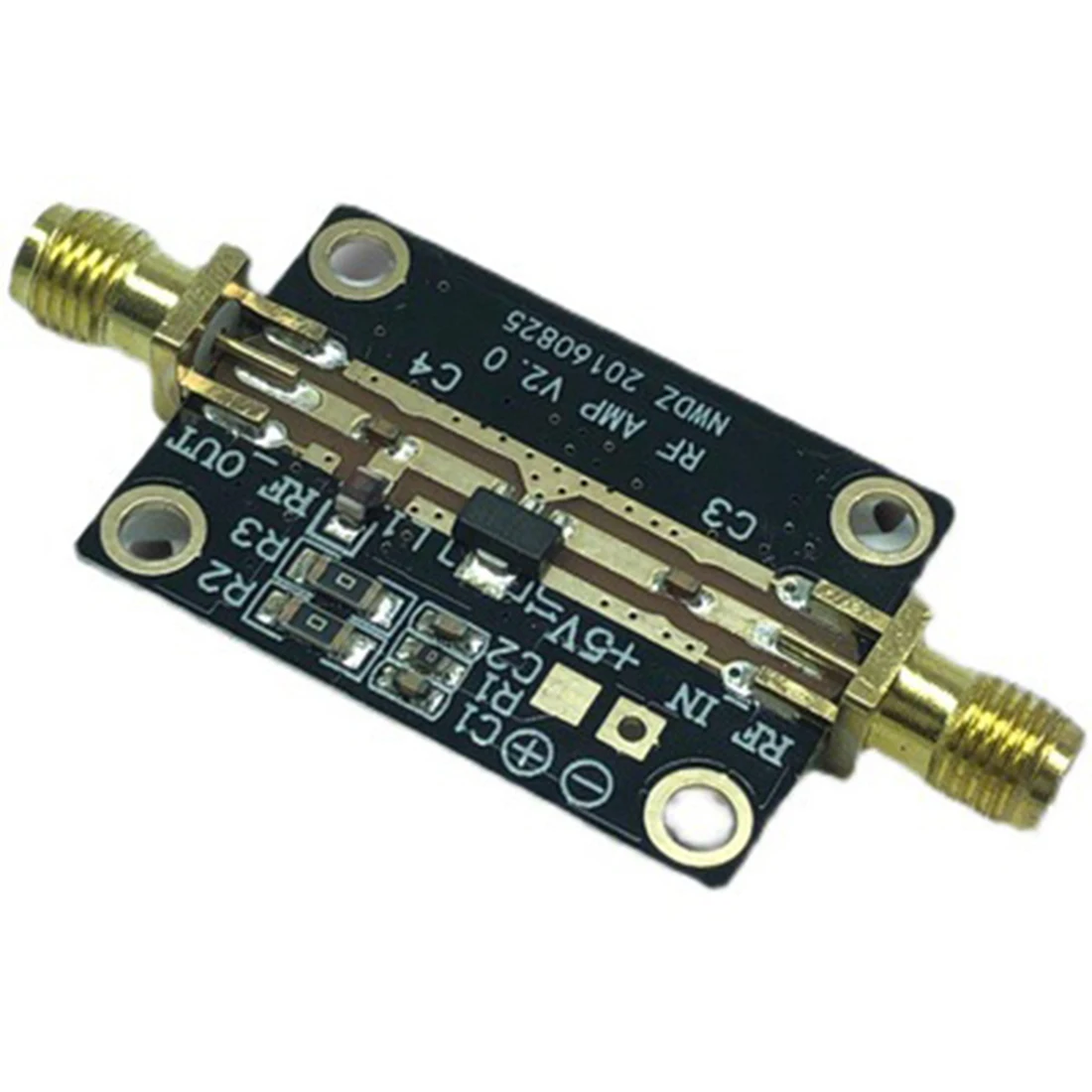

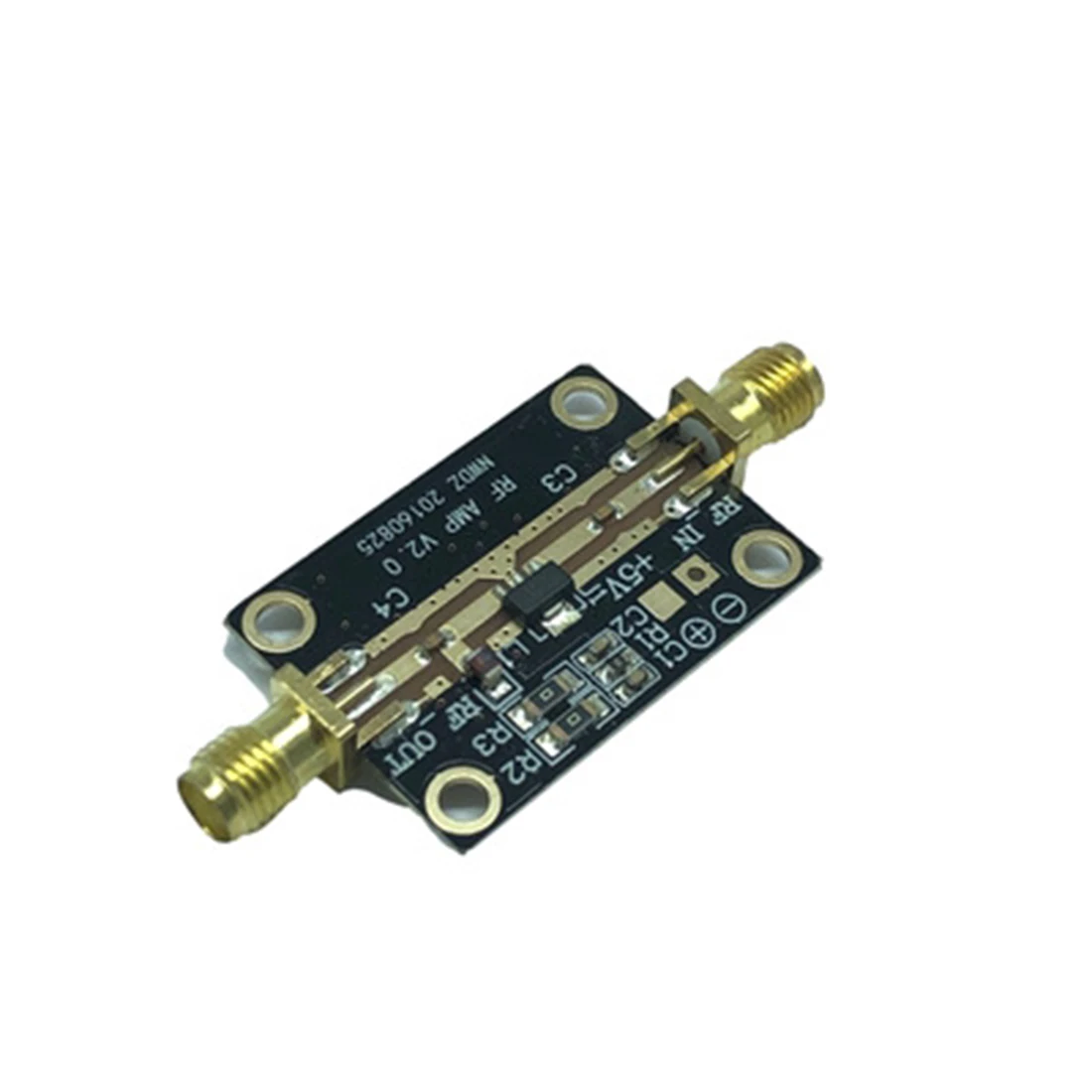

Copy| Product Name | XT-XINTE Broadband RF Amplifier Board 0.05-6G High Linear Medium Power Amplifier Wide Band Radio Frequency Amplifier Module |
| Item NO. | F46679 |
| Weight | 0.015 kg = 0.0331 lb = 0.5291 oz |
| Category | Consumer Electronics |
| Brand | XT-XINTE |
| Creation Time | 2022-03-29 |
Module features:
1, supply voltage: typical +5 V (typical current value of 90 mA)
2, gain: typical value 20dB@2G input and output impedance: 50 ohms
3, maximum output power: P1db +20dBm (@2GHz)
4, input signal: < +10dBm (greater than +10dBm input when the output signal has been distorted)
5, bandwidth: 0.05-6GHZ (different gain at different frequencies, please refer to the S21 curve indicators)
6, noise factor: 4.1dB@1GHz
