XT-XINTE PCI-E PCI Express 36PIN 1X Extension Cable Gold-Plated Dual Vertical 90 Degrees for 1U 2U ATX/BTX Chassis PC Item NO.: F34548

US$ 5.95 ~ US$ 6.61

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 6.61	US$ 6.28	US$ 5.95

Length: 10cm 15cm 20cm 25cm 30cm

Quantity: Stock ( 49999995 )

Estimate Shipping Cost

Product Name	XT-XINTE PCI-E PCI Express 36PIN 1X Extension Cable Gold-Plated Dual Vertical 90 Degrees for 1U 2U ATX/BTX Chassis PC
Item NO.	F34548
Weight	0.065 kg = 0.1433 lb = 2.2928 oz
Category	Consumer Electronics > Computer Accessories > Wire & Cable & Cord
Brand	XT-XINTE
Creation Time	2019-11-29

XT-XINTE PCI-E PCI Express 36PIN 1X Extension Cable Gold-Plated Dual Vertical 90 Degrees for 1U 2U ATX/BTX Chassis

Specification:

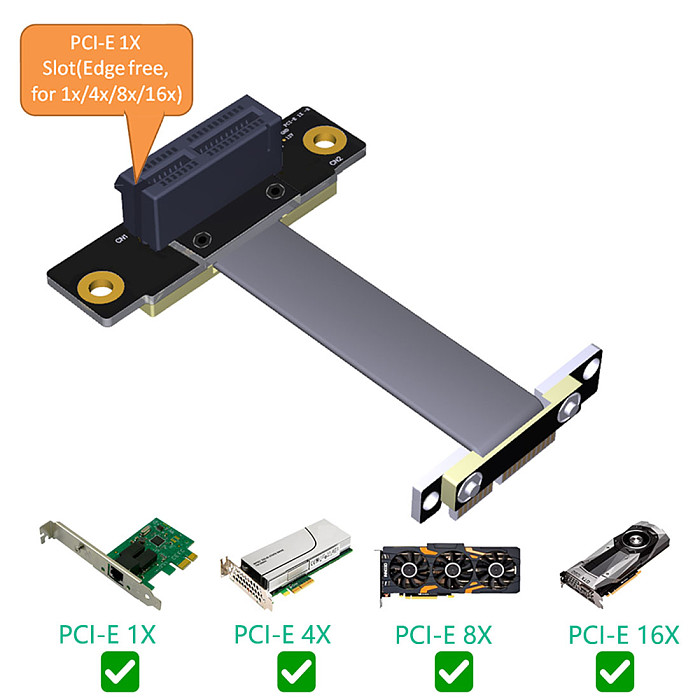

1. Supports high speed PCI-E 1X, 4X,8X and16X card, but work at 1X speed only

2. New design with dual vertical 90 degrees direction for PCI-E Card

3. Total length: 14cm, cable length: 10cm

4. High Speed flexible cable is for 1U,2U and ATX/BTX chassis

5. Utilize high quality flexible cable which is extremely soft and compact

6. Easy to install and no need any soft driver.

7. golden finger protection cover and dustproof design.

8. Experienced design and durable material for High frequency and low attenuation.

9. PCB-Swaddled and fixed with Bolts and nut to prevent tearing and short circuit for PCB-Cable solder points

10. Stable PCIe Gen3 8Gbps or higher with high quality Axial Cable.

Note :(Pls read it carefully before place the order)

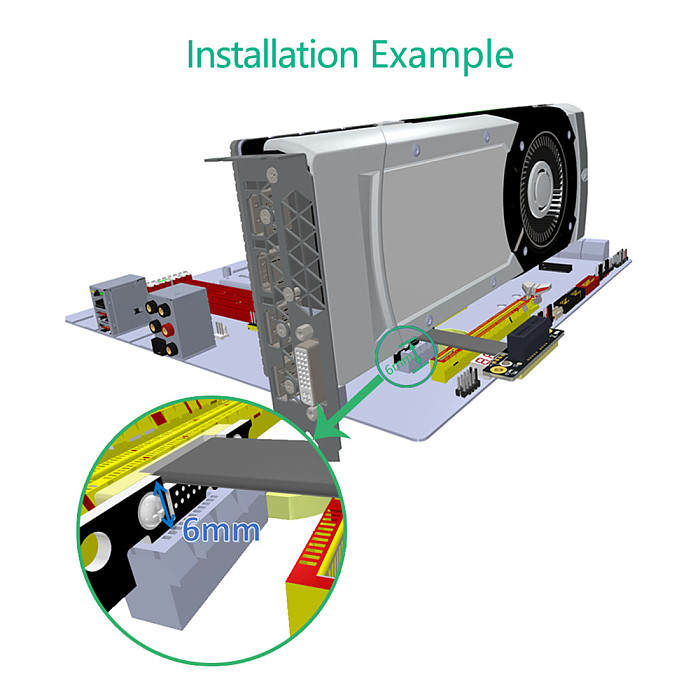

1. In order to prevent the device from burning out, please turn off the power before plugging in the cable and look for the direction of the slot. Please do not insert the reverse or the offset to avoid breaking the socket pin due to excessive force.

2. It is strictly forbidden to bend and pull within 2cm of the welding of the two ends of the wire and the circuit board.

3. The conditions of the motherboard and device signal driving capability are different. As long as the extension cable is connected, the signal will be damaged, but it will not affect the main performance of the device. itlsquos ok to use .

4. Does not support aging and oxidation equipment

5. The actual object and the photo will be different because of the photo light, etc., but it will not affect the function.
