HAKRC F4126 F411 Flight Controller ICM42688 BLHELI_ S 20A 2-4S ESC AIO Built-in OSD Barometer Current Sensor for RC FPV Drone
-
Detail
- Product Name: HAKRC F4126 F411 Flight Controller ICM42688 BLHELI_ S 20A 2-4S ESC AIO Built-in OSD Barometer Current Sensor for RC FPV Drone
- Item NO.: F48546
- Weight: 0.044 kg = 0.0970 lb = 1.5521 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2023-01-04

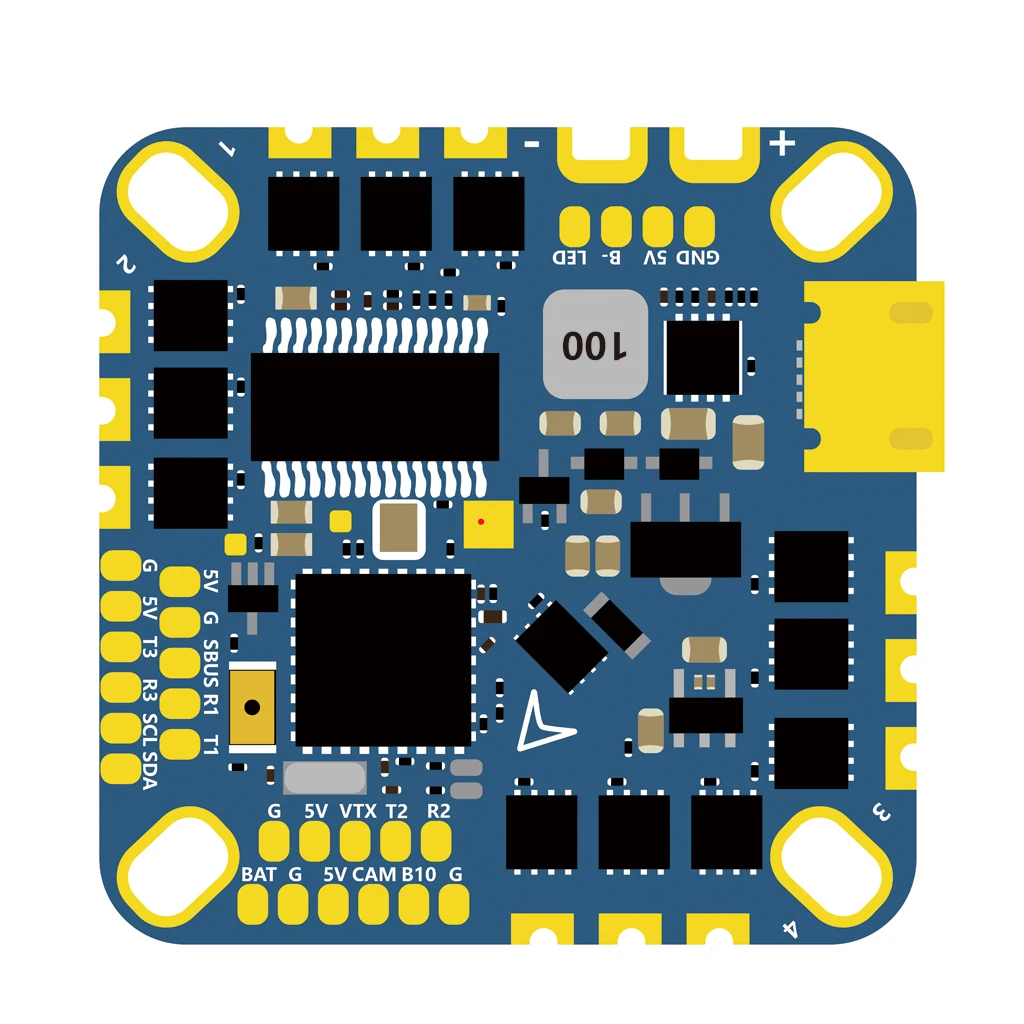

HAKRC F4126 F411 AIO Flight Controller ICM42688 BLHELI_S 20A/35A ESC Built-in OSD Barometer Current Sensor 2-4S for RC FPV Drone
Features:
1. The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger overcurrent capability and good heat dissipation.
2. MOS adopts imported 30V high current resistance mos, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance.
4. Using high-quality Japanese Murata capacitors, strong filtering performance
Size: 33.* 33.mm (25.5mm-26.5mm mounting hole)
Packing size: ø63*32mm
Product net weight: 7g
Package weight: 25g
Flight control parameters:
CPU: STM32F411CEU6
IMU: ICM42688
OSD: AT7456E
Barometer

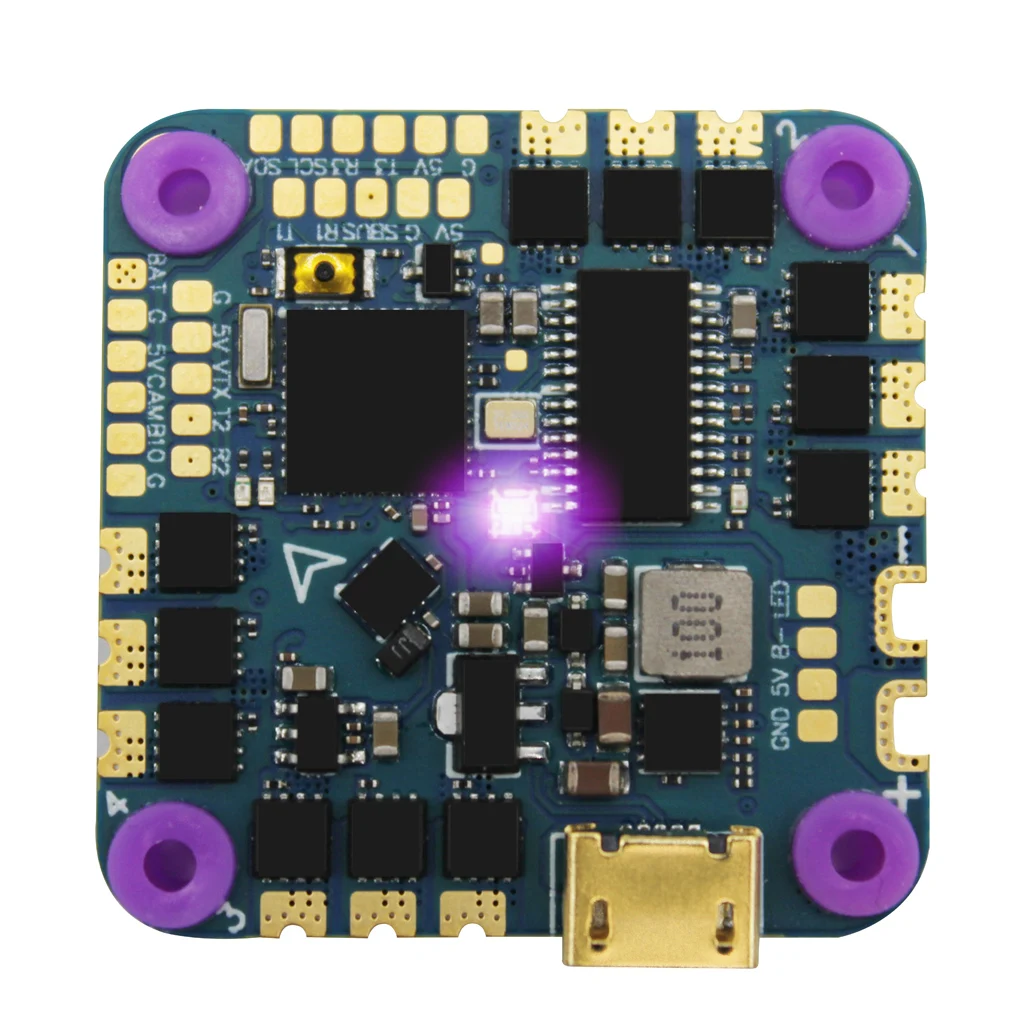

LED: Support WS2812 and other programmable
Sensor: Built-in current sensor
Firmware version: HAKRCF411D
Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSM-X: DSM-2 receiver
ESC parameters:
Firmware support: BLHELI_S
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-4S Lipo (20A)
Continuous current: 20A
Peak current: 25A
Firmware version: BLHELI_S (G-H-20)

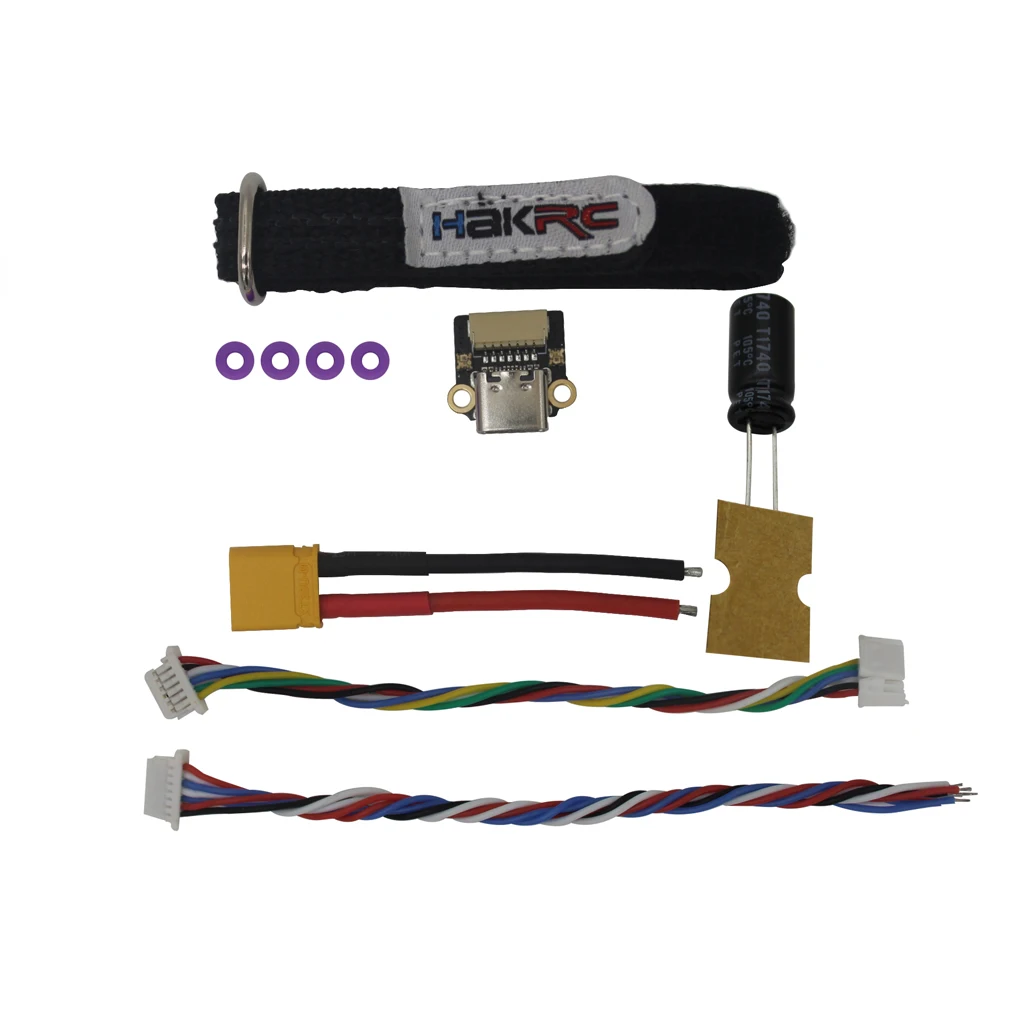

Package:
1X F4126 F411 AIO 20A/35A ESC Flight Controller
