Copy| Product Name | NEW MATEK Mateksys ExpressLRS ELRS 2.4GHz ELRS-R24-D ELRS-R24-S Nano Receiver for Micro Mini Freestyle Long Range Racing Drones |
| Item NO. | F45611-D1 F45611-D2 |
| Weight | 0.02 kg = 0.0441 lb = 0.7055 oz |
| Category | DIY RC Drone Accessories > Receiver |
| Creation Time | 2021-11-12 |
NEW MATEK Mateksys ExpressLRS ELRS 2.4GHz ELRS-R24-D ELRS-R24-S Nano Receiver for Micro Mini Freestyle Long Range Racing Drones
Note: The actual delivery does not have two antennas, the picture is the wiring reference method
Item: MATEK ExpressLRS / ELRS 2.4GHz ELRS-R24-D / ELRS-R24-S Receiver
Parameters:
ELRS-R24-D:
ESP8285, SX1280IMLTRT
PA/LNA: SE2431L
Antenna connector: IPEX MHF 1
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 22.5dbm~23dbm
SE2431L RX_gain: 12.5dB
Diversity (antenna-switching), default ANT2
Receiver protocol: CRSF
Input voltage: 4~9V DC @ 5V pad
Power dissipation: 40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
PCB size: 21mm x 15mm
Weight: 3g w/ 2x antennas
Packing: 1x ELRS-R24-D, 2x IPEX MHF1 Antennas
Firmwares:
ExpressLRS MATEK_2400_RX
Firmware update via UART or WIFI
ELRS-R24-D: enable "USE_DIVERSITY" (checked) when flashing in ExpressLRS configurator

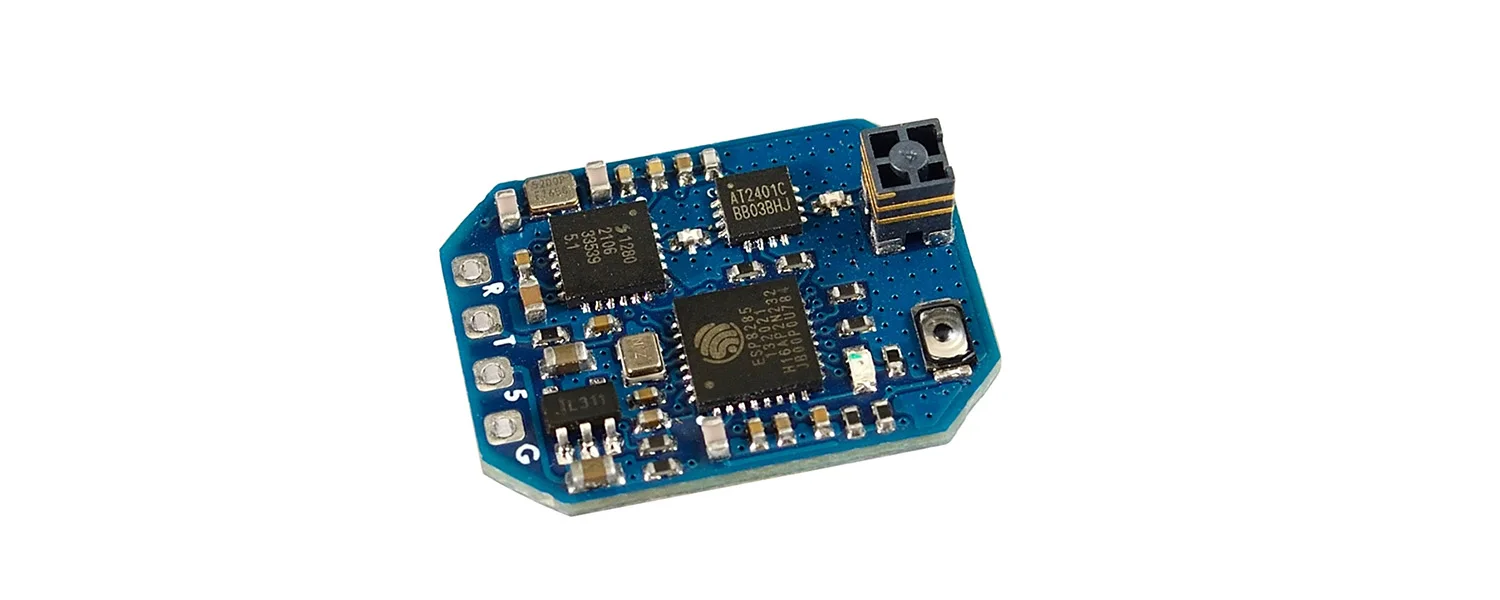

ELRS-R24-S:
ESP8285, SX1280IMLTRT
PA/LNA: AT2401C
molex 479480001 SMT antenna
RF Frequency: 2.4GHz ISM
Telemetry power: 20dbm
AT2401C Rx_gain: 12dB
Receiver protocol: CRSF
Input voltage: 4~9V DC @ 5V pad
Power dissipation: 40~45mA(before binding), 60~65mA(binding), 90~95mA(wifi mode)
PCB size: 21mm x 15mm
Weight: 1.2g
Packing: 1x ELRS-R24-S
Firmwares:
ExpressLRS MATEK_2400_RX
Firmware update via UART or WIFI
ELRS-R24-S: disable "USE_DIVERSITY" (unchecked) when flashing in ExpressLRS configurator
"Any ELRS 2.4Ghz receivers can work with any ELRS 2.4Ghz TX Modules, from any manufacturer and even the DIY ones. This is as long as they have the same binding phrase and configuration options (Regulatory Domain, Performance Options and Extra Data)."
More details about ExpressLRS, pls check out ExpressLRS wiki
Wiring with FC:
Receiver RX - FC UART_TX for Telemetry
Receiver TX - FC UART_RX for Control
Receiver 5V - FC 5V or 4v5
Receiver G - FC GND
Receiver protocol: Serial-based receiver – CRSF
Traditional Binding:
Receivers have ExpressLRS fw V1.1.0 preloaded without BINDING_PHRASE
Power on and off your receiver three times
Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode
Use the [BIND] button on the Transmitter Lua script, which sends out a binding pulse
Receiver will switch to slow blink once it has received binding pulse.
Power off and power on receiver again. If the receiver LED switch to solid on from slow blink, it's bound with your transmitter.
Important: If the RX firmware has a bind phrase, the RX will never enter binding mode using the above procedure. It must be flashed without a binding phrase to do traditional binding.
Firmwares:
ELRS_V1.1.0_NoPhrase_ELRS-R24-D.bin
ELRS_V1.1.0_NoPhrase_ELRS-R24-S.bin
Tool: ESP_NodeMCU-PyFlasher.exe
Flashing with ESP_NodeMCU-PyFlasher:
Connect receiver to USB-TTL module(RX-TX, TX-RX, 5V-5V, G-GND)
Connect USB to PC while pressing and holding the boot button in.
open ESP_NodeMCU-PyFlasher
select Serial port of USB-TTL module, load firmware, select "Dual Output(DOUT)" and "Yes.wipes all data"
click "Flash NodeMCU"
after flashing, Power off and power on your receiver, receiver will enter binding mode(quick double blink).
Flashing with ELRS configurator:
MATEK_2400_RX target is not available in ELRS configurator 1.0.8 and fw release 1.1.0 for now
