HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module EP1 RX EP2 RX for RC FPV Drone

Specifications:
Regulatory Domain: ISM2400
MCU:ESP32(main),ESP8285(aux,as espbackpack)
RF chip: SX1281IMLTRT
JR standard 5pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: >30dBm
Power supply voltage: 5v~10v
Weight: 51gram(without antenna)
Dimension: 70mm*49mm*32.5mm
Antenna gain: 4.18dBi
Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

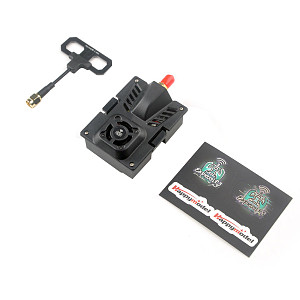

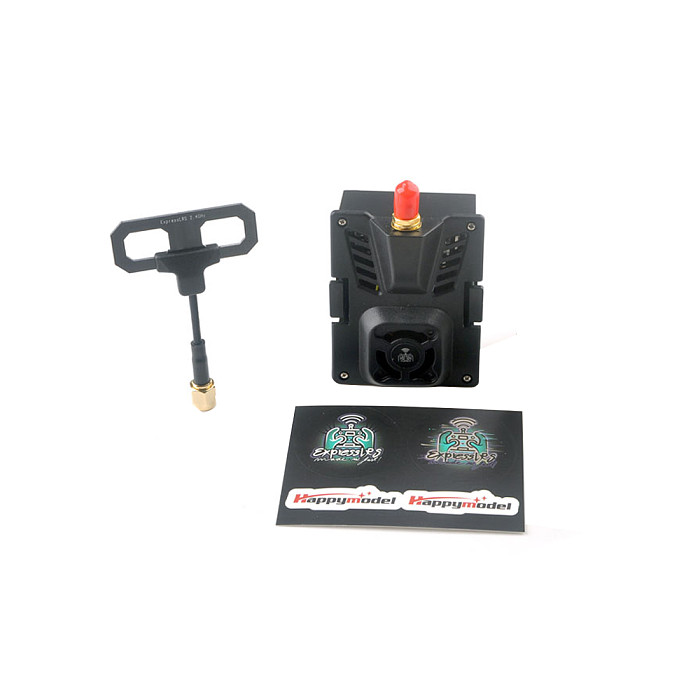

Package include:
ES24TX Pro *1
Happymodel 2.4GHz Moxon antenna *1
