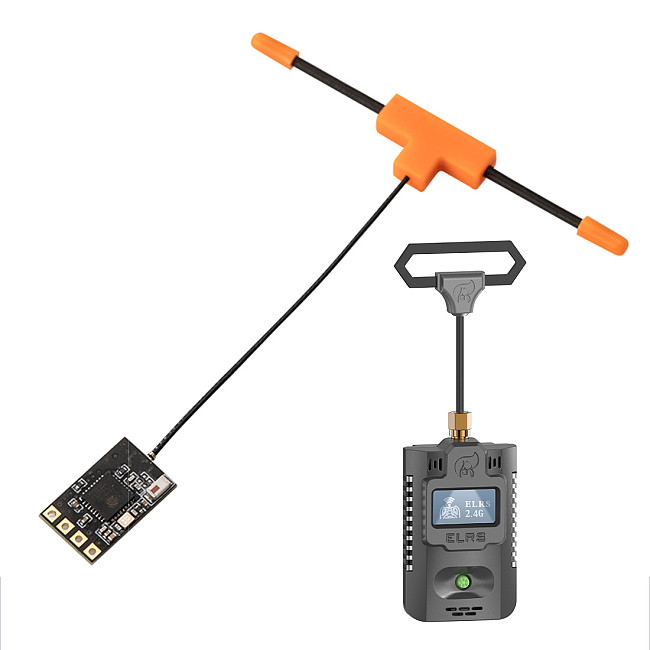

Jumper ELRS TX AION NANO T-PRO Module AION-RX-MINI Receiver ExpressLRS ELRS 2.4G Item NO.: F46645-A

Specification:

Product: 2.4G ELRS TX module jumper

Model Name: AION TX NANO

Screen: OLED screen

MCU: ESP32

RF output power: 10-500mw

Frequency range: 2.4GHz-2.5GHz

Firmware: ExpressLRS

Antenna: Directivity diamond antenna for better signal input

Working voltage: DC5-8.4v

Receive Max Refresh Rate: 500Hz

Menu button: 5 direction button

Voltage: DC6-8.4V

Current: <400mA

Port: S port.

Firmware update: via Wifi, UBC-C or Blue tooth

The specifications

Dimensions: 17.2 x 8.8 x 4.3mm (L x W x H)

Weight: 1.1g

Number of channels: 16Ch

Operating voltage range: 3.5V ~ 6V

Operating current: 60mA @ 5V

Operating Range: Full Range

Distance: >5KM

Compatibility: Radios in ELRS 2.4 mode

binding procedure

Bonding is the process of attaching a receiver to an RF transmitter/transmitter module. An internal transmitter

Or the external RF module can be linked to multiple receivers (do not use simultaneously). A receiver can only be

Connected to an RF module. Follow the steps below to finish the binding procedure.

1. Put the Transmitter/RF Transmitter module into link mode

2. Turn on the receiver, the green light on the receiver will flash, and the receiver will be in binding mode. On the radio, the

The green light on the receiver will always be on and the link is complete.

If the receiver is not bound within 20 seconds after power on, the receiver will power on in Wifi firmware upgrade mode, the

The green light will flash at the same time.

Of security

Failsafe is a useful feature that is for a preset channel output position whenever the control signal is lost for a period.

Follow the steps to configure the required channel security:

Failsafe for the receiver, ELRS RF mode settings can be configured through the radio interface, which does not support pulse, hold and

Customized three modes for each channel. radio go to: Model Setup/Internal RF/Failsafe
