DIY RC Multicopter FPV APM2.8 GPS Drone X4M310L Fiberglass Frame Kit 1400KV Motor XT-XINTE 30A ESC Propeller

DIY RC Multicopter FPV APM2.8 GPS Drone X4M310L Fiberglass Frame Kit 1400KV Motor XT-XINTE 30A ESC Propeller

US$ 107.55
Customized Requirements
Add to Cart
Estimate Shipping Cost
  • Detail

    DIY RC Multicopter FPV APM2.8 GPS Drone X4M310L Fiberglass Frame Kit 1400KV Motor XT-XINTE 30A ESC Propeller

    Specifications:

     frame in light weight, the conventional FPV configuration as a whole take-off weight can be controlled at about 500 grams
    general configuration 5"-10" propeller (Not inclued)
    Personality Across Design
    ,Material:Carbon Fiber Frame kit

    Frame reference:

    Motor: MT2204 or MT2206 (Not included)

    Propellers: (Not included)
    2204 motor use FC 5"-6" blade
    2206 motor use FC 5" 6" 8" blade
    ESC: 15A-20A (Not included)
    Voltage: 11.V-11.8V (Not included)
    Weight about: 200g

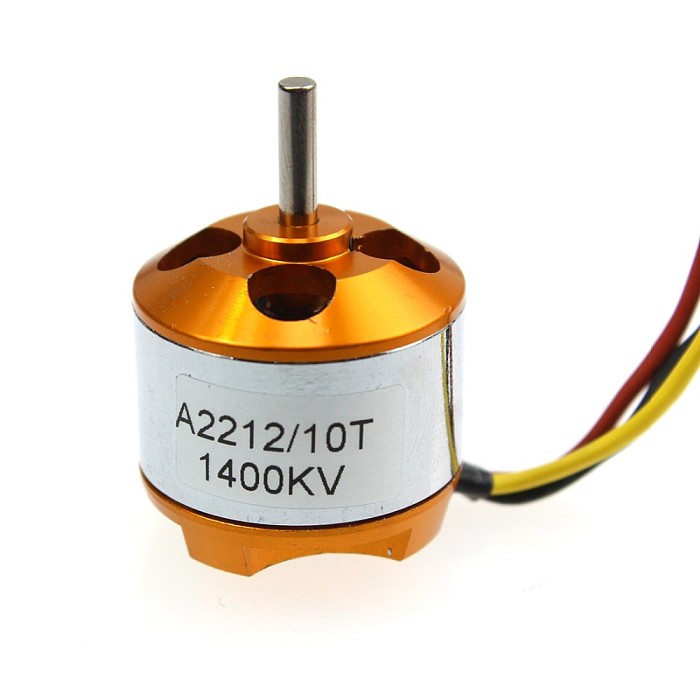

    Motor:
    KV: 1400
    Max Efficiency: 80%
    Max Efficiency Current: 4-10A (>75%)
    Current Capacity: 12A/60s
    No Load Current @ 10V: 0.5A
    No. Of Cells: 2-3 Li-Poly
    Motor Dimensions: Φ27.5 x 30mm
    Shaft Diameter: Φ3.17mm
    Weight: 47g

    ESC:
    1  Specification

    1.1 Output:  Continuous 25A, Burst 40A up to 10 Secs.
    1.2 Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
    1.3 BEC:  3A
    1.4 Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.                                (BLM: BrushLess Motor)
    1.5 Size:  45mm (L) * 25mm (W) * 11mm (H).
    1.6 Weight: about 25g.

    2  Features

    2.1 Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
    2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
    2.3 Programmable Items:        Brake Setting: brake enabled / brake disabled.        Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).        Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.        Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.        Start Mode: normal / soft / very soft.        Timing: low / medium / high.        Reset:  reset  all  the programmable items to their default settings.
    2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

    3   Advantages
    3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.
    3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability.
    3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

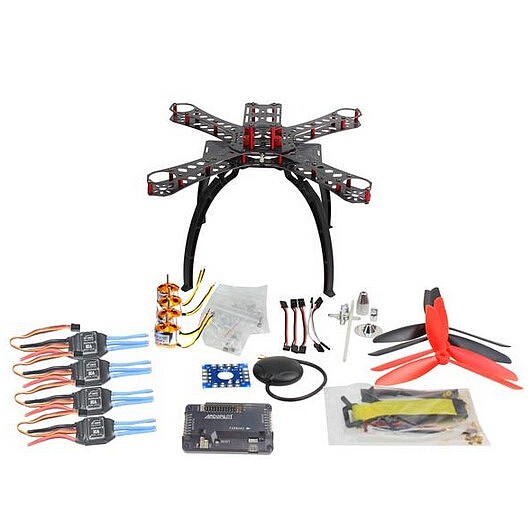

    Package listing:
    1*   Fiberglass   Alien Across Mini Quadcopter DIY Frame Kit
    4*  A2212 1400KV Brushless Outrunner Motor
    4* XT-XINTE 30A Brushless ESC Speed Controller
    2* 7045 propeller (pair)
