Full Set Helicopter Drone 6-axle Aircraft Kit Tarot 680PRO Frame 700KV Motor GPS APM 2.8 Flight Control AT10Transmitter
-
Detail
- Product Name: Full Set Helicopter Drone 6-axle Aircraft Kit Tarot 680PRO Frame 700KV Motor GPS APM 2.8 Flight Control AT10Transmitter
- Item NO.: F07807-A
- Weight: 5.313 kg = 11.7132 lb = 187.4106 oz
- Category: DIY RC Drone Accessories > DIY RC Drone Kit
- Brand: Tarot
- Creation Time: 2017-07-25
Full Set Helicopter Drone 6-axis Aircraft Kit Tarot 680PRO Frame 700KV Motor GPS APM 2.8 Flight Control AT10Transmitter

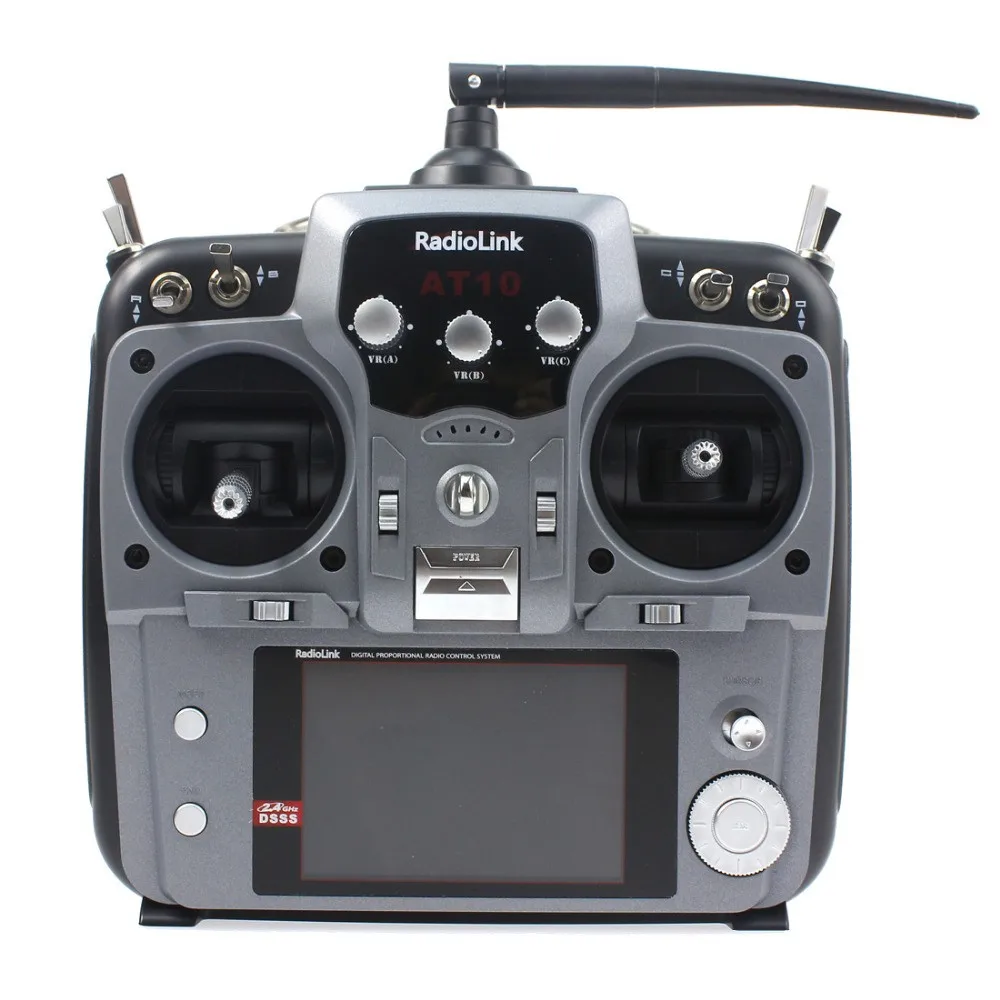

Radiolink AT10 Features:
Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.
3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
Great control distance: 1.1km on the ground,2km in the sky.
Expansion feedback module,users can get plane details in real time.
Make very setting clear and exactly output result.
Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.
Platinum-30A-Pro ESC
Output: Continuous 30A, burst 45A up to 10 seconds.Input Voltage: 2-6 cells lithium battery or 5-18 cells NiMH battery.BEC: NOParameter programming function: YesSize: 56.5mm (L) * 25.6mm (W) * 8mm (H).Weight: 31.6g.
HYD 3508 700KV 198W Disc MotorMore Detail:
Motor KV: 700KV
Shaft: 4.0mm
No-load Currency (A): 0.4A
Maximum Currency (A): 18.0A
Power: 198W
Weight: about 90g
Input Voltage: 2-4S LOPO
Suitable Propeller: 12"-15" Props

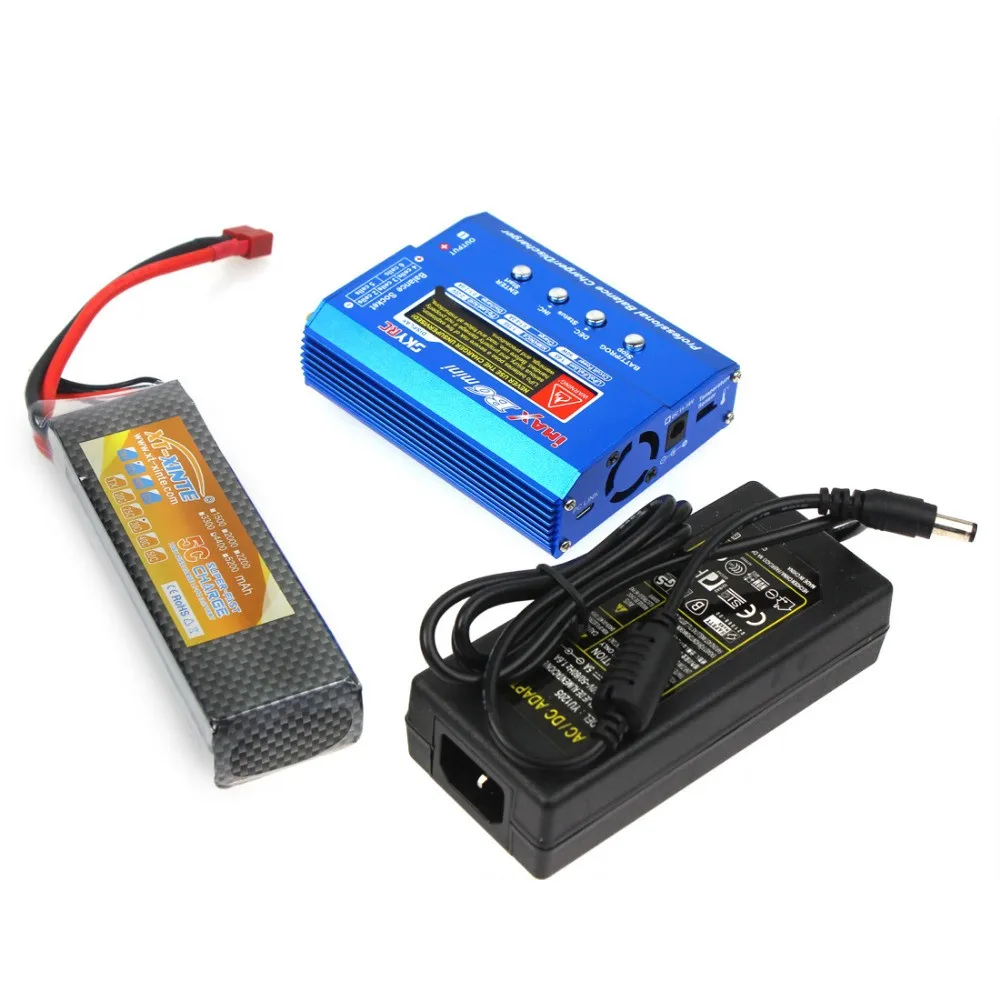

IMAX B6 Charger Specifications:
Operating voltage range: DC 11.0-18.0 Volt
Circuit power: Max .charge power 60W
Max .discharge power 5W
Charge current range: 0.1-6.0A
Discharge current range: 0.1-2.0A
Li Po/Li Fe/Li Ion Cells : 1-6S
NICD/NIMH cells: 1-15s
PB battery voltage: 2V- 20V
Net weight: 233g
Dimensions: 10.2*8.4*2.9cm

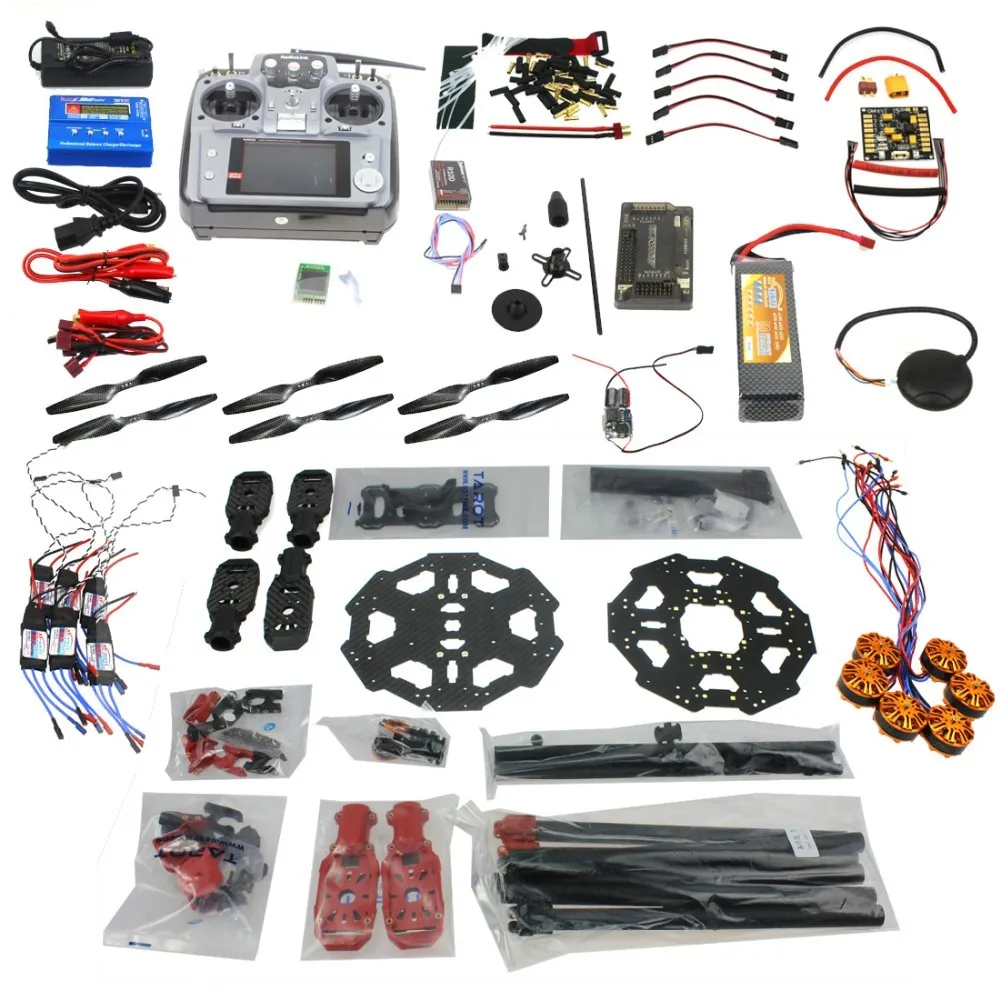

Packing including :
1* Tarot 680PRO Six-axis Folding Hexacopter Aircraft Frame Kit TL68P006* 700KV 198W Brushless Disc Motor
6* XT-XINTE Platinum-30A-Pro 2-6S 30A Speed Controller ESC
3* 12x5.5 3K Carbon Fiber Propeller
1* APM2.8 APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass
1* 6M GPS with Compass L5883 25cm Cable
1* Multifunction Power Distribution Board 5.3V BEC5* 10cm Servo Extension Lead Wire Cable MALE TO MALE KK MK MWC flight control Board For RC Quadcopter
1* DJI GPS Folding Antenna Mount Holder Metal1* Gens ACE 4000mAh 25C 4S 14.8V Lipo Battery with T Plug
1* SKYRC iMAX B6 Mini 60w Balance Charger Discharger
1* 8S-5A 5A U-BEC UBEC Input 9-30V 3-8S Lipo battery 8-24Nimh R7
1* RadioLink AT10 2.4GHz 10CH Remote Control
18* 3.5mm Bullet Connector ( banana plug )
1* Hook & Loop Fastening Tape1* Deans Style T Plug
