Happymodel Mobula7 1S Micro FPV Whoop Drone X12 5-IN-1 AIO Fight Controller Built-in 2.4G ELRS V2.0 Openvtx

US$ 130.12

Color: ELRS

Estimate Shipping Cost

Detail

Product Name: Happymodel Mobula7 1S Micro FPV Whoop Drone X12 5-IN-1 AIO Fight Controller Built-in 2.4G ELRS V2.0 Openvtx
Item NO.: F46480-D1
Weight: 0.2 kg = 0.4409 lb = 7.0548 oz
Category: RC Toy Drone
Brand: Happymodel
Creation Time: 2022-01-20

Happymodel Mobula7 1S Micro FPV Whoop Drone

We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.

Notice:
ELRS version will ship on February 18
Frsky/Flysky/PNP version will ship on March 20

The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.

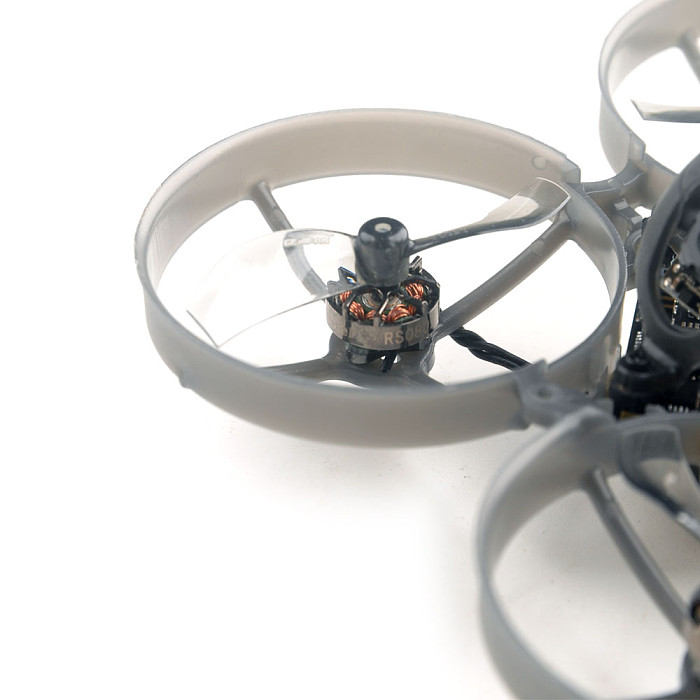

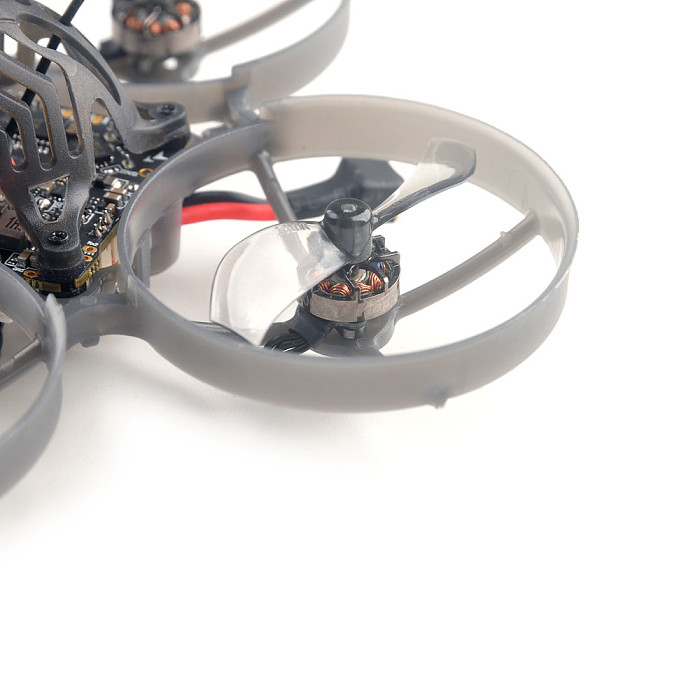

The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.

New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.

Features:

X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx

VTX Power up to 400mw

ELRS V2.0 Support

NEW RS0802 KV20000 motors

Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera

Smooth and powerful

Compatible for 1S Lipo/LIHV

Recommend 1S 450mah/550mah/650mah battery(Not include)

Specifications:

Brand Name: Happymodel

Item Name: Mobula7 1S 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm

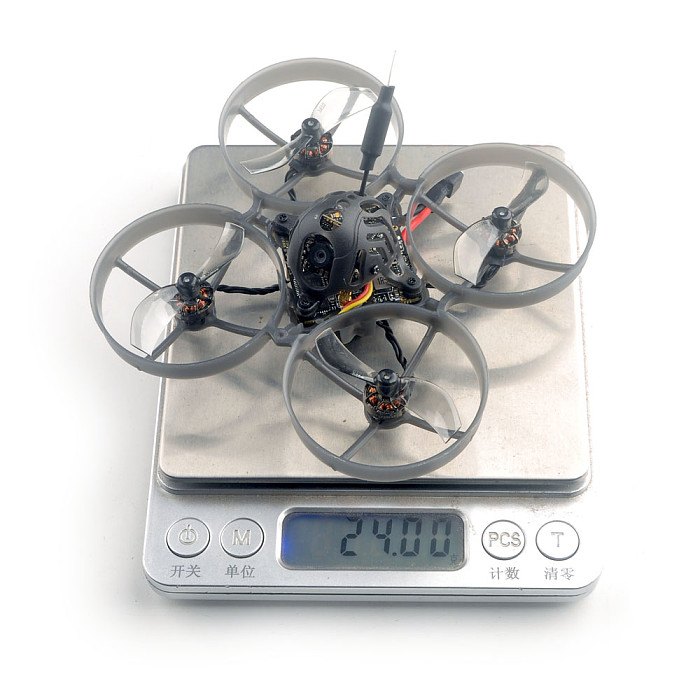

Weight: 24g

Receiver option:

2.4G ELRS SPI

SPI Frsky D8/D16

SPI Flysky

PNP (without onboard receiver)

Package includes:

Item Name	Qty
Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)	1
Option1: X12 ELRS V1.0 flight controller built-in SPI ELRS 2.4G receiver	1
Option2: X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver
Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver
Option4: X12 PNP V1.0 flight controller without onboard receiver
RS0802 KV20000 brushless motor	4
Gemfan 1610-2 bi-blade propellers(4cw+4ccw)	1
Runcam Nano3 1/3 CMOS 800TVL camera	1
Onboard 5.8G Openvtx 0mw~400mw VTX	1
1S parallel charging board	1
Propeller disassemble tool	1
Extra camera canopy	1

Spare parts specifications:

Motor

Mode: RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only

Propellers

Weight:0.24g

Material:PC

Pitch:1 inch

Props Dia:40mm

Center Thickness:5mm

Center Hole Dia:1.5mm

Flight controller

X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280

X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR

X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS

X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC

Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection

Built-in current sensor

Onboard 4in1 ESC

Power supply: 1S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300

Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz

ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz

Antenna : SMD antenna
Telemetry output Power: <12dBm

Receiver protocol: SPI ExpressLRS

Compatible with ExpressLRS V2.0 TX Module

Couldn’t flash separately ExpressLRS firmware

Onboard Frsky SPI D8/D16 receiver Version

SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model

Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter

Failsafe support

Onboard Flysky SPI receiver Version

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
