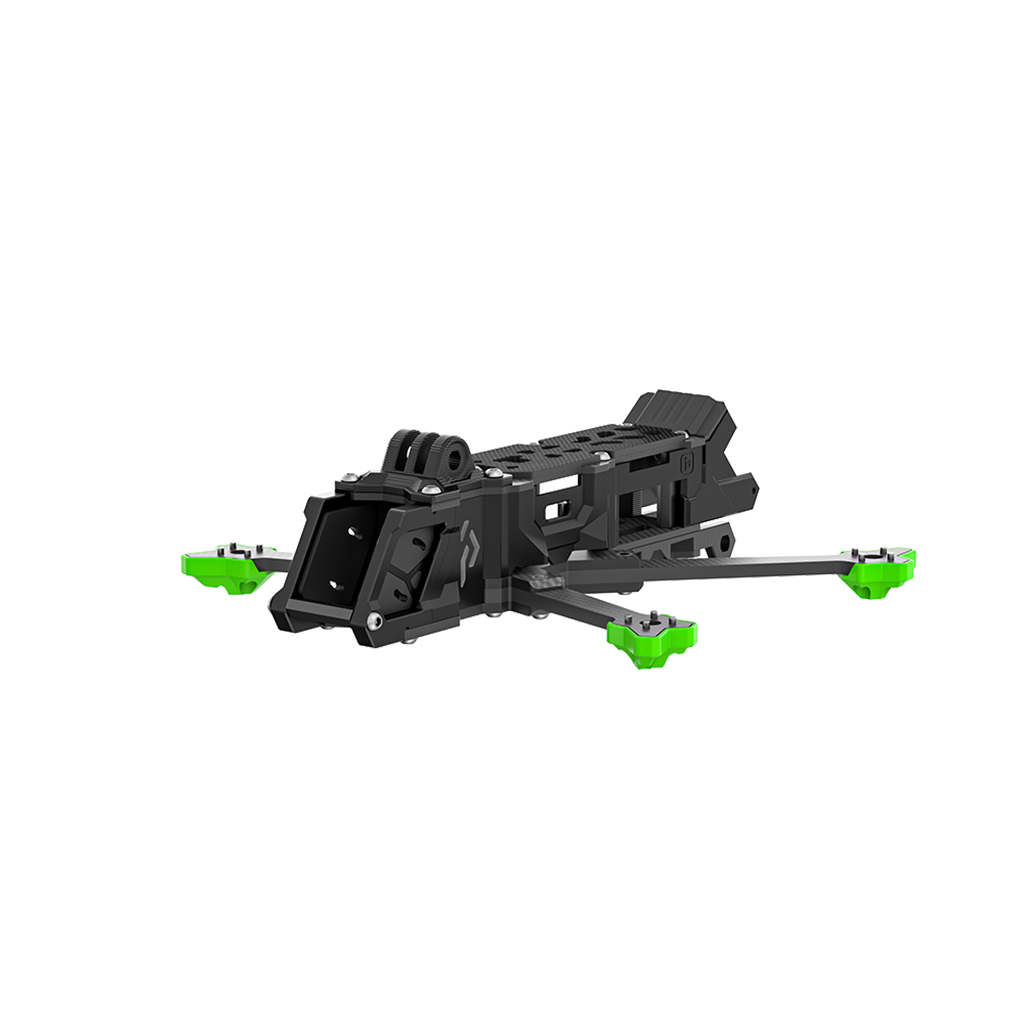

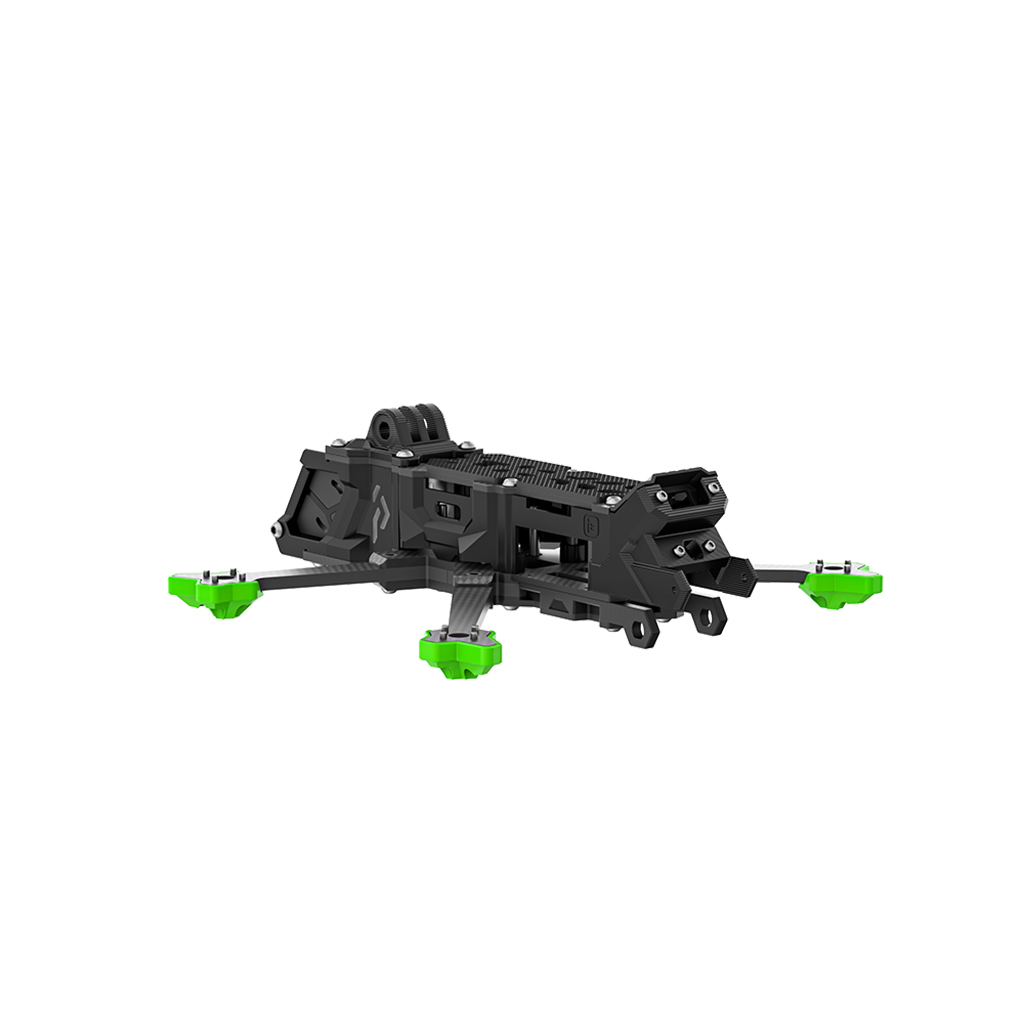

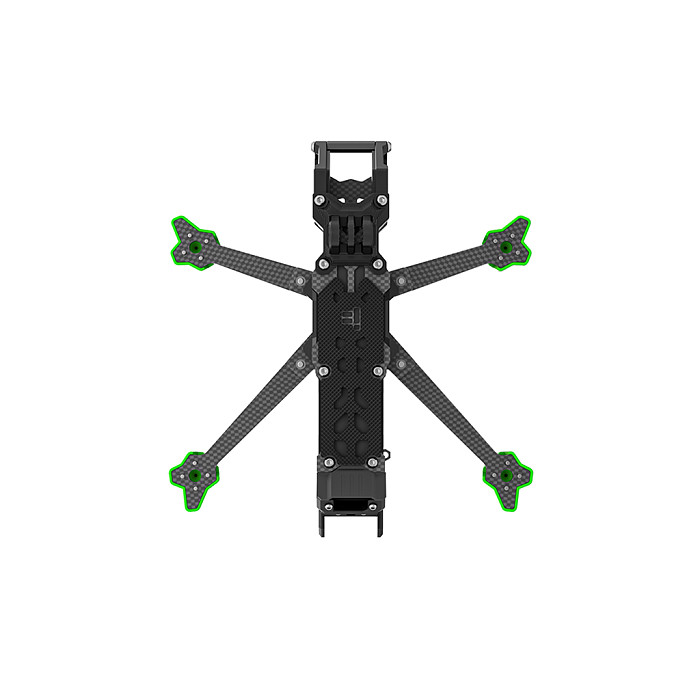

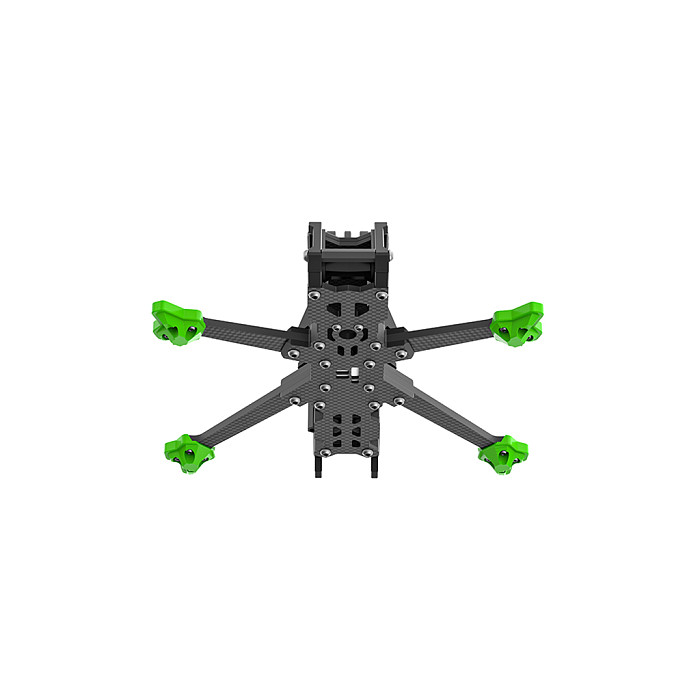

Home>RC Toy Drone>iFlight >IFlight Nazgul Evoque F4 O4 Frame Kit 4inch F4D Wheelbase 185 mm With 4mm Arm for DJI O4 Air Unit RC FPV Drone

IFlight Nazgul Evoque F4 O4 Frame Kit 4inch F4D Wheelbase 185 mm With 4mm Arm for DJI O4 Air Unit RC FPV Drone Item NO.: F53940

US$ 53.23

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

IFlight Nazgul Evoque F4 O4 Frame Kit 4inch F4D Wheelbase 185 mm With 4mm Arm for DJI O4 Air Unit RC FPV Drone

Product Name	IFlight Nazgul Evoque F4 O4 Frame Kit 4inch F4D Wheelbase 185 mm With 4mm Arm for DJI O4 Air Unit RC FPV Drone
Item NO.	F53940
Weight	0.45 kg = 0.9921 lb = 15.8733 oz
Category	RC Toy Drone > iFlight
Brand	iFlight
Creation Time	2025-03-07

IFlight Nazgul Evoque F4 O4 Frame Kit 4inch F4D Wheelbase 185 mm With 4mm Arm for DJI O4 Air Unit RC FPV Drone

Features

O3 to O4 was upgraded for the DJI O4 Air Unit Pro:
New Camera Mount for DJI O4 Air Unit Pro
New Silicone side panels
New Dual Antenna TPU for DJI O4 Pro Air Unit
Different Screws

Specifications

Product Name: Evoque F4 O4 Frame Kit

Geometry model: Deadcat

Frame wheelbase: 185 mm (DeadCat)

Frame Dimension: L149*W110*H36 mm (DeadCat)

Arm Thickness: 4mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 23mm

Max VTX Height: 23mm

Flight Stack Mounting: 20*20/Φ3mm

VTX Mounting: 25.5*25.5/Φ2mm

Motor Mounting: 12x12mm/φ2mm

Weight: 169g±5g

Compatibility: DJI O4 Air Unit Pro/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
