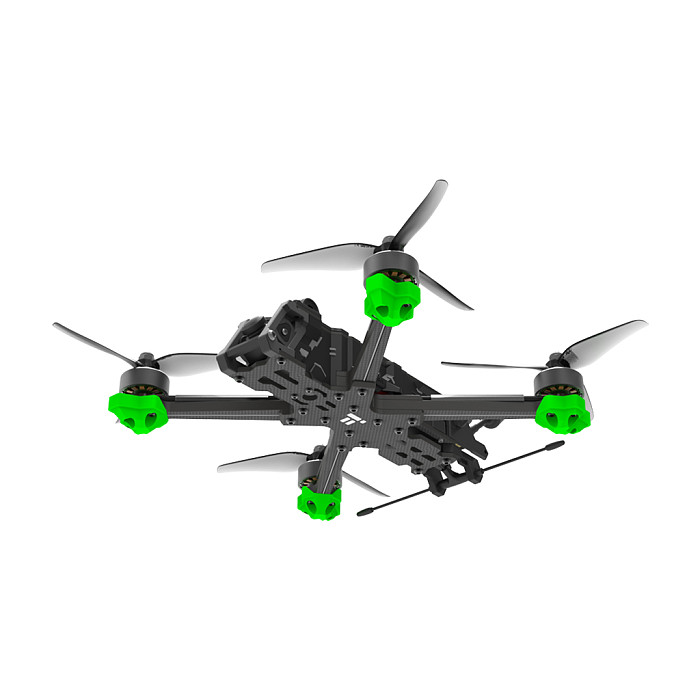

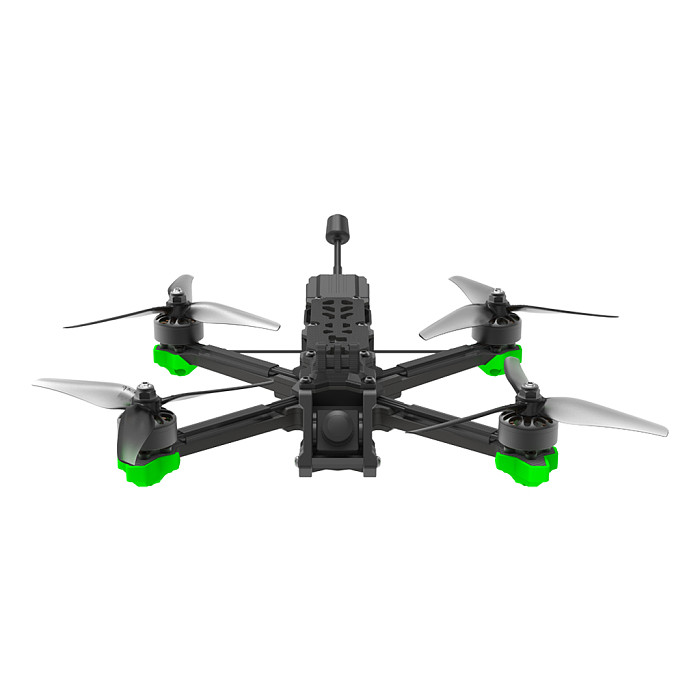

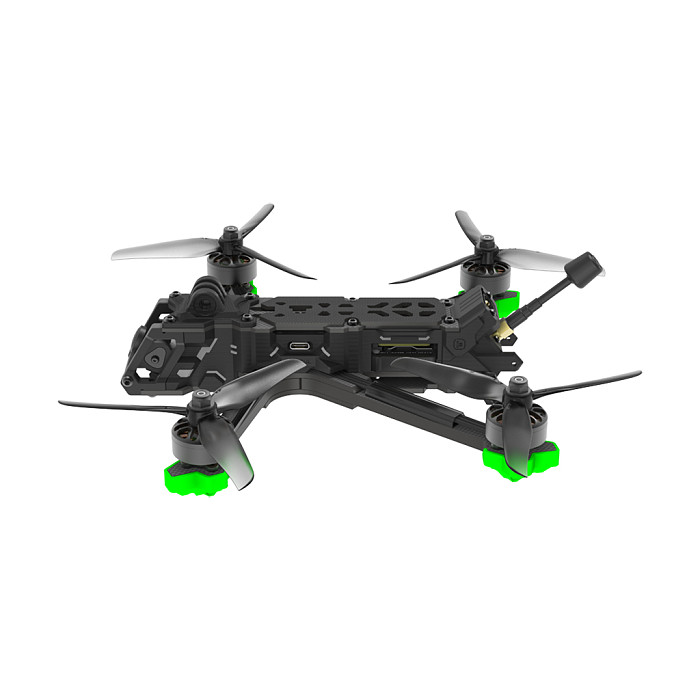

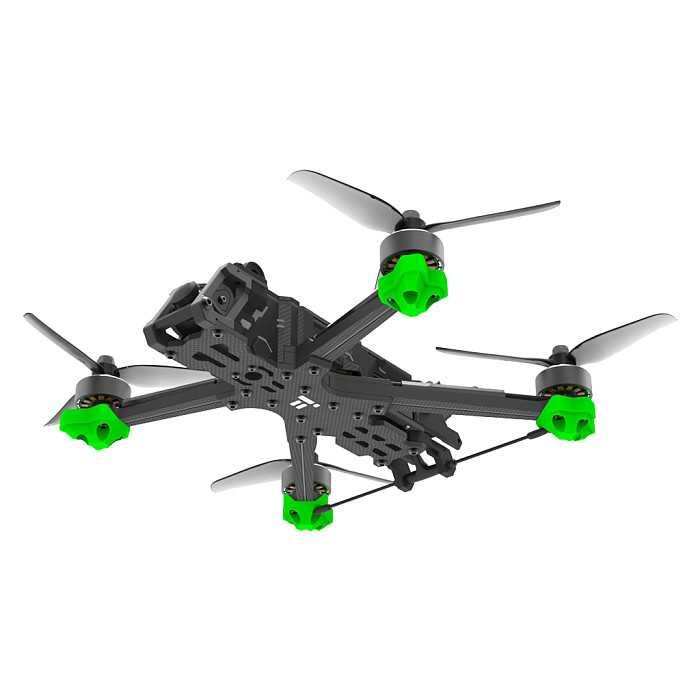

(iFlight) Nazgul-Evoque F5X V2 Analog 5inch 6S FPV BNF F5X F5D（Squashed-X or DC）Aircraft Model With BLITZ Mini F7 Flight Control E55 4-IN-1 ESC RaceCam R1 Mini Camera Item NO.: F50132-D1 F50132-D2 F50132-D3 F50132-D4

(iFlight) Nazgul-Evoque F5X V2 Analog 5inch 6S FPV BNF F5X F5D（Squashed-X or DC）Aircraft Model With BLITZ Mini F7 Flight Control E55 4-IN-1 ESC RaceCam R1 Mini Camera

1、 Product parameters
1. Rack: X-type/DC type
2. Wheelbase: 225 ± 2mm
3. Dimensions (length * width * height): 172 * 145 * 36 ± 2mm
4. Flight control: BLITZ Mini F7 flight control
5. Electrical adjustment: BLITZ Mini E55 E55 4-IN-1 electrical adjustment (32-bit)
6. Camera: RaceCam R1 Mini camera (19 * 19mm)
7. Image transmission: Star Fox BLITZ 1.6W high-power image transmission
8. Motor: XING-E Pro 2207 (6S)
9. Propeller: Nazgul F5
10. GPS (optional): GPS M8Q-5883
11. Battery (optional): 6S 1300-1400mAh XT60 head
12. Empty weight: 450 ± 10g
13. Antenna: Albatross right-handed inner needle (60mm) * 1


2、 Product Features
1. It adopts Star Fox 1.6W high-power image transmission with strong anti-interference ability.
2. Upgrade the CNC integrated molding process of aluminum alloy lens frame, which is lightweight and has high hardness, making it more sturdy and durable.
3. Fully enclosed side panels with high integration, protecting internal electrical equipment, effectively reducing dust and sand particles entering the electronic control center during takeoff and landing, and improving flight stability.
6. Add anti spark modules to prevent surge voltage during power on and extend the lifespan of battery plugs.
7. Fixed battery socket, easy to operate with one hand.
8. Upgrade embedded programmable LED lights, with low power consumption and more cool lighting.
9. It can be equipped with GoPro5/6/7/8/9/10/11 and DJI Action cameras, allowing for both shooting and flying.
10.The DC type structure is suitable for straight aerial photography when the paddles are not visible during flight, while the X type structure is more suitable for flying with a slight view of the paddles.
