F550 Drone Heli FlameWheel Kit With KK 2.3 Flight Controller ESC Motor Carbon Fiber Propellers +RadioLink Item NO.: F05114-J

US$ 86.48 ~ US$ 96.09

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 96.09	US$ 91.29	US$ 86.48

Customized Requirements

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	F550 Drone Heli FlameWheel Kit With KK 2.3 Flight Controller ESC Motor Carbon Fiber Propellers +RadioLink
Item NO.	F05114-J
Weight	2.7161 kg = 5.9880 lb = 95.8076 oz
Category	DIY RC Drone Accessories > DIY RC Drone Kit
Brand	RadioLink
Creation Time	2017-07-25

F550 Drone FlameWheel Kit With KK 2.3 Flight Controller ESC Motor Carbon Fiber Propellers + RadioLink 6CH TX RX

Note , for the easy shipping ,the goods do not including the charger or the battery , you need buy by seperate

packing including :

1* F550 Hexa-Rotor Air Frame FlameWheel Kit

6*A2212 1000KV Brushless Outrunner Motor W/ Mount

6*JMT 30A Brushless ESC

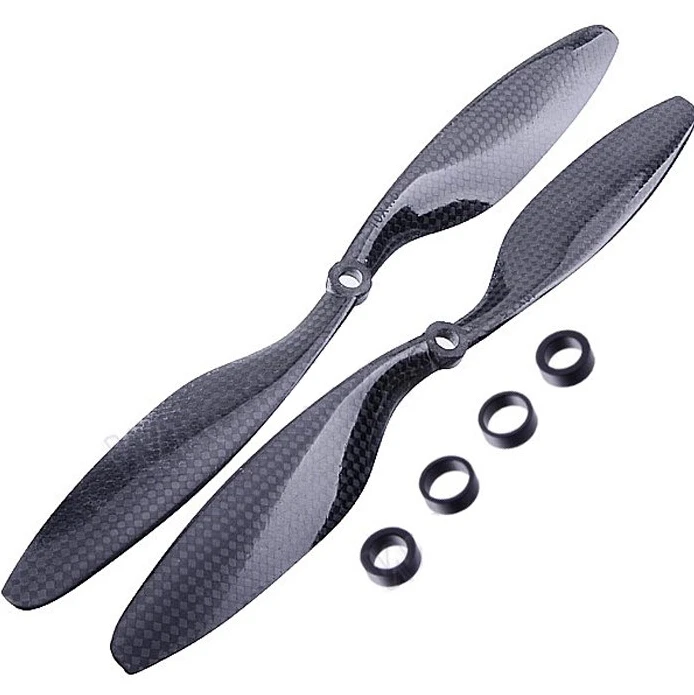

3*10x4.5 3K Carbon Fiber Propeller CW CCW 1045 1045R CF Props Blade

1*RadioLink T8FB 8CH 2.4G Radio Control System Transmitter Receiver

1*KKMulticopter V2.3 Circuit board Flight Controller V5.5

HTB1xI4MPFXXXXavXpXXq6xXFXXXz

Detials:

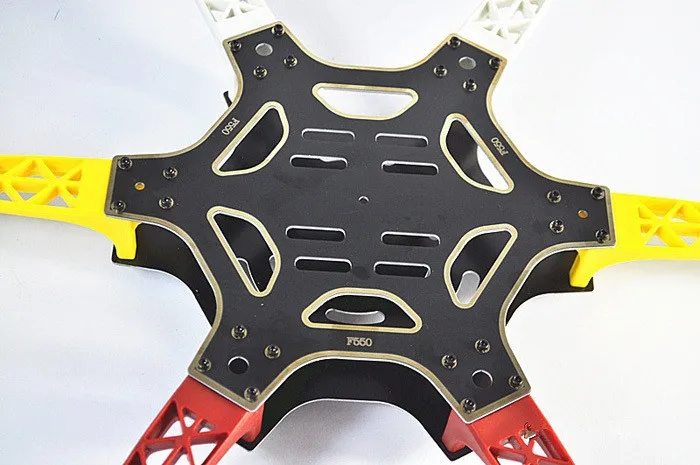

F550 Hexa-Rotor Air Frame FlameWheel Kit

(The color of the Flamewheel arms,will be changed by manufactured.Random shipped,if you have request,please contact in advance to confirm inventory,no negative or dispute accepted for the color reason,thanks understand and help again)

HTB1ytcFGpXXXXcSXpXXq6xXFXXXZ HTB1BcsDGpXXXXX1XFXXq6xXFXXXA

HTB18IMoGpXXXXXfXVXXq6xXFXXXG

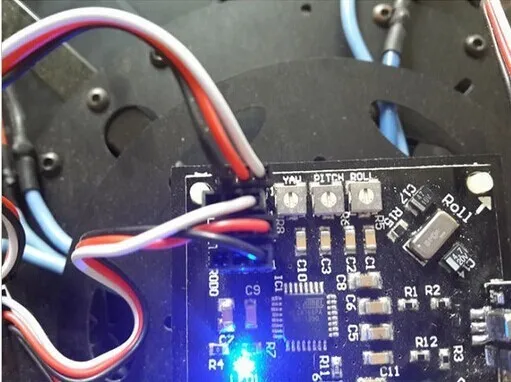

KK1 KK2

A2212 1000KV Brushless Outrunner Motor W/ Mount

F02015-A2212-1000KV-13T-High-Quality-Brushless-Outrunner-Motor-W-Mount-for-DIY-RC-Multirotor-Quadcopter

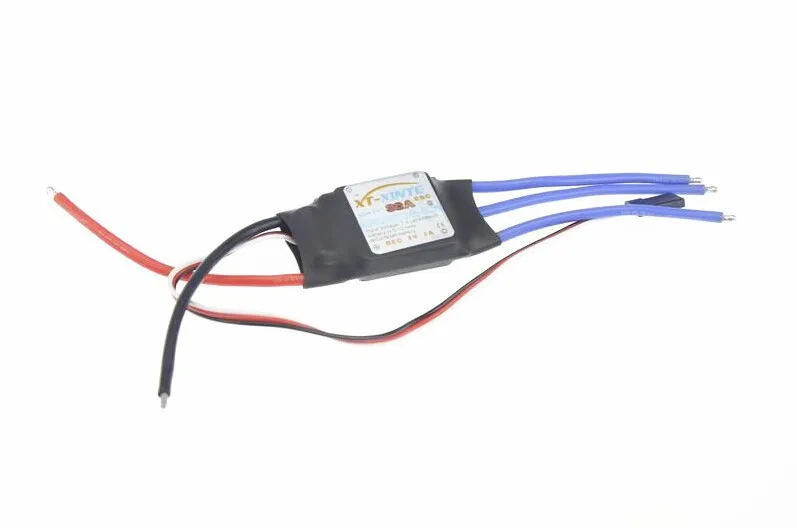

XT-XINTE 30A Brushless ESC

F00177-30A-Brushless-ESC-Speed-Controller-For-RC-RC-Quadcopter-Hexacopter-Multi-Rotor-Aircraft

Transmitter Product Features:

1.Custom designed firmware
Be applicable to helicopter, fixed wing, glider, multi-copter. Special firmware will be designed according to your model types.

2. Inheritance industrial designing
Cooperate with professional designer of AT9. T8FB adds innovation and independent design concept, can be a perfect choice for your plane.

3. Online upgrade
Unique upgrade mode, through simulator port and special Radiolink upgrade cable, no need for driving programs and is perfect compatible with all OS.

4. Humanized operation
On the basic experiences of modelers, T8FB, simplify the operation, makes it easy to use even without illustration.

5. Long-tested anti-interference
Follows the technology of wireless spread spectrum used by T7F, makes it possible to control freely in condition of same frequency interference.

6. S-BUS, PPM and PWM signal output at the same time
Compatible with FUTABA S-BUS port, also supports cable connection input one by one, S-BUS, PPM and PWM signals are possible to use at the same time.

7. Incredible price
Incredible price own high level specification.

T8FB Technical Parameters

1. Size: T8FB - 173*102*206mm, R8EH - 48.5*21*11mm.
2.Weight: 0.47kg(including R8EH)
3.Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
4.Modulation mode: GFSK
5.Channel bandwidth: 400KHz
6.Band width:1200KHz
7.Spread spectrum: FHSS
8.Adjacent channel rejection: >36dBM
