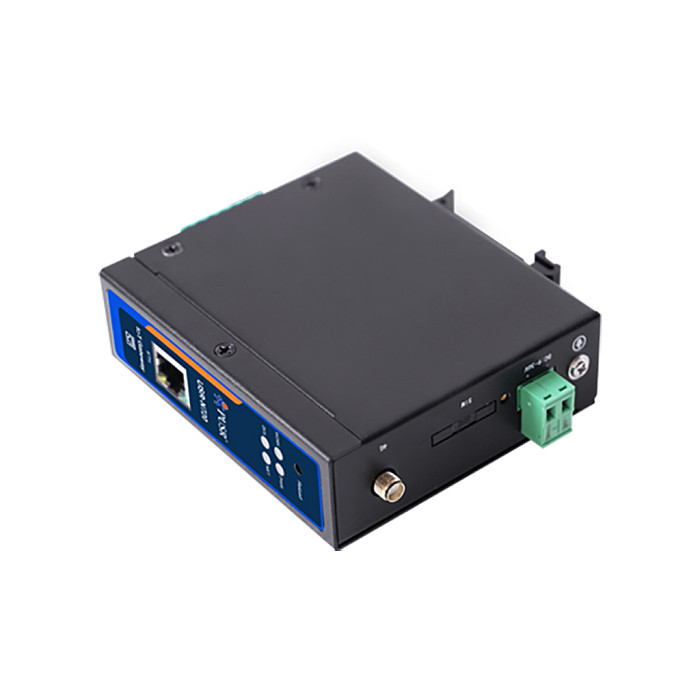

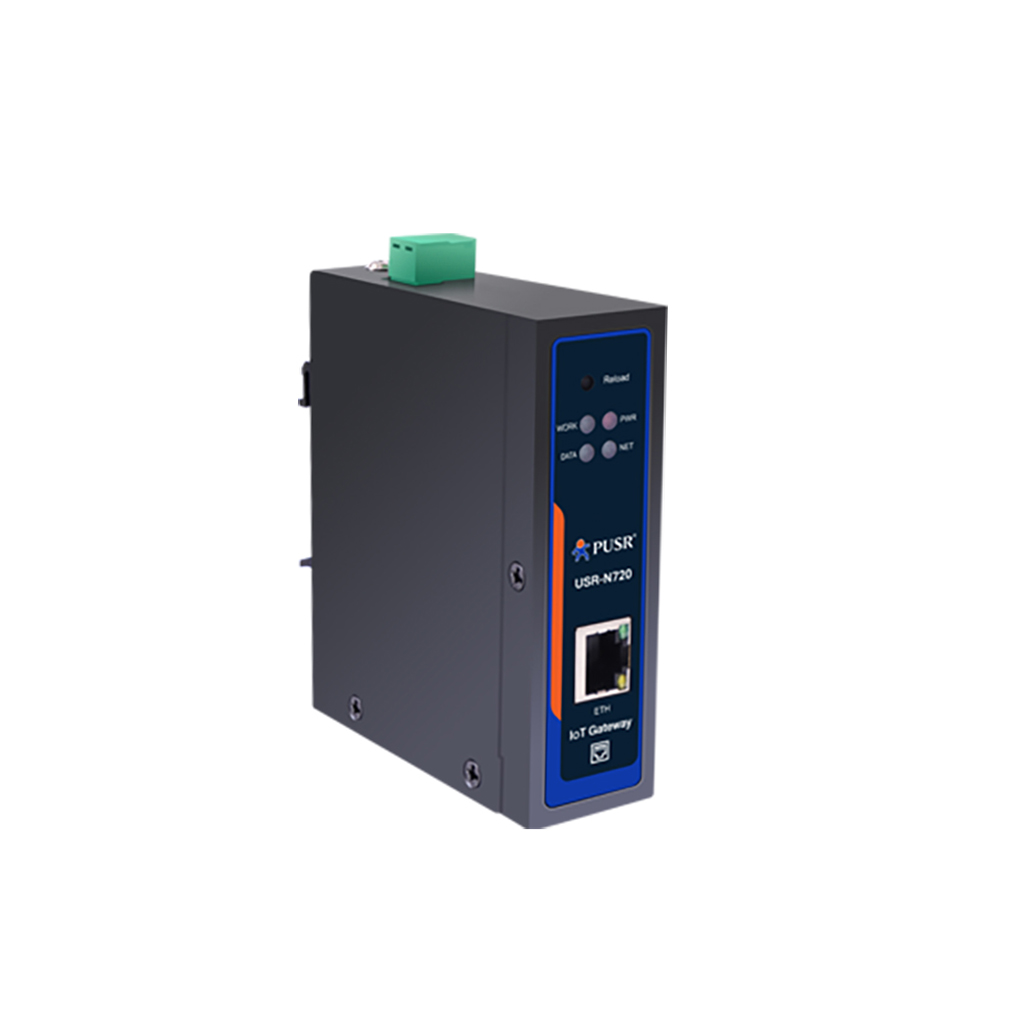

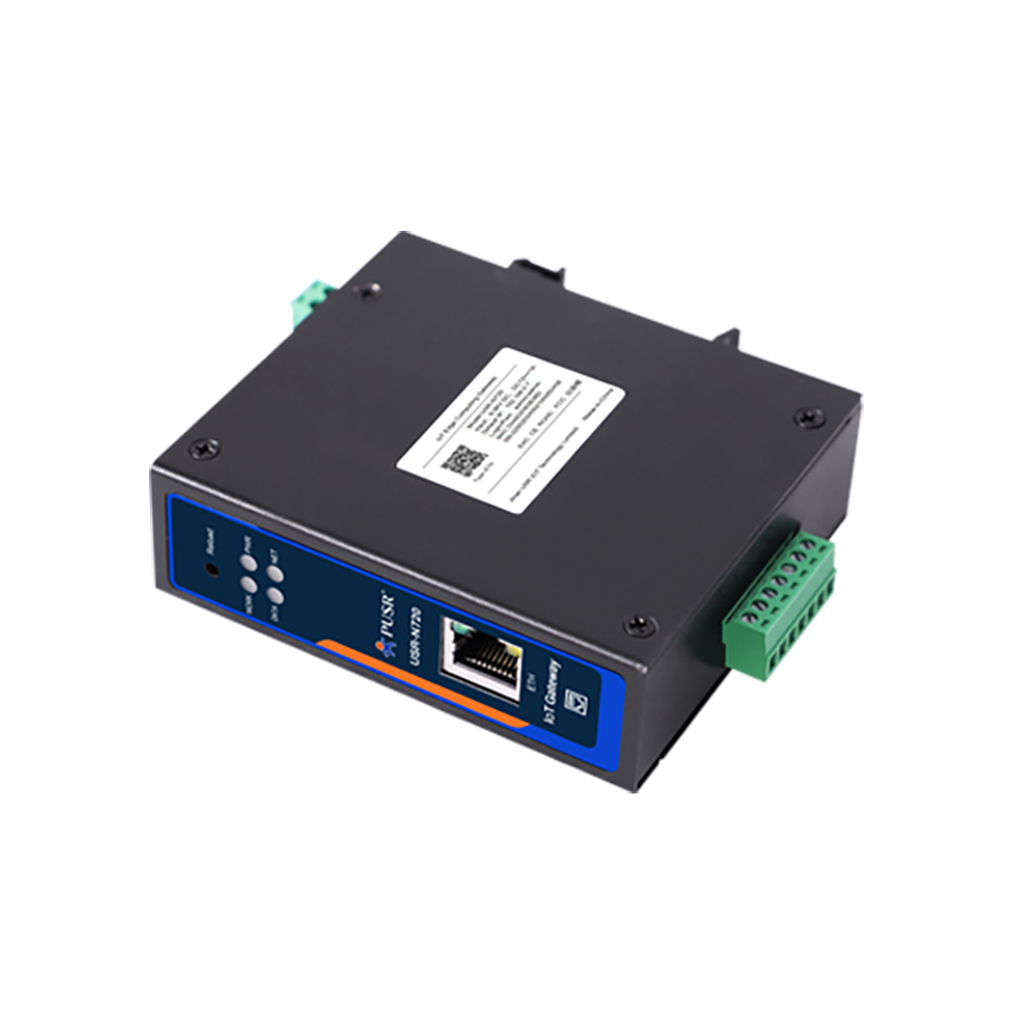

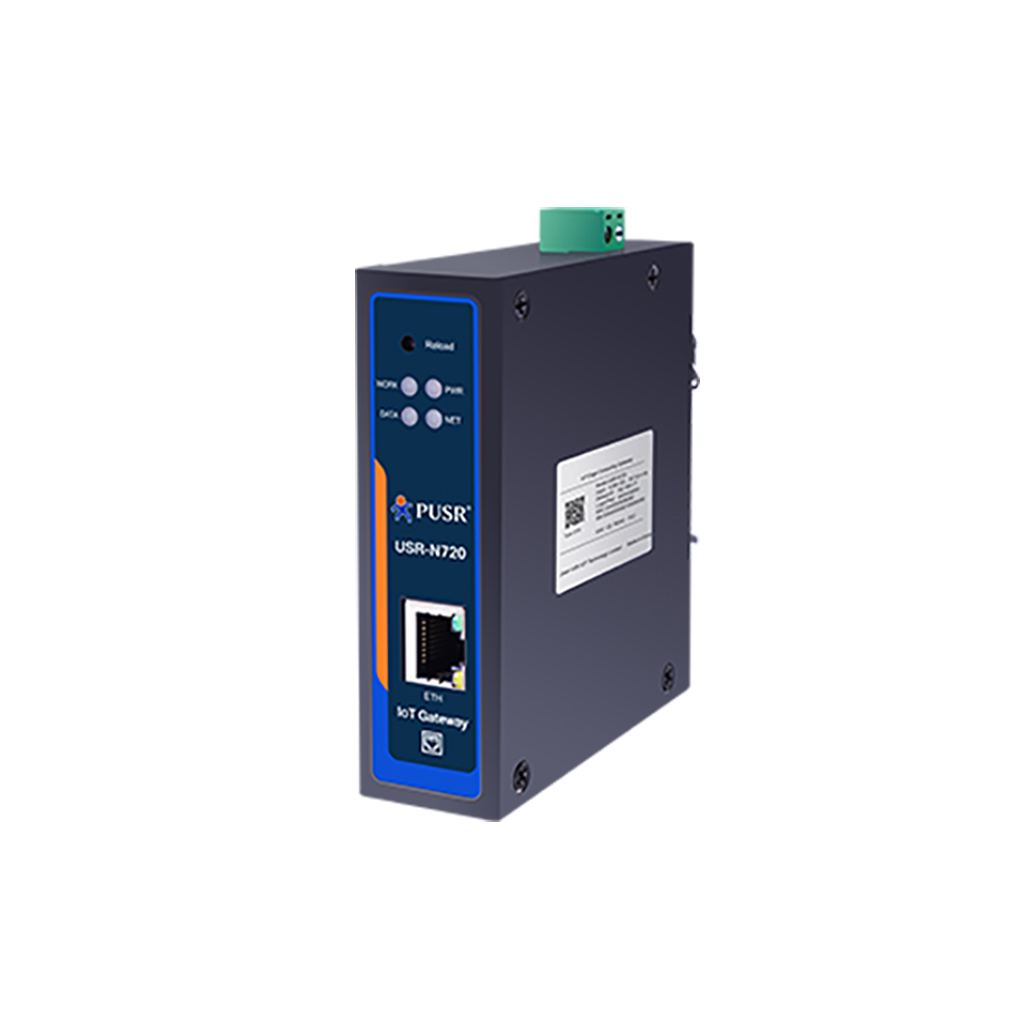

USR-N720 IoT Edge Gateway Support Edge Computing Protocol Conversion and TCP+SSL/MQTT+SSL Data Encryption with RS485 RJ45 Port

US$ 48.31

Plug: US Plug EU Plug UK Plug AU Plug

Add to Cart

Estimate Shipping Cost

Detail

Product Name: USR-N720 IoT Edge Gateway Support Edge Computing Protocol Conversion and TCP+SSL/MQTT+SSL Data Encryption with RS485 RJ45 Port
Item NO.: F54870-D1 F54870-D2 F54870-D3 F54870-D4
Weight: 0.6 kg = 1.3228 lb = 21.1644 oz
Category: Industrial Technology
Brand: USR
Creation Time: 2025-11-26

USR-N720 IoT Edge Gateway Support Edge Computing Protocol Conversion and TCP+SSL/MQTT+SSL Data Encryption with RS485 RJ45 Port

USR-N720 IoT Edge Gateway Support Edge Computing Protocol Conversion and TCP+SSL/MQTT+SSL Data Encryption with RS485 RJ45 Port

Model	USR-N720-ETH
Processor	RISC-V core
Frequency	Up to 600MHZ
Power
Power Supply	DC 9-36V, 2-pin terminal blocks
Consumption	Avr: 75mA@12V Max: 85mA@12V
Ethernet
Port Number	1 x RJ45
Rate	10 /100 Mbps, auto MDI/MDX
Protection	2KV electromagnetic isolation
Serial Port
Port Number	2 x RS485, 7-pin terminal blocks
Baud rate	600 bps~230400 bps
Data Bits	7, 8
Stop Bit(s)	1, 2
Parity Bit	None, Even, Odd
Physical Character
Dimensions(mm)	98.5 x 30 x 86 (not including terminal blocks) 118.5 x 30 x 95.1 (Including teiminal blocks)
Installation	DIN rail or wall mounting
Operating Temperature	-40～85℃
Storage Temperature	-40~105℃
Operating Humility	5%～95%（Non-condensing）
Storage Humility	5%～95%（Non-condensing）
Basic Features
Network protocol	IP,TCP,MQTT,SSL/TLS,ICMP,ARP,DNS,NTP,DHCP, IPv4
IP Assignment	Static/DHCP
DNS Service	√
Built-in Webpage	√
Config Method	Built-in Webpage, Config Software
Work Mode	TCP Server/TCP client 2 * independent TCP connection supported
Edge acquisition protocol	Modbus RTU, DLT645/2007
Data reporting format	Json, Modbus TCP
Data points	Up to 1000 points
MQTT	Standard MQTT protocol Easy access to mainstream paltform: Thingsboard, AWS,Azure,etc. 2 * independent MQTT connection supported
SSL Encryption	√
Offline data cache	External SD card
Others
Certificate	CE, FCC, RoHS, WEEE

USR-N720-ETH | IoT Edge Gateway2*RS485, Protocol Conversion, Edge Computing, SD CardUSR-N720-ETH is the next generation edge IoT gateway which support edge computing, data acquisiton, protocol conversion and data reporting in json format. It comes with 2 RS485 ports and 1 RJ45 ports which can quickly establish the connection between industrial field equipment and the cloud. With these features, it can be widely used in various fields such as smart factories, smart grid, smart water service and so on.

Key Features

Multiple Interface: Ethernet+2*RS485
Powerful Edge Computing Capabilities: 1000 points+data acquisition+analysis
Data Encryption: TCP+SSL, MQTT+SSL
Protocol Conversion: Modbus to MQTT+Json, DL645 to MQTT+Json
Rich Communication Protocol: MQTT/TCP
SD Card for Data Storage：To ensure data integrity

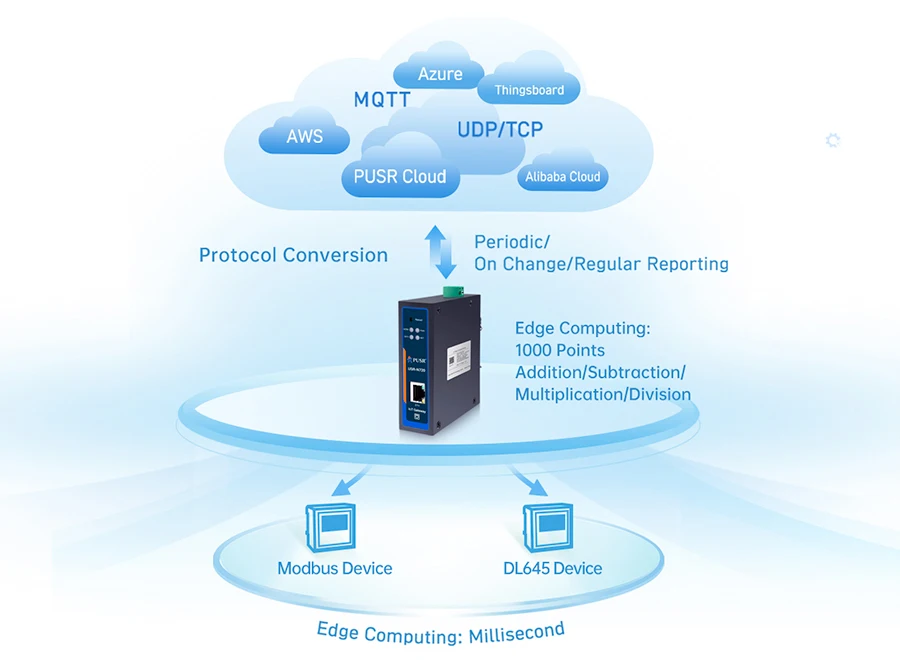

Edge Computing,
Enabling Edge Device Connectivity In The IIOT EraUSR-N720-ETH can collected data in Modbus RTU, Modbus TCP and DL/T645-2007 protocol and reporting data to IoT cloud in JSON format using MQTT or TCP protocol. It supports up to 1000 data points, and can decode and compute the collected data to reduce server’s pressure.

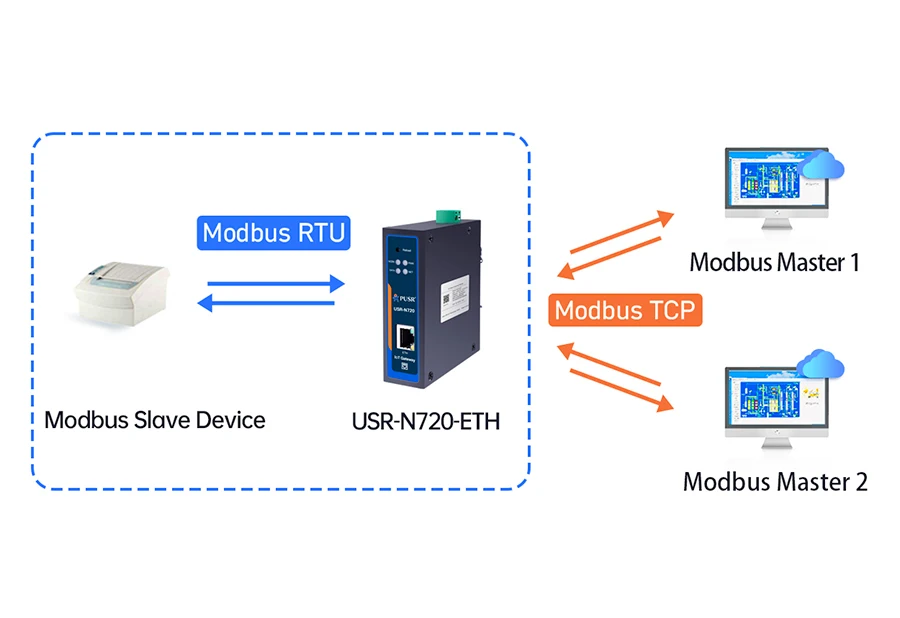

One More Thing, Modbus GatewayConnect to PLC, SCADA system or user’s private server to achieve local or remote motoring.

Modbus RTU to Modbus TCP
Multi-Host Modbus Polling

Custom Json

JSON message custom conversion
Supports protocol of various servers and can be used without complicated changes.

Data Encryption, Dual Independent MQTT/TCP
ConnectionsIt support up to 5 connections with different remote survice, including 2*MQTT, 2*TCP and 1*PUSR connection. For MQTT and TCP connections, users can enable SSL encryption to ensure data security.

Offline Data Recording on SD CardUSR-N720-ETH supports SD card for data caching, the collected data will be cached tothe SD card when the gateway is in Internet disconnection. And the cached data will be sent to server when the gateway get connection recovery.

Remote Management over PUSR CloudUsers can monitor the running status, upgrade firmware, configure parameters of the N720 remotely, saving users time and cost.

High Reliablity Design

Metal Housing: effective cooling.
Wide Power Input: DC 9-36V.
Wide Operating Temp: -40℃ ~ +85℃, industrial grade design.
High EMC Protection: ensuring stable operation in harsh environments.
Watchdog Protection: Hardware & software dual watchdog to ensure stable operation.

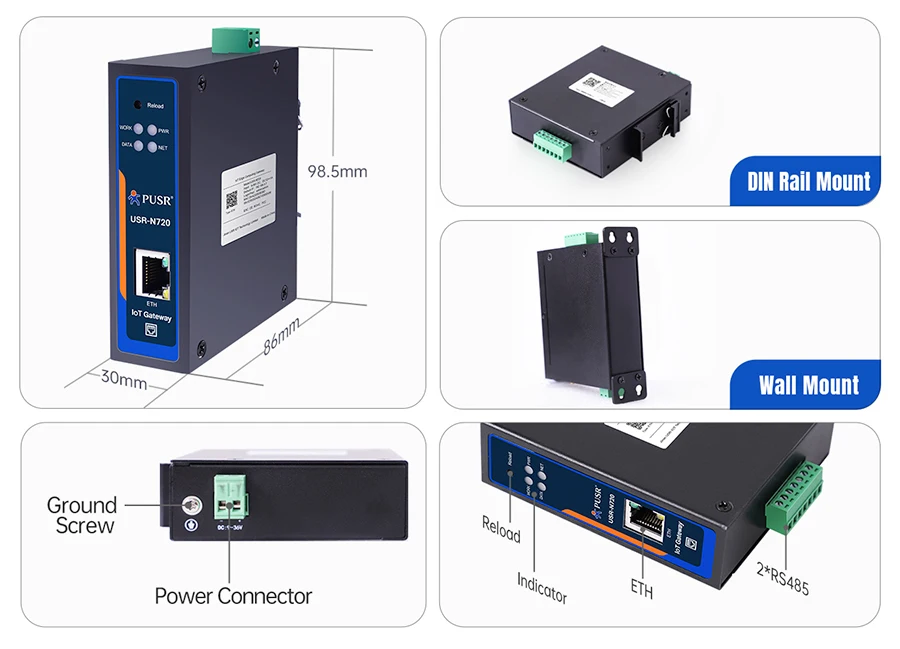

Product Details

Installation: DIN rail mount & wall mount optional
Dimension: 86*30*98.5 mm

Packing List

1. USR-N720-ETH*1
2. Power Adapter*1
3. Power Adapter Cable*1
4. Wall Mount Kit*1

Application

Smart Manufacturing
Smart Building
Smart Animal Husbandry
Intelligent Agriculture
Energy MonitoringUSR-N720-ETH | IoT Edge Gateway
