USR-EG118 Arduino Open Source IoT Gateway ESP32 Chipset C Language SDK Arduino IDE Development with 1* RS485/RS232 Serial Port Item NO.: F53965

US$ 41.62 ~ US$ 46.24

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 46.24	US$ 43.93	US$ 41.62

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

USR-EG118 Arduino Open Source IoT Gateway ESP32 Chipset C Language SDK Arduino IDE Development with 1* RS485/RS232 Serial Port

Product Name	USR-EG118 Arduino Open Source IoT Gateway ESP32 Chipset C Language SDK Arduino IDE Development with 1* RS485/RS232 Serial Port
Item NO.	F53965
Weight	0.53 kg = 1.1684 lb = 18.6952 oz
Category	Industrial Technology
Brand	USR
Creation Time	2025-03-08

USR-EG118 Arduino Open Source IoT Gateway ESP32 Chipset C Language SDK Arduino IDE Development with 1* RS485/RS232 Serial Port

EG118 Parameters
Chipset	ESP32-WROVER-E
Professor	Dual-core Xtensa® 32-bit LX6 MCU, 1.2GHz
RAM	8M
Flash	4M
Power Supply	9~36V

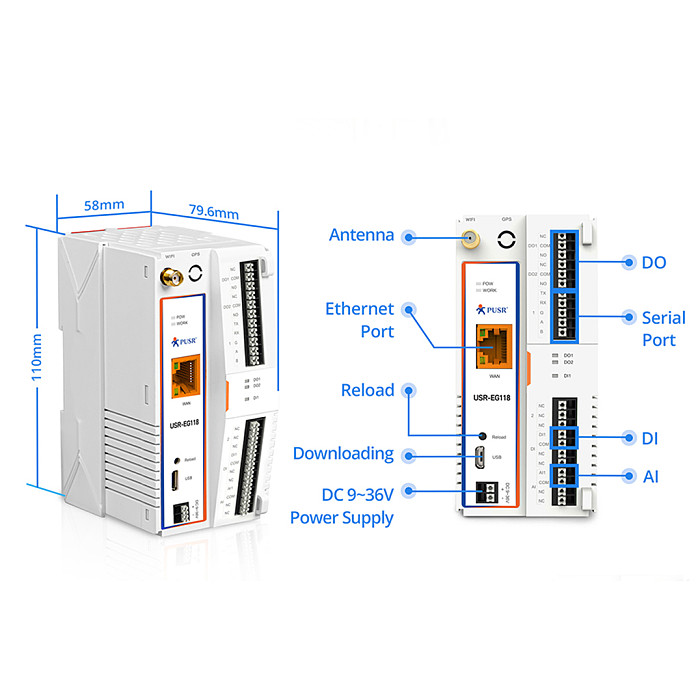

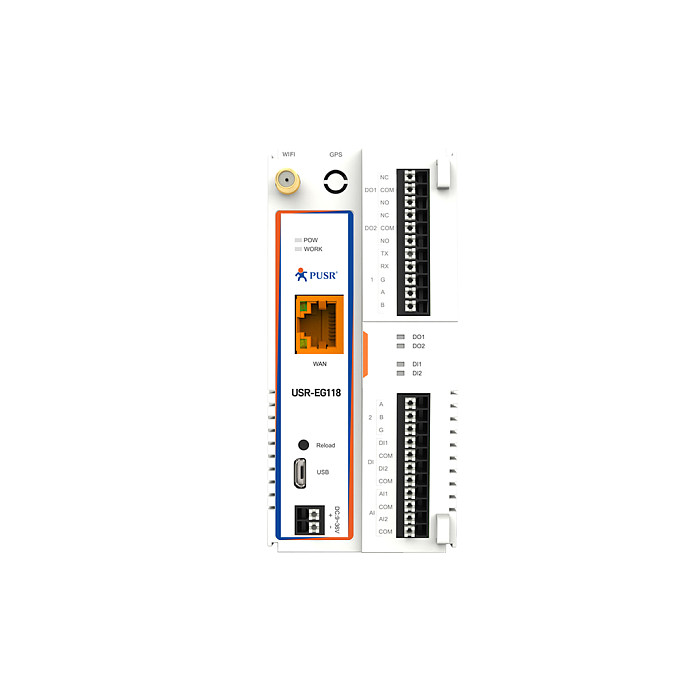

Hardware Interface
RS232/485	1*RS232/485, Default parameter: 115200, N, 8, 1
DI	1*digital input
DO	2*digital output
AI	1*analog input(4~20mA)
Wi-Fi
Stadard	IEEE802.11b/g/n
Speed	Up to 150Mbps
Frequency	2412 ~ 2484 MHz
Others
BLE	Compatible with BEL4.2

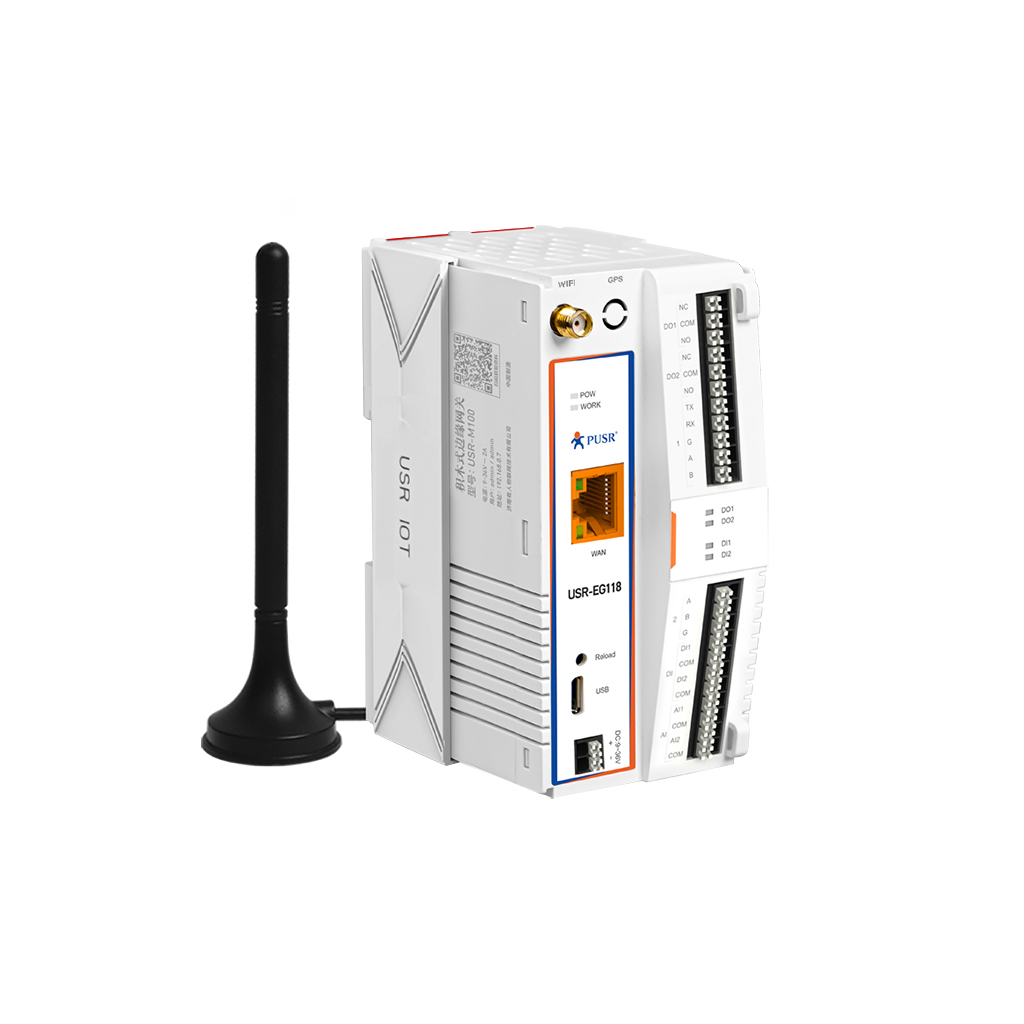

USR-EG118 | Open Source IoT GatewayESP32 Chipset, C Language SDK, Arduino IDE DevelopmentUSR-EG118 is an IoT gateway that integrates the ESP32 module designed for Arduino. It features a power-efficient Xtensa® 32-bit LX6 MCU， processor running at 240 MHz, along with 4MB of PSRAM and up to 8MB of SPI flash memory on-board. With its integrated Wi-Fi/BLE module and additional wired/wireless interfaces, this device becomes a highly versatile addition to Industrial IoT solutions.
