DIN Rail Modbus Gateway with RS485 RS232 USR-M100 Ethernet Version Remote IO MQTT SSL/TLS Edge Computing Gateway Intelligent IoT Item NO.: F49878-D1 -D4 F50324 F50325 F50326

DIN Rail Modbus Gateway with RS485 RS232 USR-M100 Ethernet Version Remote IO MQTT SSL/TLS Edge Computing Gateway Intelligent IoT

Introduction

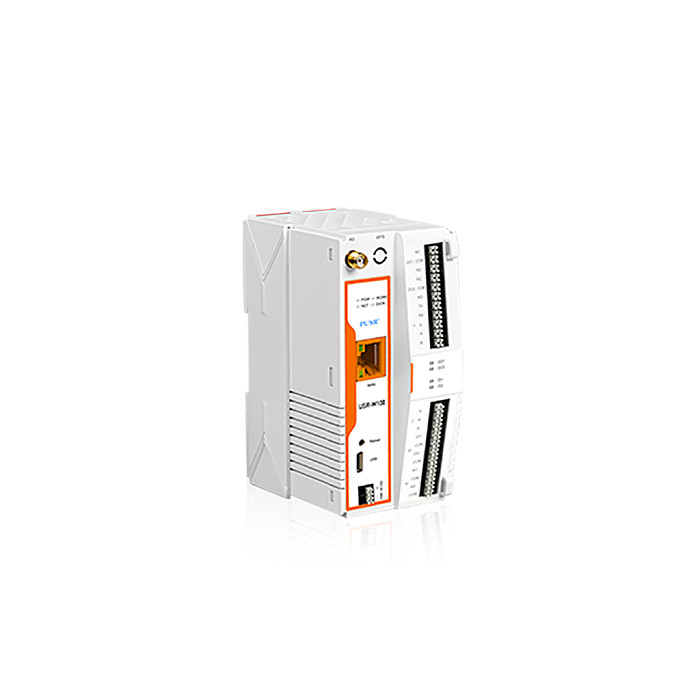

The USR-M100 is an intelligent IoT I/O gateway with comprehensive functions like on-board I/O support and RS-485/232/Ethernet interface, is an advanced modular RTU product with a unique hardware and software design, making it an ideal solution for a variety of industrial data acquisition applications. The USR-M100 has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the USR-M100 supports Modbus RTU Master protocol for retrieving field site serial data from serial meters and also supports OT/IT protocol conversion. With the ability to convert between multiple protocols, USR-M100 can convert the collected I/O and serial data to protocols suitable for different upper-level software. For example, cloud service via MQTT, SCADA via Modbus TCP, web server via HTTP, and more. This two-in-one design reduces system complexity, the amount of space required in the network topology, and overall installation time. Users can also connect your legacy devices to Ethernet, thereby increasing the lifetime of the devices since you can continue using the devices’ original protocols.

Features

⚫ High-performance CPU processing ability,using 32-bit Arm Cortex-M7 core CPU, up to 400MHz frequency

⚫ Provides remote serial access over the Internet for industrial serial devices

⚫ 10/100Mbps Ethernet port and support Auto MDI/MDIX

⚫ Built-in 15KV ESD serial port protection

⚫ Supports a wide industrial operating temperature,-40℃~85℃

⚫ Baud rate: 0.6~230.4 Kbps, and any baud rate setting, support None, Odd, Even, Mark, Space Parity bit

⚫ Flexible serial port data framing packing, which can satisfy user’s various demands for data packets segmentation

⚫ Versatile operation modes: TCP Server, TCP Client, UDP, HTTP client, Websocket server

⚫ Support virtual COM USR-VCOM(windows)

⚫ Modbus Ethernet-to-Serial support (Modbus/TCP, Modbus/RTU) for seamless integration of serial Modbus devices

⚫ Provides rich configuration access, including: Windows configuration tool, and Web Browser

⚫ Firmware upgrading via Web Browser and Windows configuration tool

⚫ High security via certificate verification SSL/TLS encryption for serial data transmission,HTTPS,TCPS,MQTTS

⚫ Support modbus RTU master,edge computing, modbus gateway,MQTT gateway

⚫ Support SNMP V1/V2c

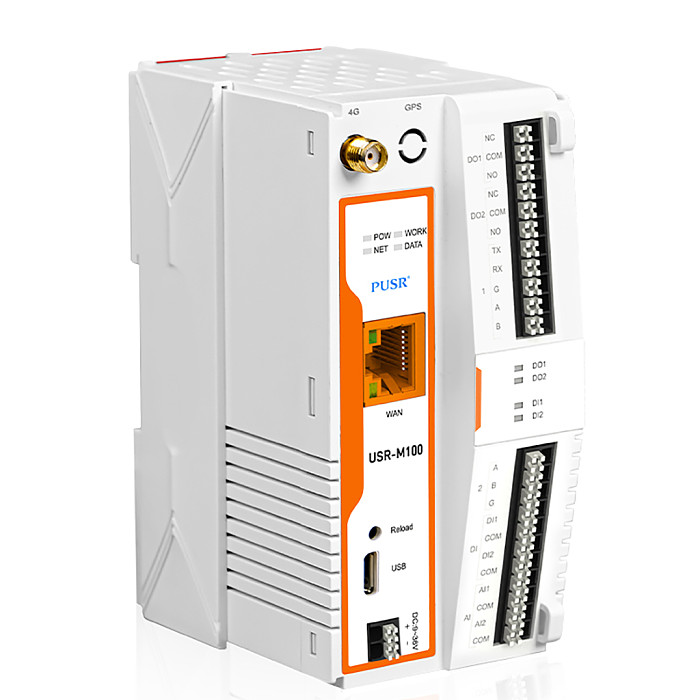

⚫ Support on board I/O for analog input(2 AI), digital input(2 DI), digital output(SSR relay,2 DO), expandable with I/O modules, digital out support linkage control

⚫ Support 2 RS485 serial port, the first one can also be RS232

⚫ Cloud support: MQTT via AWS IOT, Microsoft Azure, Thingsboard, Alibaba Cloud, EMQX, Tuya,Cumulocity IoT and so on.

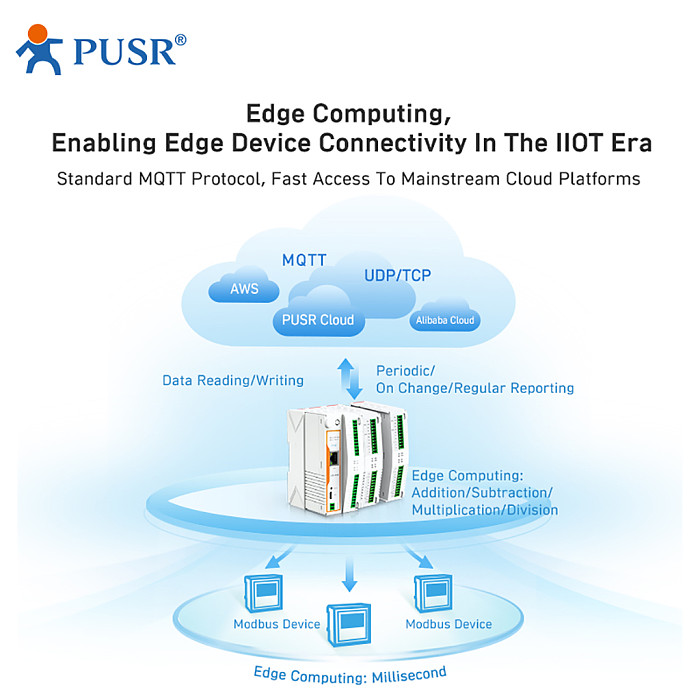

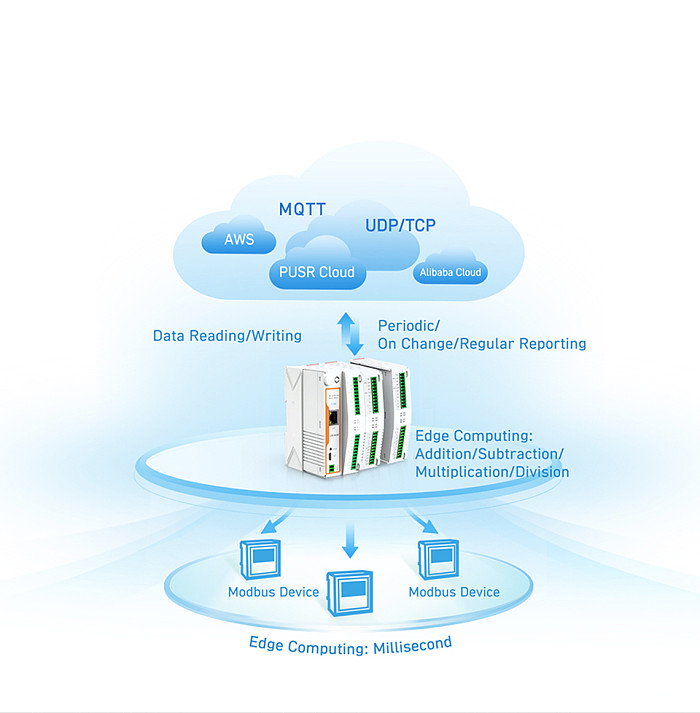

Edge Computing,
Enabling Edge Device Connectivity In The IIOT Era

Standard MQTT Protocol, Fast Access To Mainstream Cloud Platforms

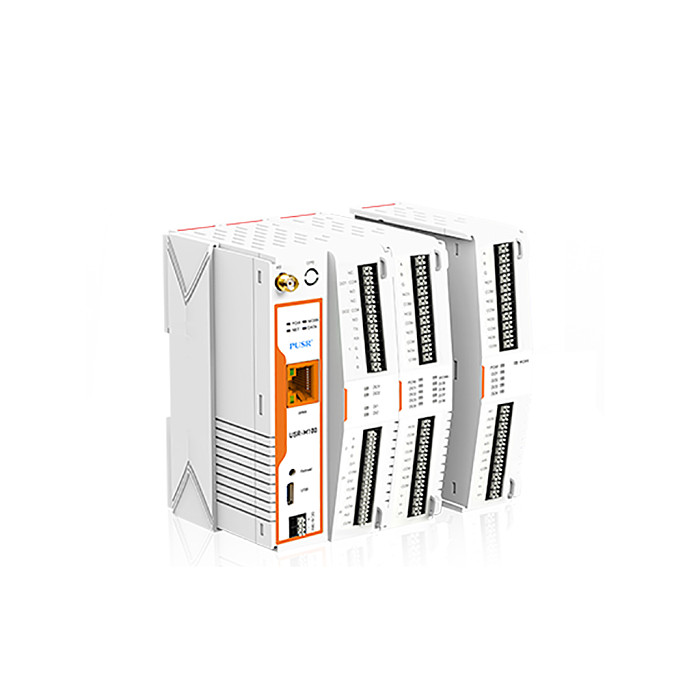

Modular IO Gateway

Creative Modular Design.
Users can extend IO Modules according to needs.
Simple & Efficient & Cost-saving

Points Linkage, IO Linkage,
Cloud Remote Control

Modbus Gateway

Support multi-host polling and Modbus protocol conversion.
Support slave data point configuration.
Report in custom Json format after edge computing.

Custom Json

JSON message custom conversion,
supports protocol of various servers and can be used without complicated changes.

High Reliability Design

Watchdog

Hardware & software dual watchdog.
7*24h stable operation without downtime.

Surge Protection

Protect device against damage caused by
instantaneous current interference in circuit,
such as lightning stroke, power switch, etc.

ESD Protection

Prevent electrostatic damage to
equipment, such as dust electrostatic,
electric arc, etc.

Product Details

Installation

Support DIN-rail & Panel Installtion

Digital Agriculture/Livestock Solutions

M100 is connected to sensors such as temperature, humidity,
water quality to monitor environmental data in real time.
Meanwhile, it can automatically control irrigation equipment,
blowers, etc based on these data, and can also be viewed and controlled on a PC and mobile phone.

Smart Home/Property Solutions

M100 can be used in various control scenarios of smart homes,
such as checking temperature and humidity, air quality,
controlling fresh air conditioners,
various solenoid valves, lighting equipment, and access control garages.
All status can be grasped through a mobile phone or computer.
