700~960MHz bandstop filter trap for removing interference from wireless communication 800 900M signals
-
Detail
- Product Name: 700~960MHz bandstop filter trap for removing interference from wireless communication 800 900M signals
- Item NO.: F54350
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: Industrial Technology
- Creation Time: 2025-07-18
- 700~960MHz bandstop filter trap for removing interference from wireless communication 800 900M signals
700~960MHz bandstop filter trap for removing interference from wireless communication 800 900M signals
characteristic:
High order, small size, low insertion loss, high selectivity, high power processing.
Application:
Specially designed to remove interference signals such as GSM900 and CDMA800 from broadband RF signals, it can be used for partial discharge
detection in power systems.
Laboratory and other highly selective applications.

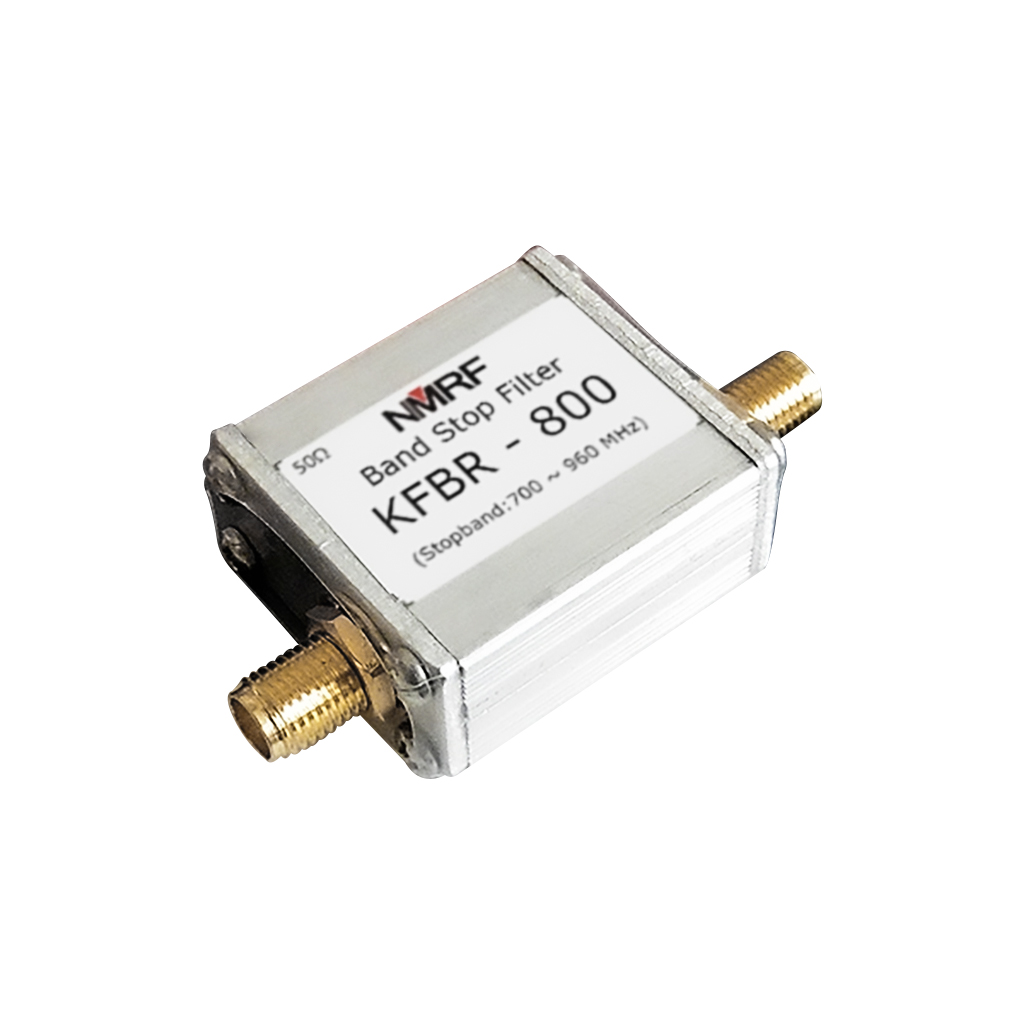

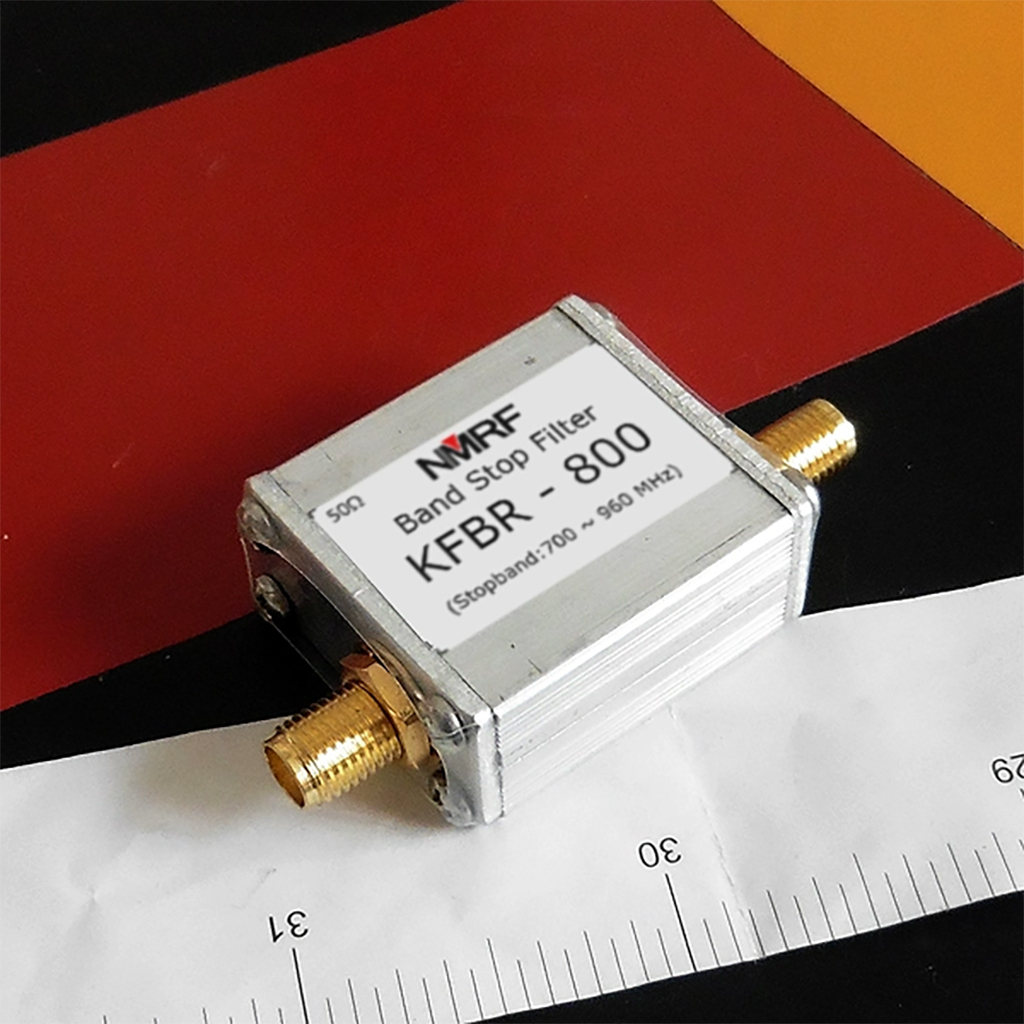

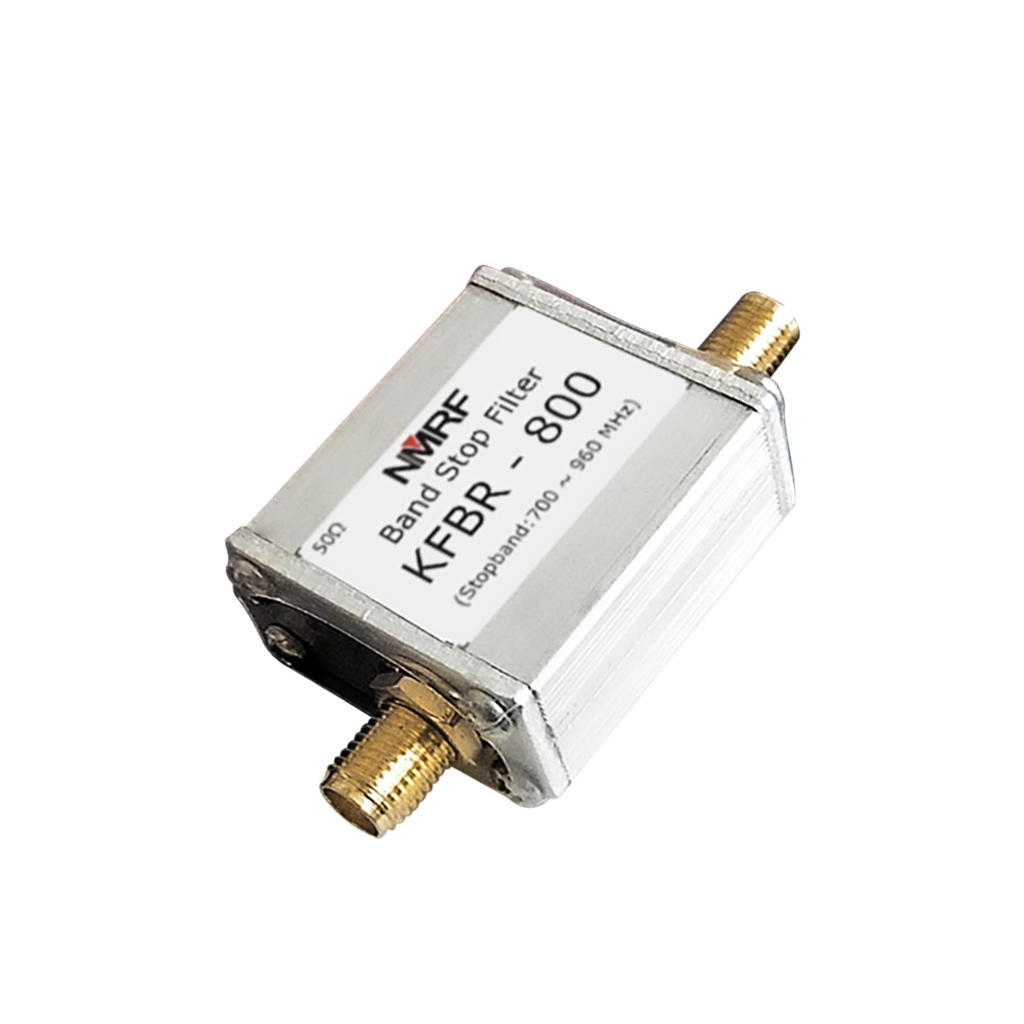

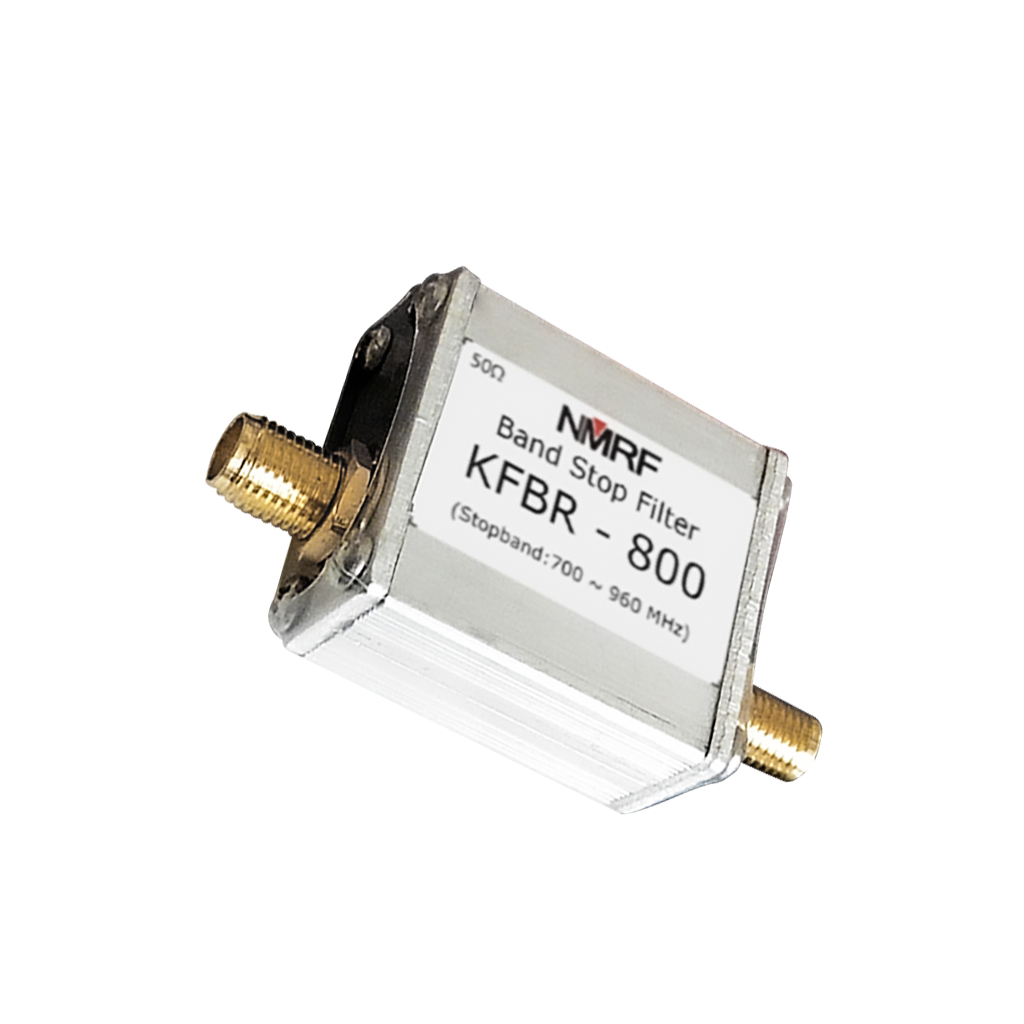

Model: KFBR-800
Impedance: 50 Ohms
Center frequency: 830 MHz
Center frequency insertion loss:>=40 dB
40dB stopband: 702~952 MHz
3dB passband edge: 580-1200 MHz
Passband insertion loss:<1.5 dB @ DC~600 MHz
<3.0dB@ 1200~ 2500 MHz
Maximum carrying power: 3W (37dBm)

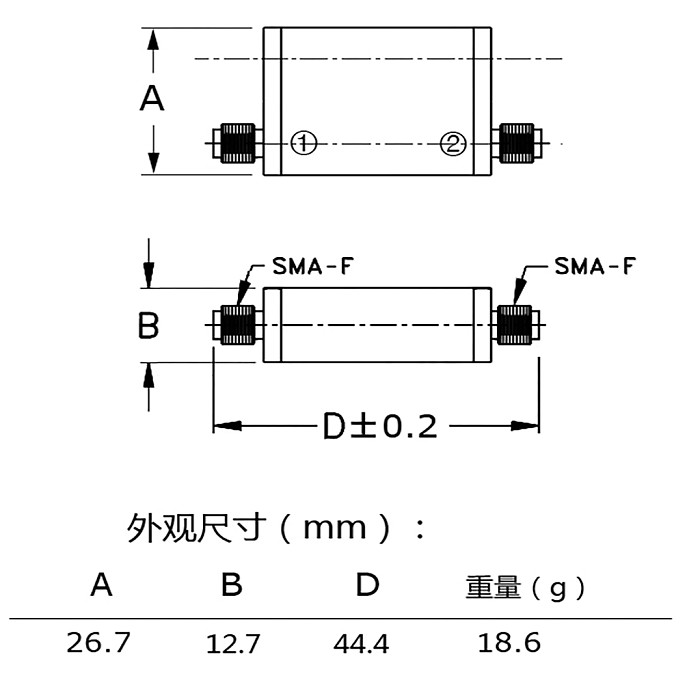

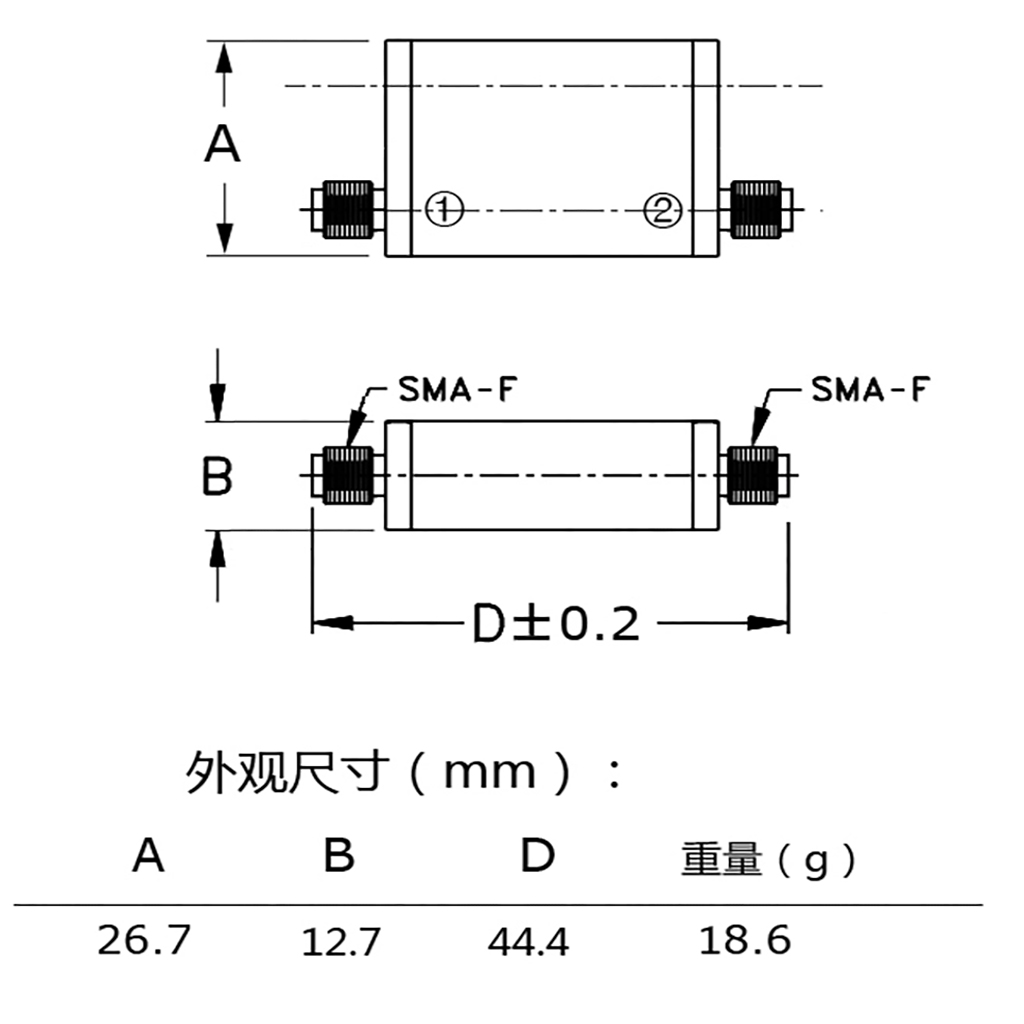

Interface: SMA-F, SMA-F

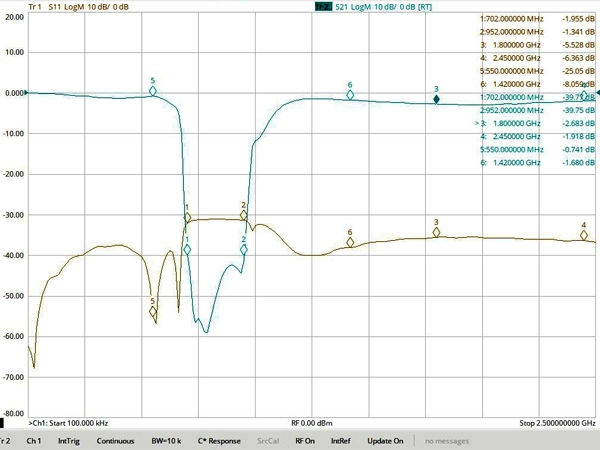

Frequency response diagram (blue-green line is S21, yellow brown line is S11, scanning range: 0.1-2500MHz). The vertical scale is 10dB per grid：
