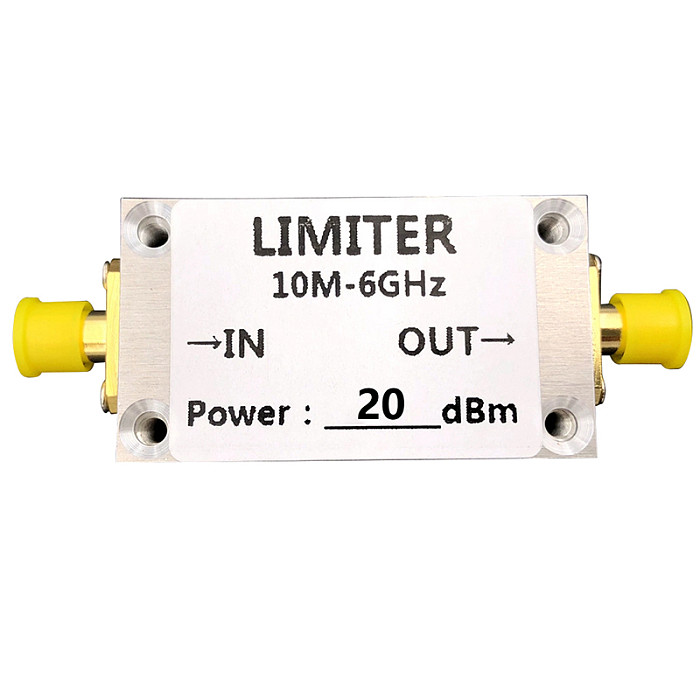

Small Size PIN Diode SMA RF Limiter 10M-6GHz +10dBm, +20dBm, 0dBm with SMA Interface for Pre-low Noise Amplifier SDR Receiver
-
Detail
- Product Name: Small Size PIN Diode SMA RF Limiter 10M-6GHz +10dBm, +20dBm, 0dBm with SMA Interface for Pre-low Noise Amplifier SDR Receiver
- Item NO.: F54238-D1 F54238-D2 F54238-D3 F54238-D4
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: Industrial Technology
- Brand: XT-XINTE
- Creation Time: 2025-05-15
- Small Size PIN Diode SMA RF Limiter 10M-6GHz +10dBm, +20dBm, 0dBm with SMA Interface for Pre-low Noise Amplifier SDR Receiver
Small Size PIN Diode SMA RF Limiter 10M-6GHz +10dBm, +20dBm, 0dBm with SMA Interface for Pre-low Noise Amplifier SDR Receiver
Introduction
RF limiters are used for input protection of low power receiving equipment such as
pre-low noise amplifiers, SDR receivers, spectrum analysers, etc. They can effectively
resist ESD damage. It can also be used for input protection of short-wave receivers.
This product contains a strong aluminium alloy shielding shell, no leakage, no interference,
small and easy to use, is the radio frequency, microwave technology experiments of the standing device.Index parameters
1, Model: Limiter 0dBm-10dBm-20dBm-30dBm-36dBm
2、Impedance: 50 Ohms
3、Insertion loss: < 0.2dB @1GHz/0dBm
< 2dB @1~3GHz/0dBm
< 3dB @3~6GHz/0dBm
Refer to the measured S21 curve
4、Maximum input power: 20dBm

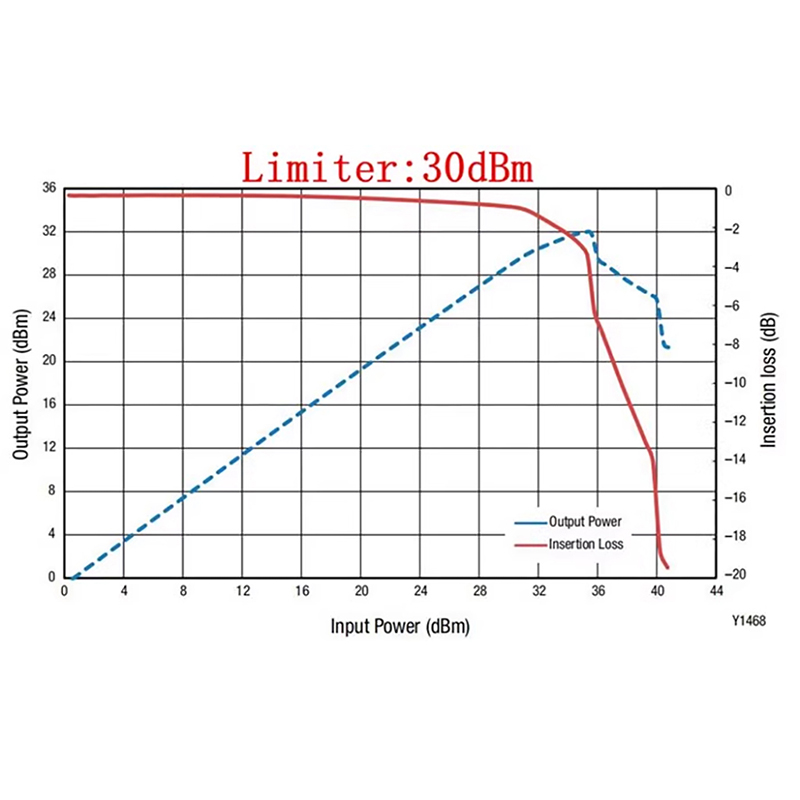

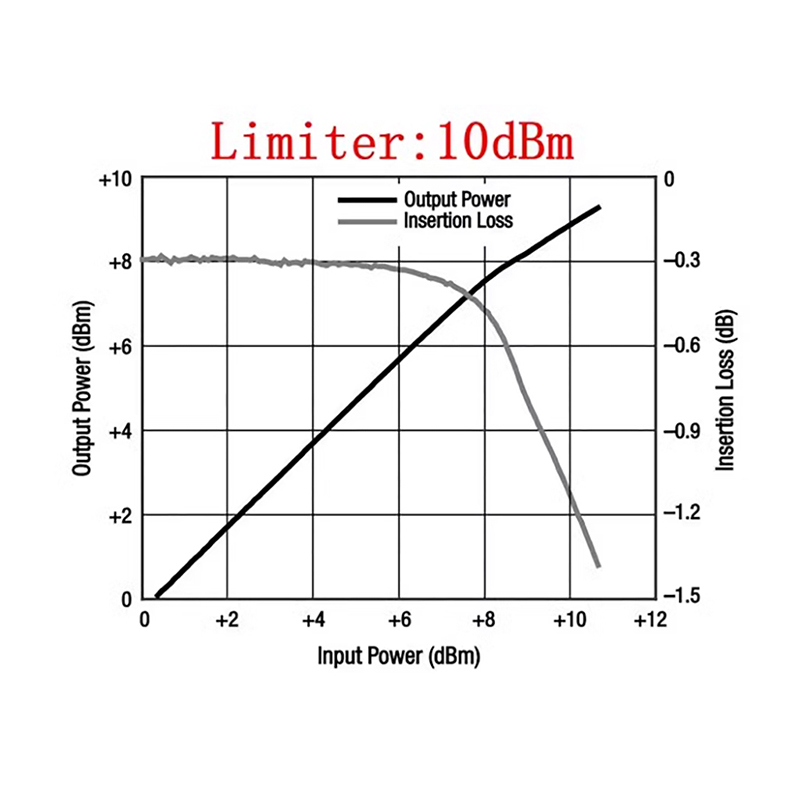

5, 1dB limit power: < 0dBm/10dBm/20dBm/30dBm/36dBm

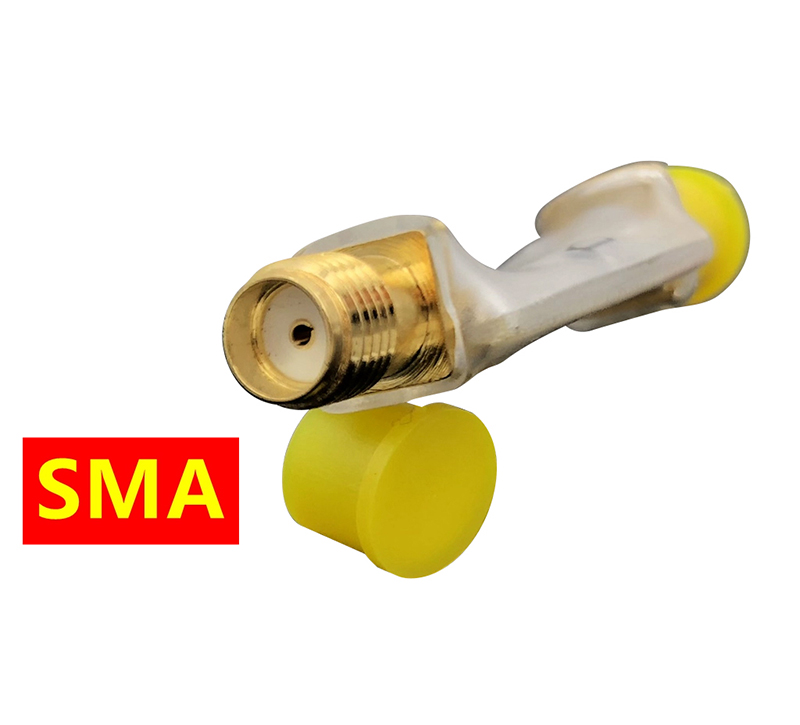

6、Interface: SMA
7、Dimensions without case: 10 * 25 (mm) without protruding SMA

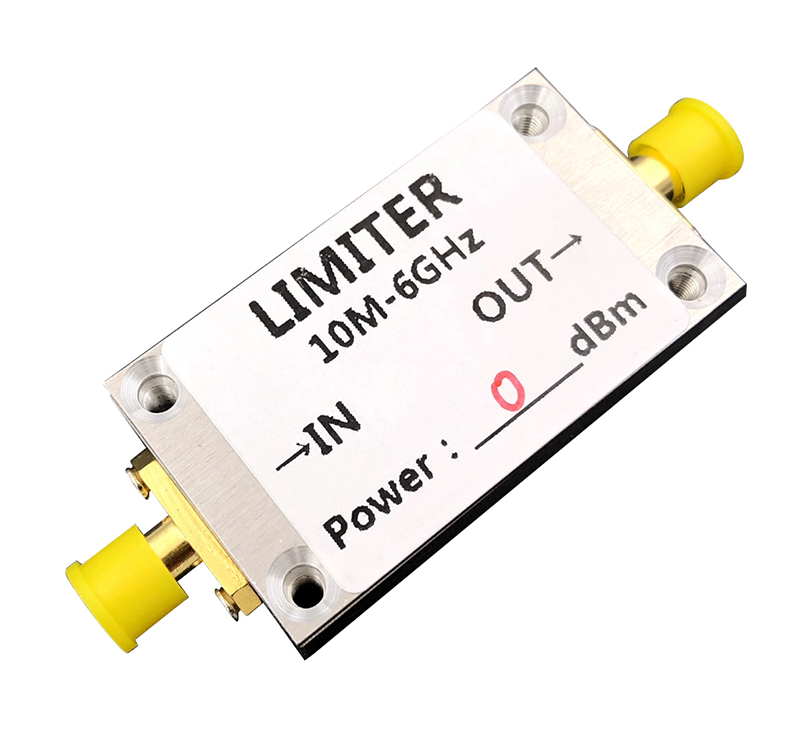

8, with the shell size - length, width and height: 45 * 25 * 12 (mm) does not include the protruding SMA

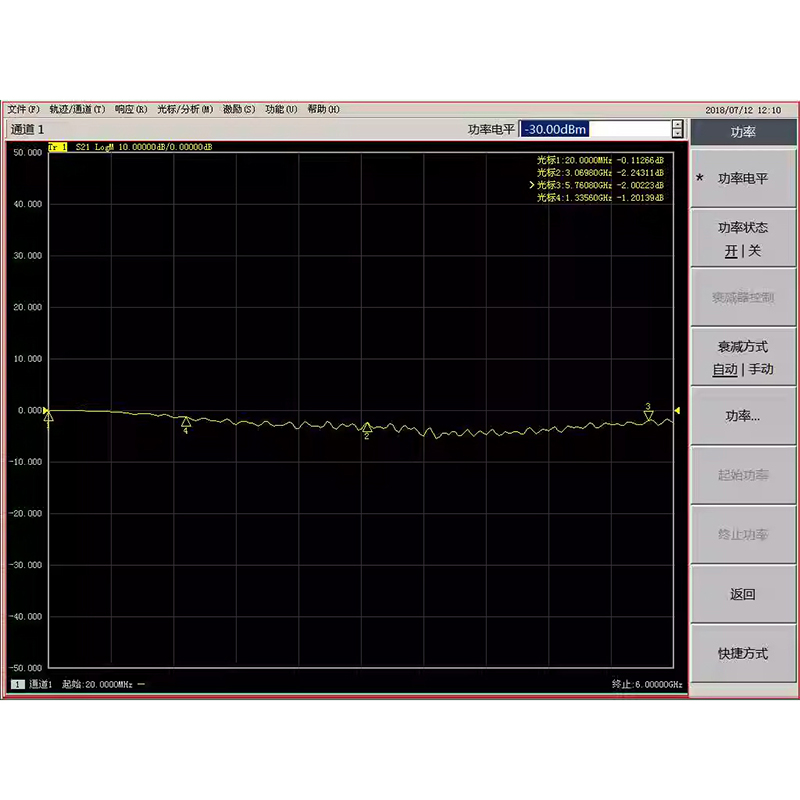

Measured S21 insertion loss (0dBm limiter frequency range up to 6GHz)
