Happymodel FTWHobby Hiker Series 5.8G 1.6W 2.5W VTX for FPV Long Range Racing Drone

US$ 38.02

Version

Estimate Shipping Cost

Detail
- Product Name: Happymodel FTWHobby Hiker Series 5.8G 1.6W 2.5W VTX for FPV Long Range Racing Drone
- Item NO.: F53697 F53698
- Weight: 0.06 kg = 0.1323 lb = 2.1164 oz
- Category: DIY RC Drone Accessories > VTX
- Brand: Happymodel
- Creation Time: 2024-12-20
- Happymodel FTWHobby Hiker Series 5.8G 1.6W 2.5W VTX for FPV Long Range Racing Drone
Happymodel FTWHobby Hiker Series 5.8G 1.6W 2.5W VTX for FPV Long Range Racing Drone

5.8GHz 1.6W VTX Specifications：

Model Name：5.8GHz 48ch Hiker 1.6WVTX
Model： Hiker 5.8GHz 1.6W
Channel：48CH/37CH(US)
Default is US 37CH version
Power level： PIT-25mw-400mw-800mw-MAX
DC 7-26V(6S lipo)
BEC output： DC 5V (Max 500mA)
Video in： CVBS PAL/NTSC
Audio in： 6.5M MONO

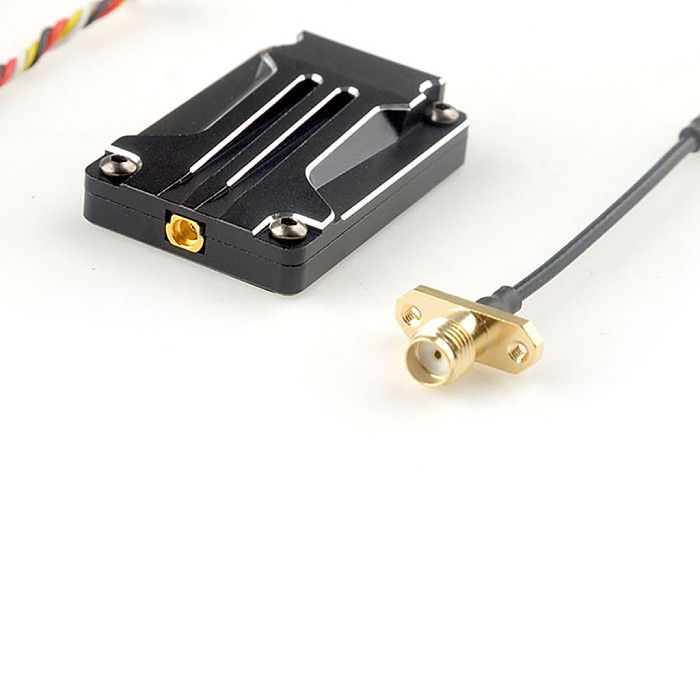

Antenna Connector：MMCX 50Ω
External Control： IRC TRAMP
Size：L39mm*W26.5mm*H9mm
Weight： 14.5gram
5.8GHz 2.5W VTX Specifications：
Brand Name： FTWHOBBY
Model： Hiker 5.8GHz 2.5W
Channel：48CH/37CH(US)
Power level： PIT-25mw-500mw-1000mw-2500MW
DC 7-26V(6S lipo)
BEC output： DC 5V(Max 500mA)
Video in： CVBS PAL/NTSC
Audio in： 6.5M MONO
Antenna Connector： MMCX 50Ω
External Control： IRC TRAMP
Size：L39mm*W26.5mm*H13mm
Weight： 20.5gram
