Sologood 3.3GHz 2.5W FPV Video Transmitter VTX 8CH 4000mW RX Receiver Kit for RC Long Range Racing Drone

US$ 44.84

Color

Estimate Shipping Cost

Detail
- Product Name: Sologood 3.3GHz 2.5W FPV Video Transmitter VTX 8CH 4000mW RX Receiver Kit for RC Long Range Racing Drone
- Item NO.: F53025-D1 F53025-D2 F53025-D3
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Category: DIY RC Drone Accessories > VTX
- Brand: SOLOGOOD
- Creation Time: 2024-08-27
Sologood 3.3GHz 2.5W FPV Video Transmitter VTX 8CH 4000mW RX Receiver Kit for RC Long Range Racing Drone

NOTE:Please make sure to connect the antenna before powering on, otherwise it will burn out!!!
Basic parameters:
Weight: 22g (excluding antenna)

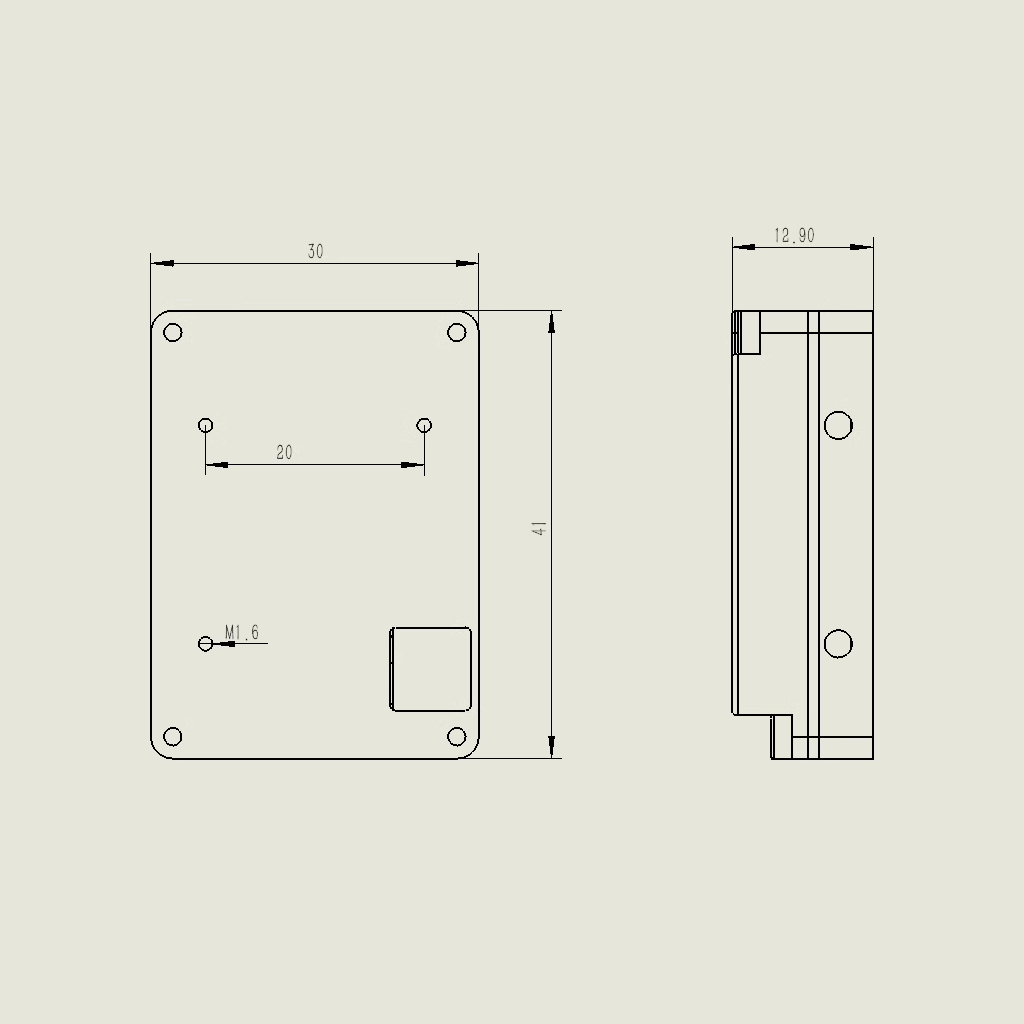

Size (length * width * thickness): 41 * 30 * 13mm (excluding button protrusion). Fixed holes with a spacing of 20 * 20mm and M1.6 threaded holes.
Working voltage: DC7V-36V (2s-8s)-
Working current: 800MA ± 100MA at 12V
Maximum power consumption: 10 watts
RF transmission power: greater than 34dBm (2.5 watts)

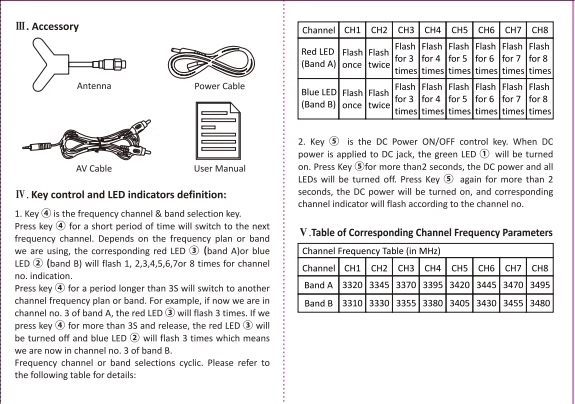

16 working channels, button selection settings
7 power levels, button selection settings
3.3GHz video transmission transmitter (compatible with PAL and NTSC) with compact structure, small size, and high transmission power
Adopting large-scale integrated circuits and automotive grade components for high reliability
Built in frequency phase-locked loop, low harmonic radiation, high reliability, stability using digital phase-locked loop circuit, no temperature drift phenomenon
Support TBS protocol OSD parameter tuning
