Copy| Product Name | FOXEER 4.9G-6G Reaper Infinity 5.8G 10W 80CH VTX 2-8S Lipo 400mW/2W/5W/7.5W/10W Switchable Transmitter for Long Range RC FPV |
| Item NO. | F52872 F52875 |
| Weight | 0.028 kg = 0.0617 lb = 0.9877 oz |
| Category | DIY RC Drone Accessories > VTX |
| Brand | Foxeer |
| Creation Time | 2024-08-10 |
Specifications:

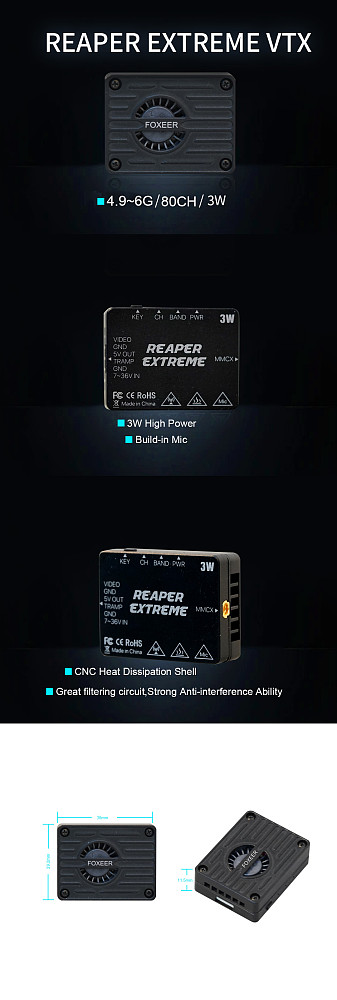

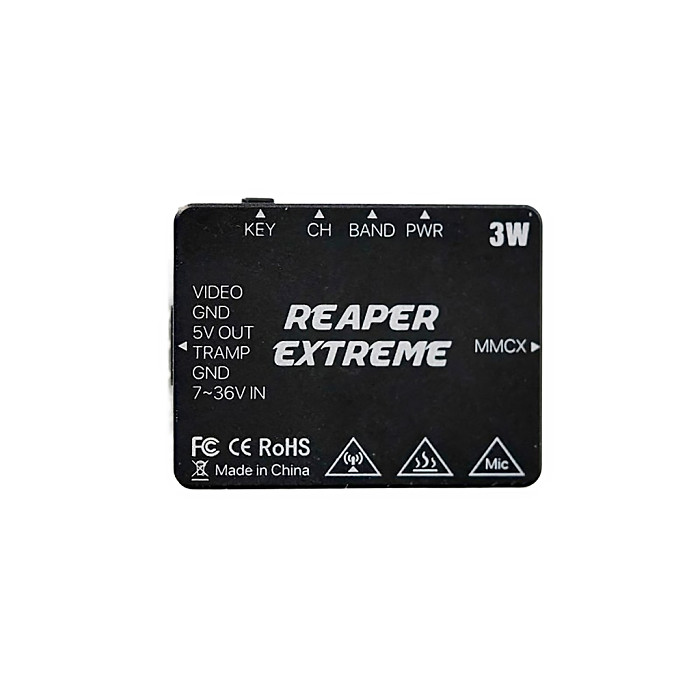

Foxeer 4.9~6G Reaper Extreme 3W 80CH VTx
| Name | Reaper Extreme 3W V2 |
| Input Voltage | 9~36V |
| Output Voltage | 5V |
| Channels | 80CH |
| Power | 25mW/200mW/500mW/1.5W/3W |
| Pit | Double click to enter |
| Fan | Yes |
| Weight | 15.2g |
| Size | 38*29.2*11.5mm |
| Consumption | 1.4A/10V |
| Package Includes | 1 x VTx; 1 x silicon cable; |
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
PIT On/Off:
Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.
Note:
If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.

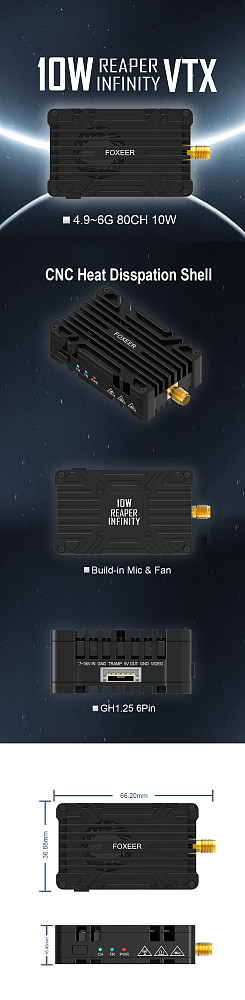

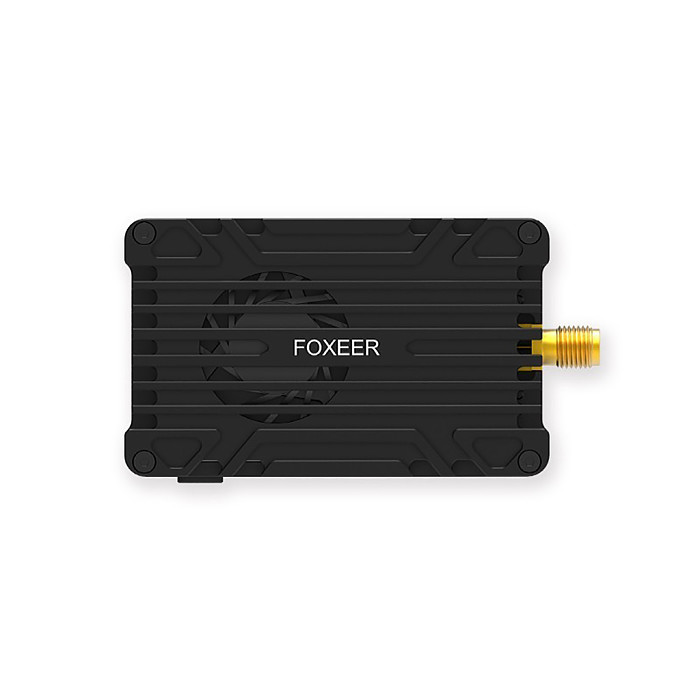

Foxeer 4.9G~6G Reaper Infinity 10W
Name： Reaper Infinity 10W
Input Voltage： 9~36V
Output Voltage： 5V
Channels： 80CH
Power ：1W/2.5W/5W/7.5W/10W
Pit：Double click to enter
Weight：48g
Mounting Hole： 20*20mm M2 with 2.5mm depth
Size：66*37*16mm
Connector：SMA
Cable Connector ：GH1.25 6P
Consumption：10V/3.3A &20V/1.5A：10W
Package Include：1xVTx.1xsilicon cable

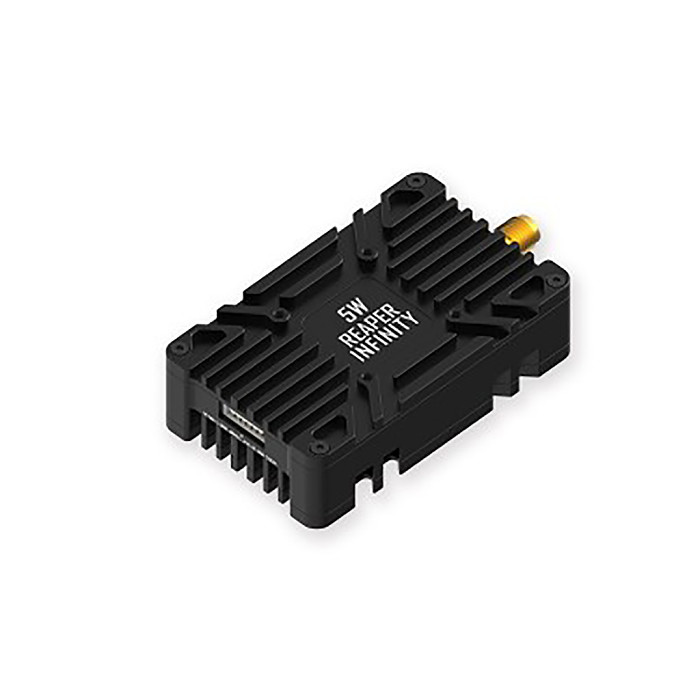

Foxeer 4.9G~6G Reaper Infinity V2 5W 80CH VTx
Name：Reaper Infinity 5W
Input Voltage ： 9~36V
Output Voltage ：5V
Channels ： 80CH
Power ：1W/2W/3W/4W/5W
Pit： Double click to enter
Weight ： 48g
Mounting Hole ：20*20mm M2 with 2.5mm depth
Size：66*37*16mm
Connector ：SMA
Cable Connector： GH1.25 6P
Consumption：10V/2.3A，5W
Package Include：1xVTx，1xsilicon cable
